本文档介绍了如何使用Spring Initializr创建一个Web聊天室项目。涉及步骤包括项目初始化、添加spring web依赖，以及展示了关键的代码结构，如pom.xml、ChatApplication、SessionGroup、SocketSession、User、WebSocketServer和WebSocketTextHandler等，还有用于测试的test.html页面。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一：创建项目：

选择spring initialzr，点击next

修改项目名称以及项目版本

选中spring web

二：参考代码：

pom.xml文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.1</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>chat</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>chat</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
        </dependency>
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

项目架构：

ChatApplication.Java代码

package com.example.chat;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.core.env.Environment;

import java.net.InetAddress;
import java.net.UnknownHostException;

@SpringBootApplication
public class ChatApplication {

    public static void main(String[] args) throws UnknownHostException {
        ConfigurableApplicationContext application = SpringApplication.run(ChatApplication.class, args);
        Environment env = application.getEnvironment();
        String host = InetAddress.getLocalHost().getHostAddress();
        String port = env.getProperty("server.port");
        System.out.println("[----------------------------------------------------------]");
        System.out.println("聊天室启动成功！点击进入:\t http://" + host + ":" + port);
        System.out.println("[----------------------------------------------------------");
        WebSocketServer.inst().run(53134);
    }

}

SessionGroup.Java代码

package com.example.chat;

import com.google.gson.Gson;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelFutureListener;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.ChannelGroupFuture;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import io.netty.util.concurrent.ImmediateEventExecutor;
import org.springframework.util.StringUtils;

import java.util.Iterator;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

public final class SessionGroup {

    private static SessionGroup singleInstance = new SessionGroup();

// 组的映射
    private ConcurrentHashMap<String, ChannelGroup> groupMap = new ConcurrentHashMap<>();

    public static SessionGroup inst() {
        return singleInstance;
    }

    public void shutdownGracefully() {

        Iterator<ChannelGroup> groupIterator = groupMap.values().iterator();
        while (groupIterator.hasNext()) {
            ChannelGroup group = groupIterator.next();
            group.close();
        }
    }

    public void sendToOthers(Map<String, String> result, SocketSession s) {
        // 获取组
        ChannelGroup group = groupMap.get(s.getGroup());
        if (null == group) {
            return;
        }
        Gson gson=new Gson();
        String json = gson.toJson(result);
        // 自己发送的消息不返回给自己
//      Channel channel = s.getChannel();
        // 从组中移除通道
//      group.remove(channel);
        ChannelGroupFuture future = group.writeAndFlush(new TextWebSocketFrame(json));
        future.addListener(f -> {
            System.out.println("完成发送："+json);
//          group.add(channel);//发送消息完毕重新添加。

        });
    }

    public void addSession(SocketSession session) {

        String groupName = session.getGroup();
        if (StringUtils.isEmpty(groupName)) {
            // 组为空，直接返回
            return;
        }
        ChannelGroup group = groupMap.get(groupName);
        if (null == group) {
            group = new DefaultChannelGroup(ImmediateEventExecutor.INSTANCE);
            groupMap.put(groupName, group);
        }
        group.add(session.getChannel());
    }

    /**
     * 关闭连接， 关闭前发送一条通知消息
     */
    public void closeSession(SocketSession session, String echo) {
        ChannelFuture sendFuture = session.getChannel().writeAndFlush(new TextWebSocketFrame(echo));
        sendFuture.addListener(new ChannelFutureListener() {
            public void operationComplete(ChannelFuture future) {
                System.out.println("关闭连接："+echo);
                future.channel().close();
            }
        });
    }

    /**
     * 关闭连接
     */
    public void closeSession(SocketSession session) {

        ChannelFuture sendFuture = session.getChannel().close();
        sendFuture.addListener(new ChannelFutureListener() {
            public void operationComplete(ChannelFuture future) {
                System.out.println("发送所有完成："+session.getUser().getNickname());
            }
        });

    }

    /**
     * 发送消息
     * @param ctx 上下文
     * @param msg 待发送的消息
     */
    public void sendMsg(ChannelHandlerContext ctx, String msg) {
        ChannelFuture sendFuture = ctx.writeAndFlush(new TextWebSocketFrame(msg));
        sendFuture.addListener(f -> {//发送监听
            System.out.println("对所有发送完成："+msg);
        });
    }
}

SocketSession .Java

package com.example.chat;

import io.netty.channel.Channel;
import io.netty.channel.ChannelHandlerContext;
import io.netty.util.AttributeKey;

import java.util.HashMap;
import java.util.Map;
import java.util.UUID;

public class SocketSession {

    public static final AttributeKey<SocketSession> SESSION_KEY = AttributeKey.valueOf("SESSION_KEY");

    /**
     * 用户实现服务端会话管理的核心
     */
// 通道
    private Channel channel;
    // 用户
    private User user;

    // session唯一标示
    private final String sessionId;

    private String group;

/**
 * session中存储的session 变量属性值
 */
    private Map<String, Object> map = new HashMap<String, Object>();

    public SocketSession(Channel channel) {//注意传入参数channel。不同客户端会有不同channel
        this.channel = channel;
        this.sessionId = buildNewSessionId();
        channel.attr(SocketSession.SESSION_KEY).set(this);
    }

    // 反向导航
    public static SocketSession getSession(ChannelHandlerContext ctx) {//注意ctx，不同的客户端会有不同ctx
        Channel channel = ctx.channel();
        return channel.attr(SocketSession.SESSION_KEY).get();
    }

    // 反向导航
    public static SocketSession getSession(Channel channel) {
        return channel.attr(SocketSession.SESSION_KEY).get();
    }

    public String getId() {
        return sessionId;
    }

    private static String buildNewSessionId() {
        String uuid = UUID.randomUUID().toString();
        return uuid.replaceAll("-", "");
    }

    public synchronized void set(String key, Object value) {
        map.put(key, value);
    }

    public synchronized <T> T get(String key) {
        return (T) map.get(key);
    }

    public boolean isValid() {
        return getUser() != null ? true : false;
    }

    public User getUser() {
        return user;
    }

    public void setUser(User user) {
        this.user = user;
    }

    public String getGroup() {
        return group;
    }

    public void setGroup(String group) {
        this.group = group;
    }

    public Channel getChannel() {
        return channel;
    }
}

User.Java

package com.example.chat;

import java.util.Objects;

public class User {

    public String id;
    public String nickname;

    public User(String id, String nickname) {
        super();
        this.id = id;
        this.nickname = nickname;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getNickname() {
        return nickname;
    }

    public void setNickname(String nickname) {
        this.nickname = nickname;
    }

    @Override
    public boolean equals(Object o) {
        if (this == o)
            return true;
        if (o == null || getClass() != o.getClass())
            return false;
        User user = (User) o;
        return id.equals(user.getId());
    }

    @Override
    public int hashCode() {

        return Objects.hash(id);
    }

    public String getUid() {

        return id;
    }
}

WebSocketServer.Java

package com.example.chat;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.Channel;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.codec.http.websocketx.extensions.compression.WebSocketServerCompressionHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
import io.netty.handler.timeout.IdleStateHandler;

import java.util.concurrent.TimeUnit;

public class WebSocketServer {

    private static WebSocketServer wbss;

    private static final int READ_IDLE_TIME_OUT = 60; // 读超时
    private static final int WRITE_IDLE_TIME_OUT = 0;// 写超时
    private static final int ALL_IDLE_TIME_OUT = 0; // 所有超时

    public static WebSocketServer inst() {
        return wbss = new WebSocketServer();
    }

    public void run(int port) {
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        ServerBootstrap b = new ServerBootstrap();
        b.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class)
                .childHandler(new ChannelInitializer <SocketChannel>() {
            @Override
            protected void initChannel(SocketChannel ch) throws Exception {
                ChannelPipeline pipeline = ch.pipeline();
                // Netty自己的http解码器和编码器，报文级别 HTTP请求的解码和编码
                pipeline.addLast(new HttpServerCodec());
                // ChunkedWriteHandler 是用于大数据的分区传输
                // 主要用于处理大数据流，比如一个1G大小的文件如果你直接传输肯定会撑暴jvm内存的;
                // 增加之后就不用考虑这个问题了
                pipeline.addLast(new ChunkedWriteHandler());
                // HttpObjectAggregator 是完全的解析Http消息体请求用的
                // 把多个消息转换为一个单一的完全FullHttpRequest或是FullHttpResponse，
                // 原因是HTTP解码器会在每个HTTP消息中生成多个消息对象HttpRequest/HttpResponse,HttpContent,LastHttpContent
                pipeline.addLast(new HttpObjectAggregator(64 * 1024));
                // WebSocket数据压缩
                pipeline.addLast(new WebSocketServerCompressionHandler());
                // WebSocketServerProtocolHandler是配置websocket的监听地址/协议包长度限制
                pipeline.addLast(new WebSocketServerProtocolHandler("/ws", null, true, 10 * 1024));

                // 当连接在60秒内没有接收到消息时，就会触发一个 IdleStateEvent 事件，
                // 此事件被 HeartbeatHandler 的 userEventTriggered 方法处理到
                pipeline.addLast(
                        new IdleStateHandler(READ_IDLE_TIME_OUT, WRITE_IDLE_TIME_OUT, ALL_IDLE_TIME_OUT, TimeUnit.SECONDS));

                // WebSocketServerHandler、TextWebSocketFrameHandler 是自定义逻辑处理器，
                pipeline.addLast(new WebSocketTextHandler());
            }
        });
        Channel ch = b.bind(port).syncUninterruptibly().channel();
        ch.closeFuture().syncUninterruptibly();

        // 返回与当前Java应用程序关联的运行时对象
        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                SessionGroup.inst().shutdownGracefully();
                bossGroup.shutdownGracefully();
                workerGroup.shutdownGracefully();
            }
        });
    }
}

WebSocketTextHandler.Java

package com.example.chat;

import com.google.gson.Gson;
import com.google.gson.reflect.TypeToken;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.timeout.IdleState;
import io.netty.handler.timeout.IdleStateEvent;

import java.util.HashMap;
import java.util.Map;

import static com.fasterxml.jackson.databind.type.LogicalType.Map;

public class WebSocketTextHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {

@Override
protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {
        SocketSession session = SocketSession.getSession(ctx);
        TypeToken<HashMap<String, String>> typeToken = new TypeToken<HashMap<String, String>>() {
        };

        Gson gson=new Gson();
        java.util.Map<String,String> map = gson.fromJson(msg.text(), typeToken.getType());
        User user = null;
        switch (map.get("type")) {
        case "msg":
        Map<String, String> result = new HashMap<>();
        user = session.getUser();
        result.put("type", "msg");
        result.put("msg", map.get("msg"));
        result.put("sendUser", user.getNickname());
        SessionGroup.inst().sendToOthers(result, session);
        break;
        case "init":
        String room = map.get("room");
        session.setGroup(room);
        String nick = map.get("nick");
        user = new User(session.getId(), nick);
        session.setUser(user);
        SessionGroup.inst().addSession(session);
        break;
        }
        }

@Override
public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {

        // 是否握手成功，升级为 Websocket 协议
        if (evt == WebSocketServerProtocolHandler.ServerHandshakeStateEvent.HANDSHAKE_COMPLETE) {
        // 握手成功，移除 HttpRequestHandler，因此将不会接收到任何消息
        // 并把握手成功的 Channel 加入到 ChannelGroup 中
        new SocketSession(ctx.channel());
        } else if (evt instanceof IdleStateEvent) {
        IdleStateEvent stateEvent = (IdleStateEvent) evt;
        if (stateEvent.state() == IdleState.READER_IDLE) {
        System.out.println("bb22");
        }
        } else {
        super.userEventTriggered(ctx, evt);
        }
        }
        }

test.html

<!DOCTYPE HTML>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
    <title>群聊天室</title>
    <style type="text/css">
    body {
        margin-right:50px;
        margin-left:50px;
    }
    .ddois {
        position: fixed;
        left: 120px;
        bottom: 30px;
    }
    </style>
</head>
<body>
     群名：<input type="text" id="room" name="group" placeholder="请输入群">
    <br /><br />
     昵称：<input type="text" id="nick" name="name" placeholder="请输入昵称">
    <br /><br />
    <button type="button" onclick="enter()">进入聊天群</button>
    <br /><br />
    <div id="message"></div>
    <br /><br />
    <div class="ddois">
    <textarea name="send" id="text" rows="10" cols="30" placeholder="输入发送消息"></textarea>
    <br /><br />
    <button type="button" onclick="send()">发送</button>
    </div>
    <script type="text/javascript">
        var webSocket;

        if (window.WebSocket) {
            webSocket = new WebSocket("ws://localhost:53134/ws");
        } else {
            alert("抱歉，您的浏览器不支持WebSocket协议!");
        }

        //连通之后的回调事件
        webSocket.onopen = function() {
            console.log("已经连通了websocket");
//                setMessageInnerHTML("已经连通了websocket");
        };
        //连接发生错误的回调方法
        webSocket.onerror = function(event){
            console.log("出错了");
//              setMessageInnerHTML("连接失败");
        };

        //连接关闭的回调方法
        webSocket.onclose = function(){
            console.log("连接已关闭...");

        }

            //接收到消息的回调方法
        webSocket.onmessage = function(event){
            console.log("bbdds");
            var data = JSON.parse(event.data)
            var msg = data.msg;
            var nick = data.sendUser;
            switch(data.type){
                case 'init':
                    console.log("mmll");
                    break;
                case 'msg':
                    console.log("bblld");
                    setMessageInnerHTML(nick+":  "+msg);
                    break;
                default:
                    break;
            }
        }
        function enter(){
            var map = new Map();
            var nick=document.getElementById('nick').value;
            var room=document.getElementById('room').value;
            map.set("type","init");
            map.set("nick",nick);
            console.log(room);
            map.set("room",room);
            var message = Map2Json(map);
            webSocket.send(message);
        }

        function send() {
            var msg = document.getElementById('text').value;
            var nick = document.getElementById('nick').value;
            console.log("1:"+msg);
            if (msg != null && msg != ""){
                var map = new Map();
                map.set("type","msg");
                map.set("msg",msg);
                var map2json=Map2Json(map);
                if (map2json.length < 8000){
                    console.log("4:"+map2json);
                    webSocket.send(map2json);
                }else {
                    console.log("文本太长了，少写一点吧😭");
                }
            }
        }

        //将消息显示在网页上
        function setMessageInnerHTML(innerHTML) {
            document.getElementById("message").innerHTML += innerHTML + "<br/>";
        }

        function Map2Json(map) {
            var str = "{";
            map.forEach(function (value, key) {
                str += '"'+key+'"'+':'+ '"'+value+'",';
            })
            str = str.substring(0,str.length-1)
            str +="}";
            return str;
        }

    </script>

</body>
</html>

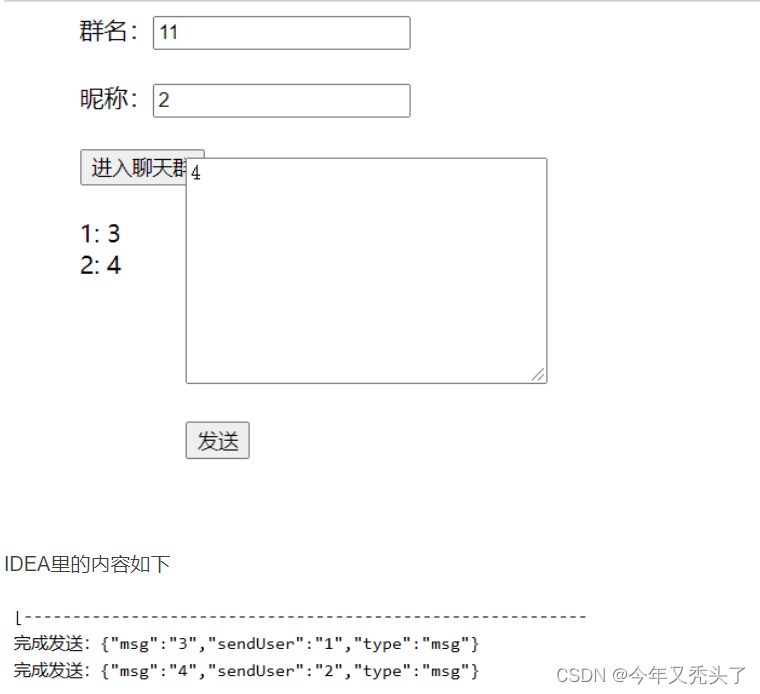

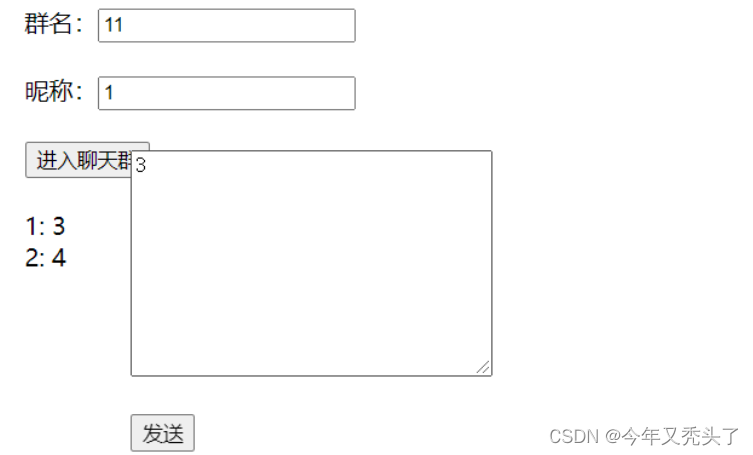

点开网页:
