VSCode 环境配置支持STM32的仿真

1. 首先下载文件：
   gcc-arm-none-eabi-9-2019-q4-major-win32-sha2
   mingw64
   openocd-0.10.0
   VSCodeSetup-x64-1.42.1

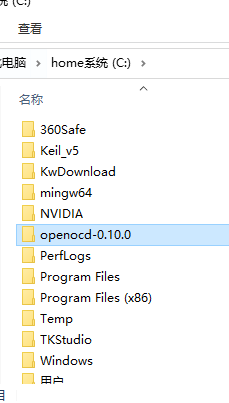

2. 安装VSCode和openocd-0.10.0。将gcc-arm-none-eabi-9-2019-q4-major-win32-sha2和mingw64解压到C盘。
   make，下载解压后将bin中的mingw32-make.exe重命名为make.exe；然后和openocd一样将make.exe所在完整目录添加到环境变量中；

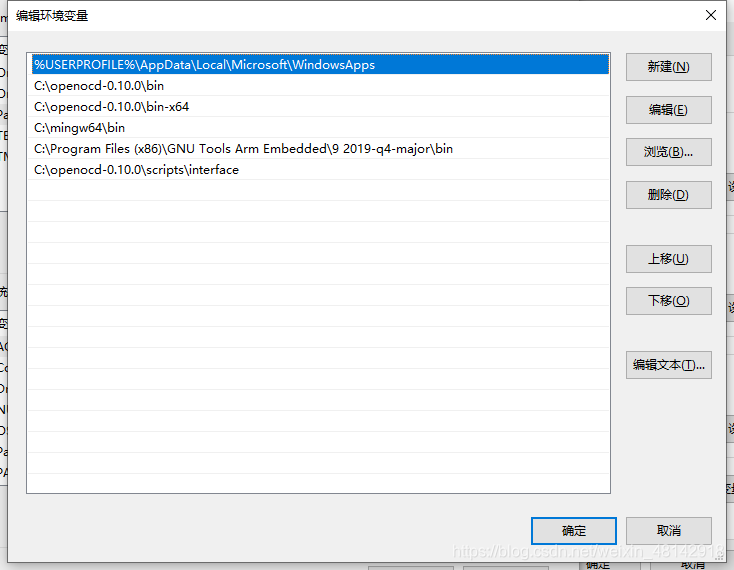

3. 环境变量包含路径

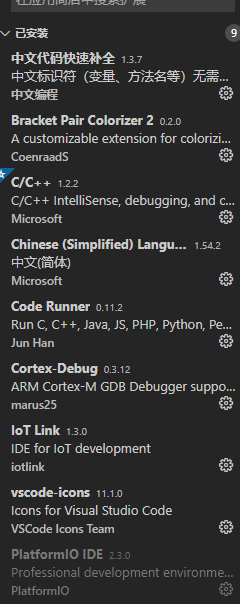

4. 打开vscode安装插件如下主要安装：c/c++,


5. 通过STM32CubeMX生成make。

6. 通过vscode打开
   找到launch.json打开后编辑如下。
   {
   // Use IntelliSense to learn about possible attributes.
   // Hover to view descriptions of existing attributes.
   // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
   “version”: “0.2.0”,
   “configurations”: [
   {
   “cwd”: “${workspaceRoot}”,
   “executable”: “./build/T1.elf”,
   “name”: “Debug Microcontroller”,
   “request”: “launch”,
   “type”: “cortex-debug”,
   “servertype”: “openocd”,
   “configFiles”: [
   “C:/openocd-0.10.0/scripts/interface/stlink-v2-1.cfg”,
   “C:/openocd-0.10.0/scripts/target/stm32f4x.cfg”
   ]
   }
   ]
   }

7. 找到tasks.json

{
“version”: “2.0.0”,
“tasks”: [
{
“type”: “shell”,
“label”: “Build”,
“command”: “make”,
“args”: [
],
“problemMatcher”: [
“KaTeX parse error: Expected 'EOF', got '}' at position 34: …up": "build" }̲, { "type…gcc”
],
“group”: “build”,
“dependsOn”:“Build”
}
]
}

8. c_cpp_properties.json
   {
   “configurations”: [
   {
   “name”: “Win32”,
   “includePath”: [
   “$workspaceFolder/\ast \ast ","${workspaceFolder}/Core/Inc”,
   “${workspaceFolder}/Drivers/STM32F4xx_HAL_Driver/Inc”
   ],
   “defines”: [
   “_DEBUG”,
   “UNICODE”,
   “_UNICODE”,
   “-DUSE_HAL_DRIVER”,
   “-DSTM32F411xE”
   ],
   “compilerPath”: “C:\mingw64\bin\gcc.exe”,
   “cStandard”: “gnu17”,
   “cppStandard”: “gnu++14”,
   “intelliSenseMode”: “gcc-arm”
   }
   ],
   “version”: 4
   }

9. 在编辑中需要用stlink-v2-1.cfg可编译下载成功。
