/以下原文未给出实际抓包演示，本人比较好奇，抓包记录一下/
转载：https://blog.youkuaiyun.com/weixin_44606722/article/details/88617634?ops_request_misc=&request_id=&biz_id=102&utm_term=ext%E5%B9%BF%E6%92%AD%E5%8C%85&utm_medium=distribute.pc_search_result.none-task-blog-2_allsobaiduweb~default-1-88617634.pc_search_result_control_group&spm=1018.2226.3001.4187

广播包内容：
在这里插入图片描述

抓包数据：
btcommon.eir_ad.entry.data：
在这里插入图片描述

广播包与抓包数据

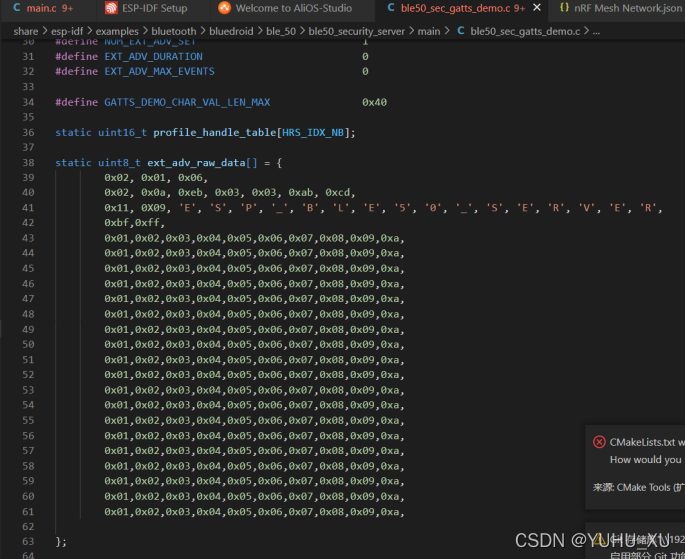

static uint8_t ext_adv_raw_data[] = {
        0x02, 0x01, 0x06,
        0x02, 0x0a, 0xeb, 0x03, 0x03, 0xab, 0xcd,
        0x11, 0X09, 'E', 'S', 'P', '_', 'B', 'L', 'E', '5', '0', '_', 'S', 'E', 'R', 'V', 'E', 'R',
        0xbf,0xff,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
        0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0xa,
};
