本文通过拓扑图和设备配置，详细介绍了如何在华为设备上设置DHCP中继，包括PC设置为DHCP获取IP，配置VLAN，AR1作为DHCP服务器，创建地址池，设定静态路由，以及在交换机SW1上配置DHCP中继，最后验证了PC1到PC4获取IP的效果。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

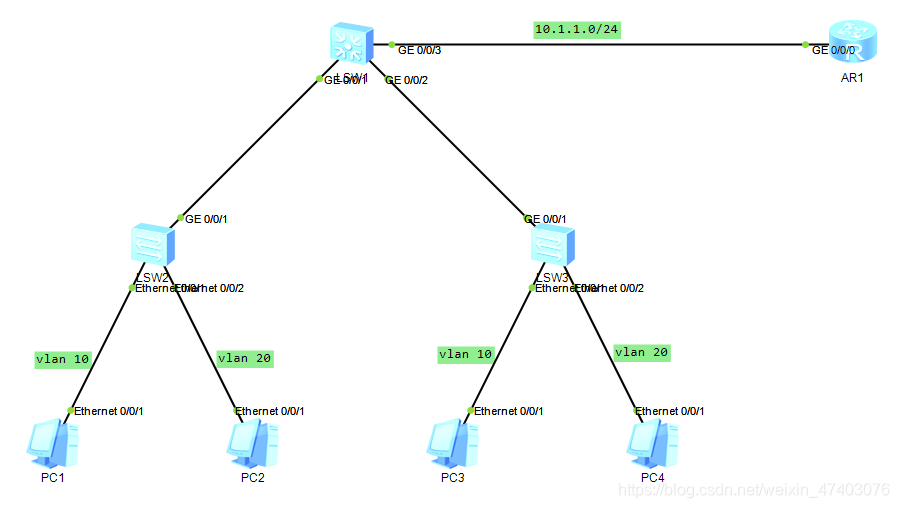

拓扑图

在这里插入图片描述

设备配置

PC设置选择DHCP获取IP
将PC划分进vlan
AR1充当DHCP服务器
在AR1配置两个地址池
添加两条到客户机的静态路由
地址池下发

[R1-GigabitEthernet0/0/0]dhcp enable
[R1]ip pool dhcp1
[R1-ip-pool-dhcp1]network 192.168.10.0 mask 255.255.255.0
[R1-ip-pool-dhcp1]gateway-list 192.168.10.1
[R1-ip-pool-dhcp1]dns-list 2.2.2.2 124.124.124.124
[R1-ip-pool-dhcp1]lease day 5
[R1-ip-pool-dhcp1]q
[R1]ip pool dhcp1
[R1-ip-pool-dhcp1]display this
#
ip pool dhcp1
 gateway-list 192.168.10.1
 network 192.168.10.0 mask 255.255.255.0
 lease day 5 hour 0 minute 0
 dns-list 2.2.2.2 124.124.124.124
#
[R1]ip pool dhcp2
[R1-ip-pool-dhcp2]network 192.168.20.0 mask 24
[R1-ip-pool-dhcp2]gateway-list 192.168.20.1
[R1-ip-pool-dhcp2]dns-list 4.4.4.4 6.6.6.6
[R1-ip-pool-dhcp2]lease day 6
[R1-ip-pool-dhcp2]q
[R1]ip pool dhcp2
[R1-ip-pool-dhcp2]display this
#
ip pool dhcp2
 gateway-list 192.168.20.1
 network 192.168.20.0 mask 255.255.255.0
 lease day 6 hour 0 minute 0
 dns-list 4.4.4.4 6.6.6.6
#
[R1]ip route-static 192.168.10.0 24 10.1.1.10
[R1]ip route-static 192.168.20.0 24 10.1.1.10
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]dhcp select global
[R1-GigabitEthernet0/0/0]quit

在SW1上，设置DHCP中继

[L3-SW1]int vlan 10
[L3-SW1-Vlanif10]dhcp select relay
[L3-SW1-Vlanif10]dhcp relay server-ip 10.1.1.1
[L3-SW1-Vlanif10]int vlan 20
[L3-SW1-Vlanif20]dhcp select relay
[L3-SW1-Vlanif20]dhcp relay server-ip 10.1.1.1
[L3-SW1-Vlanif20]quit

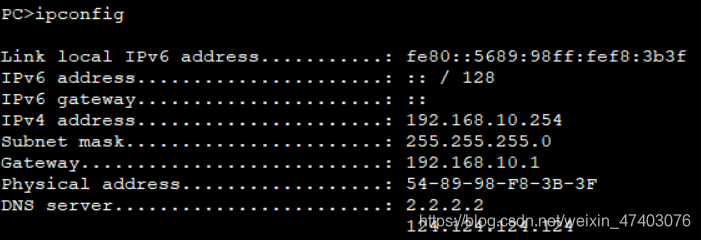

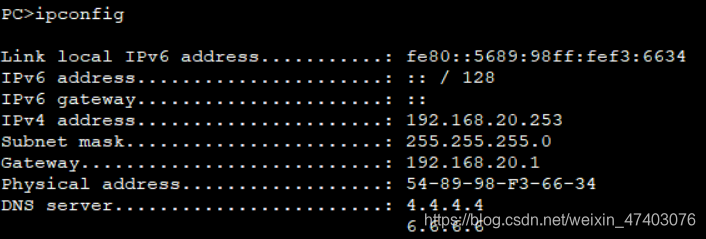

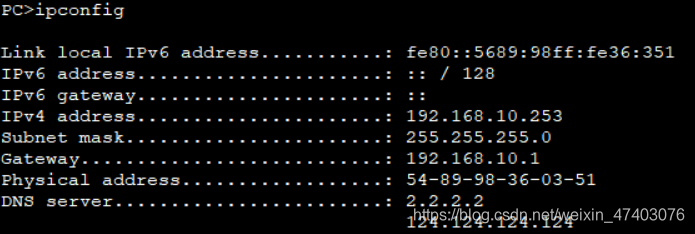

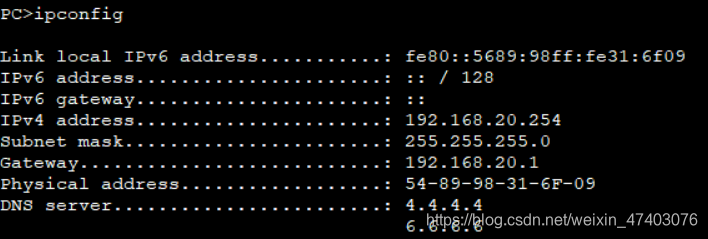

在PC上查看结果
