手拉手Javafx案例

JavaFX是Java的下一代图形用户界面工具包。JavaFX是一组图形和媒体API，我们可以用它们来创建和部署富客户端应用程序。


JAVAFX案例

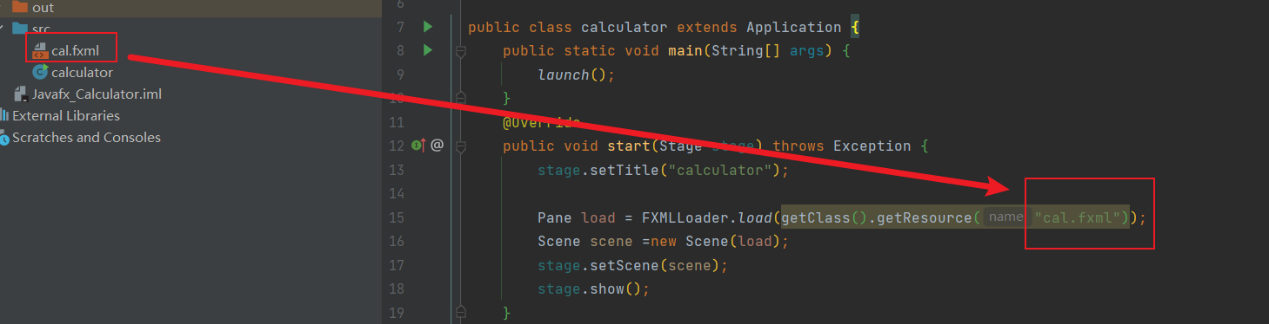

Fxml载入项目

public void start(Stage stage) throws Exception {

        stage.setTitle("calculator");

        Pane load = FXMLLoader.load(getClass().getResource("cal.fxml"));

        Scene scene =new Scene(load);

        stage.setScene(scene);

        stage.show();

    }

或

Parent load = FXMLLoader.load(getClass().getResource("src/brickcatalogue/viewpane/brickgame.fxml"));

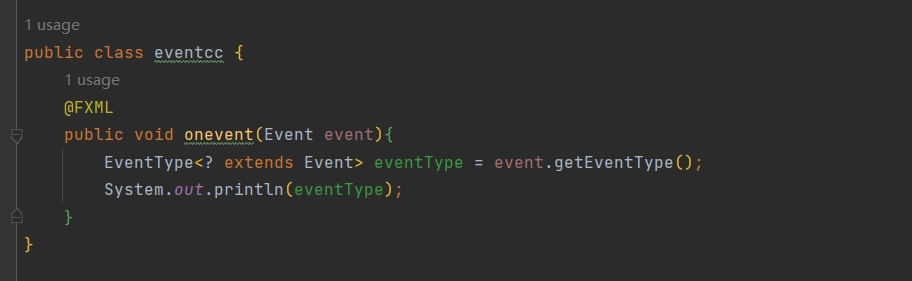

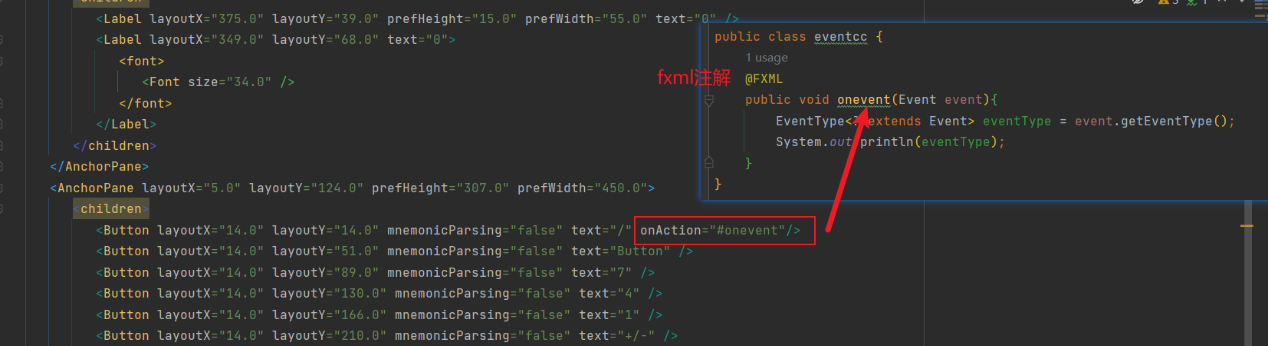

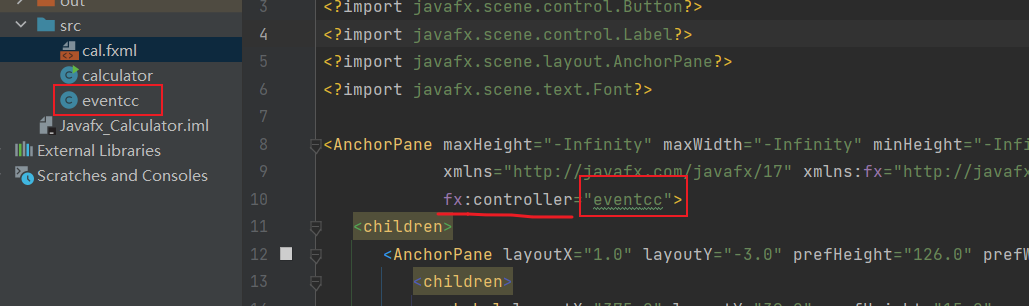

Fxml添加事件

public class eventcc {

    @FXML

    public void onevent(Event event){

        EventType<? extends Event> eventType = event.getEventType();

        System.out.println(eventType);

    }

}

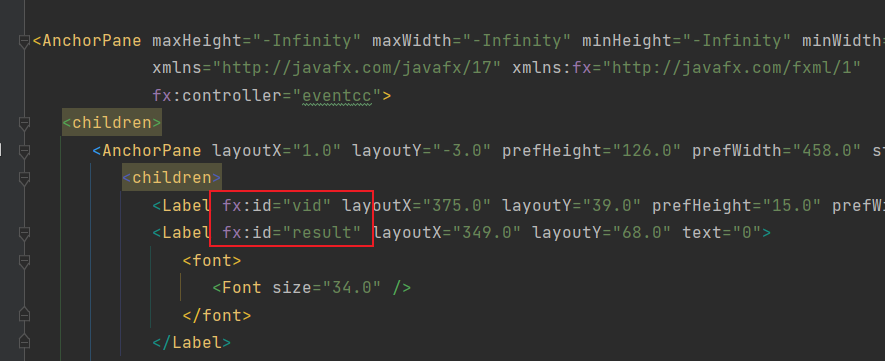

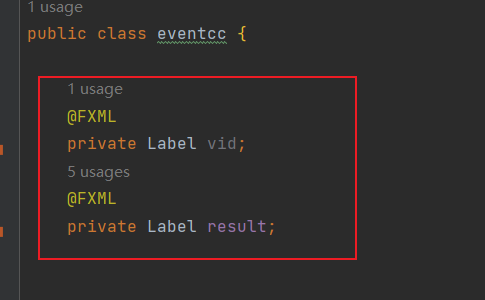

从Fxml通过id引用控件

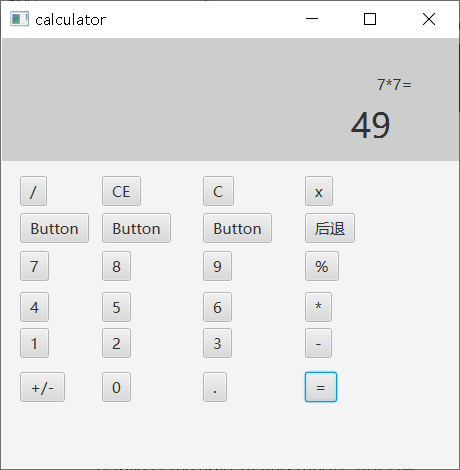

模拟简易计算器

calculator

public class calculator extends Application {

    public static void main(String[] args) {

        launch();

    }

    @Override

    public void start(Stage stage) throws Exception {

        stage.setTitle("calculator");

        Pane load = FXMLLoader.load(getClass().getResource("cal.fxml"));

        Scene scene =new Scene(load);

        stage.setScene(scene);

        stage.show();

    }

}

cal.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.control.Button?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.layout.AnchorPane?>

<?import javafx.scene.text.Font?>

<AnchorPane maxHeight="-Infinity" maxWidth="-Infinity" minHeight="-Infinity" minWidth="-Infinity" prefHeight="431.0" prefWidth="458.0"

            xmlns="http://javafx.com/javafx/17" xmlns:fx="http://javafx.com/fxml/1"

            fx:controller="eventcc">

   <children>

      <AnchorPane layoutX="1.0" layoutY="-3.0" prefHeight="126.0" prefWidth="458.0" style="-fx-background-color: #cdcdcd;">

         <children>

            <Label fx:id="vid" layoutX="375.0" layoutY="39.0" prefHeight="15.0" prefWidth="55.0" text="0" />

            <Label fx:id="result" layoutX="349.0" layoutY="68.0" text="0">

               <font>

                  <Font size="34.0" />

               </font>

            </Label>

         </children>

      </AnchorPane>

      <AnchorPane layoutX="5.0" layoutY="124.0" prefHeight="307.0" prefWidth="450.0">

         <children>

            <Button layoutX="14.0" layoutY="14.0" mnemonicParsing="false" text="/" onAction="#onevent"/>

            <Button layoutX="14.0" layoutY="51.0" mnemonicParsing="false" text="Button" onAction="#onevent"/>

            <Button layoutX="14.0" layoutY="89.0" mnemonicParsing="false" text="7" onAction="#onevent"/>

            <Button layoutX="14.0" layoutY="130.0" mnemonicParsing="false" text="4" onAction="#onevent"/>

            <Button layoutX="14.0" layoutY="166.0" mnemonicParsing="false" text="1" onAction="#onevent"/>

            <Button layoutX="14.0" layoutY="210.0" mnemonicParsing="false" text="+/-" onAction="#onevent"/>

            <Button layoutX="96.0" layoutY="14.0" mnemonicParsing="false" text="CE" onAction="#onevent"/>

            <Button layoutX="96.0" layoutY="51.0" mnemonicParsing="false" text="Button" onAction="#onevent"/>

            <Button layoutX="96.0" layoutY="89.0" mnemonicParsing="false" text="8" onAction="#onevent"/>

            <Button layoutX="96.0" layoutY="130.0" mnemonicParsing="false" text="5" onAction="#onevent"/>

            <Button layoutX="96.0" layoutY="166.0" mnemonicParsing="false" text="2" onAction="#onevent"/>

            <Button layoutX="96.0" layoutY="210.0" mnemonicParsing="false" text="0" onAction="#onevent"/>

            <Button layoutX="197.0" layoutY="14.0" mnemonicParsing="false" text="C" onAction="#onevent"/>

            <Button layoutX="197.0" layoutY="51.0" mnemonicParsing="false" text="Button" onAction="#onevent"/>

            <Button layoutX="197.0" layoutY="89.0" mnemonicParsing="false" text="9" onAction="#onevent"/>

            <Button layoutX="197.0" layoutY="130.0" mnemonicParsing="false" text="6" onAction="#onevent"/>

            <Button layoutX="197.0" layoutY="166.0" mnemonicParsing=&
