基于matlab的船体三维模型仿真

原理介绍

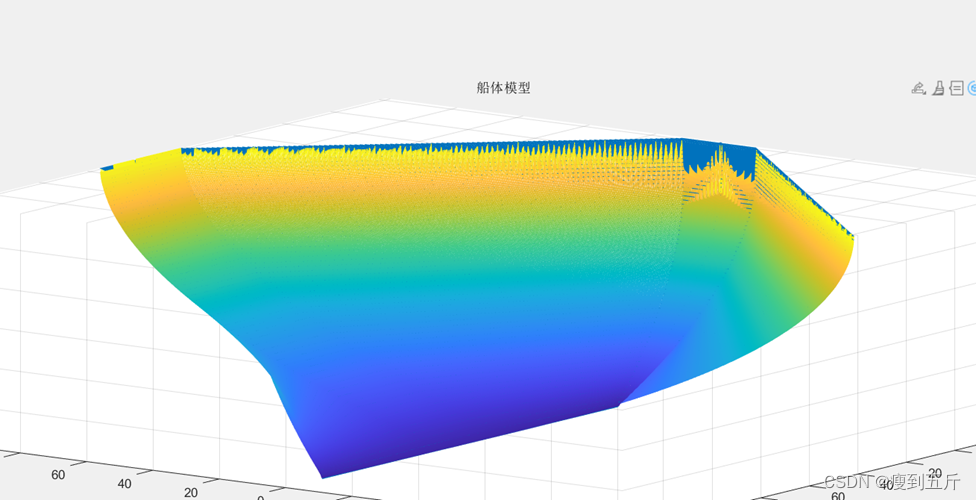

船体数据来源来自于C++代码。在C++中，将船体数据导入到EXCEL中，然后再MATLAB中调用EXCEL的船体数据，进行三维建模。在建模过程中，因为船体数据不可能每个点的距离都是无限小，所以我们采用了拟合的办法，调用了MATLB的函数  griddata 。对船体数据进行三角形插值拟合。最终得到三维船体图形。如下：

遗传算法代码如下

#include <iostream>
#include<math.h>
#include<time.h>
#include<stdlib.h>
#include<fstream>
#define tot 122*18*16
using namespace std;
int main(int argc, const char * argv[])
{
    double suf[90100];
    double vol[90100];
    double fin[122][60];
    double fin1[122][60];
    double ran1[122][60];
    double head[60],head2[60];
    int min=99999,flag=0;
    ofstream out("grade");
	if(!out)
	{
		cout << "Cannot open grade file.\n";
		return 1;
	}
for(int t=0;t<90100;t++)
    {
        suf[t]=0;
        vol[t]=0;
    }
    int i=900;
while(i>=0)
    {
        double ran[122][60];
        double area[60];

        for(int t=0;t<60;t++)
        {
            head[t]=3*0.1*0.1*t*t-32*t*0.1;
            head2[t]=0.5*t*t*0.01-8*t*0.1;
        }
        for(int t=0;t<600;t++)
        {
            area[t]=0;
        }
    for(int z=0;z<60;z++)
  {
            for(int x=1;x<122;x++)
            {
                if(x<100)
                {


                srand((unsigned)time(NULL)+x*z*i*7);
                ran[x][z]=max((11.22925*pow(x, 0.1)+0.01*(abs(rand()%100)))*(((-z*0.1+12.00)*(double)(z*0.1))/36.00),ran[x-1][z]+(((-z*0.1+12.00)*(double)(z*0.1))/36.00)*0.01*(abs(rand()%100)));
                ran1[x][z]=max((14.2171*pow(x, 0.05)+0.01*(abs(rand()%100)))*(((-z*0.1+12.00)*(double)(z*0.1))/36.00),ran[x-1][z]+(((-z*0.1+12.00)*(double)(z*0.1))/36.00)*0.01*(abs(rand()%100)));
                }else
                {
                    ran[x][z]=ran[x-1][z];
                    ran1[x][z]=ran1[x-1][z];
                }
              //  cout<<ran[x][z]<<" ";
            }
  }
for(int z=0;z<60;z++){
            for(int x=0;x<122;x++)
        {
            area[z]+=4*(ran[x][z]+ran[x+1][z]);
        }
        //cout<<area[z]<<" ";
    }
    for(int z=1;z<60;z++)
    {
            for(int x=1;x<122;x++)
        {
            double a[5];
            double p1=0,p2=0;
            a[0]=sqrt(abs((ran[x][z]-ran[x-1][z])*(ran[x][z]-ran[x-1][z])+((122+head[z])/122)*((122+head[z])/122)));
            a[1]=sqrt(abs((ran[x][z]-ran[x][z-1])*(ran[x][z]-ran[x][z-1])+1+(((122-x)*(head[z]-head[z-1]))/122)*(((122-x)*(head[z]-head[z-1]))/122)));
            a[2]=sqrt(abs((ran[x-1][z]-ran[x][z-1])*(ran[x-1][z]-ran[x][z-1])+1+((((122-x+1)*(head[z-1]-head[z]))/122)+(122+head[z-1])/122)*((((122-x+1)*(head[z-1]-head[z]))/122)+(122+head[z-1])/122)));
            a[3]=sqrt(abs((ran[x][z-1]-ran[x-1][z-1])*(ran[x][z-1]-ran[x-1][z-1])+((122+head[z-1])/122)*((122+head[z-1])/122)));
            a[4]=sqrt(abs((ran[x-1][z]-ran[x-1][z-1])*(ran[x-1][z]-ran[x-1][z-1])+(((122-x+1)*(head[z]-head[z-1]))/122)*(((122-x+1)*(head[z]-head[z-1]))/122)));
            p1=(a[0]+a[1]+a[2])/2;
            p2=(a[2]+a[3]+a[4])/2;
            suf[i]+=sqrt(abs(p1*(p1-a[0])*(p1-a[1])*(p1-a[2])));
            suf[i]+=sqrt(abs(p2*(p2-a[2])*(p2-a[3])*(p2-a[4])));

        }
    }

 vol[i]=(area[0]+area[5])*0.5+area[1]+area[2]+area[3]+area[4];
        if(suf[i]<min)
        {
            min=suf[i];
            flag=i;
            for(int t=0;t<122;t++)
            {
                for(int q=0;q<60;q++)
                {
                    fin[t][q]=ran[t][q];
                    fin1[t][q]=ran1[t][q];
                }
            }
        }
        //cout<<suf[i]<<" ";
        i--;
    }
    cout<<flag<<" "<<min<<" "<<vol[flag]<<" "<<suf[flag]<<endl;

        for(int t=0;t<60;t++)
        {
            for(int i=0;i<122;i++)
            {
            out<<0.5*((double)i+((double)(122-i)*head[t]/(double)122))<<" "<<fin[i][t]<<" "<<(double)t<<endl;
               out<<0.5*((double)i+((double)(122-i)*head[t]/(double)122))<<" "<<-fin[i][t]<<" "<<(double)t<<endl;
                out<<0.5*((double)244-(double)i-((double)(122-i)*head2[t]/(double)122))<<" "<<fin1[i][t]<<" "<<(double)t<<endl;
              out<<0.5*((double)244-(double)i-((double)(122-i)*head2[t]/(double)122))<<" "<<-fin1[i][t]<<" "<<(double)t<<endl;
            }
            cout<<endl;
        }
    out.close();
}

matlab仿真代码如下：

function createfigure(xdata1, ydata1, zdata1, cdata1, X1, Y1, Z1)%CREATEFIGURE(xdata1, ydata1, zdata1, cdata1, X1, Y1, Z1)%  XDATA1:  surface xdata%  YDATA1:  surface ydata%  ZDATA1:  surface zdata%  CDATA1:  surface cdata%  X1:  x 数据的向量%  Y1:  y 数据的向量%  Z1:  z 数据的向量%  由 MATLAB 于 31-Oct-2020 15:47:44 自动生成% 创建 figurefigure1 = figure;% 创建 axesaxes1 = axes('Parent',figure1);hold(axes1,'on');% 创建 meshmesh(xdata1,ydata1,zdata1,cdata1,'Parent',axes1);% 创建 plot3plot3(X1,Y1,Z1,'MarkerSize',15);% 创建 titletitle('船体模型');view(axes1,[-37.5 30]);grid(axes1,'on');axis(axes1,'tight');hold(axes1,'off');% 设置其余坐标区属性set(axes1,'DataAspectRatio',[1 1 1]);
clc;x=Column1(:,1);%导入数据y=Column2(:,1);%导入数据z=Column3(:,1);%导入数据xlin = linspace(min(x),max(x),1000);%对X插值ylin = linspace(min(y),max(y),1000);%对Y插值[X,Y] = meshgrid(xlin,ylin);%对X，Y进行曲面拟合Z = griddata(x,y,z,X,Y,'linear');%对Z进行拟合mesh(X,Y,Z) %interpolatedaxis equal;axis tight; hold on%设置坐标轴plot3(x,y,z,'MarkerSize',15) %nonuniform%进行绘制三维图形title('船体模型');% plot3(x,y,z)
