STM32C8T6驱动四针0.96寸OLED中汉字显示的问题

最近在调毕业设计的板子，在调试OLED的过程中发现了一个汉字显示上的BUG；

初始汉字显示函数：

void OLED_ShowCHinese(u8 x,u8 y,u8 no)
{
	u8 t,adder=0;
	OLED_Set_Pos(x,y);
	for(t=0;t<16;t++)
		{
				OLED_WR_Byte(Hzk[2*no][t],OLED_DATA);
				adder+=1;
        }
		OLED_Set_Pos(x,y+1);
    for(t=0;t<16;t++)
			{
				OLED_WR_Byte(Hzk[2*no+1][t],OLED_DATA);
				adder+=1;
		    }
		}

取字模的数组表

/*************************智能开关********************/
{0x00,0x00,0xA0,0x60,0x58,0xF6,0x50,0xA8,0x28,0x70,0x90,0x90,0x50,0x30,0x10,0x00},
{0x00,0x00,0x04,0x02,0x01,0x00,0x7E,0x4A,0x2A,0x2A,0xFE,0x02,0x00,0x00,0x00,0x00},/*"智",37*/

{0x00,0x00,0x60,0x50,0x4C,0xC4,0x30,0x00,0x7E,0x90,0x90,0x88,0x40,0x00,0x00,0x00},
{0x00,0x00,0x34,0x0B,0x0B,0x66,0x39,0x00,0x1F,0x24,0x44,0x42,0x20,0x30,0x00,0x00},/*"能",38*/

{0x00,0x80,0x80,0x80,0x80,0x90,0xF8,0x88,0x88,0xF8,0x88,0x88,0x40,0x40,0x00,0x00},
{0x00,0x00,0x00,0x20,0x18,0x07,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,0x00,0x00},/*"开",39*/

{0x00,0x00,0x00,0x00,0x00,0x48,0x58,0xC0,0x20,0x38,0x26,0x00,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x42,0x22,0x12,0x0D,0x03,0x05,0x09,0x31,0x61,0x61,0x41,0x40,0x00},/*"关",40*/

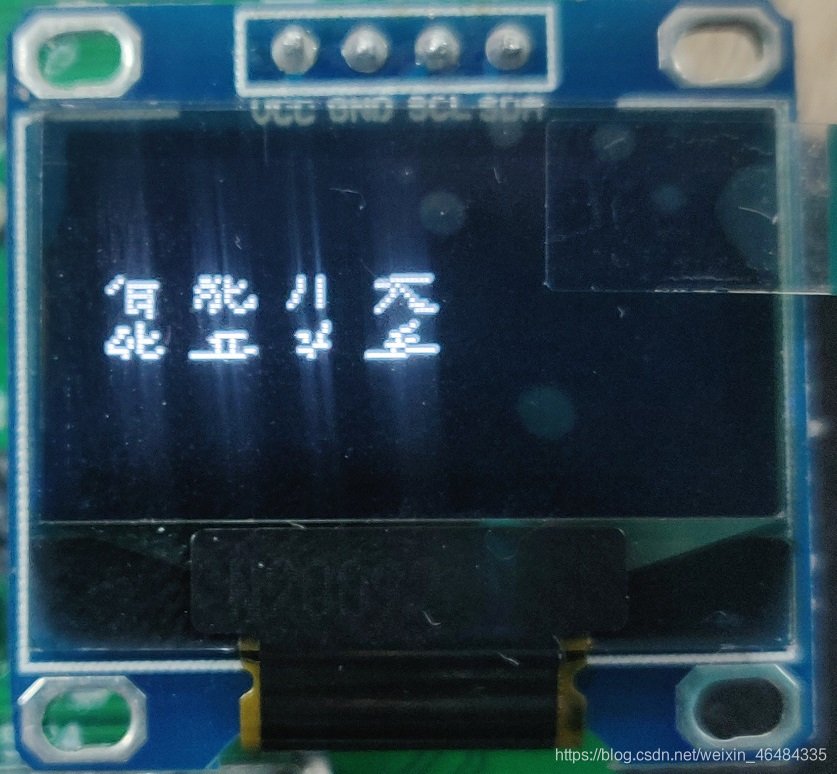

使用此函数时，当调用Hzk[][32]数组中所存放的第37个汉字时，会出现如下显示：

可以看出，汉字被砍成了两半，并且上下颠倒，而在数组中所存放的前32个汉字能够正常显示，基于这种情况，只能够分段处理数组中的两行数据。

修改后的代码：

void OLED_ShowCHinese(u8 x,u8 y,u8 no)
{
	u8 t,adder=0;
	OLED_Set_Pos(x,y);
		if(no < 32)
		{
    for(t=0;t<16;t++)
		{
				OLED_WR_Byte(Hzk[2*no][t],OLED_DATA);
				adder+=1;
     }
		OLED_Set_Pos(x,y+1);
    for(t=0;t<16;t++)
			{
				OLED_WR_Byte(Hzk[2*no+1][t],OLED_DATA);
				adder+=1;
      }
		}
			if(no >= 32)
			{
				 for(t=0;t<16;t++)
		{
				OLED_WR_Byte(Hzk[2*no-1][t],OLED_DATA);  //处理所存放的第33个汉字时，首先写入第二行数据
				adder+=1;
     }
		OLED_Set_Pos(x,y+1);
    for(t=0;t<16;t++)
			{
				OLED_WR_Byte(Hzk[2*no][t],OLED_DATA);
				adder+=1;
      }
			}
}

修改后，就能够正确显示汉字了。
