1.循环依赖有哪几种
1.单例的setter注入(属性注入)
spring通过三级缓存解决：
- singletonObjects 一级缓存，用于保存实例化、注入、初始化完成的bean实例
- earlySingletonObjects 二级缓存，用于保存实例化完成的bean实例
- singletonFactories 三级缓存，用于保存bean创建工厂，以便于后面扩展有机会创建代理对象。

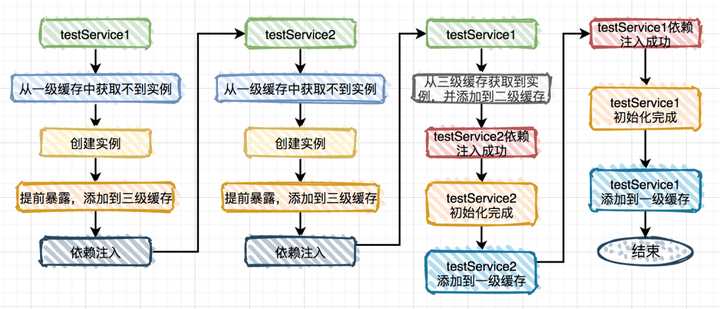

下面用一张图告诉你，spring是如何解决循环依赖的：
2.多例的setter注入(属性注入)
解决不了,改成单例
3.构造器注入
使用@Lazy注解，延迟加载,生成代理对象

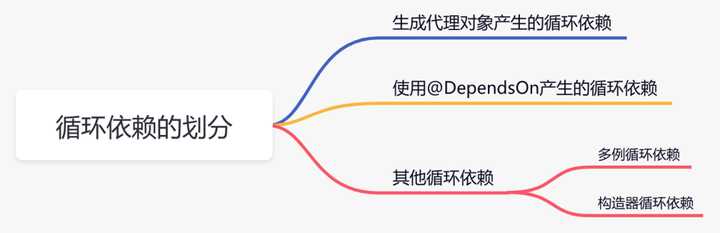

2.出现循环依赖如何解决？
项目中如果出现循环依赖问题，说明是spring默认无法解决的循环依赖，要看项目的打印日志，属于哪种循环依赖。目前包含下面几种情况：
1.生成代理对象产生的循环依赖(比如使用@Async)
这类循环依赖问题解决方法很多，主要有：
- 使用
@Lazy注解，延迟加载 - 使用
@DependsOn注解，指定加载先后关系 - 修改文件名称，改变循环依赖类的加载顺序
2.使用@DependsOn产生的循环依赖
这类循环依赖问题要找到@DependsOn注解循环依赖的地方，迫使它不循环依赖就可以解决问题。
3.多例循环依赖
这类循环依赖问题可以通过把bean改成单例的解决。
4.构造器循环依赖
这类循环依赖问题可以通过使用@Lazy注解解决。

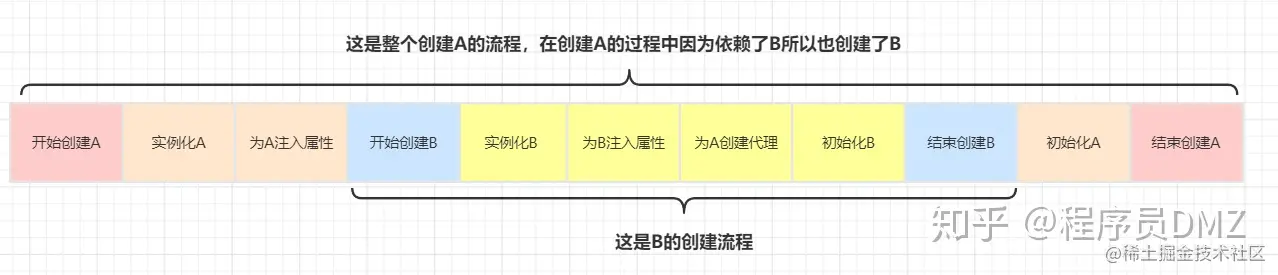

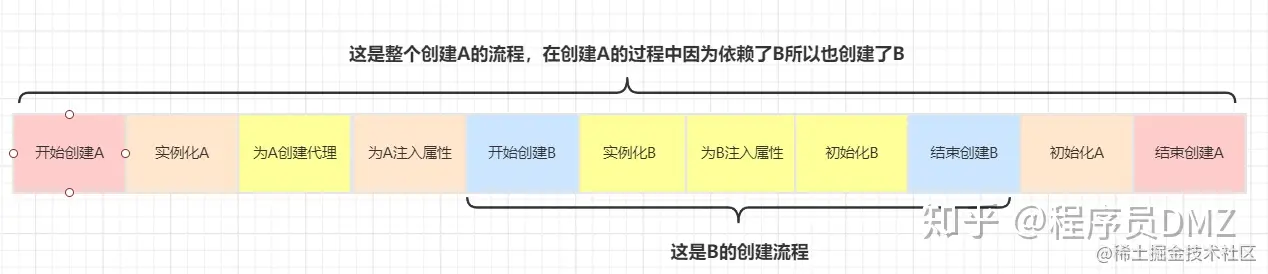

类A(加AOP) 和类B 循环依赖
----
getBean(A)
查询缓存,
有:
返回Bean
无:
doCreatBean
实例化A(反射创建普通对象,目前不是Bean)
----
判断是否循环依赖(earlySingletonExposure)
有:
A放入三级缓存,Map<类名,普通类的创建工厂> singletonFactories
----
填充BeanA的属性B
getBean(B)
查询缓存,
无:
doCreatBean
实例化B(反射创建普通对象,目前不是Bean)
----
判断是否循环依赖(earlySingletonExposure)
有:
B放入三级缓存,Map<类名,普通类的创建工厂> singletonFactories
----
填充BeanB的属性A
getBean(A)
查询缓存
在三级缓存中查到A的工厂对象,通过工厂对象创建出A的对象,并增强为代理对象(非SpringBean对象),放入二级缓存,删除三级缓存
----
开始初始化BeanB实例
----
删除三级缓存和二级缓存的B,放入一级缓存,B初始化完成
----
继续填充BeanA的属性B
getBean(B)
查询缓存,
有:
返回B
----
删除二级缓存的A,放入一级缓存,A初始化完成
关键源码方法（强烈建议自己去撸一遍）
org.springframework.context.support.AbstractApplicationContext#refresh(入口)
org.springframework.context.support.AbstractApplicationContext#finishBeanFactoryInitialization(初始化单例对象入口)
org.springframework.beans.factory.config.ConfigurableListableBeanFactory#preInstantiateSingletons(初始化单例对象入口)
org.springframework.beans.factory.support.AbstractBeanFactory#getBean(java.lang.String)（万恶之源，获取并创建Bean的入口）
org.springframework.beans.factory.support.AbstractBeanFactory#doGetBean（实际的获取并创建Bean的实现）
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#getSingleton(java.lang.String)（从缓存中尝试获取）
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBean(java.lang.String, org.springframework.beans.factory.support.RootBeanDefinition, java.lang.Object[])（实例化Bean）
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean（实例化Bean具体实现）
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBeanInstance（具体实例化过程）
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#addSingletonFactory（将实例化后的Bean添加到三级缓存）
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean（实例化后属性注入）
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#initializeBean(java.lang.String, java.lang.Object, org.springframework.beans.factory.support.RootBeanDefinition)（初始化入口）
1.容器初始化(refresh)
//1.容器初始化
public void refresh() throws BeansException, IllegalStateException {
synchronized(this.startupShutdownMonitor) {
StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
this.prepareRefresh();
ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
this.prepareBeanFactory(beanFactory);
try {
this.postProcessBeanFactory(beanFactory);
StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
this.invokeBeanFactoryPostProcessors(beanFactory);
this.registerBeanPostProcessors(beanFactory);
beanPostProcess.end();
this.initMessageSource();
this.initApplicationEventMulticaster();
this.onRefresh();
this.registerListeners();
/*

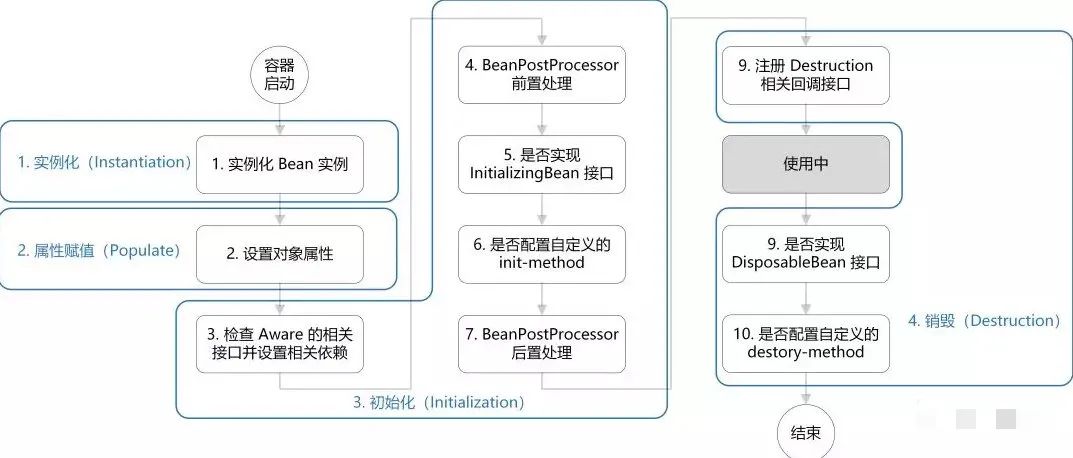

2.初始化创建非懒加载的方式的单例的Bean的实例(未设置属性)
填充属性
初始化方法调用(比如afterPropertiesSet方法,init-method方法)
调用BeanPostProcessor(后置处理器) 对实例Bean进行后置处理
*/
this.finishBeanFactoryInitialization(beanFactory);
this.finishRefresh();
} catch (BeansException var10) {
if (this.logger.isWarnEnabled()) {
this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var10);
}
this.destroyBeans();
this.cancelRefresh(var10);
throw var10;
} finally {
this.resetCommonCaches();
contextRefresh.end();
}
}
}
2.初始化创建非懒加载的方式的单例的Bean的实例(finishBeanFactoryInitialization)
/*
2.初始化创建非懒加载的方式的单例的Bean的实例(未设置属性)
填充属性
初始化方法调用(比如afterPropertiesSet方法,init-method方法)
调用BeanPostProcessor(后置处理器) 对实例Bean进行后置处理
*/
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
if (beanFactory.containsBean("conversionService") && beanFactory.isTypeMatch("conversionService", ConversionService.class)) {
beanFactory.setConversionService((ConversionService)beanFactory.getBean("conversionService", ConversionService.class));
}
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver((strVal) -> {
return this.getEnvironment().resolvePlaceholders(strVal);
});
}
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
String[] var3 = weaverAwareNames;
int var4 = weaverAwareNames.length;
for(int var5 = 0; var5 < var4; ++var5) {
String weaverAwareName = var3[var5];
this.getBean(weaverAwareName);
}
beanFactory.setTempClassLoader((ClassLoader)null);
beanFactory.freezeConfiguration();
//3.实例化所有非懒加载的单例Bean
beanFactory.preInstantiateSingletons();
}
3.实例化所有非懒加载的单例Bean(preInstantiateSingletons)
public void preInstantiateSingletons() throws BeansException {
if (this.logger.isTraceEnabled()) {
this.logger.trace("Pre-instantiating singletons in " + this);
}
//获取所有Bean的名字
List<String> beanNames = new ArrayList(this.beanDefinitionNames);
Iterator var2 = beanNames.iterator();
while(true) {
String beanName;
Object bean;
do {
while(true) {
RootBeanDefinition bd;
do {
do {
do {
if (!var2.hasNext()) {
var2 = beanNames.iterator();
while(var2.hasNext()) {
beanName = (String)var2.next();
Object singletonInstance = this.getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.smart-initialize").tag("beanName", beanName);
SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton)singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged(() -> {
smartSingleton.afterSingletonsInstantiated();
return null;
}, this.getAccessControlContext());
} else {
smartSingleton.afterSingletonsInstantiated();
}
smartInitialize.end();
}
}
return;
}
beanName = (String)var2.next();
bd = this.getMergedLocalBeanDefinition(beanName);
} while(bd.isAbstract());
} while(!bd.isSingleton());
} while(bd.isLazyInit());
//如果是FactoryBean加"&"
if (this.isFactoryBean(beanName)) {
bean = this.getBean("&" + beanName);
break;
}
//4.获取当前Bean
this.getBean(beanName);
}
} while(!(bean instanceof FactoryBean));
FactoryBean<?> factory = (FactoryBean)bean;
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
SmartFactoryBean var10000 = (SmartFactoryBean)factory;
((SmartFactoryBean)factory).getClass();
isEagerInit = (Boolean)AccessController.doPrivileged(var10000::isEagerInit, this.getAccessControlContext());
} else {
isEagerInit = factory instanceof SmartFactoryBean && ((SmartFactoryBean)factory).isEagerInit();
}
if (isEagerInit) {
this.getBean(beanName);
}
}
}
4.获取当前Bean(getBean)
public Object getBean(String name) throws BeansException {
//真正创建Bean
return this.doGetBean(name, (Class)null, (Object[])null, false);
}
//内容太多,无关的忽略
protected <T> T doGetBean(String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly) throws BeansException {
//解析BeanName,如果包含开头&则去掉&,如果是别名获取真正的名字
String beanName = this.transformedBeanName(name);
//5.尝试从缓存中获取Bean
Object sharedInstance = this.getSingleton(beanName);
Object beanInstance;
//存在即返回
if (sharedInstance != null && args == null) {
if (this.logger.isTraceEnabled()) {
if (this.isSingletonCurrentlyInCreation(beanName)) {
this.logger.trace("Returning eagerly cached instance of singleton bean '" + beanName + "' that is not fully initialized yet - a consequence of a circular reference");
} else {
this.logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
beanInstance = this.getObjectForBeanInstance(sharedInstance, name, beanName, (RootBeanDefinition)null);
//不存在 null = this.getSingleton
} else {
//判断当前Bean是否在创建中
if (this.isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
//检查父工厂是否存在该对象
BeanFactory parentBeanFactory = this.getParentBeanFactory();
if (parentBeanFactory != null && !this.containsBeanDefinition(beanName)) {
String nameToLookup = this.originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory)parentBeanFactory).doGetBean(nameToLookup, requiredType, args, typeCheckOnly);
}
if (args != null) {
return parentBeanFactory.getBean(nameToLookup, args);
}
if (requiredType != null) {
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
return parentBeanFactory.getBean(nameToLookup);
}
if (!typeCheckOnly) {
this.markBeanAsCreated(beanName);
}
StartupStep beanCreation = this.applicationStartup.start("spring.beans.instantiate").tag("beanName", name);
try {
if (requiredType != null) {
beanCreation.tag("beanType", requiredType::toString);
}
//合并父子Bean的属性
RootBeanDefinition mbd = this.getMergedLocalBeanDefinition(beanName);
this.checkMergedBeanDefinition(mbd, beanName, args);
//处理DependsOn的配置,加@DependsOn注解后,控制bean创建的顺序
String[] dependsOn = mbd.getDependsOn();
String[] var12;
if (dependsOn != null) {
var12 = dependsOn;
int var13 = dependsOn.length;
for(int var14 = 0; var14 < var13; ++var14) {
String dep = var12[var14];
if (this.isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
this.registerDependentBean(dep, beanName);
try {
this.getBean(dep);
} catch (NoSuchBeanDefinitionException var31) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "'" + beanName + "' depends on missing bean '" + dep + "'", var31);
}
}
}
//6.创建单例Bean
if (mbd.isSingleton()) {
sharedInstance = this.getSingleton(beanName, () -> {
try {
//8.创建Bean
return this.createBean(beanName, mbd, args);
} catch (BeansException var5) {
this.destroySingleton(beanName);
throw var5;
}
});
beanInstance = this.getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
} else if (mbd.isPrototype()) {
var12 = null;
Object prototypeInstance;
try {
this.beforePrototypeCreation(beanName);
prototypeInstance = this.createBean(beanName, mbd, args);
} finally {
this.afterPrototypeCreation(beanName);
}
beanInstance = this.getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
} else {
String scopeName = mbd.getScope();
if (!StringUtils.hasLength(scopeName)) {
throw new IllegalStateException("No scope name defined for bean ��" + beanName + "'");
}
Scope scope = (Scope)this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
this.beforePrototypeCreation(beanName);
Object var4;
try {
var4 = this.createBean(beanName, mbd, args);
} finally {
this.afterPrototypeCreation(beanName);
}
return var4;
});
beanInstance = this.getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
} catch (IllegalStateException var30) {
throw new ScopeNotActiveException(beanName, scopeName, var30);
}
}
} catch (BeansException var32) {
beanCreation.tag("exception", var32.getClass().toString());
beanCreation.tag("message", String.valueOf(var32.getMessage()));
this.cleanupAfterBeanCreationFailure(beanName);
throw var32;
} finally {
beanCreation.end();
}
}
return this.adaptBeanInstance(name, beanInstance, requiredType);
}
5.从缓存中获取Bean(getSingleton(beanName))
//尝试从缓存中获取Bean
//一级缓存，用于保存实例化、注入、初始化完成的bean实例
private final Map<String, Object> singletonObjects = new ConcurrentHashMap(256);
//二级缓存，用于保存实例化完成的bean实例
private final Map<String, Object> earlySingletonObjects = new ConcurrentHashMap(16);
//三级缓存，用于保存bean创建工厂，以便于后面扩展有机会创建代理对象。
private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap(16);
//5.获取单例Bean
protected Object getSingleton(String beanName, boolean allowEarlyReference) {
//从一级缓存中获取Bean
Object singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null && this.isSingletonCurrentlyInCreation(beanName)) {
//从二级缓存中获取Bean
singletonObject = this.earlySingletonObjects.get(beanName);
if (singletonObject == null && allowEarlyReference) {
//同步this.singletonObjects,再来一遍
synchronized(this.singletonObjects) {
//从一级缓存中获取Bean
singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
//从二级缓存中获取Bean
singletonObject = this.earlySingletonObjects.get(beanName);
if (singletonObject == null) {
//从三级缓存中获取Object工厂
ObjectFactory<?> singletonFactory = (ObjectFactory)this.singletonFactories.get(beanName);
//如果三级缓存中有则
//无则 返回singletonObject == null
if (singletonFactory != null) {
//15.工厂对象创建对象
singletonObject = singletonFactory.getObject();
//将对象放入二级缓存
this.earlySingletonObjects.put(beanName, singletonObject); //删除三级缓存中的
this.singletonFactories.remove(beanName);
}
}
}
}
}
}
return singletonObject;
}
6.创建单例Bean(getSingleton(String beanName, ObjectFactory<?> singletonFactory))
//6.创建单例Bean
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(beanName, "Bean name must not be null");
synchronized(this.singletonObjects) {
Object singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
if (this.singletonsCurrentlyInDestruction) {
throw new BeanCreationNotAllowedException(beanName, "Singleton bean creation not allowed while singletons of this factory are in destruction (Do not request a bean from a BeanFactory in a destroy method implementation!)");
}
if (this.logger.isDebugEnabled()) {
this.logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
}
//7.标记Bean为正在创建,放到singletonsCurrentlyInCreation中
this.beforeSingletonCreation(beanName);
boolean newSingleton = false;
boolean recordSuppressedExceptions = this.suppressedExceptions == null;
if (recordSuppressedExceptions) {
this.suppressedExceptions = new LinkedHashSet();
}
try {
//8.lamda调用,回到上面creatBean()
singletonObject = singletonFactory.getObject();
newSingleton = true;
} catch (IllegalStateException var16) {
singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
throw var16;
}
} catch (BeanCreationException var17) {
BeanCreationException ex = var17;
if (recordSuppressedExceptions) {
Iterator var8 = this.suppressedExceptions.iterator();
while(var8.hasNext()) {
Exception suppressedException = (Exception)var8.next();
ex.addRelatedCause(suppressedException);
}
}
throw ex;
} finally {
if (recordSuppressedExceptions) {
this.suppressedExceptions = null;
}
this.afterSingletonCreation(beanName);
}
if (newSingleton) {
this.addSingleton(beanName, singletonObject);
}
}
return singletonObject;
}
}
7.标记Bean为正在创建,放到singletonsCurrentlyInCreation中
protected void beforeSingletonCreation(String beanName) {
if (!this.inCreationCheckExclusions.contains(beanName) && !this.singletonsCurrentlyInCreation.add(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
}
8.创建Bean(createBean)
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
if (this.logger.isTraceEnabled()) {
this.logger.trace("Creating instance of bean '" + beanName + "'");
}
//拿到BeanDefinition
RootBeanDefinition mbdToUse = mbd;
//获取类的信息
Class<?> resolvedClass = this.resolveBeanClass(mbd, beanName, new Class[0]);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
try {
mbdToUse.prepareMethodOverrides();
} catch (BeanDefinitionValidationException var9) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(), beanName, "Validation of method overrides failed", var9);
}
Object beanInstance;
try {
beanInstance = this.resolveBeforeInstantiation(beanName, mbdToUse);
if (beanInstance != null) {
return beanInstance;
}
} catch (Throwable var10) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "BeanPostProcessor before instantiation of bean failed", var10);
}
try {
//9.真正的创建Bean
beanInstance = this.doCreateBean(beanName, mbdToUse, args);
if (this.logger.isTraceEnabled()) {
this.logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
} catch (ImplicitlyAppearedSingletonException | BeanCreationException var7) {
throw var7;
} catch (Throwable var8) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", var8);
}
}
9.真正的创建Bean(doCreateBean)
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
instanceWrapper = (BeanWrapper)this.factoryBeanInstanceCache.remove(beanName);
}
//实例化,调用构造方法,不设置属性
if (instanceWrapper == null) {
instanceWrapper = this.createBeanInstance(beanName, mbd, args);
}
Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
synchronized(mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
this.applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
} catch (Throwable var17) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Post-processing of merged bean definition failed", var17);
}
mbd.postProcessed = true;
}
}
//判断是否是循环依赖
boolean earlySingletonExposure = mbd.isSingleton() && this.allowCircularReferences && this.isSingletonCurrentlyInCreation(beanName);
if (earlySingletonExposure) {
if (this.logger.isTraceEnabled()) {
this.logger.trace("Eagerly caching bean '" + beanName + "' to allow for resolving potential circular references");
}
//是循环依赖,放入三级缓存
this.addSingletonFactory(beanName, () -> {
return this.getEarlyBeanReference(beanName, mbd, bean);
});
}
Object exposedObject = bean;
try {
//11.填充属性
this.populateBean(beanName, mbd, instanceWrapper);
//如果没有循环依赖,并且bean是一个代理Bean,那么创建代理对象的过程是在后置处理器中完成的
//12.调用初始化方法,执行BeanPostProcessor后置处理器
exposedObject = this.initializeBean(beanName, exposedObject, mbd);
} catch (Throwable var18) {
if (var18 instanceof BeanCreationException && beanName.equals(((BeanCreationException)var18).getBeanName())) {
throw (BeanCreationException)var18;
}
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Initialization of bean failed", var18);
}
if (earlySingletonExposure) {
Object earlySingletonReference = this.getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
} else if (!this.allowRawInjectionDespiteWrapping && this.hasDependentBean(beanName)) {
String[] dependentBeans = this.getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet(dependentBeans.length);
String[] var12 = dependentBeans;
int var13 = dependentBeans.length;
for(int var14 = 0; var14 < var13; ++var14) {
String dependentBean = var12[var14];
if (!this.removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName, "Bean with name '" + beanName + "' has been injected into other beans [" + StringUtils.collectionToCommaDelimitedString(actualDependentBeans) + "] in its raw version as part of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
try {
this.registerDisposableBeanIfNecessary(beanName, bean, mbd);
return exposedObject;
} catch (BeanDefinitionValidationException var16) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", var16);
}
}
10.将singletonFactory放入三级缓存
//11.将singletonFactory放入三级缓存
protected void addSingletonFactory(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(singletonFactory, "Singleton factory must not be null");
synchronized(this.singletonObjects) {
if (!this.singletonObjects.containsKey(beanName)) {
//将单例工厂放入三级缓存
this.singletonFactories.put(beanName, singletonFactory);
this.earlySingletonObjects.remove(beanName);
this.registeredSingletons.add(beanName);
}
}
}
11.属性填充
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
if (bw == null) {
if (mbd.hasPropertyValues()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
} else {
if (!mbd.isSynthetic() && this.hasInstantiationAwareBeanPostProcessors()) {
Iterator var4 = this.getBeanPostProcessorCache().instantiationAware.iterator();
while(var4.hasNext()) {
InstantiationAwareBeanPostProcessor bp = (InstantiationAwareBeanPostProcessor)var4.next();
if (!bp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
return;
}
}
}
PropertyValues pvs = mbd.hasPropertyValues() ? mbd.getPropertyValues() : null;
int resolvedAutowireMode = mbd.getResolvedAutowireMode();
if (resolvedAutowireMode == 1 || resolvedAutowireMode == 2) {
MutablePropertyValues newPvs = new MutablePropertyValues((PropertyValues)pvs);
if (resolvedAutowireMode == 1) {
this.autowireByName(beanName, mbd, bw, newPvs);
}
if (resolvedAutowireMode == 2) {
this.autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = this.hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = mbd.getDependencyCheck() != 0;
PropertyDescriptor[] filteredPds = null;
if (hasInstAwareBpps) {
if (pvs == null) {
pvs = mbd.getPropertyValues();
}
PropertyValues pvsToUse;
for(Iterator var9 = this.getBeanPostProcessorCache().instantiationAware.iterator(); var9.hasNext(); pvs = pvsToUse) {
InstantiationAwareBeanPostProcessor bp = (InstantiationAwareBeanPostProcessor)var9.next();
pvsToUse = bp.postProcessProperties((PropertyValues)pvs, bw.getWrappedInstance(), beanName);
if (pvsToUse == null) {
if (filteredPds == null) {
filteredPds = this.filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
pvsToUse = bp.postProcessPropertyValues((PropertyValues)pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvsToUse == null) {
return;
}
}
}
}
if (needsDepCheck) {
if (filteredPds == null) {
filteredPds = this.filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
}
this.checkDependencies(beanName, mbd, filteredPds, (PropertyValues)pvs);
}
if (pvs != null) {
//12.解决依赖
this.applyPropertyValues(beanName, mbd, bw, (PropertyValues)pvs);
}
}
}
12.依赖注入,解决依赖
protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
while(true) {
while(var11.hasNext()) {
PropertyValue pv = (PropertyValue)var11.next();
if (pv.isConverted()) {
deepCopy.add(pv);
} else {
String propertyName = pv.getName();
Object originalValue = pv.getValue();
//13.解析值
Object resolvedValue = valueResolver.resolveValueIfNecessary(pv, originalValue);
}
13.解析值
public Object resolveValueIfNecessary(Object argName, @Nullable Object value) {
if (value instanceof RuntimeBeanReference) {
RuntimeBeanReference ref = (RuntimeBeanReference)value;
//解决依赖
return this.resolveReference(argName, ref);
}
}
14.回到第4步,获取Bean
private Object resolveReference(Object argName, RuntimeBeanReference ref) {
Object bean;
bean = this.beanFactory.getBean(resolvedName);
return bean;
}
}
15.工厂对象创建对象
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
//判断Bean是否有后置处理,比如生成代理对象
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
}
}
}
return exposedObject;
}
为什么要使用三级缓存?
spring规定代理对象应该是初始化后BeanPostProcessor后置处理器()来创建代理对象,
但出现循环依赖,只能提前创建代理对象
三级缓存是工厂对象,在生成对象时,如果对象需要成为一个代理对象,就会直接创建出代理对象
//获取对象
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
//判断Bean是否有后置处理,比如生成代理对象
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
}
}
}
return exposedObject;
}
它实际上就是调用了后置处理器的getEarlyBeanReference，而真正实现了这个方法的后置处理器只有一个，就是通过@EnableAspectJAutoProxy注解导入的AnnotationAwareAspectJAutoProxyCreator。也就是说如果在不考虑AOP的情况下，上面的代码等价于：
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
return exposedObject;
}
复制代码
也就是说这个工厂啥都没干，直接将实例化阶段创建的对象返回了！所以说在不考虑AOP的情况下三级缓存有用嘛？讲道理，真的没什么用
结合了AOP的循环依赖
之前我们已经说过了，在普通的循环依赖的情况下，三级缓存没有任何作用。三级缓存实际上跟Spring中的AOP相关，我们再来看一看getEarlyBeanReference的代码：
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
}
}
}
return exposedObject;
}
复制代码
如果在开启AOP的情况下，那么就是调用到AnnotationAwareAspectJAutoProxyCreator的父类的AbstractAutoProxyCreator的getEarlyBeanReference方法，对应的源码如下：
public Object getEarlyBeanReference(Object bean, String beanName) {
Object cacheKey = getCacheKey(bean.getClass(), beanName);
this.earlyProxyReferences.put(cacheKey, bean);
// 如果需要代理，返回一个代理对象，不需要代理，直接返回当前传入的这个bean对象
return wrapIfNecessary(bean, beanName, cacheKey);
}
复制代码
回到上面的例子，我们对A进行了AOP代理的话，那么此时getEarlyBeanReference将返回一个代理后的对象，而不是实例化阶段创建的对象，这样就意味着B中注入的A将是一个代理对象而不是A的实例化阶段创建后的对象。
三级缓存的意义何在？
就以我们上的A、B为例，其中A被AOP代理，我们先分析下使用了三级缓存的情况下，A、B的创建流程
假设不使用三级缓存，直接用二级缓存中，也是可以实现的
上面两个流程的唯一区别在于为A对象创建代理的时机不同，在使用了三级缓存的情况下为A创建代理的时机是在B中需要注入A的时候，而不使用三级缓存的话在A实例化后就需要马上为A创建代理然后放入到二级缓存中去。对于整个A、B的创建过程而言，消耗的时间是一样的（所以常见的三级缓存提高了效率这种说法都是错误的）
上述这种情况下，差别就是在哪里创建代理。如果不用三级缓存，使用二级缓存，违背了Spring在结合AOP跟Bean的生命周期的设计！Spring结合AOP跟Bean的生命周期本身就是通过AnnotationAwareAspectJAutoProxyCreator这个后置处理器来完成的，在这个后置处理的postProcessAfterInitialization方法中对初始化后的Bean完成AOP代理。如果出现了循环依赖，那没有办法，只有给Bean先创建代理，但是没有出现循环依赖的情况下，设计之初就是让Bean在生命周期的最后一步完成代理而不是在实例化后就立马完成代理。
疑问?
为什么三级缓存我还是不太明白,
先判断是否有循环依赖,
如果没有
是不需要缓存的,实例化,属性填充,初始化,创建代理对象,符合spring AOP规范
如果有循环依赖A(代理),B
使用二级缓存:
实例化A,创建代理对象(半成品),放入二级缓存,然后属性填充B(实例化B,创建普通对象(半成品),B放入二级缓存,属性填充A成功,删除二级缓存B,放入一级缓存,B初始化成功),删除二级缓存A,放入一级缓存,A初始化成功
不符合spring AOP规范
使用三级缓存:
实例化A,放入三级缓存,然后属性填充B(期间通过三级缓存的对象工厂A创建代理对象A,放入二级缓存,填充属性A,,删除二级缓存B,放入一级缓存B,初始化B完成),填充属性A,删除二级缓存A,放入一级缓存A,初始化B完成,不符合spring AOP规范
我觉得二级缓存也可以完成一样的效果
希望真正懂的人解答疑惑!!
参考文章:
https://www.zhihu.com/question/438247718/answer/1730527725
为什么要三级缓存?
别在于为A对象创建代理的时机不同，在使用了三级缓存的情况下为A创建代理的时机是在B中需要注入A的时候，而不使用三级缓存的话在A实例化后就需要马上为A创建代理然后放入到二级缓存中去。对于整个A、B的创建过程而言，消耗的时间是一样的（所以常见的三级缓存提高了效率这种说法都是错误的）
上述这种情况下，差别就是在哪里创建代理。如果不用三级缓存，使用二级缓存，违背了Spring在结合AOP跟Bean的生命周期的设计！Spring结合AOP跟Bean的生命周期本身就是通过AnnotationAwareAspectJAutoProxyCreator这个后置处理器来完成的，在这个后置处理的postProcessAfterInitialization方法中对初始化后的Bean完成AOP代理。如果出现了循环依赖，那没有办法，只有给Bean先创建代理，但是没有出现循环依赖的情况下，设计之初就是让Bean在生命周期的最后一步完成代理而不是在实例化后就立马完成代理。
疑问?
为什么三级缓存我还是不太明白,
先判断是否有循环依赖,
如果没有
是不需要缓存的,实例化,属性填充,初始化,创建代理对象,符合spring AOP规范
如果有循环依赖A(代理),B
使用二级缓存:
实例化A,创建代理对象(半成品),放入二级缓存,然后属性填充B(实例化B,创建普通对象(半成品),B放入二级缓存,属性填充A成功,删除二级缓存B,放入一级缓存,B初始化成功),删除二级缓存A,放入一级缓存,A初始化成功
不符合spring AOP规范
使用三级缓存:
实例化A,放入三级缓存,然后属性填充B(期间通过三级缓存的对象工厂A创建代理对象A,放入二级缓存,填充属性A,,删除二级缓存B,放入一级缓存B,初始化B完成),填充属性A,删除二级缓存A,放入一级缓存A,初始化B完成,不符合spring AOP规范
我觉得二级缓存也可以完成一样的效果
希望真正懂的人解答疑惑!!
参考文章:
https://www.zhihu.com/question/438247718/answer/1730527725
为什么要三级缓存?
https://juejin.cn/post/6930904292958142478#heading-5
扫一扫
3614
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
