lamp平台构建

web服务器工作流程

在说lamp架构平台的搭建前，我们先来了解下什么是CGI，什么是FastCGI，什么是…

web服务器的资源分为两种，静态资源和动态资源

• 静态资源就是指静态内容，客户端从服务器获得的资源的表现形式与原文件相同。可以简单的理解为就是直接存储于文件系统中的资源
• 动态资源则通常是程序文件，需要在服务器执行之后，将执行的结果返回给客户端

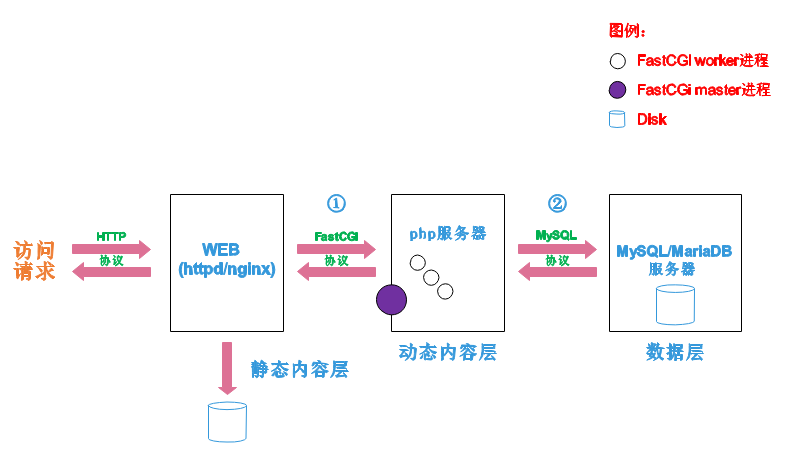

那么web服务器如何执行程序并将结果返回给客户端呢？下面通过一张图来说明一下web服务器如何处理客户端的请求

如上图所示

阶段①显示的是httpd服务器（即apache）和php服务器通过FastCGI协议进行通信，且php作为独立的服务进程运行

阶段②显示的是php程序和mysql数据库间通过mysql协议进行通信。php与mysql本没有什么联系，但是由Php语言写成的程序可以与mysql进行数据交互。同理perl和python写的程序也可以与mysql数据库进行交互

cgi与fastcgi

上图阶段①中提到了FastCGI，下面我们来了解下CGI与FastCGI。

CGI（Common Gateway Interface，通用网关接口），CGI是外部应用程序（CGI程序）与WEB服务器之间的接口标准，是在CGI程序和Web服务器之间传递信息的过程。CGI规范允许Web服务器执行外部程序，并将它们的输出发送给Web浏览器，CGI将web的一组简单的静态超媒体文档变成一个完整的新的交互式媒体。

FastCGI（Fast Common Gateway Interface）是CGI的改良版，CGI是通过启用一个解释器进程来处理每个请求，耗时且耗资源，而FastCGI则是通过master-worker形式来处理每个请求，即启动一个master主进程，然后根据配置启动几个worker进程，当请求进来时，master会从worker进程中选择一个去处理请求，这样就避免了重复的生成和杀死进程带来的频繁cpu上下文切换而导致耗时

httpd与php结合的方式

httpd与php结合的方式有以下三种：

• modules：php将以httpd的扩展模块形式存在，需要加载动态资源时，httpd可以直接通过php模块来加工资源并返回给客户端
  • httpd prefork：libphp5.so（多进程模型的php）
  • httpd event or worker：libphp5-zts.so（线程模型的php）
• CGI：httpd需要加载动态资源时，通过CGI与php解释器联系，获得php执行的结果，此时httpd负责与php连接的建立和断开等
• FastCGI：利用php-fpm机制，启动为服务进程，php自行运行为一个服务，https通过socket与php通信

较于CGI方式，FastCGI更为常用，很少有人使用CGI方式来加载动态资源

web工作流程

通过上面的图说明一下web的工作流程：

• 客户端通过http协议请求web服务器资源
• web服务器收到请求后判断客户端请求的资源是静态资源或是动态资源
  • 若是静态资源则直接从本地文件系统取之返回给客户端。
  • 否则若为动态资源则通过FastCGI协议与php服务器联系，通过CGI程序的master进程调度worker进程来执行程序以获得客户端请求的动态资源，并将执行的结果通过FastCGI协议返回给httpd服务器，httpd服务器收到php的执行结果后将其封装为http响应报文响应给客户端。在执行程序获取动态资源时若需要获得数据库中的资源时，由Php服务器通过mysql协议与MySQL/MariaDB服务器交互，取之而后返回给httpd，httpd将从php服务器收到的执行结果封装成http响应报文响应给客户端。

lamp平台构建

环境说明：

系统平台	IP	需要安装的服务
centos7 redhat7	172.16.12.128	httpd-2.4 mysql-5.7 php php-mysql

lamp平台软件安装次序：

    httpd --> mysql --> php

安装httpd

//YUM源配置
[root@localhost yum.repos.d]# sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo
[root@localhost yum.repos.d]# cd
[root@localhost ~]# yum install -y wget vim
CentOS-8.5.2111 - Base - mirrors.aliyun.com                                   17 kB/s | 3.9 kB     00:00
CentOS-8.5.2111 - Extras - mirrors.aliyun.com                                 10 kB/s | 1.5 kB     00:00
CentOS-8.5.2111 - AppStream - mirrors.aliyun.com                              25 kB/s | 4.3 kB     00:00
Package wget-1.19.5-10.el8.x86_64 is already installed.
Package vim-enhanced-2:8.0.1763-19.el8.4.x86_64 is already installed.
Dependencies resolved.
Nothing to do.
Complete!
[root@localhost ~]# yum install -y https://mirrors.aliyun.com/epel/epel-release-latest-8.noarch.rpm
Last metadata expiration check: 0:01:59 ago on Tue 02 Aug 2022 04:04:49 PM CST.
epel-release-latest-8.noarch.rpm                                              66 kB/s |  24 kB     00:00
Package epel-release-8-16.el8.noarch is already installed.
Dependencies resolved.
Nothing to do.
Complete!
[root@localhost yum.repos.d]# sed -i 's|^#baseurl=https://download.example/pub|baseurl=https://mirrors.aliyun.com|' /etc/yum.repos.d/epel*
[root@localhost yum.repos.d]# sed -i 's|^metalink|#metalink|' /etc/yum.repos.d/epel*

//安装开发工具包
[root@localhost ~]# yum groups mark install 'Development Tools'

//创建apache服务的用户和组
[root@localhost ~]# useradd -r -M -s /sbin/nologin apache
The memcache was not invalidated by NSS responder.
[root@localhost ~]# id apache
uid=994(apache) gid=991(apache) groups=991(apache)

//安装依赖包
[root@localhost ~]# yum -y install openssl-devel pcre-devel expat-devel libtool gcc gcc-c++

//下载和安装apr以及apr-util
[root@localhost ~]# cd /usr/src/
[root@localhost src]# wget https://downloads.apache.org/apr/apr-1.6.5.tar.bz2
[root@localhost src]# wget https://downloads.apache.org/apr/apr-util-1.6.1.tar.bz2
[root@localhost src]# wget https://downloads.apache.org/httpd/httpd-2.4.54.tar.bz2
[root@localhost src]# tar xf apr-1.6.5.tar.bz2
[root@localhost src]# tar xf apr-util-1.6.1.tar.bz2
[root@localhost src]# tar xf httpd-2.4.54.tar.bz2
ls[root@localhost src]# ls
apr-1.6.5          apr-util-1.6.1          debug         httpd-2.4.54.tar.bz2
apr-1.6.5.tar.bz2  apr-util-1.6.1.tar.bz2  httpd-2.4.54  kernels
[root@localhost apr-1.6.5]# vim configure
    cfgfile=${ofile}T
    trap "$RM \"$cfgfile\"; exit 1" 1 2 15
#    $RM "$cfgfile"				//将此行加上注释
[root@localhost apr-1.6.5]# ./configure --prefix=/usr/local/apr
[root@localhost apr-1.6.5]# make && make install

//安装apr-util
[root@localhost apr-1.6.5]# cd ../apr-util-1.6.1/
[root@localhost apr-util-1.6.1]# ./configure --prefix=/usr/local/apr-util --with-apr=/usr/local/apr
[root@localhost apr-util-1.6.1]# make && make install

//编译安装httpd
[root@localhost httpd-2.4.54]# ./configure --prefix=/usr/local/apache \
> --sysconfdir=/etc/httpd24 \
> --enable-so \
> --enable-ssl \
> --enable-cgi \
> --enable-rewrite \
> --with-zlib \
> --with-pcre \
> --with-apr=/usr/local/apr \
> --with-apr-util=/usr/local/apr-util/ \
> --enable-modules=most \
> --enable-mpms-shared=all \
> --with-mpm=prefork
[root@localhost httpd-2.4.54]# make && make install

//安装后配置环境变量
[root@localhost httpd-2.4.54]# echo "export PATH=$PATH:/usr/local/apache/bin" > /etc/profile.d/httpd.sh
[root@localhost httpd-2.4.54]# ln -s /usr/local/apache/include/ /usr/include/httpd
[root@localhost httpd-2.4.54]# vim /etc/man_db.conf
MANDATORY_MANPATH                   /usr/local/apache/man
[root@localhost httpd-2.4.54]# source /etc/profile.d/httpd.sh
[root@localhost system]# cat httpd.service
[Unit]
Description=apache server daemon
After=network.target sshd-keygen.target

[Service]
Type=forking
ExecStart=/usr/local/apache/bin/apachectl start
ExecStop=/usr/local/apache/bin/apachectl stop
ExecReload=/bin/kill -HUP $MAINPID

[Install]
WantedBy=multi-user.target

测试：
![在这里插入图片描述](https://img-blog.csdnimg.cn/94ff01ea97524651b15cf40ad044822c.jpeg#pic_center

安装mysql

//安装依赖包
[root@localhost ~]# yum -y install ncurses-devel openssl-devel openssl cmake

//创建用户和组
[root@localhost ~]# useradd -r -M -s /sbin/nologin mysql
[root@localhost ~]# id mysql
uid=993(mysql) gid=990(mysql) groups=990(mysql)

//下载二进制格式的mysql软件包
[root@localhost ~]# cd /usr/src/
[root@localhost src]# wget https://downloads.mysql.com/archives/get/p/23/file/mysql-5.7.38-linux-glibc2.12-x86_64.tar.gz
[root@localhost src]# tar xf mysql-5.7.38-linux-glibc2.12-x86_64.tar.gz -C /usr/local/
[root@localhost src]# cd /usr/local/
[root@localhost local]# ln -s mysql-5.7.38-linux-glibc2.12-x86_64/ mysql
[root@localhost local]# chown -R mysql.mysql mysql*
[root@localhost local]# ll -d mysql*
lrwxrwxrwx. 1 mysql mysql  36 Aug  2 16:28 mysql -> mysql-5.7.38-linux-glibc2.12-x86_64/
drwxr-xr-x. 9 mysql mysql 129 Aug  2 16:27 mysql-5.7.38-linux-glibc2.12-x86_64

//解压软件至/usr/local/
[root@localhost ~]# tar xf mysql-5.7.37-linux-glibc2.12-x86_64.tar.gz -C /usr/local/

//修改目录/usr/local/mysql的属主属组
[root@localhost local]# chown -R mysql.mysql mysql
[root@localhost local]# chown -R mysql.mysql mysql-5.7.37-linux-glibc2.12-x86_64/
[root@localhost local]# ll
total 0
drwxr-xr-x. 2 root  root    6 May 19  2020 bin
drwxr-xr-x. 2 root  root    6 May 19  2020 etc
drwxr-xr-x. 2 root  root    6 May 19  2020 games
drwxr-xr-x. 2 root  root    6 May 19  2020 include
drwxr-xr-x. 2 root  root    6 May 19  2020 lib
drwxr-xr-x. 3 root  root   17 Jun 27 21:48 lib64
drwxr-xr-x. 2 root  root    6 May 19  2020 libexec
lrwxrwxrwx. 1 mysql mysql  36 Jul 26 17:57 mysql -> mysql-5.7.37-linux-glibc2.12-x86_64/
drwxr-xr-x. 9 mysql mysql 129 Jul 26 17:56 mysql-5.7.37-linux-glibc2.12-x86_64
drwxr-xr-x. 2 root  root    6 May 19  2020 sbin
drwxr-xr-x. 5 root  root   49 Jun 27 21:48 share
drwxr-xr-x. 2 root  root    6 May 19  2020 src

//添加环境变量
[root@localhost local]# ls mysql
bin  docs  include  lib  LICENSE  man  README  share  support-files

[root@localhost local]# echo 'export PATH=$PATH:/usr/local/mysql/bin/' > /etc/profile.d/mysql.sh
[root@localhost local]# source /etc/profile.d/mysql.sh

[root@localhost local]# ln -s /usr/local/mysql/include /usr/include/mysql
[root@localhost local]# ll /usr/include/ | grep mysql
lrwxrwxrwx. 1 root root 24 Jul 26 18:00 mysql -> /usr/local/mysql/include


[root@localhost local]# vim /etc/ld.so.conf.d/mysql.conf
/usr/local/mysql/lib
[root@localhost local]# ldconfig

[root@localhost local]# vi /etc/man_db.conf
......
MANDATORY_MANPATH                       /usr/local/mysql/man
......

//建立数据存放目录
[root@localhost local]# cd
[root@localhost ~]# mkdir /opt/data
[root@localhost ~]# chown -R mysql.mysql /opt/data/

//初始化数据库
[root@localhost ~]# mysqld --initialize --user=mysql --datadir=/opt/data/
2022-07-26T10:06:15.217572Z 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details).
2022-07-26T10:06:15.366362Z 0 [Warning] InnoDB: New log files created, LSN=45790
2022-07-26T10:06:15.388023Z 0 [Warning] InnoDB: Creating foreign key constraint system tables.
2022-07-26T10:06:15.442314Z 0 [Warning] No existing UUID has been found, so we assume that this is the first time that this server has been started. Generating a new UUID: 95cb821b-0cca-11ed-8584-000c295e7eb4.
2022-07-26T10:06:15.443312Z 0 [Warning] Gtid table is not ready to be used. Table 'mysql.gtid_executed' cannot be opened.
2022-07-26T10:06:16.926673Z 0 [Warning] A deprecated TLS version TLSv1 is enabled. Please use TLSv1.2 or higher.
2022-07-26T10:06:16.926689Z 0 [Warning] A deprecated TLS version TLSv1.1 is enabled. Please use TLSv1.2 or higher.
2022-07-26T10:06:16.927065Z 0 [Warning] CA certificate ca.pem is self signed.
2022-07-26T10:06:17.043394Z 1 [Note] A temporary password is generated for root@localhost: lQTaUm,T<7WA
//注意：这个命令的最后会生成一个临时的随机密码，此处密码是 “lQTaUm,T<7WA”。

[root@localhost ~]# echo 'lQTaUm,T<7WA' > password
[root@localhost ~]# ls
anaconda-ks.cfg  mysql-5.7.37-linux-glibc2.12-x86_64.tar.gz  password

//生成配置文件
[root@localhost ~]# vim /etc/my.cnf
[mysqld]
basedir = /usr/local/mysql
datadir = /opt/data
socket = /tmp/mysql.sock
port = 3306
pid-file = /opt/data/mysql.pid
user = mysql
skip-name-resolve
sql-mode = STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_AUTO_CREATE_USER,NO_ENGINE_SUBSTITUTION

//配置服务启动脚本
[root@localhost ~]# cp -a /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld
[root@localhost ~]# sed -ri 's#^(basedir=).*#\1/usr/local/mysql#g' /etc/init.d/mysqld
[root@localhost ~]# sed -ri 's#^(datadir=).*#\1/opt/data#g' /etc/init.d/mysqld

//启动mysql
[root@localhost ~]# service mysqld start
Starting MySQL.Logging to '/opt/data/localhost.localdomain.err'.
 SUCCESS!

[root@localhost ~]# ss -antl
State   Recv-Q  Send-Q   Local Address:Port     Peer Address:Port  Process
LISTEN  0       128            0.0.0.0:22            0.0.0.0:*
LISTEN  0       80                   *:3306                *:*
LISTEN  0       128               [::]:22               [::]:*

[root@localhost ~]# ps -ef | grep mysqld
root       11023       1  0 18:12 pts/0    00:00:00 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/opt/data --pid-file=/opt/data/mysql.pid
mysql      11223   11023  1 18:12 pts/0    00:00:00 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/opt/data --plugin-dir=/usr/local/mysql/lib/plugin --user=mysql --log-error=localhost.localdomain.err --pid-file=/opt/data/mysql.pid --socket=/tmp/mysql.sock --port=3306
root       11258    1581  0 18:13 pts/0    00:00:00 grep --color=auto mysql

//使用临时密码登录
[root@localhost ~]# mysql -p
mysql: error while loading shared libraries: libncurses.so.5: cannot open shared object file: No such file or directory

[root@localhost ~]# yum whatprovides libncurses.so.5
Last metadata expiration check: 0:19:41 ago on Tue 26 Jul 2022 05:55:09 PM CST.
ncurses-compat-libs-6.1-7.20180224.el8.i686 : Ncurses compatibility
                                            : libraries
Repo        : baseos
Matched from:
Provide    : libncurses.so.5

ncurses-compat-libs-6.1-9.20180224.el8.i686 : Ncurses compatibility
                                            : libraries
Repo        : baseos
Matched from:
Provide    : libncurses.so.5

[root@localhost ~]# yum install -y ncurses-compat-libs

//修改密码，设置新密码
[root@localhost ~]# cat password
lQTaUm,T<7WA

[root@localhost ~]# mysql -p'lQTaUm,T<7WA'
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 2
Server version: 5.7.37

Copyright (c) 2000, 2022, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> set password = password('skye123!');
Query OK, 0 rows affected, 1 warning (0.00 sec)

安装php

//安装依赖包
[root@localhost system]# yum -y install libxml2 libxml2-devel openssl openssl-devel bzip2 bzip2-devel libcurl libcurl-devel libicu-devel libjpeg libjpeg-devel libpng libpng-devel openldap-devel  pcre-devel freetype freetype-devel gmp gmp-devel libmcrypt libmcrypt-devel readline readline-devel libxslt libxslt-devel mhash mhash-devel php-mysqlnd

//下载php
[root@localhost ~]# cd /usr/src/
[root@localhost src]# wget https://www.php.net/distributions/php-7.4.30.tar.xz
[root@localhost src]# tar xf php-7.4.30.tar.xz

//编译安装php
[root@localhost src]# cd php-7.4.30

[root@localhost php-7.4.30]# ./configure --prefix=/usr/local/php7  \
--with-config-file-path=/etc \
--enable-fpm \
--enable-inline-optimization \
--disable-debug \
--disable-rpath \
--enable-shared \
--enable-soap \
--with-openssl \
--enable-bcmath \
--with-iconv \
--with-bz2 \
--enable-calendar \
--with-curl \
--enable-exif  \
--enable-ftp \
--enable-gd \
--with-jpeg \
--with-zlib-dir \
--with-freetype \
--with-gettext \
--enable-json \
--enable-mbstring \
--enable-pdo \
--with-mysqli=mysqlnd \
--with-pdo-mysql=mysqlnd \
--with-readline \
--enable-shmop \
--enable-simplexml \
--enable-sockets \
--with-zip \
--enable-mysqlnd-compression-support \
--with-pear \
--enable-pcntl \
--enable-posix

//安装后配置
[root@localhost php-7.4.30]# cd /usr/local/php7/
[root@localhost php7]# ls
bin  etc  include  lib  php  sbin  var
[root@localhost php7]# echo 'export PATH=$PATH:/usr/local/php7/bin' > /etc/profile.d/php7.sh
[root@localhost php7]# source /etc/profile.d/php7.sh
[root@localhost php7]# ln -s /usr/local/php7/include/ /usr/include/php7
[root@localhost php7]# echo '/usr/local/php7/lib/' > /etc/ld.so.conf.d/php7.conf
[root@localhost php7]# ldconfig

//配置php-fpm
[root@localhost php7]# cd /usr/src/php-7.4.30
[root@localhost php-7.4.30]# cp php.ini-production /etc/php.ini
cp: overwrite '/etc/php.ini'? y
[root@localhost php-7.4.30]# cp sapi/fpm/init.d.php-fpm /etc/init.d/php-fpm
[root@localhost php-7.4.30]# ll -d /etc/init.d/php-fpm
-rw-r--r--. 1 root root 2402 Aug  2 23:38 /etc/init.d/php-fpm
[root@localhost php-7.4.30]# chmod +x /etc/init.d/php-fpm

[root@localhost php-7.4.30]# cd /usr/local/php7/etc/
[root@localhost etc]# ls
pear.conf  php-fpm.conf.default  php-fpm.d
[root@localhost etc]# cp php-fpm.conf.default php-fpm.conf
[root@localhost etc]# cd php-fpm.d/
[root@localhost php-fpm.d]# ls
www.conf.default
[root@localhost php-fpm.d]# cp www.conf.default www.conf

w-r–r–. 1 root root 2402 Aug 2 23:38 /etc/init.d/php-fpm
[root@localhost php-7.4.30]# chmod +x /etc/init.d/php-fpm

[root@localhost php-7.4.30]# cd /usr/local/php7/etc/
[root@localhost etc]# ls
pear.conf php-fpm.conf.default php-fpm.d
[root@localhost etc]# cp php-fpm.conf.default php-fpm.conf
[root@localhost etc]# cd php-fpm.d/
[root@localhost php-fpm.d]# ls
www.conf.default
[root@localhost php-fpm.d]# cp www.conf.default www.conf

##
