python3读取xml文件并打印

python3读取xml文件并打印

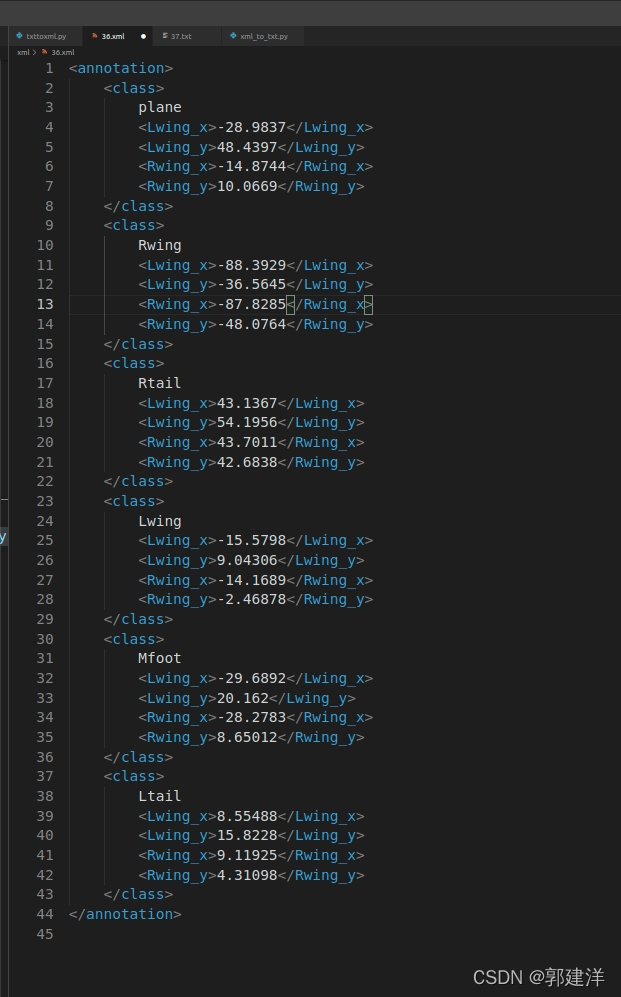

xml文件格式如下图:

运行print_xml.py

from fileinput import filename
import os
import sys
import xml.etree.ElementTree as ET
import glob

#--------读取xml文件数据并打印--------#
# 该xml读取方式匹配:https://blog.youkuaiyun.com/weixin_46438576/article/details/123729428?spm=1001.2014.3001.5502

# 第一步:将.xml文件放置在'xml_dir'目录下
# 第二步:运行print_xml.py
#----------------------------------#


def print_xml(xml_dir):

    # 获取该xml目录下所有文件xml名称并print打印
    os.chdir(xml_dir)
    annotations = os.listdir('.')
    annotations = glob.glob(str(annotations)+'*.xml')
    print(annotations)
    print('\n')

    # 遍历该xml目录下所有xml文件数据并打印
    for i, file in enumerate(annotations):
        print("xml_file:", file)
        in_file = open(file)
        tree = ET.parse(in_file)
        root = tree.getroot()
        # filename = root.find('annotation')
        # print("filename:", filename)
        for obj in root.iter('class'):
            class_type = obj.text
            Lwing_x = obj.find('Lwing_x').text
            Lwing_y = obj.find('Lwing_y').text
            Rwing_x = obj.find('Rwing_x').text
            Rwing_y = obj.find('Rwing_y').text
            print(class_type +' '+ Lwing_x+' '+ Lwing_y+' '+ Rwing_x+' '+ Rwing_y)
        print('\n')


xml_dir='/home/guo/txt_2_xml/xml'   #xml目录
print_xml(xml_dir)

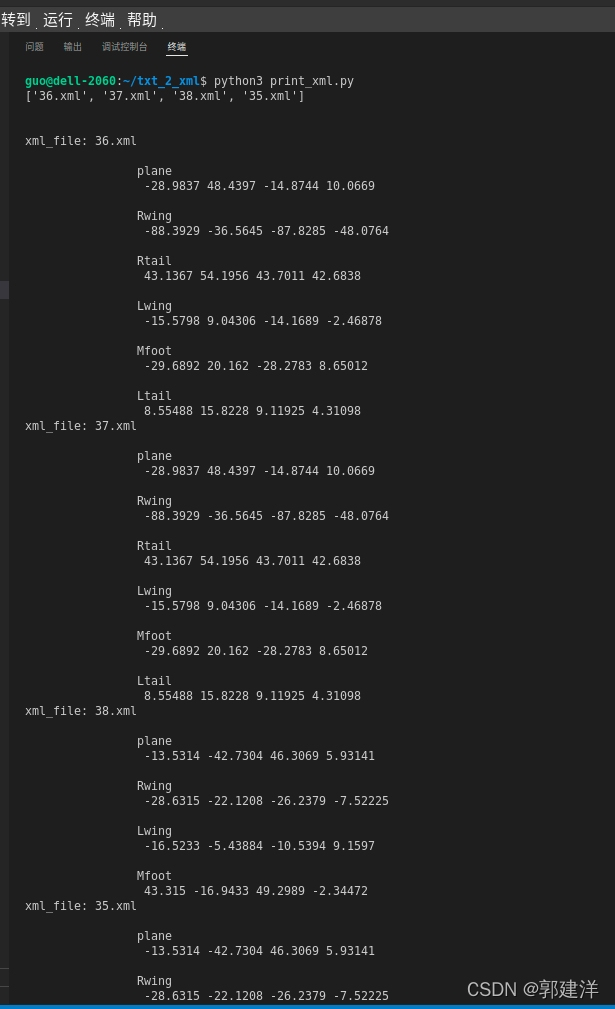

打印出来的结果如下图(36.xml 37.xml …代表文件名称):
