IC验证学习笔记（AHB-RAM）02扩充vif和与DUT连接、更新transaction

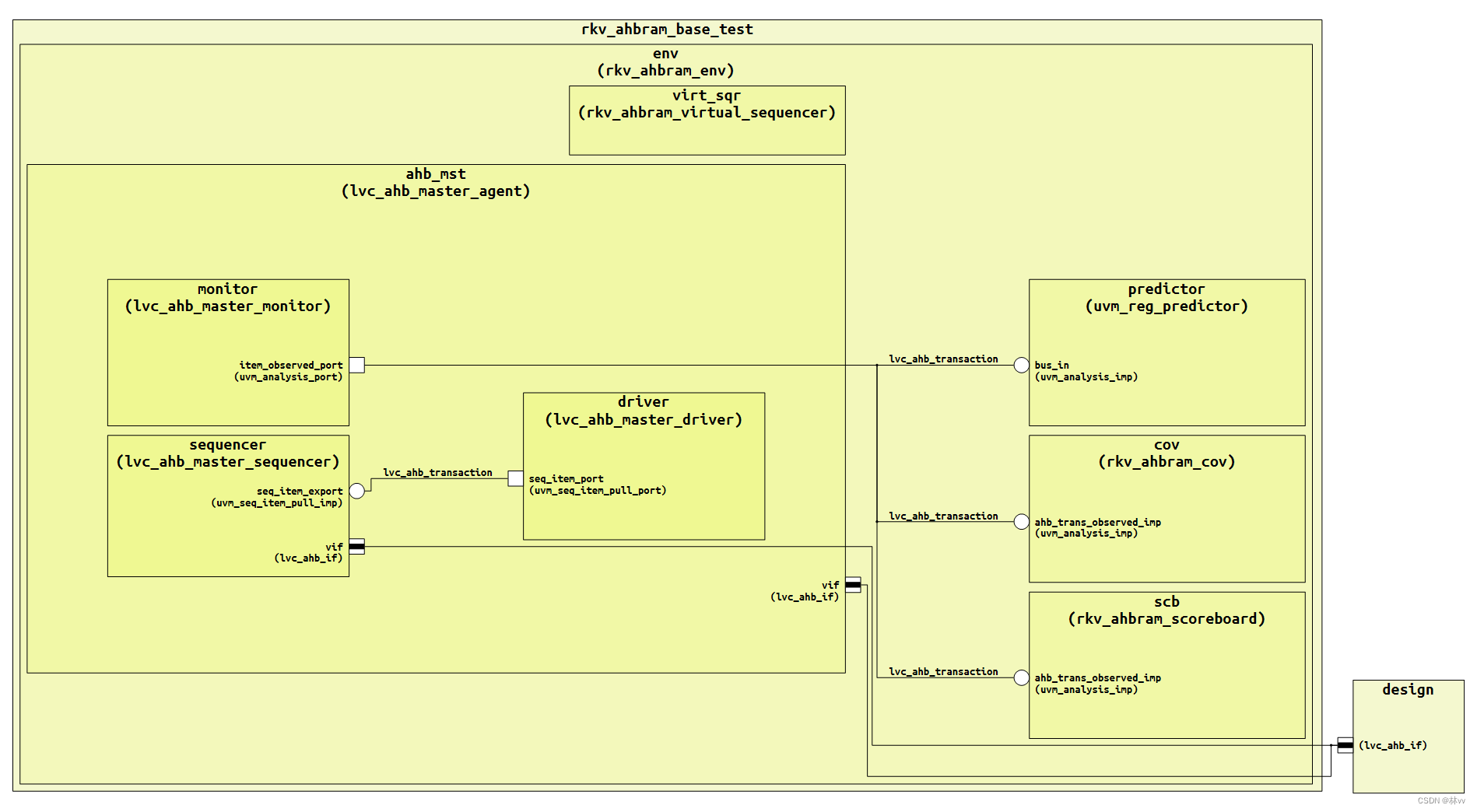

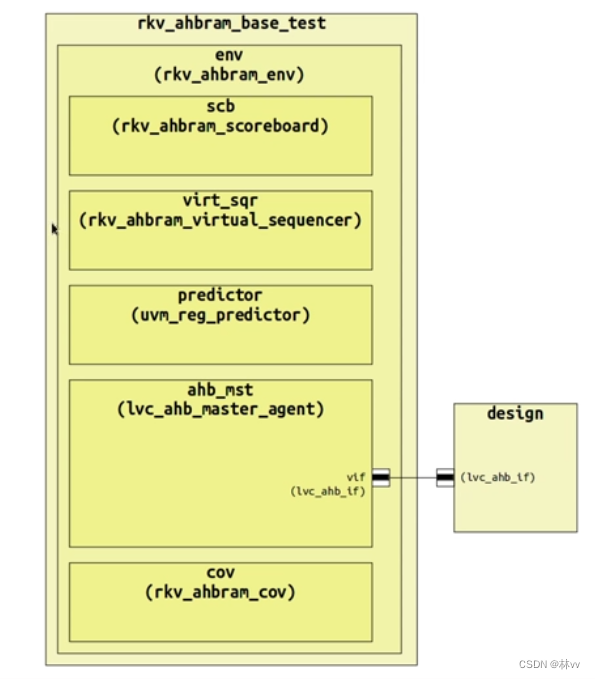

使用DVT看一下目前结构：





 完善lvc_ahb_if：

`ifndef LVC_AHB_IF_SV
`define LVC_AHB_IF_SV

interface lvc_ahb_if;

  logic                                   hclk;
  logic                                   hresetn;

  logic                                   hgrant;
  logic [(`LVC_AHB_MAX_DATA_WIDTH - 1):0] hrdata;
  logic                                   hready;
  logic [1:0]                             hresp;//response
  logic [(`LVC_AHB_MAX_ADDR_WIDTH - 1):0] haddr;
  logic [2:0]                             hburst;
  logic                                   hbusreq;
  logic                                   hlock;
  logic [3:0]                             hprot;//protect
  logic [2:0]                             hsize;
  logic [1:0]                             htrans;
  logic [(`LVC_AHB_MAX_DATA_WIDTH - 1):0] hwdata;
  logic                                   hwrite;



endinterface


`endif // LVC_AHB_IF_SV

 defines文件：定义vif中需要的宏

`ifndef LVC_AHB_DEFINES_SVH
`define LVC_AHB_DEFINES_SVH

`define LVC_AHB_MAX_DATA_WIDTH 64//最长的数据和地址宽度
`define LVC_AHB_MAX_ADDR_WIDTH 32


`endif // LVC_AHB_DEFINES_SVH

补充上DUT与vif在tb中的连接、时钟、复位信号：clk在tb中做，rstn在ahbram_if中做

  logic clk;
  logic rstn;

  initial begin : clk_gen
    clk = 0;
    forever #2ns clk = !clk;
  end

  ahb_blockram_32 #(.ADDRESSWIDTH(16)) dut(
    .HCLK(ahb_if.hclk)
    ,.HRESETn(ahb_if.hresetn)
    ,.HSELBRAM(1'b1)
    ,.HREADY(ahb_if.hready)
    ,.HTRANS(ahb_if.htrans)
    ,.HSIZE(ahb_if.hsize)
    ,.HWRITE(ahb_if.hwrite)
    ,.HADDR(ahb_if.haddr)
    ,.HWDATA(ahb_if.hwdata)
    ,.HREADYOUT(ahb_if.hready)
    ,.HRESP(ahb_if.hresp)
    ,.HRDATA(ahb_if.hrdata)

  );

  lvc_ahb_if ahb_if();
  assign ahb_if.hclk    = clk;
  assign ahb_if.hresetn = rstn;
  assign ahb_if.hgrant  = 1'b1;

  rkv_ahbram_if ahbram_if();
  assign ahbram_if.clk = clk;
  assign rstn          = ahbram_if.rstn;

rstn复位信号从ahbram_if中给出：rstn的task没有放tb里面做，方便以后的调用

 initial begin : rstn_gen
    assert_reset(10);
  end

  task automatic assert_reset(int nclks = 1, int delay = 0);
    #(delay * 1ns);
    repeat(nclks) @(posedge clk);
    rstn <= 0;
    repeat(5) @(posedge clk);
    rstn <= 1;
  endtask

----------------------------------------扩充driver先完善trans------------------------------------

根据AHB协议，完善types文件

`ifndef LVC_AHB_TYPES_SV
`define LVC_AHB_TYPES_SV

  typedef enum bit[1:0] {
      OKAY   = 2'b00, /**< OKAY response */
      ERROR  = 2'b01, /**< ERROR response */
      RETRY  = 2'b10, /**< RETRY response */
      SPLIT  = 2'b11  /**< SPLIT response */
  } response_type_enum;

  typedef enum bit[1:0] {
    IDLE =   2'b00, /**< IDLE transaction */
    BUSY =   2'b01, /**< BUSY transaction */
    NSEQ =   2'b10, /**< NONSEQUENTIAL transaction */
    SEQ  =   2'b11  /**< SEQUENTIAL transaction */
  } trans_type_enum;

  typedef enum bit[2:0] {
    BURST_SIZE_8BIT    = 3'b000, /**< 8-bits transfer size */
    BURST_SIZE_16BIT   = 3'b001, /**< 16-bits transfer size */
    BURST_SIZE_32BIT   = 3'b010, /**< 32-bits transfer size */
    BURST_SIZE_64BIT   = 3'b011, /**< 64-bits transfer size */
    BURST_SIZE_128BIT  = 3'b100, /**< 128-bits transfer size */
    BURST_SIZE_256BIT  = 3'b101, /**< 256-bits transfer size */
    BURST_SIZE_512BIT  = 3'b110, /**< 512-bits transfer size */
    BURST_SIZE_1024BIT = 3'b111  /**< 1024-bits transfer size */
  } burst_size_enum;

  typedef enum bit[2:0] {
    SINGLE =  3'b000, /**< SINGLE Burst type */
    INCR   =  3'b001, /**< INCR Burst type */
    WRAP4  =  3'b010, /**< 4-beat WRAP Burst type */
    INCR4  =  3'b011, /**< 4-beat INCR Burst type */
    WRAP8  =  3'b100, /**< 8-beat WRAP Burst type */
    INCR8  =  3'b101, /**< 8-beat INCR Burst type */
    WRAP16 =  3'b110, /**< 16-beat WRAP Burst type */
    INCR16 =  3'b111  /**< 16-beat INCR Burst type */
  } burst_type_enum;

  typedef enum bit[1:0] {
    READ       = 2'b00, /**< Read transaction. */
    WRITE      = 2'b01, /**< Write transaction. */
    IDLE_XACT  = 2'b10 /**< Idle transaction. In case of active Master:
                                                      all the control signals except hlock(always zero) can be controlled
                                                      through respective transaction attributes
                                                      (similar to READ or WRITE transaction types);
                                                      the value of hwrite signal can be controlled through
                                                      lvc_ahb_transaction::idle_xact_hwrite. */
  } xact_type_enum;

  typedef enum bit[1:0] {
   INITIAL        ='b00, //  Indicates the default state of the flag. It gets
                         //  updated once the beat level transfer begins
   PARTIAL_ACCEPT ='b01, //  The status changes from INITIAL to PARTIAL_ACCEPT
                         //  once the address of each beat is accepted by slave
   ACCEPT         ='b10, //  The status changes to ACCEPT once the beat level
                         //  data is accepted by the slave
   ABORTED        ='b11  //  The status changes to ABORT in case the transaction
                         //  is ABORTED due to ERROR/SPLIT or RETRY response from
                         //  the slave or in case of EBT
  } status_enum;




`endif

更新transcation：

`ifndef LVC_AHB_TRANSACTION_SV
`define LVC_AHB_TRANSACTION_SV


class lvc_ahb_transaction extends uvm_sequence_item;

  // wdata or rdata from bus
  rand bit [`LVC_AHB_MAX_DATA_WIDTH - 1:0] data[];
  rand bit [`LVC_AHB_MAX_ADDR_WIDTH - 1 : 0] addr = 0;

  // Represents the burst size of a transaction
  rand burst_size_enum burst_size = BURST_SIZE_8BIT;//一个数据的位宽

  // Represents the transaction type of a transaction
  rand burst_type_enum burst_type = SINGLE ;//连续发送的模式

  // Response from the slave.
  rand response_type_enum response_type  = OKAY;

  //************************************************
  // NOTE:: members possibly to be applied later可能后期使用
  //************************************************
  // Indicates the type of the current transfer, which can be
  trans_type_enum trans_type;
  // This array variable stores the responses for all the completed beats of transaction. Following are the possible response types
  response_type_enum all_beat_response[];
  // Indicates the beat number of the current transfer当前传输节拍数
  int current_data_beat_num;
  //  Represents the current status of the transaction表示当前的事务状态
  status_enum status = INITIAL;
  //  aborted_xact_status_enum aborted_xact_status = NOT_ABORTED;


  // Represents the hwrite signal value when
  rand bit idle_xact_hwrite = 1;//附一个默认值

  `uvm_object_utils_begin(lvc_ahb_transaction)
  `uvm_object_utils_end

  function new(string name = "lvc_ahb_transaction");
    super.new(name);
  endfunction


endclass

`endif // LVC_AHB_TRANSACTION_SV
