基于Netty手撕RPC框架

文章目录

基于Netty手撕RPC框架

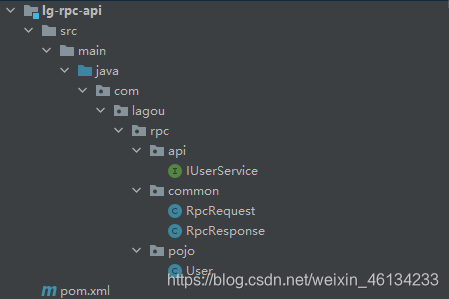

1.项目结构

在这里插入图片描述

2.api

定义一个接口，实现服务调用者与提供者的契约

package com.lagou.rpc.api;

import com.lagou.rpc.pojo.User;

/**
 * 用户服务
 */
public interface IUserService {

    /**
     * 根据ID查询用户
     *
     * @param id
     * @return
     */
    User getById(int id);
}

封装User对象

package com.lagou.rpc.pojo;


import lombok.Data;

@Data
public class User {
    private int id;
    private String name;
}

封装请求对象和返回对象

请求对象：rpc远程调用需要用到的信息：调用的接口类名，方法名，方法参数类型，方法参数列表，另外再加上一个请求id

package com.lagou.rpc.common;

import lombok.Data;

/**
 * 封装的请求对象
 */
@Data
public class RpcRequest {

    /**
     * 请求对象的ID
     */
    private String requestId;
    /**
     * 类名
     */
    private String className;
    /**
     * 方法名
     */
    private String methodName;
    /**
     * 参数类型
     */
    private Class<?>[] parameterTypes;
    /**
     * 入参 Object不需要有泛型
     */
    private Object[] parameters;

}

返回对象：相应id，错误码，返回结果

package com.lagou.rpc.common;

import lombok.Data;

/**
 * 封装的响应对象
 */
@Data
public class RpcResponse {

    /**
     * 响应ID
     */
    private String requestId;

    /**
     * 错误信息
     */
    private String error;

    /**
     * 返回的结果
     */
    private Object result;

}

3.provider

porovider为一个springboot工程，其中的主要结构有：

实现共有接口的UserServiceImpl
负责相应请求的NettyServer
负责处理Netty的Handler

本案例加入了自定义注解，使用自定义注解标定需要暴露的接口

1.自定义注解

package com.lagou.rpc.provider.anno;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

/**
 * 用于暴露服务接口
 */
@Target(ElementType.TYPE) // 用于类上
@Retention(RetentionPolicy.RUNTIME)//在运行时可以获取到
public @interface RpcService {
}

2.实现UserServiceInterface

package com.lagou.rpc.provider.service;

import com.lagou.rpc.api.IUserService;
import com.lagou.rpc.pojo.User;
import com.lagou.rpc.provider.anno.RpcService;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Map;


@RpcService
@Service
public class UserServiceImpl implements IUserService {
    Map<Object, User> userMap = new HashMap();

    @Override
    public User getById(int id) {
        if (userMap.size() == 0) {
            User user1 = new User();
            user1.setId(1);
            user1.setName("张三");
            User user2 = new User();
            user2.setId(2);
            user2.setName("李四");
            userMap.put(user1.getId(), user1);
            userMap.put(user2.getId(), user2);
        }
        return userMap.get(id);
    }
}

3.NettyServer的客户端

此类的主要特征点：

实现spring的DisposableBean接口，管理NettyServerHandler的生命周期
NettyServer的创建流程

package com.lagou.rpc.provider.server;

import com.lagou.rpc.provider.handler.NettyServerHandler;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

/**
 * Netty的服务端
 * 启动服务端监听端口
 */
@Component
public class NettyRpcServer implements DisposableBean {


    @Autowired
    NettyServerHandler nettyServerHandler;

    EventLoopGroup bossGroup = null;
    EventLoopGroup workerGroup = null;

    public void start(String host, int port) {
        try {
            //1.创建bossGroup和workerGroup
            bossGroup = new NioEventLoopGroup(1);
            workerGroup = new NioEventLoopGroup();
            //2.设置启动助手
            ServerBootstrap bootstrap = new ServerBootstrap();
            //3.设置启动参数
            bootstrap.group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            //添加String的编解码器
                            ch.pipeline().addLast(new StringDecoder());
                            ch.pipeline().addLast(new StringEncoder());
                            //添加自定义处理器
                            ch.pipeline().addLast(nettyServerHandler);
                        }
                    });

            //绑定ip和端口号
            ChannelFuture channelFuture = bootstrap.bind(host, port).sync();
            System.out.println("======Netty服务端启动成功======");
            //监听通道的关闭状态
            channelFuture.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
            //关闭资源
            if (bossGroup != null) {
                bossGroup.shutdownGracefully();
            }
            if (workerGroup != null) {
                workerGroup.shutdownGracefully();
            }
        }
    }

    @Override
    public void destroy() throws Exception {
        //关闭资源
        if (bossGroup != null) {
            bossGroup.shutdownGracefully();
        }
        if (workerGroup != null) {
            workerGroup.shutdownGracefully();
        }
    }
}

4.NettyHandler的实现

此类的专注点：

NettyServerHander需要继承自SimpleChannelInBoundHandler
实现ApplicationContextAware接口，用于缓存标注了@RpcService注解的方法并缓存
标注@ChannelHandler.Sharable，设置通道共享
通道的读取方法为 channelRead0

package com.lagou.rpc.provider.handler;

import com.alibaba.fastjson.JSON;
import com.lagou.rpc.common.RpcRequest;
import com.lagou.rpc.common.RpcResponse;
import com.lagou.rpc.provider.anno.RpcService;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import org.springframework.beans.BeansException;
import org.springframework.cglib.reflect.FastClass;
import org.springframework.cglib.reflect.FastMethod;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

import java.lang.reflect.InvocationTargetException;
import java.util.HashMap;
import java.util.Map;
import java.util.Set;

/**
 * 自定义业务处理类
 * 1.将标有@RpcService的注解的bean进行缓存
 * 2.接收客户端的请求
 * 3.根据传递过来的beanName从缓存中查找
 * 4.通过反射调用bean的方法
 * 5.给客户端响应
 */
@Component
@ChannelHandler.Sharable //设置通道共享
public class NettyServerHandler extends SimpleChannelInboundHandler<String> implements ApplicationContextAware {

    static Map<String, Object> SERVICE_INSTANCE_MAP = new HashMap<>();

    /**
     * 1.将标有@RpcService的注解的bean进行缓存
     *
     * @param applicationContext
     * @throws BeansException
     */
    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        //1.1 通过注解获取bean的集合
        Map<String, Object> serviceMap = applicationContext.getBeansWithAnnotation(RpcService.class);
        //1.2 循环遍历
        Set<Map.Entry<String, Object>> entries = serviceMap.entrySet();
        for (Map.Entry<String, Object> entry : entries) {
            Object serviceBean = entry.getValue();
            if (serviceBean.getClass().getInterfaces().length == 0) {
                throw new RuntimeException("对外暴露的服务必须实现接口");
            }
            //默认处理第一个作为缓存bean的名字
            String serviceName = serviceBean.getClass().getInterfaces()[0].getName();
            SERVICE_INSTANCE_MAP.put(serviceName, serviceBean);
            System.out.println(SERVICE_INSTANCE_MAP);
        }
    }


    /**
     * 通道读取就绪事件--读取客户端的消息
     *
     * @param ctx
     * @param msg
     * @throws Exception
     */
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, String msg) throws Exception {
        // 2.接收客户端的请求
        RpcRequest rpcRequest = JSON.parseObject(msg, RpcRequest.class);
        RpcResponse rpcResponse = new RpcResponse();
        rpcResponse.setRequestId(rpcRequest.getRequestId());

        //业务处理
        try {
            rpcResponse.setResult(handler(rpcRequest));
        } catch (Exception e) {
            e.printStackTrace();
            rpcResponse.setError(e.getMessage());
        }

        //5.给客户端响应
        ctx.writeAndFlush(JSON.toJSONString(rpcResponse));
    }

    private Object handler(RpcRequest rpcRequest) throws InvocationTargetException {
        //3.根据传递过来的beanName从缓存中查找
        Object serviceBean = SERVICE_INSTANCE_MAP.get(rpcRequest.getClassName());
        if (serviceBean == null) {
            throw new RuntimeException("服务端没有找到服务");
        }
        // 4.通过反射调用bean的方法
        FastClass proxyClass = FastClass.create(serviceBean.getClass());
        FastMethod method = proxyClass.getMethod(rpcRequest.getMethodName(), rpcRequest.getParameterTypes());
        return method.invoke(serviceBean, rpcRequest.getParameters());
    }
}

5.启动类

CommandLineRunner的用法

package com.lagou.rpc.provider;

import com.lagou.rpc.provider.server.NettyRpcServer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ServerBootstrapApplication implements CommandLineRunner {

    @Autowired
    NettyRpcServer rpcServer;

    public static void main(String[] args) {
        SpringApplication.run(ServerBootstrapApplication.class, args);
    }

    @Override
    public void run(String... args) throws Exception {
        new Thread(new Runnable() {
            @Override
            public void run() {
                rpcServer.start("127.0.0.1", 8899);
            }
        }).start();
    }
}

4.consumer

1.自定义接口

根据注解暴露接口

package com.lagou.rpc.consumer.anno;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

/**
 * 引用代理类
 */
@Target(ElementType.FIELD)//作用于字段
@Retention(RetentionPolicy.RUNTIME) // 在运行时可以获取得到
public @interface RpcReference {
}

2.创建client

client的功能有：

连接客户端：实现spring的InitializingBean接口
关闭资源：实现spring的DisposableBean的接口
提供发送消息的方法send()：使用线程池实现该功能，将需要发送的消息set到nettyHandler中，在handler中进行处理。此处的接口有点组合设计模式的意思，将各个需要的功能组合到一个文件中进行处理。将具体消息的发送的实现放到handler中的原因：handler需要继承SimpleChannelInboundHandler类，该类中有channelRead0接受服务端返回消息的方法，channelActive通道建立连接时候获取ChannelHandlerContext的方法。通过这两个方法可以实现消息的发送以及接口，send()对消息的发送与接收进行封装，供其他地方进行调用。另外，handler可以实现Callable接口，便于使用线程池。

package com.rpc.consumer.client;

import com.rpc.consumer.handler.NettyRpcClientHandler;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.Channel;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.concurrent.ExecutionException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;

/**
 * Netty客户端
 * 1.连接服务端
 * 2.关闭资源
 * 3.提供发送消息的方法
 */
@Component
public class NettyRpcClient implements InitializingBean, DisposableBean {

    EventLoopGroup group = null;
    Channel channel = null;

    @Autowired
    NettyRpcClientHandler nettyRpcClientHandler;

    ExecutorService service = Executors.newCachedThreadPool();

    /**
     * 1.连接服务端
     *
     * @throws Exception
     */
    @Override
    public void afterPropertiesSet() throws Exception {
        try {
            //1.1 创建线程组
            group = new NioEventLoopGroup();
            //1.2 创建客户端启动助手
            Bootstrap bootstrap = new Bootstrap();
            //1.3 设置参数
            bootstrap.group(group)
                    .channel(NioSocketChannel.class)
                    .handler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            //添加编解码器
                            ch.pipeline().addLast(new StringDecoder());
                            ch.pipeline().addLast(new StringEncoder());
                            //添加自定处理类
                            ch.pipeline().addLast(nettyRpcClientHandler);
                        }
                    });
            //1.4 连接服务
            channel = bootstrap.connect("127.0.0.1", 8899).sync().channel();
        } catch (Exception e) {
            e.printStackTrace();
            if (channel != null) {
                channel.close();
            }
            if (group != null) {
                group.shutdownGracefully();
            }
        }

    }

    @Override
    public void destroy() throws Exception {
        if (channel != null) {
            channel.close();
        }
        if (group != null) {
            group.shutdownGracefully();
        }
    }

    /**
     * 消息发送
     *
     * @param msg
     * @return
     */
    public Object send(String msg) throws ExecutionException, InterruptedException {
        nettyRpcClientHandler.setReqMsg(msg);
        Future submit = service.submit(nettyRpcClientHandler);
        return submit.get();
    }
}

3.创建handler

该类主要实现具体功能。

通过继承SimpleChannelInboundHandler类，该类中有channelRead0接受服务端返回消息的方法，获取到返回的消息以后在call()方法中进行返回；channelActive通道建立连接时候获取ChannelHandlerContext，获取到以后通过。通过这两个方法可以实现消息的发送以及接口context.writeAndFlush(reqMsg)将消息发送到服务端，reqMsg可以通过set方法进行赋值；
实现Callable接口，使用线程池
注意消息发送以后，线程要进行阻塞；

package com.rpc.consumer.handler;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import org.springframework.stereotype.Component;

import java.util.concurrent.Callable;

/**
 * 客户端业务处理类
 */
@Component
public class NettyRpcClientHandler extends SimpleChannelInboundHandler<String> implements Callable {
    ChannelHandlerContext context;

    private String reqMsg;//发送消息

    private String respMsg;//接收消息

    public void setReqMsg(String reqMsg) {
        this.reqMsg = reqMsg;
    }

    /**
     * 通道读取就绪事件--读取服务端消息
     *
     * @param ctx
     * @param msg
     * @throws Exception
     */
    @Override
    protected synchronized void channelRead0(ChannelHandlerContext ctx, String msg) throws Exception {
        respMsg = msg;
        //唤醒等待线程
        notify();
    }

    /***
     * 通道连接就绪事件
     * @param ctx
     * @throws Exception
     */
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        context = ctx;
    }

    /**
     * 给服务端发送消息
     *
     * @return
     * @throws Exception
     */
    @Override
    public synchronized Object call() throws Exception {
        context.writeAndFlush(reqMsg);
        //将线程处于等待状态
        wait();
        return respMsg;
    }
}

4.创建proxy

此功能主要创建代理类，这个代理类封装了从消息发送到消息返回的过程

package com.rpc.consumer.proxy;

import com.alibaba.fastjson.JSON;
import com.rpc.common.RpcRequest;
import com.rpc.common.RpcResponse;
import com.rpc.consumer.client.NettyRpcClient;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.util.HashMap;
import java.util.Map;
import java.util.UUID;

/**
 * 客户端的代理
 */
@Component
public class RpcClientProxy {

    @Autowired
    NettyRpcClient rpcClient;

    Map<Class, Object> SERVICE_PROXY = new HashMap<>();

    /**
     * 获取代理对象
     *
     * @return
     */
    public Object getProxy(Class serviceClass) {
        //从缓存中查找
        Object proxy = SERVICE_PROXY.get(serviceClass);
        if (proxy == null) {
            //创建代理对象
            proxy = Proxy.newProxyInstance(this.getClass().getClassLoader(),
                    new Class[]{serviceClass}, new InvocationHandler() {
                        @Override
                        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                            //1.封装请求对象
                            RpcRequest rpcRequest = new RpcRequest();
                            rpcRequest.setRequestId(UUID.randomUUID().toString());
                            rpcRequest.setClassName(method.getDeclaringClass().getName());
                            rpcRequest.setMethodName(method.getName());
                            rpcRequest.setParameterTypes(method.getParameterTypes());
                            rpcRequest.setParameters(args);
                            try {
                                //2.发送消息
                                Object msg = rpcClient.send(JSON.toJSONString(rpcRequest));
                                //3.将消息转化
                                RpcResponse rpcResponse = JSON.parseObject(msg.toString(), RpcResponse.class);
                                if (rpcResponse.getError() != null) {
                                    throw new RuntimeException(rpcResponse.getError());
                                }
                                if (rpcResponse.getResult() != null) {
                                    return JSON.parseObject(rpcResponse.getResult().toString(),
                                            method.getReturnType());
                                }
                                return null;
                            } catch (Exception e) {
                                e.printStackTrace();
                                throw e;
                            }
                        }
                    });
            //放入缓存
            SERVICE_PROXY.put(serviceClass, proxy);
            return proxy;
        } else {
            return proxy;
        }
    }
}

5.创建controller

package com.lagou.rpc.consumer.controller;

import com.lagou.rpc.api.IUserService;
import com.lagou.rpc.consumer.anno.RpcReference;
import com.lagou.rpc.pojo.User;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * 用户控制类
 */
@RestController
@RequestMapping("/user")
public class UserController {

    @RpcReference
    IUserService userService;

    @RequestMapping("/getUserById")
    public User getUserById(int id) {
        return userService.getById(id);
    }
}

6.创建processor

在controller中进行注入时，使用自定义的注解@RpcReference进行标注，在这个方法进行注入。

package com.rpc.consumer.processor;

import com.rpc.consumer.anno.RpcReference;
import com.rpc.consumer.proxy.RpcClientProxy;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.stereotype.Component;

import java.lang.reflect.Field;

/**
 * bean的后置增强
 */
@Component
public class MyBeanPostProcessor implements BeanPostProcessor {

    @Autowired
    RpcClientProxy rpcClientProxy;


    /**
     * 自定义注解的注入
     *
     * @param bean
     * @param beanName
     * @return
     * @throws BeansException
     */
    @Override
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        //1.查看bean的字段中有没有对应注解
        Field[] declaredFields = bean.getClass().getDeclaredFields();
        for (Field field : declaredFields) {
            //2.查找字段中是否包含这个注解
            RpcReference annotation = field.getAnnotation(RpcReference.class);
            if (annotation != null) {
                //3.获取代理对象
                Object proxy = rpcClientProxy.getProxy(field.getType());
                try {
                    //4.属性注入
                    field.setAccessible(true);
                    field.set(bean, proxy);
                } catch (IllegalAccessException e) {
                    e.printStackTrace();
                }
            }
        }
        return bean;
    }
}

7.创建启动类

正常启动

package com.rpc.consumer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ClientBootStrapApplication {
    public static void  main(String[] args) {
        SpringApplication.run(ClientBootStrapApplication.class, args);
    }
}
