本文详细介绍了一个包含OSPF、链路聚合、DHCP、STP、VRRP等多种网络技术的复杂网络配置案例。通过具体步骤展示了如何实现不同网络需求，包括自动获取IP地址、提高链路可靠性及数据转发效率等。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

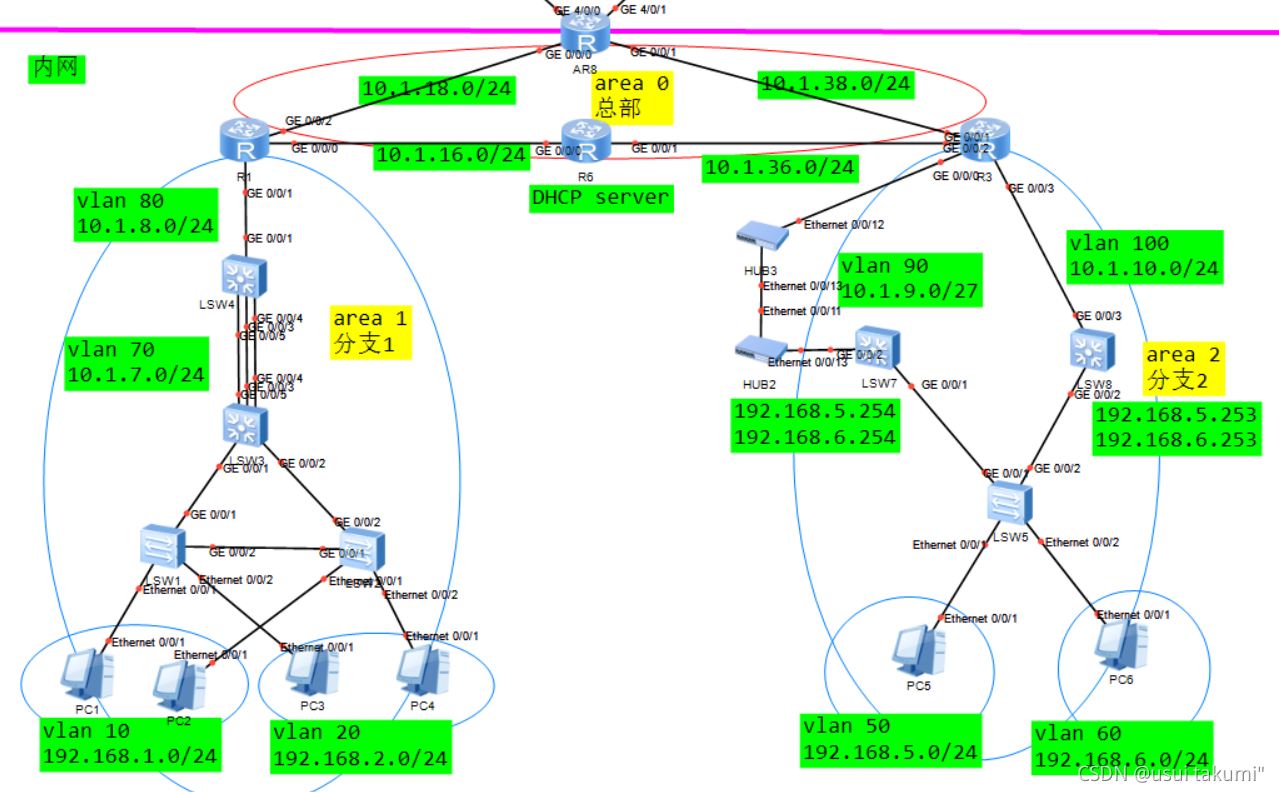

一、根据拓扑要求完成IP地址基本配置，修改设备名称如R1修改为R1+姓名缩写
二、内网需求--整个网络运行OSPF协议，使用默认进程号，默认router id
分支1需求：
1.VLAN10\VLAN20的网关在SW3设备上，地址获取方式为自动获取，DHCP server 为R6设备
vlan 10-地址池名称:vlan 10, 网关为192.168.1.1，网段为192.168.1.0/24，dns为8.8.8.8，租期为2天
vlan 20-地址池名称:vlan 20, 网关为192.168.2.1，网段为192.168.2.0/24，dns为8.8.8.8，租期为1天
2.SW3与SW4之间配置链路聚合技术，编号为12，模式为LACP模式，SW4为主设备（优先级修改为4000），G0/0/3-G0/0/4为活跃链路（优先级修改为2000）
3.SW1-SW2-SW3运行STP协议，模式为STP，SW3为根设备（4096）
4.按照拓扑要求进行OSPF配置

分支2需求：
1.VLAN50、VLAN 60的网关在SW7\SW8设备上，保证网关的可靠性（VRRP参数要求如下）
vlan50--vird 5， vip：192.168.5.100
vlan60--vrid 6， vip：192.168.6.100
VLAN50优先从SW7设备转发（优先级修改为120），VLAN60数据优先从SW8设备转发（优先级修改为120）
2.Vrid 5的主设备SW7上行链路发生故障时（联动值为30），SW8可以快速切换成主设备
（BFD 名称为huawei，SW7本地标识为1，R3本地标识为2）

3.按照拓扑要求进行OSPF配置

三、总部需求
1. 配置区域0认证，认证方式为明文，密码为HICE@12
2. 开启区域0的快速检测技术

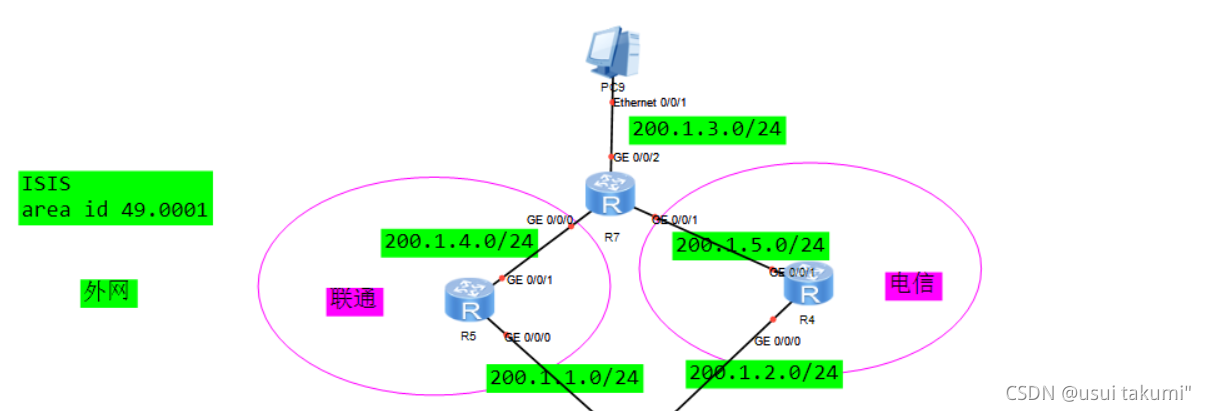

四、运营商网络：运行ISIS协议，设备全部为L1-2设备，area id为49.0001

五、边界配置
AR8为边界设备，采用双出口方式访问，要求内网数据可以优先从电信访问外网（电信优先级修改为50）：
VLAN10、VLAN20主机使用NAPT方式访问200.1.3.100，转换的外网地址池为200.1.2.120（ACL编号为2000）
VLAN50主机使用Easy IP方式200.1.3.100（ACL编号为2001）

LSW1
  sysname SW1
  vlan batch 10 20
  interface Ethernet0/0/1
    port link-type access
    port default vlan 10
  interface Ethernet0/0/2
    port link-type access
    port default vlan 20

  interface GigabitEthernet0/0/1
    port link-type trunk
    port trunk allow-pass vlan 10 20
  interface GigabitEthernet0/0/2
    port link-type trunk
    port trunk allow-pass vlan 10 20
LSW2
  sysname SW2
  vlan batch 10 20
  interface Ethernet0/0/1
    port link-type access
    port default vlan 10
  interface Ethernet0/0/2
    port link-type access
    port default vlan 20

  interface GigabitEthernet0/0/1
    port link-type trunk
    port trunk allow-pass vlan 10 20
  interface GigabitEthernet0/0/2
    port link-type trunk
    port trunk allow-pass vlan 10 20
LSW3
  sysname SW3
  vlan batch 10 20 70
  stp mode stp
  stp instance 0 priority 4096
  dhcp enable
  interface Vlanif10
    ip address 192.168.1.1 24
    dhcp select relay
    dhcp relay server-ip 10.1.16.6
  interface Vlanif20
    ip address 192.168.2.1 24
    dhcp select relay
    dhcp relay server-ip 10.1.16.6
  interface Vlanif70
    ip address 10.1.7.3 24

  interface Eth-Trunk12
    port link-type access
    port default vlan 70
    mode lacp-static

  interface GigabitEthernet0/0/1
    port link-type trunk
    port trunk allow-pass vlan 10 20
  interface GigabitEthernet0/0/2
    port link-type trunk
    port trunk allow-pass vlan 10 20

  interface GigabitEthernet0/0/3
    eth-trunk 12
  interface GigabitEthernet0/0/4
    eth-trunk 12
  interface GigabitEthernet0/0/5
    eth-trunk 12
  ospf 1
    area 0.0.0.1
      network 192.168.1.0 0.0.0.255
      network 192.168.2.0 0.0.0.255
      network 10.1.7.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 10.1.7.4
LSW4
  sysname SW4
  vlan batch 70 80
  lacp priority 4000

  interface Vlanif70
    ip address 10.1.7.4 24
  interface Vlanif80
    ip address 10.1.8.4 24

  interface Eth-Trunk12
    port link-type access
    port default vlan 70
    mode lacp-static
    max active-linknumber 2

  interface GigabitEthernet0/0/3
    eth-trunk 12
    lacp priority 2000
  interface GigabitEthernet0/0/4
    eth-trunk 12
    lacp priority 2000
  interface GigabitEthernet0/0/5
    eth-trunk 12

  interface GigabitEthernet0/0/1
    port link-type access
    port default vlan 80
  ospf 1
    area 0.0.0.1
      network 10.1.7.0 0.0.0.255
      network 10.1.8.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 10.1.8.1
R1
  sysname R1
  bfd
  interface GigabitEthernet0/0/0
    ip address 10.1.16.1 24
  interface GigabitEthernet0/0/1
    ip address 10.1.8.1 24
  interface GigabitEthernet0/0/2
    ip address 10.1.18.1 24
  ospf 1
    bfd all-interfaces enable
    area 0.0.0.0
      authentication-mode simple HCIE@12
      network 10.1.16.0 0.0.0.255
      network 10.1.18.0 0.0.0.255
    area 0.0.0.1
      network 10.1.8.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 10.1.18.8
R6
  sysname R6
  dhcp enable
  bfd
  ip pool vlan10
    gateway-list 192.168.1.1
    network 192.168.1.0 mask 24
    lease day 2
    dns-list 8.8.8.8
  ip pool vlan20
    gateway-list 192.168.2.1
    network 192.168.2.0 mask 24
    dns-list 8.8.8.8

  interface GigabitEthernet0/0/0
    ip address 10.1.16.6 24
    dhcp select global
  interface GigabitEthernet0/0/1
    ip address 10.1.36.6 24
  ospf 1
    bfd all-interfaces enable
    area 0.0.0.0
      authentication-mode simple HCIE@12
      network 10.1.16.0 0.0.0.255
      network 10.1.36.0 0.0.0.255
R3
  sysname R3
  bfd
  interface GigabitEthernet0/0/0
    ip address 10.1.9.3 24
  interface GigabitEthernet0/0/1
    ip address 10.1.38.3 24
  interface GigabitEthernet0/0/2
    ip address 10.1.36.3 24
  interface GigabitEthernet0/0/3
    ip address 10.1.10.3 24

  bfd huawei bind peer-ip 10.1.9.7 source-ip 10.1.9.3
    discriminator local 2
    discriminator remote 1
    commit
  ospf 1
    bfd all-interfaces enable
    area 0.0.0.0
      authentication-mode simple HCIE@12
      network 10.1.38.0 0.0.0.255
      network 10.1.36.0 0.0.0.255
    area 0.0.0.2
      network 10.1.9.0 0.0.0.255
      network 10.1.10.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 10.1.38.8
LSW7
  sysname SW7
  vlan batch 50 60 90
  bfd
  interface Vlanif50
    ip address 192.168.5.254 24
    vrrp vrid 5 virtual-ip 192.168.5.100
    vrrp vrid 5 priority 120
    vrrp vrid 5 track bfd-session 1 reduced 30
  interface Vlanif60
    ip address 192.168.6.254 24
    vrrp vrid 6 virtual-ip 192.168.6.100
  interface Vlanif90
    ip address 10.1.9.7 24
  interface GigabitEthernet0/0/1
    port link-type trunk
    port trunk allow-pass vlan 50 60
  interface GigabitEthernet0/0/2
    port link-type access
    port default vlan 90

  bfd huawei bind peer-ip 10.1.9.3 source-ip 10.1.9.7
    discriminator local 1
    discriminator remote 2
    commit
  ospf 1
    area 0.0.0.2
      network 192.168.5.0 0.0.0.255
      network 192.168.6.0 0.0.0.255
      network 10.1.9.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 10.1.9.3
LSW8
  sysname SW8
  vlan batch 50 60 100
  interface Vlanif50
    ip address 192.168.5.253 24
    vrrp vrid 5 virtual-ip 192.168.5.100
  interface Vlanif60
    ip address 192.168.6.253 24
    vrrp vrid 6 virtual-ip 192.168.6.100
    vrrp vrid 6 priority 120
  interface Vlanif100
    ip address 10.1.10.8 24
  interface GigabitEthernet0/0/2
    port link-type trunk
    port trunk allow-pass vlan 50 60
  interface GigabitEthernet0/0/3
    port link-type access
    port default vlan 100
  ospf 1
    area 0.0.0.2
      network 192.168.5.0 0.0.0.255
      network 192.168.6.0 0.0.0.255
      network 10.1.10.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 10.1.10.3
LSW5
  sysname SW5
  vlan batch 50 60
  interface Ethernet0/0/1
    port link-type access
    port default vlan 50
  interface Ethernet0/0/2
    port link-type access
    port default vlan 60

  interface GigabitEthernet0/0/1
    port link-type trunk
    port trunk allow-pass vlan 50 60
  interface GigabitEthernet0/0/2
    port link-type trunk
    port trunk allow-pass vlan 50 60
AR8
  sysname R8
  bfd
  acl number 2000
    rule 5 permit source 192.168.1.0 0.0.0.255
    rule 10 permit source 192.168.2.0 0.0.0.255
  acl number 2001
    rule 5 permit source 192.168.5.0 0.0.0.255

  isis 1
    network-entity 49.0001.0000.0000.0008.00
    nat address-group 1 200.1.2.120 200.1.2.120
  nterface GigabitEthernet0/0/0
    ip address 10.1.18.8 24
  interface GigabitEthernet0/0/1
    ip address 10.1.38.8 24
  interface GigabitEthernet4/0/0
    ip address 200.1.1.8 24
    isis enable 1
  interface GigabitEthernet4/0/1
    ip address 200.1.2.8 24
    isis enable 1
    nat outbound 2000 address-group 1
    nat outbound 2001
  ospf 1
    bfd all-interfaces enable
    area 0.0.0.0
      authentication-mode simple HCIE@12
      network 10.1.18.0 0.0.0.255
      network 10.1.38.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 200.1.1.5
  ip route-static 0.0.0.0 0.0.0.0 200.1.2.4 preference 50
  ospf 1
    bfd all-interfaces enable
    area 0.0.0.0
      authentication-mode simple HCIE@12
      network 10.1.18.0 0.0.0.255
      network 10.1.38.0 0.0.0.255
  ip route-static 0.0.0.0 0.0.0.0 200.1.1.5
  ip route-static 0.0.0.0 0.0.0.0 200.1.2.4 preference 50
R4
  sysname R4
  isis 1
    network-entity 49.0001.0000.0000.0004.00
  interface GigabitEthernet0/0/0
    ip address 200.1.4.4 24
    isis enable 1
  interface GigabitEthernet0/0/1
    ip address 200.1.5.4 24
    isis enable 1

R5
  sysname R5
  isis 1
    network-entity 49.0001.0000.0000.0005.00
  interface GigabitEthernet0/0/0
    ip address 200.1.1.5 24
    isis enable 1
  interface GigabitEthernet0/0/1
    ip address 200.1.4.5 24
    isis enable 1
R7
  sysname R7
  isis 1
    network-entity 49.0001.0000.0000.0007.00
  interface GigabitEthernet0/0/0
    ip address 200.1.4.7 24
    isis enable 1
  interface GigabitEthernet0/0/1
    ip address 200.1.5.7 24
    isis enable 1
  interface GigabitEthernet0/0/2
    ip address 200.1.3.254 24
    isis enable 1
