弱智实验

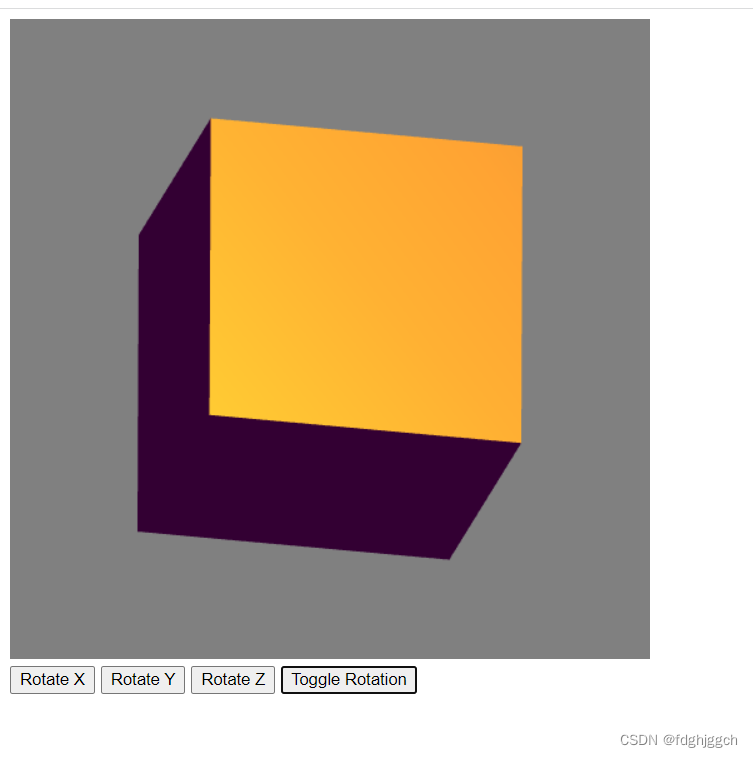

在这里插入图片描述

<!DOCTYPE html>
<html>

<script type="text/javascript" src="initShaders.js"></script>
<script type="text/javascript" src="MVnew.js"></script>
<script type="text/javascript" src="t.js"></script>

<script id="vertex-shader" type="x-shader/x-vertex">
#version 300 es

in  vec4 aPosition;
in  vec3 aNormal;
out vec4 vColor;

uniform vec4 uAmbientProduct, uDiffuseProduct, uSpecularProduct;
uniform mat4 uModelViewMatrix;
uniform mat4 uProjectionMatrix;
uniform vec4 uLightPosition;
uniform float uShininess;

void main()
{


    vec3 pos = -(uModelViewMatrix * aPosition).xyz;
    vec3 light = uLightPosition.xyz;
    vec3 L = normalize( light - pos );


    vec3 E = normalize(-pos);
    vec3 H = normalize(L + E);

    vec4 NN = vec4(aNormal,0);

    // Transform vertex normal into eye coordinates

    vec3 N = normalize((uModelViewMatrix*NN).xyz);

    // Compute terms in the illumination equation
    vec4 ambient = uAmbientProduct;

    float Kd = max( dot(L, N), 0.0 );
    vec4  diffuse = Kd*uDiffuseProduct;

    float Ks = pow( max(dot(N, H), 0.0), uShininess );
    vec4  specular = Ks * uSpecularProduct;

    if( dot(L, N) < 0.0 ) {
	specular = vec4(0.0, 0.0, 0.0, 1.0);
    }

    gl_Position = uProjectionMatrix * uModelViewMatrix * aPosition;
    vColor = ambient + diffuse +specular;

    vColor.a = 3.0;
}
</script>

<script id="fragment-shader" type="x-shader/x-fragment">
#version 300 es

precision mediump float;

uniform int uColorIndex;

in vec4 vColor;
out vec4 fColor;

void
main()
{
    vec4 c[7];
    c[0] = vColor;
    c[1] = vec4(1.0, 0.0, 0.0, 1.0);
    c[2] = vec4(0.0, 1.0, 0.0, 1.0);
    c[3] = vec4(0.0, 0.0, 1.0, 1.0);
    c[4] = vec4(1.0, 1.0, 0.0, 1.0);
    c[5] = vec4(0.0, 1.0, 1.0, 1.0);
    c[6] = vec4(1.0, 0.0, 1.0, 1.0);


    if(uColorIndex==0) fColor = c[0];
    else fColor = c[uColorIndex];
}
</script>


<body>
<div>
<canvas id="gl-canvas" width="512" height="512">
Oops ... your browser doesn't support the HTML5 canvas element
</canvas>
</div>
<div>
<button id = "ButtonX">Rotate X</button>
<button id = "ButtonY">Rotate Y</button>
<button id = "ButtonZ">Rotate Z</button>
<button id = "ButtonT">Toggle Rotation</button>
</div>

</body>
</html>

t.js

"use strict";

var canvas;
var gl;

var program;

var numPositions  = 36;

var positionsArray = [];
var normalsArray = [];

var framebuffer;

var flag = false;

var color = new Uint8Array(4);

var vertices = [
        vec4( -0.5, -0.5,  0.5, 1.0 ),
        vec4( -0.5,  0.5,  0.5, 1.0 ),
        vec4( 0.5,  0.5,  0.5, 1.0 ),
        vec4( 0.5, -0.5,  0.5, 1.0 ),
        vec4( -0.5, -0.5, -0.5, 1.0 ),
        vec4( -0.5,  0.5, -0.5, 1.0 ),
        vec4( 0.5,  0.5, -0.5, 1.0 ),
        vec4( 0.5, -0.5, -0.5, 1.0 ),
    ];

var lightPosition = vec4(1.0, 1.0, 1.0, 0.0 );
var lightAmbient = vec4(0.2, 0.2, 0.2, 1.0 );
var lightDiffuse = vec4( 1.0, 1.0, 1.0, 1.0 );
var lightSpecular = vec4( 1.0, 1.0, 1.0, 1.0 );

var materialAmbient = vec4( 1.0, 0.0, 1.0, 1.0 );
var materialDiffuse = vec4( 1.0, 0.8, 0.0, 1.0);
var materialSpecular = vec4( 1.0, 0.8, 0.0, 1.0 );
var materialShininess = 100.0;

var ctm;
var ambientColor, diffuseColor, specularColor;
var modelViewMatrix, projectionMatrix;
var viewerPos;
var program;

var xAxis = 0;
var yAxis = 1;
var zAxis = 2;
var axis = xAxis;

var theta = vec3(45.0, 45.0, 45.0);

var thetaLoc;

var Index = 0;


function quad(a, b, c, d) {

     var t1 = subtract(vertices[b], vertices[a]);
     var t2 = subtract(vertices[c], vertices[b]);
     var normal = cross(t1, t2);
     normal = normalize(normal);

     positionsArray.push(vertices[a]);
     normalsArray.push(normal);
     positionsArray.push(vertices[b]);
     normalsArray.push(normal);
     positionsArray.push(vertices[c]);
     normalsArray.push(normal);
     positionsArray.push(vertices[a]);
     normalsArray.push(normal);
     positionsArray.push(vertices[c]);
     normalsArray.push(normal);
     positionsArray.push(vertices[d]);
     normalsArray.push(normal);
}


function colorCube()
{
    quad(1, 0, 3, 2);
    quad(2, 3, 7, 6);
    quad(3, 0, 4, 7);
    quad(6, 5, 1, 2);
    quad(4, 5, 6, 7);
    quad(5, 4, 0, 1);
}


window.onload = function init() {
    canvas = document.getElementById("gl-canvas");

    gl = canvas.getContext('webgl2');
    if (!gl) alert("WebGL 2.0 isn't available");


    gl.viewport(0, 0, canvas.width, canvas.height);
    gl.clearColor(0.5, 0.5, 0.5, 1.0);

    gl.enable(gl.CULL_FACE);

    var texture = gl.createTexture();
    gl.bindTexture( gl.TEXTURE_2D, texture );
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, 512, 512, 0,
       gl.RGBA, gl.UNSIGNED_BYTE, null);
    gl.generateMipmap(gl.TEXTURE_2D);

// Allocate a frame buffer object

   framebuffer = gl.createFramebuffer();
   gl.bindFramebuffer( gl.FRAMEBUFFER, framebuffer);


// Attach color buffer

   gl.framebufferTexture2D(gl.FRAMEBUFFER, gl.COLOR_ATTACHMENT0, gl.TEXTURE_2D, texture, 0);

// check for completeness

   //var status = gl.checkFramebufferStatus(gl.FRAMEBUFFER);
   //if(status != gl.FRAMEBUFFER_COMPLETE) alert('Frame Buffer Not Complete');

gl.bindFramebuffer(gl.FRAMEBUFFER, null);

    //
    //  Load shaders and initialize attribute buffers
    //
    program = initShaders(gl, "vertex-shader", "fragment-shader");
    gl.useProgram( program );

    colorCube();

    var nBuffer = gl.createBuffer();
    gl.bindBuffer(gl.ARRAY_BUFFER, nBuffer );
    gl.bufferData(gl.ARRAY_BUFFER, flatten(normalsArray), gl.STATIC_DRAW);

    var normalLoc = gl.getAttribLocation(program, "aNormal");
    gl.vertexAttribPointer(normalLoc, 3, gl.FLOAT, false, 0, 0);
    gl.enableVertexAttribArray(normalLoc);

    var vBuffer = gl.createBuffer();
    gl.bindBuffer(gl.ARRAY_BUFFER, vBuffer);
    gl.bufferData(gl.ARRAY_BUFFER, flatten(positionsArray), gl.STATIC_DRAW);

    var positionLoc = gl.getAttribLocation(program, "aPosition");
    gl.vertexAttribPointer(positionLoc, 4, gl.FLOAT, false, 0, 0);
    gl.enableVertexAttribArray(positionLoc);

    thetaLoc = gl.getUniformLocation(program, "theta");

    viewerPos = vec3(0.0, 0.0, -20.0);

    projectionMatrix = ortho(-1, 1, -1, 1, -100, 100);

    var ambientProduct = mult(lightAmbient, materialAmbient);
    var diffuseProduct = mult(lightDiffuse, materialDiffuse);
    var specularProduct = mult(lightSpecular, materialSpecular);

   document.getElementById("ButtonX").onclick = function(){axis = xAxis;};
    document.getElementById("ButtonY").onclick = function(){axis = yAxis;};
    document.getElementById("ButtonZ").onclick = function(){axis = zAxis;};
    document.getElementById("ButtonT").onclick = function(){flag = !flag};

    document.addEventListener('keypress', function(event) {
        //keyboardEvent= event
        console.log(event.key)
        switch (event.key) {
            case 'w':
                axis = xAxis;
                break
            case 's':
                axis = xAxis;
                break
            case 'a':
                axis = zAxis;
                break
            case 'd':
                axis = yAxis;
                break

                default :
                break
        }

    })
    gl.uniform4fv(gl.getUniformLocation(program, "uAmbientProduct"),
       ambientProduct);
    gl.uniform4fv(gl.getUniformLocation(program, "uDiffuseProduct"),
       diffuseProduct );
    gl.uniform4fv(gl.getUniformLocation(program, "uSpecularProduct"),
       specularProduct );
    gl.uniform4fv(gl.getUniformLocation(program, "uLightPosition"),
       lightPosition );

    gl.uniform1f(gl.getUniformLocation(program,
       "uShininess"), materialShininess);

    gl.uniformMatrix4fv( gl.getUniformLocation(program, "uProjectionMatrix"),
       false, flatten(projectionMatrix) );


    canvas.addEventListener("mousedown", function(event){

        gl.bindFramebuffer(gl.FRAMEBUFFER, framebuffer);
        gl.clear( gl.COLOR_BUFFER_BIT);
        gl.uniform3fv(thetaLoc, theta);
        for(var i=0; i<6; i++) {
            gl.uniform1i(gl.getUniformLocation(program, "uColorIndex"), i+1);
            gl.drawArrays( gl.TRIANGLES, 6*i, 6 );
        }
        var x = event.clientX;
        var y = canvas.height-event.clientY;

        gl.readPixels(x, y, 1, 1, gl.RGBA, gl.UNSIGNED_BYTE, color);

        if(color[0]==255)
        if(color[1]==255) console.log("front");
        else if(color[2]==255) console.log("back");
        else console.log("right");
        else if(color[1]==255)
        if(color[2]==255) console.log("left");
        else console.log("top");
        else if(color[2]==255) console.log("bottom");
        else console.log("background");
        gl.bindFramebuffer(gl.FRAMEBUFFER, null);

        gl.uniform1i(gl.getUniformLocation(program, "uColorIndex"), 0);
        gl.clear( gl.COLOR_BUFFER_BIT );
        gl.uniform3fv(thetaLoc, theta);
        gl.drawArrays(gl.TRIANGLES, 0, numPositions);

    });

    render();
}

var render = function(){
    gl.clear( gl.COLOR_BUFFER_BIT );
    if(flag) theta[axis] += 2.0;
    modelViewMatrix = mat4();
    modelViewMatrix = mult(modelViewMatrix, rotate(theta[xAxis], vec3(1, 0, 0)));
    modelViewMatrix = mult(modelViewMatrix, rotate(theta[yAxis], vec3(0, 1, 0)));
    modelViewMatrix = mult(modelViewMatrix, rotate(theta[zAxis], vec3(0, 0, 1)));

    gl.uniformMatrix4fv(gl.getUniformLocation(program,
            "uModelViewMatrix"), false, flatten(modelViewMatrix));

    gl.uniform1i(gl.getUniformLocation(program, "uColorIndex"),0);
    gl.drawArrays(gl.TRIANGLES, 0, numPositions);

    requestAnimationFrame(render);
}
