基于前期所安装的fabric 2.4，根据自身的需求进行生产网络的部署；

一、组织配置

准备配置文件 crypto-config.yaml

OrdererOrgs:
  - Name: Orderer
    Domain: example.com
    EnableNodeOUs: true
    Specs:
      - Hostname: orderer
PeerOrgs:
  - Name: EduOrg
    Domain: eduorg.example.com
    EnableNodeOUs: true
    Template:
      Count: 1
    Users:
      Count: 1
  - Name: StuOrg
    Domain: stuorg.example.com
    EnableNodeOUs: true
    Template:
      Count: 1
    Users:
      Count: 1
  - Name: TeachOrg
    Domain: teachorg.example.com
    EnableNodeOUs: true
    Template:
      Count: 1
    Users:
      Count: 1
  - Name: AdminOrg
    Domain: adminorg.example.com
    EnableNodeOUs: true
    Template:
      Count: 1
    Users:
      Count: 1

运行以下命令

cryptogen generate --config=crypto-config.yaml

运行之后回会在当前目录下生成crypto-config目录

内部的具体文件分布可以使用如下命令进行查看

# 如未安装tree，可以直接使用apt进行安装
tree crypto-config

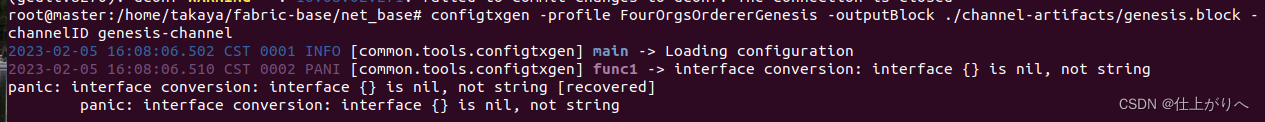

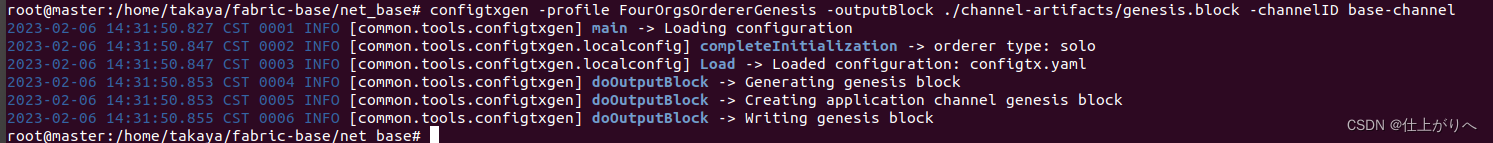

二、生成创世区块

准备需要的配置文件 configtx.yaml

# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

---
################################################################################
#
#   Section: Organizations
#
#   - This section defines the different organizational identities which will
#   be referenced later in the configuration.
#
################################################################################
Organizations:

    # SampleOrg defines an MSP using the sampleconfig.  It should never be used
    # in production but may be used as a template for other definitions
    - &OrdererOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: OrdererOrg

        # ID to load the MSP definition as
        ID: OrdererMSP

        # MSPDir is the filesystem path which contains the MSP configuration
        MSPDir: ./crypto-config/ordererOrganizations/example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"

        OrdererEndpoints:
            - orderer.example.com:7050

    - &EduOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: EduOrgMSP

        # ID to load the MSP definition as
        ID: EduOrgMSP

        MSPDir: ./crypto-config/peerOrganizations/eduorg.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('EduOrgMSP.admin', 'EduOrgMSP.peer', 'EduOrgMSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('EduOrgMSP.admin', 'EduOrgMSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('EduOrgMSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('EduOrgMSP.peer')"
        AnchorPeers:
            - Host: peer.eduorg.example.com
              Port: 7051

    - &StuOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: StuOrgMSP

        # ID to load the MSP definition as
        ID: StuOrgMSP

        MSPDir: ./crypto-config/peerOrganizations/stuorg.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('StuOrgMSP.admin', 'StuOrgMSP.peer', 'StuOrgMSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('StuOrgMSP.admin', 'StuOrgMSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('StuOrgMSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('StuOrgMSP.peer')"
        AnchorPeers:
            - Host: peer.stuorg.example.com
              Port: 8051

    - &TeachOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: TeachOrgMSP

        # ID to load the MSP definition as
        ID: TeachOrgMSP

        MSPDir: ./crypto-config/peerOrganizations/teachorg.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('TeachOrgMSP.admin', 'TeachOrgMSP.peer', 'TeachOrgMSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('TeachOrgMSP.admin', 'TeachOrgMSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('TeachOrgMSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('TeachOrgMSP.peer')"
        AnchorPeers:
            - Host: peer.teachorg.example.com
              Port: 9051

    - &AdminOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: AdminOrgMSP

        # ID to load the MSP definition as
        ID: AdminOrgMSP

        MSPDir: ./crypto-config/peerOrganizations/adminorg.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('AdminOrgMSP.admin', 'AdminOrgMSP.peer', 'AdminOrgMSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('AdminOrgMSP.admin', 'AdminOrgMSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('AdminOrgMSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('AdminOrgMSP.peer')"
        AnchorPeers:
            - Host: peer.adminorg.example.com
              Port: 10051

################################################################################
#
#   SECTION: Capabilities
#
#   - This section defines the capabilities of fabric network. This is a new
#   concept as of v1.1.0 and should not be utilized in mixed networks with
#   v1.0.x peers and orderers.  Capabilities define features which must be
#   present in a fabric binary for that binary to safely participate in the
#   fabric network.  For instance, if a new MSP type is added, newer binaries
#   might recognize and validate the signatures from this type, while older
#   binaries without this support would be unable to validate those
#   transactions.  This could lead to different versions of the fabric binaries
#   having different world states.  Instead, defining a capability for a channel
#   informs those binaries without this capability that they must cease
#   processing transactions until they have been upgraded.  For v1.0.x if any
#   capabilities are defined (including a map with all capabilities turned off)
#   then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
    # Channel capabilities apply to both the orderers and the peers and must be
    # supported by both.
    # Set the value of the capability to true to require it.
    Channel: &ChannelCapabilities
        # V2_0 capability ensures that orderers and peers behave according
        # to v2.0 channel capabilities. Orderers and peers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 capability.
        # Prior to enabling V2.0 channel capabilities, ensure that all
        # orderers and peers on a channel are at v2.0.0 or later.
        V2_0: true

    # Orderer capabilities apply only to the orderers, and may be safely
    # used with prior release peers.
    # Set the value of the capability to true to require it.
    Orderer: &OrdererCapabilities
        # V2_0 orderer capability ensures that orderers behave according
        # to v2.0 orderer capabilities. Orderers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 orderer capability.
        # Prior to enabling V2.0 orderer capabilities, ensure that all
        # orderers on channel are at v2.0.0 or later.
        V2_0: true

    # Application capabilities apply only to the peer network, and may be safely
    # used with prior release orderers.
    # Set the value of the capability to true to require it.
    Application: &ApplicationCapabilities
        # V2_0 application capability ensures that peers behave according
        # to v2.0 application capabilities. Peers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 application capability.
        # Prior to enabling V2.0 application capabilities, ensure that all
        # peers on channel are at v2.0.0 or later.
        V2_0: true

################################################################################
#
#   SECTION: Application
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for application related parameters
#
################################################################################
Application: &ApplicationDefaults

    # Organizations is the list of orgs which are defined as participants on
    # the application side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Application policies, their canonical path is
    #   /Channel/Application/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        LifecycleEndorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"
        Endorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"

    Capabilities:
        <<: *ApplicationCapabilities
################################################################################
#
#   SECTION: Orderer
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for orderer related parameters
#
################################################################################
Orderer: &OrdererDefaults

    # Orderer Type: The orderer implementation to start
    # OrdererType: etcdraft
    OrdererType: solo
    # Addresses used to be the list of orderer addresses that clients and peers
    # could connect to.  However, this does not allow clients to associate orderer
    # addresses and orderer organizations which can be useful for things such
    # as TLS validation.  The preferred way to specify orderer addresses is now
    # to include the OrdererEndpoints item in your org definition
    Addresses:
        - orderer.example.com:7050

    # EtcdRaft:
    #     Consenters:
    #     - Host: orderer.example.com
    #       Port: 7050
    #       ClientTLSCert: ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
    #       ServerTLSCert: ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt

    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        # Max Message Count: The maximum number of messages to permit in a batch
        MaxMessageCount: 10

        # Absolute Max Bytes: The absolute maximum number of bytes allowed for
        # the serialized messages in a batch.
        AbsoluteMaxBytes: 99 MB

        # Preferred Max Bytes: The preferred maximum number of bytes allowed for
        # the serialized messages in a batch. A message larger than the preferred
        # max bytes will result in a batch larger than preferred max bytes.
        PreferredMaxBytes: 512 KB

    # Organizations is the list of orgs which are defined as participants on
    # the orderer side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Orderer policies, their canonical path is
    #   /Channel/Orderer/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        # BlockValidation specifies what signatures must be included in the block
        # from the orderer for the peer to validate it.
        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"

################################################################################
#
#   CHANNEL
#
#   This section defines the values to encode into a config transaction or
#   genesis block for channel related parameters.
#
################################################################################
Channel: &ChannelDefaults
    # Policies defines the set of policies at this level of the config tree
    # For Channel policies, their canonical path is
    #   /Channel/<PolicyName>
    Policies:
        # Who may invoke the 'Deliver' API
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        # Who may invoke the 'Broadcast' API
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        # By default, who may modify elements at this config level
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

    # Capabilities describes the channel level capabilities, see the
    # dedicated Capabilities section elsewhere in this file for a full
    # description
    Capabilities:
        <<: *ChannelCapabilities

################################################################################
#
#   Profile
#
#   - Different configuration profiles may be encoded here to be specified
#   as parameters to the configtxgen tool
#
################################################################################
Profiles:

    FourOrgsChannel:
        Consortium: SampleConsortium
        <<: *ChannelDefaults
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *EduOrg
                - *StuOrg
                - *TeachOrg
                - *AdminOrg
            Capabilities:
                <<: *ApplicationCapabilities

    FourOrgsApplicationGenesis:
        <<: *ChannelDefaults
        Capabilities:
            <<: *ChannelCapabilities
        Orderer:
            <<: *OrdererDefaults
            Organizations:
                - *OrdererOrg
            Capabilities: *OrdererCapabilities
        #Application:
        #   <<: *ApplicationDefaults
        #   Organizations:
        #       - *EduOrg
        #       - *StuOrg
        #       - *TeachOrg
        #       - *AdminOrg
        #   Capabilities: *ApplicationCapabilities
        Consortiums:
            SampleConsortium:
                Organizations:
                    - *EduOrg
                    - *StuOrg
                    - *TeachOrg
                    - *AdminOrg

三、创建系统通道

运行以下命令生成创世区块 genesis.block

# 创建系统通道
configtxgen -profile [GenesisName] -outputBlock ./channel-artifacts/genesis.block -channelID [channel name]

四、创建应用通道

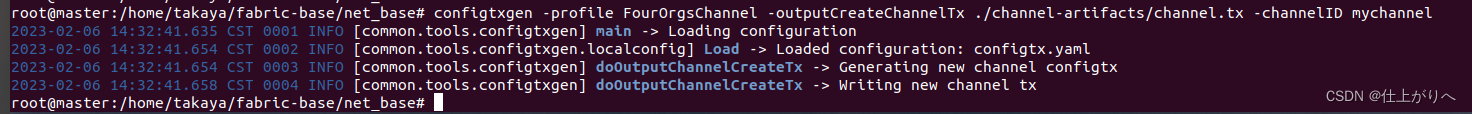

运行如下命令，生成 channel.tx

# 创建应用通道
configtxgen -profile [your channel name in 'Profiles'] -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

五、更新锚节点

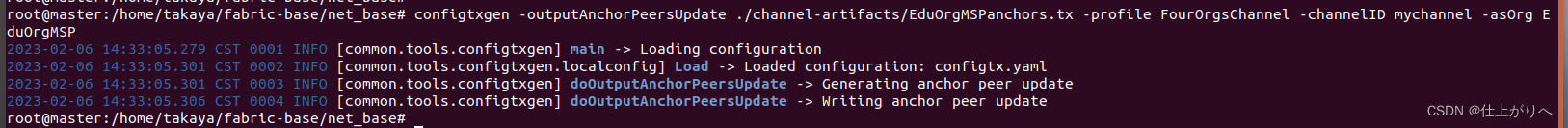

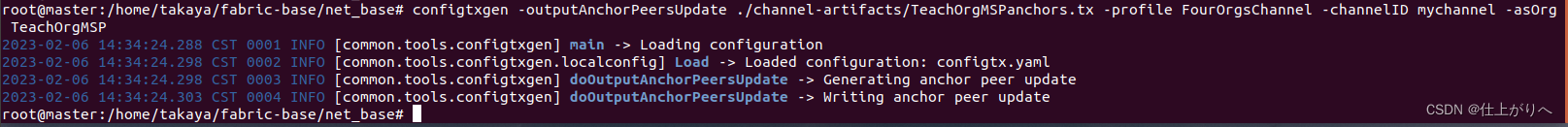

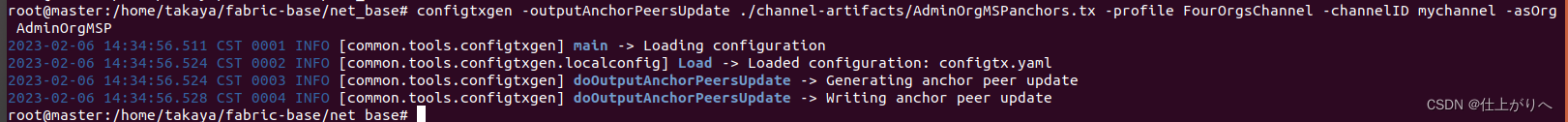

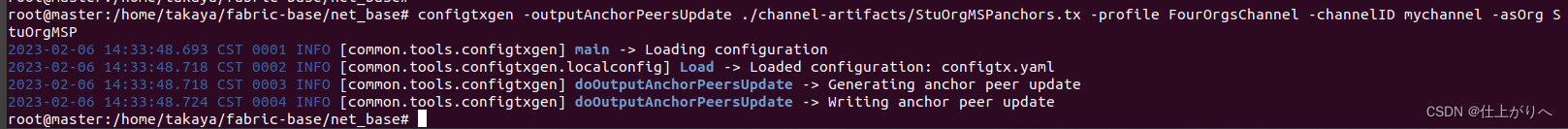

使用如下命令，生成各组织(Org)的tx文件

# 更新锚节点
configtxgen -outputAnchorPeersUpdate ./channel-artifacts/EduOrgMSPanchors.tx -profile [channel name] -channelID mychannel -asOrg [MSP Name]

至此在 channel-artifacts目录下已生成如下文件

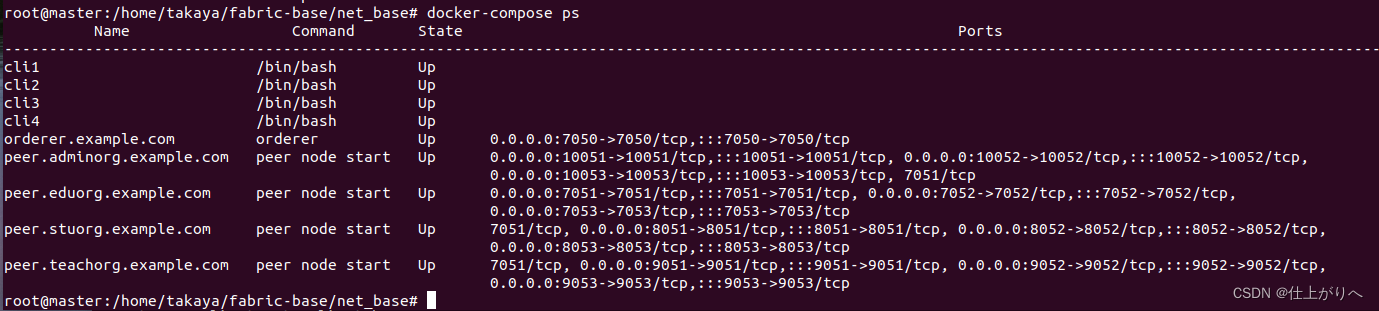

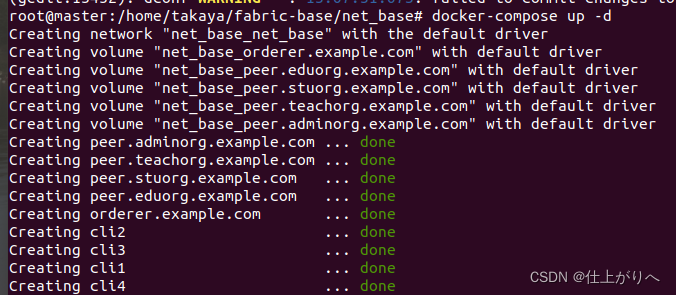

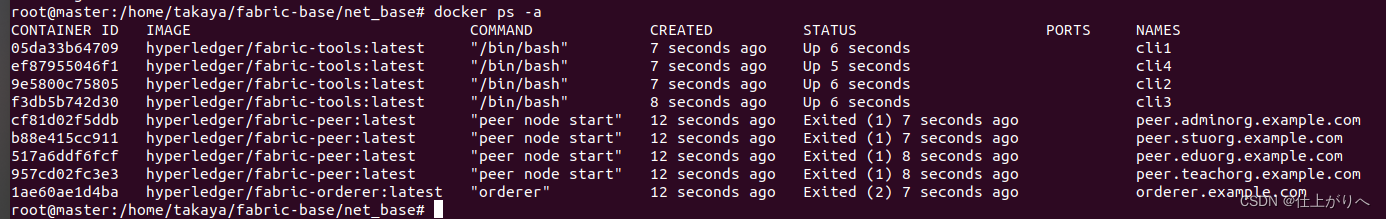

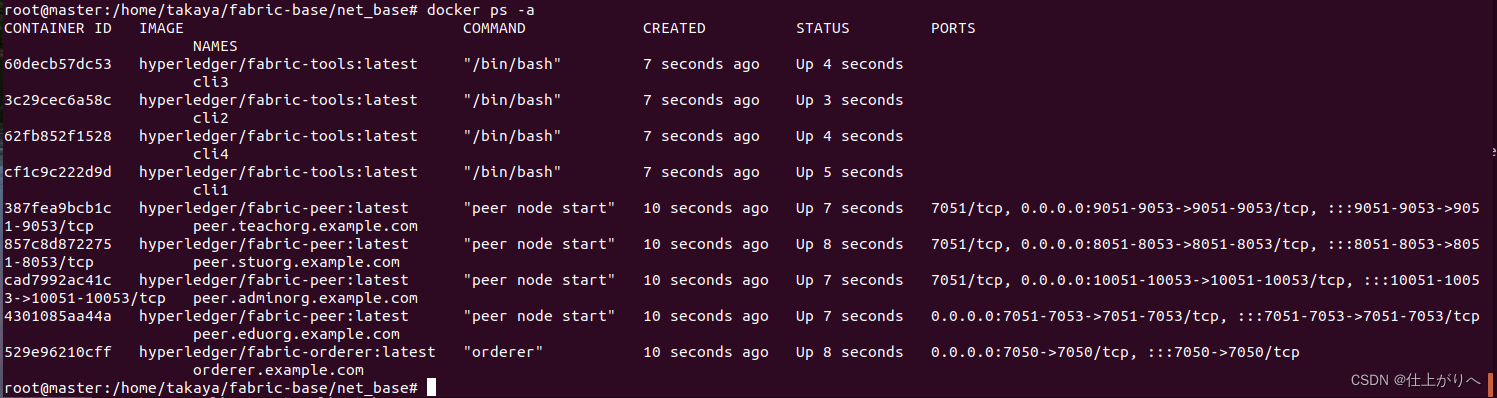

六、启动网络

编写docker-compose.yaml

version: '2'

volumes:
  orderer.example.com:
  peer.eduorg.example.com:
  peer.stuorg.example.com:
  peer.teachorg.example.com:
  peer.adminorg.example.com:

networks:
  net_base:

services:
  orderer.example.com:
    container_name: orderer.example.com
    image: hyperledger/fabric-orderer:latest
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_LISTENPORT=7050
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls
      - orderer.example.com:/var/hyperledger/production/orderer
    ports:
      - 7050:7050
    networks:
      - net_base

  peer.eduorg.example.com:
    container_name: peer.eduorg.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer.eduorg.example.com
      - CORE_PEER_ADDRESS=peer.eduorg.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer.eduorg.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer.eduorg.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer.eduorg.example.com:7051
      - CORE_PEER_LOCALMSPID=EduOrgMSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/eduorg.example.com/peers/peer.eduorg.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls:/etc/hyperledger/fabric/tls
      - peer.eduorg.example.com:/var/hyperledger/production
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    networks:
      - net_base

  peer.stuorg.example.com:
    container_name: peer.stuorg.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer.stuorg.example.com
      - CORE_PEER_ADDRESS=peer.stuorg.example.com:8051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:8051
      - CORE_PEER_CHAINCODEADDRESS=peer.stuorg.example.com:8052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer.stuorg.example.com:8051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer.stuorg.example.com:8051
      - CORE_PEER_LOCALMSPID=StuOrgMSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/stuorg.example.com/peers/peer.stuorg.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls:/etc/hyperledger/fabric/tls
      - peer.stuorg.example.com:/var/hyperledger/production
    ports:
      - 8051:8051
      - 8052:8052
      - 8053:8053
    networks:
      - net_base

  peer.teachorg.example.com:
    container_name: peer.teachorg.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer.teachorg.example.com
      - CORE_PEER_ADDRESS=peer.teachorg.example.com:9051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:9051
      - CORE_PEER_CHAINCODEADDRESS=peer.teachorg.example.com:9052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:9052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer.teachorg.example.com:9051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer.teachorg.example.com:9051
      - CORE_PEER_LOCALMSPID=TeachOrgMSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/teachorg.example.com/peers/peer.teachorg.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls:/etc/hyperledger/fabric/tls
      - peer.teachorg.example.com:/var/hyperledger/production
    ports:
      - 9051:9051
      - 9052:9052
      - 9053:9053
    networks:
      - net_base

  peer.adminorg.example.com:
    container_name: peer.adminorg.example.com
    image: hyperledger/fabric-peer:latest
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer.adminorg.example.com
      - CORE_PEER_ADDRESS=peer.adminorg.example.com:10051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:10051
      - CORE_PEER_CHAINCODEADDRESS=peer.adminorg.example.com:10052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:10052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.adminorg.example.com:10051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer.adminorg.example.com:10051
      - CORE_PEER_LOCALMSPID=AdminOrgMSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
      - /var/run/:/host/var/run/
      - ./crypto-config/peerOrganizations/adminorg.example.com/peers/peer.adminorg.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls:/etc/hyperledger/fabric/tls
      - peer.adminorg.example.com:/var/hyperledger/production
    ports:
      - 10051:10051
      - 10052:10052
      - 10053:10053
    networks:
      - net_base

  cli1:
    container_name: cli1
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli1
      - CORE_PEER_ADDRESS=peer.eduorg.example.com:7051
      - CORE_PEER_LOCALMSPID=EduOrgMSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/eduorg.example.com/peers/peer.eduorg.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/eduorg.example.com/peers/peer.eduorg.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/eduorg.example.com/peers/peer.eduorg.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/eduorg.example.com/users/Admin@eduorg.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ../chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    depends_on:
      - peer.eduorg.example.com
      - peer.stuorg.example.com
      - peer.teachorg.example.com
      - peer.adminorg.example.com
      - orderer.example.com
    networks:
      - net_base

  cli2:
    container_name: cli2
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli2
      - CORE_PEER_ADDRESS=peer.stuorg.example.com:8051
      - CORE_PEER_LOCALMSPID=StuOrgMSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/stuorg.example.com/peers/peer.stuorg.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/stuorg.example.com/peers/peer.stuorg.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/stuorg.example.com/peers/peer.stuorg.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/stuorg.example.com/users/Admin@stuorg.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ../chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    depends_on:
      - peer.eduorg.example.com
      - peer.stuorg.example.com
      - peer.teachorg.example.com
      - peer.adminorg.example.com
      - orderer.example.com
    networks:
      - net_base

  cli3:
    container_name: cli3
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli3
      - CORE_PEER_ADDRESS=peer.teachorg.example.com:9051
      - CORE_PEER_LOCALMSPID=TeachOrgMSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/teachorg.example.com/peers/peer.teachorg.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/teachorg.example.com/peers/peer.teachorg.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/teachorg.example.com/peers/peer.teachorg.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/teachorg.example.com/users/Admin@teachorg.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ../chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    depends_on:
      - peer.eduorg.example.com
      - peer.stuorg.example.com
      - peer.teachorg.example.com
      - peer.adminorg.example.com
      - orderer.example.com
    networks:
      - net_base

  cli4:
    container_name: cli4
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli4
      - CORE_PEER_ADDRESS=peer.adminorg.example.com:10051
      - CORE_PEER_LOCALMSPID=AdminOrgMSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/adminorg.example.com/peers/peer.adminorg.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/adminorg.example.com/peers/peer.adminorg.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/adminorg.example.com/peers/peer.adminorg.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/adminorg.example.com/users/Admin@adminorg.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ../chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    depends_on:
      - peer.eduorg.example.com
      - peer.stuorg.example.com
      - peer.teachorg.example.com
      - peer.adminorg.example.com
      - orderer.example.com
    networks:
      - net_base

使用docker-compose启动网络

docker-compose up -d

通过docker查看运行情况

异常

成功

通过docker-compose查看运行情况

成功

期间遇到的错误

自己手写下来之后，无论怎么修正都没办法解决，最后根据官方测试网络的configtx.yaml模板修改后，执行成功。

启动网络时出现下面的错误

Failed validating bootstrap block: the block isn't a system channel block because it lacks ConsortiumsConfig

该错误表示在启动网络时，验证引导块失败，因为它缺少 ConsortiumsConfig。这通常是由于系统通道块中缺少配置信息造成的。请检查系统通道块的配置信息是否完整，如果有缺失的话请补充完整。

0001 ERRO [main] InitCmd -> Cannot run peer because could not load a valid signer certificate from directory /etc/hyperledger/fabric/msp/signcerts: stat /etc/hyperledger/fabric/msp/signcerts: no such file or directory
