cesium 第一视角漫游+平滑转向 简单实现

cesiumJS中,根据已知点位进行第一视角漫游并且镜头平滑转向的代码实现

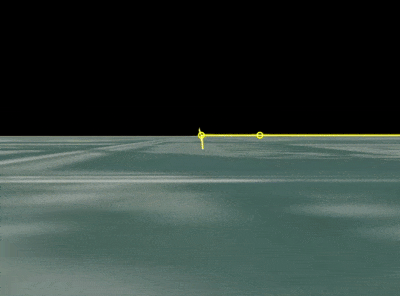

效果

代码

function initMove(){
     // 点位数据
    const points = [
      Cesium.Cartesian3.fromDegrees(112.76808874621787, 35.174973419915396, 2), // 点1
      Cesium.Cartesian3.fromDegrees(112.76808013112193, 35.17600542306012, 2), // 点2
      Cesium.Cartesian3.fromDegrees(112.7680757112957, 35.176803887395265, 2), // 点3
      Cesium.Cartesian3.fromDegrees(112.76812098091747, 35.1769452803711, 2), // 点4
      Cesium.Cartesian3.fromDegrees(112.76826823232298, 35.17694348179523, 2), // 点5
      Cesium.Cartesian3.fromDegrees(112.77095423366187, 35.176981576086455, 2), // 点6
      Cesium.Cartesian3.fromDegrees(112.77102800722801, 35.174977361231996, 2), // 点7
      Cesium.Cartesian3.fromDegrees(112.76808874621787, 35.174973419915396, 2), // 点8
    ];
    // 漫游时间
    let totalTime = 60
    let startTime = this.viewer.clock.currentTime.clone()
    let stopTime = Cesium.JulianDate.addSeconds(
      startTime,
      totalTime,
      new Cesium.JulianDate()
    );
    const property = new Cesium.SampledPositionProperty();
    points.forEach((ele,index)=>{
      const time = Cesium.JulianDate.addSeconds(
        startTime,
        index*(totalTime/(points.length)),
        new Cesium.JulianDate()
      );
      property.addSample(time, ele);
      this.viewer.entities.add({
        position: ele,
        point: {
          pixelSize: 8,
          color: Cesium.Color.TRANSPARENT,
          outlineColor: Cesium.Color.YELLOW,
          outlineWidth: 3,
        },
      });
    })
    let orientation = new Cesium.VelocityOrientationProperty(property);
    const entity = this.viewer.entities.add({
      availability: new Cesium.TimeIntervalCollection([
        new Cesium.TimeInterval({
          start: startTime,
          stop: stopTime,
        }),
      ]),
      position: property,
      orientation: orientation,
      path: {
        resolution: 1,
        material: new Cesium.PolylineGlowMaterialProperty({
          glowPower: 0.1,
          color: Cesium.Color.YELLOW,
        }),
        width: 10,
      },
    });
    let lastOrientation = new Cesium.Quaternion();
    this.viewer.clock.onTick.addEventListener((e)=>{
      try {
        if(this.viewer.clock.shouldAnimate === true){
          let ori  = orientation.getValue(this.viewer.clock.currentTime);//获取偏向角
          let center  = property.getValue(this.viewer.clock.currentTime);//获取位置
          if(!ori || !center){
            console.warn('Orientation or position为空');
            return;
          }
          // 平滑转向
          const smoothedOri = Cesium.Quaternion.slerp(
            lastOrientation,
            ori,
            0.1, // 插值因子
            new Cesium.Quaternion()
          );
          lastOrientation = Cesium.Quaternion.clone(smoothedOri);
          let transform = Cesium.Matrix4.fromRotationTranslation(Cesium.Matrix3.fromQuaternion(smoothedOri), center);//将偏向角转为3*3矩阵,利用实时点位转为4*4矩阵
            this.viewer.camera.lookAtTransform(transform, new Cesium.Cartesian3(-10, 0, 0));//将相机向后面放一点
        }
      } catch (error) {
        console.error('error',error)
      }

    });
  }
