VTKRenwin.h（vtk源码为QtVTKRenderWindows.h）VTKRenwin.cpp （vtk源码为QtVTKRenderWindows.h）前言：

MPR(multi-planner reformation)也称多平面重建，多重面重建是将扫描范围内所有的轴位图像叠加起来再对某些标线标定的重组线所指定的组织进行冠状、矢状位、任意角度斜位图像重组。

1、VTK7.x早期版本中，官方仅提供QVTKWidget，需要手动将QVTKWidgetPlugin.dll和QVTKWidgetPlugin.lib放到qt design下的plugin里。

2、在Qt版本为5.4之后时，在VTK8.2之前的版本，一般是使用QVTKOpenGLWidget；在VTK8.2及之后的版本里，引入了QVTKOpenGLNativeWidget；

3、VTK9.0版本删除了QVTKWidget，但是有QVTKOpenGLNativeWidget，QVTKOpenGLStereoWidget，QVTKOpenGLWindow。

该项目使用vtk9.0版本。（记得工程文件加入vtk lib库）

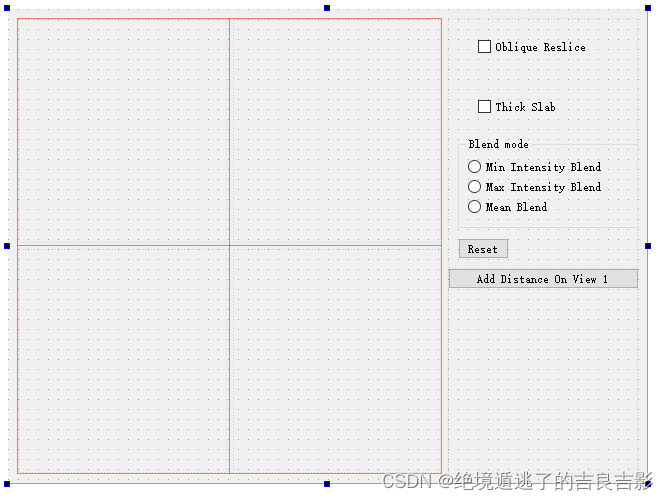

一.添加UI布局如下



 该布局包含了MPR视图移动或旋转的联动等基础功能。

二.代码实现

#include "mainwindow.h"
#include <QApplication>
#include "vtkOutputWindow.h"
#include "vtkAutoInit.h"


VTK_MODULE_INIT(vtkRenderingOpenGL2);
VTK_MODULE_INIT(vtkInteractionStyle);
VTK_MODULE_INIT(vtkRenderingFreeType);
VTK_MODULE_INIT(vtkRenderingContextOpenGL2);


int main(int argc, char *argv[])
{
    //    vtkOutputWindow::SetGlobalWarningDisplay(0);       //关闭错误输出


    QCoreApplication::setAttribute(Qt::AA_ShareOpenGLContexts);

    QApplication a(argc, argv);
    MainWindow w;
    w.show();
    return a.exec();
}
#ifndef MAINWINDOW_H
#define MAINWINDOW_H


#include <QMainWindow>
#include <QResizeEvent>
#include <QTabBar>
#include <QPaintEvent>
#include <QPixmap>
#include <QPainter>
#include <QLabel>
#include <QMouseEvent>
#include <QHBoxLayout>
#include <QVBoxLayout>
#include <QGridLayout>
#include <VTKRenwin.h>
namespace Ui {
class MainWindow;
}


class MainWindow : public QMainWindow
{
    Q_OBJECT


public:
    explicit MainWindow(QWidget *parent = 0);


    ~MainWindow();


private slots:
    void on_btn_close_clicked();


    void on_btn_fullscreen_clicked();


    void on_btn_select_clicked();


private:
    Ui::MainWindow *ui;
    QVBoxLayout *vlayout;
    QWidget *viewParent;
    QHBoxLayout *hlayout ;
    //图像管理
    VTKRenwin *mImageManage;
};


#endif // MAINWINDOW_H

 MainWindow.cpp（主界面）

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QDebug>

static QPoint last(0,0);        //保存坐标
MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    this->setWindowFlag(Qt::CustomizeWindowHint);
    ui->centralwidget->installEventFilter(this);


    vlayout = new QVBoxLayout(ui->widget_Main);
    vlayout->setMargin(0);
    vlayout->setSpacing(0);


    viewParent = new QWidget(ui->widget_Main);


    vlayout->addWidget(viewParent);
    hlayout = new QHBoxLayout(viewParent);
    hlayout->setMargin(0);
    hlayout->setMargin(0);


    mImageManage = new VTKRenwin(viewParent);
    hlayout->addWidget(mImageManage);
}


MainWindow::~MainWindow()
{
    delete ui;
}


void MainWindow::on_btn_close_clicked()
{
    this->close();
}


void MainWindow::on_btn_fullscreen_clicked()
{
    if(this->isFullScreen())
    {
        this->showNormal();
    }
    else
    {
        this->showFullScreen();
    }


}
void MainWindow::on_btn_select_clicked()
{
    if(mImageManage)
        mImageManage->openFolder();
}

 VTKRenwin.h（vtk源码为QtVTKRenderWindows.h）

#ifndef VTKRENWIN_H
#define VTKRENWIN_H
#include <QWidget>
#include <vtkDICOMImageReader.h>
#include "vtkSmartPointer.h"
#include "vtkResliceImageViewer.h"
#include "vtkImagePlaneWidget.h"
#include "vtkDistanceWidget.h"
#include "vtkResliceImageViewerMeasurements.h"


#include "vtkTextActor.h"
#include "vtkTextProperty.h"
// Forward Qt class declarations
// class Ui_QtVTKRenderWindows;


namespace Ui {
class VTKRenwin;
}


class VTKRenwin : public QWidget
{
    Q_OBJECT


public:
    explicit VTKRenwin(QWidget *parent = nullptr);
    ~VTKRenwin();


    void openFolder();
    void slot_ReaderDICOMImage(const char *fn);
public slots:


  virtual void slotExit();
  virtual void resliceMode(int);
  virtual void thickMode(int);
  virtual void SetBlendModeToMaxIP();
  virtual void SetBlendModeToMinIP();
  virtual void SetBlendModeToMeanIP();
  virtual void SetBlendMode(int);
  virtual void ResetViews();
  virtual void Render();
  virtual void AddDistanceMeasurementToView1();
  virtual void AddDistanceMeasurementToView( int );


protected:
    vtkSmartPointer<vtkDICOMImageReader> reader = nullptr;       //读取DICOM文件
    int imageDims[3] = {0};
  vtkSmartPointer< vtkResliceImageViewer > riw[3];
  vtkSmartPointer< vtkImagePlaneWidget > planeWidget[3];
  vtkSmartPointer< vtkDistanceWidget > DistanceWidget[3];
  vtkSmartPointer< vtkResliceImageViewerMeasurements > ResliceMeasurements;


  vtkSmartPointer<vtkTextActor> textActor[4];                    //文本信息


private:


  // Designer form
    Ui::VTKRenwin *ui;
};


#endif // VTKRENWIN_H

 VTKRenwin.cpp （vtk源码为QtVTKRenderWindows.h）

#include "VTKRenwin.h"
#include "ui_VTKRenwin.h"

#include "vtkBoundedPlanePointPlacer.h"
#include "vtkCellPicker.h"
#include "vtkCommand.h"
#include "vtkDICOMImageReader.h"
#include "vtkDistanceRepresentation.h"
#include "vtkDistanceRepresentation2D.h"
#include "vtkDistanceWidget.h"
#include <vtkGenericOpenGLRenderWindow.h>
#include "vtkHandleRepresentation.h"
#include "vtkImageData.h"
#include "vtkImageMapToWindowLevelColors.h"
#include "vtkImageSlabReslice.h"
#include "vtkInteractorStyleImage.h"
#include "vtkLookupTable.h"
#include "vtkPlane.h"
#include "vtkPlaneSource.h"
#include "vtkPointHandleRepresentation2D.h"
#include "vtkPointHandleRepresentation3D.h"
#include "vtkProperty.h"
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <QFileDialog>
#include <vtkTextActor.h>
#include "vtkRenderWindowInteractor.h"
#include "vtkResliceImageViewer.h"
#include "vtkResliceCursorLineRepresentation.h"
#include "vtkResliceCursorThickLineRepresentation.h"
#include "vtkResliceCursorWidget.h"
#include "vtkResliceCursorActor.h"
#include "vtkResliceCursorPolyDataAlgorithm.h"
#include "vtkResliceCursor.h"
#include "vtkMetaImageReader.h"
#include "vtkResliceImageViewerMeasurements.h"
//----------------------------------------------------------------------------
class vtkResliceCursorCallback : public vtkCommand
{
public:
  static vtkResliceCursorCallback *New()
  { return new vtkResliceCursorCallback; }


  void Execute( vtkObject *caller, unsigned long ev,
                void *callData ) override
  {


    if (ev == vtkResliceCursorWidget::WindowLevelEvent ||
        ev == vtkCommand::WindowLevelEvent ||
        ev == vtkResliceCursorWidget::ResliceThicknessChangedEvent)
    {
      // Render everything
      for (int i = 0; i < 3; i++)
      {
        this->RCW[i]->Render();
      }
      this->IPW[0]->GetInteractor()->GetRenderWindow()->Render();
      return;
    }


    vtkImagePlaneWidget* ipw =
      dynamic_cast< vtkImagePlaneWidget* >( caller );
    if (ipw)
    {
      double* wl = static_cast<double*>( callData );


      if ( ipw == this->IPW[0] )
      {
        this->IPW[1]->SetWindowLevel(wl[0],wl[1],1);
        this->IPW[2]->SetWindowLevel(wl[0],wl[1],1);
      }
      else if( ipw == this->IPW[1] )
      {
        this->IPW[0]->SetWindowLevel(wl[0],wl[1],1);
        this->IPW[2]->SetWindowLevel(wl[0],wl[1],1);
      }
      else if (ipw == this->IPW[2])
      {
        this->IPW[0]->SetWindowLevel(wl[0],wl[1],1);
        this->IPW[1]->SetWindowLevel(wl[0],wl[1],1);
      }
    }


    vtkResliceCursorWidget *rcw = dynamic_cast<
      vtkResliceCursorWidget * >(caller);
    if (rcw)
    {
      vtkResliceCursorLineRepresentation *rep = dynamic_cast<
        vtkResliceCursorLineRepresentation * >(rcw->GetRepresentation());
      // Although the return value is not used, we keep the get calls
      // in case they had side-effects
      rep->GetResliceCursorActor()->GetCursorAlgorithm()->GetResliceCursor();
      for (int i = 0; i < 3; i++)
      {
        vtkPlaneSource *ps = static_cast< vtkPlaneSource * >(
            this->IPW[i]->GetPolyDataAlgorithm());
        ps->SetOrigin(this->RCW[i]->GetResliceCursorRepresentation()->
                                          GetPlaneSource()->GetOrigin());
        ps->SetPoint1(this->RCW[i]->GetResliceCursorRepresentation()->
                                          GetPlaneSource()->GetPoint1());
        ps->SetPoint2(this->RCW[i]->GetResliceCursorRepresentation()->
                                          GetPlaneSource()->GetPoint2());


        // If the reslice plane has modified, update it on the 3D widget
        this->IPW[i]->UpdatePlacement();
      }
    }


    // Render everything
    for (int i = 0; i < 3; i++)
    {
      this->RCW[i]->Render();
    }
    this->IPW[0]->GetInteractor()->GetRenderWindow()->Render();
  }


  vtkResliceCursorCallback() {}
  vtkImagePlaneWidget* IPW[3];
  vtkResliceCursorWidget *RCW[3];
};
VTKRenwin::~VTKRenwin()
{
    delete ui;
}
VTKRenwin::VTKRenwin(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::VTKRenwin)
{
    ui->setupUi(this);


  // Set up action signals and slots
//  connect(this->ui->actionExit, SIGNAL(triggered()), this, SLOT(slotExit()));
  connect(this->ui->resliceModeCheckBox, SIGNAL(stateChanged(int)), this, SLOT(resliceMode(int)));
  connect(this->ui->thickModeCheckBox, SIGNAL(stateChanged(int)), this, SLOT(thickMode(int)));
  this->ui->thickModeCheckBox->setEnabled(0);


  connect(this->ui->radioButton_Max, SIGNAL(pressed()), this, SLOT(SetBlendModeToMaxIP()));
  connect(this->ui->radioButton_Min, SIGNAL(pressed()), this, SLOT(SetBlendModeToMinIP()));
  connect(this->ui->radioButton_Mean, SIGNAL(pressed()), this, SLOT(SetBlendModeToMeanIP()));
  this->ui->blendModeGroupBox->setEnabled(0);


  connect(this->ui->resetButton, SIGNAL(pressed()), this, SLOT(ResetViews()));
  connect(this->ui->AddDistance1Button, SIGNAL(pressed()), this, SLOT(AddDistanceMeasurementToView1()));


  reader = vtkSmartPointer<vtkDICOMImageReader>::New();
  update();
};


void VTKRenwin::slotExit()
{
  qApp->exit();
}


void VTKRenwin::resliceMode(int mode)
{
  this->ui->thickModeCheckBox->setEnabled(mode ? 1 : 0);
  this->ui->blendModeGroupBox->setEnabled(mode ? 1 : 0);


  for (int i = 0; i < 3; i++)
  {
    riw[i]->SetResliceMode(mode ? 1 : 0);
    riw[i]->GetRenderer()->ResetCamera();
    riw[i]->Render();
  }
}


void VTKRenwin::thickMode(int mode)
{
  for (int i = 0; i < 3; i++)
  {
    riw[i]->SetThickMode(mode ? 1 : 0);
    riw[i]->Render();
  }
}


void VTKRenwin::SetBlendMode(int m)
{
  for (int i = 0; i < 3; i++)
  {
    vtkImageSlabReslice *thickSlabReslice = vtkImageSlabReslice::SafeDownCast(
        vtkResliceCursorThickLineRepresentation::SafeDownCast(
          riw[i]->GetResliceCursorWidget()->GetRepresentation())->GetReslice());
    thickSlabReslice->SetBlendMode(m);
    riw[i]->Render();
  }
}


void VTKRenwin::SetBlendModeToMaxIP()
{
  this->SetBlendMode(VTK_IMAGE_SLAB_MAX);
}


void VTKRenwin::SetBlendModeToMinIP()
{
  this->SetBlendMode(VTK_IMAGE_SLAB_MIN);
}


void VTKRenwin::SetBlendModeToMeanIP()
{
  this->SetBlendMode(VTK_IMAGE_SLAB_MEAN);
}


void VTKRenwin::ResetViews()
{
  // Reset the reslice image views
  for (int i = 0; i < 3; i++)
  {
    riw[i]->Reset();
  }


  // Also sync the Image plane widget on the 3D top right view with any
  // changes to the reslice cursor.
  for (int i = 0; i < 3; i++)
  {
    vtkPlaneSource *ps = static_cast< vtkPlaneSource * >(
        planeWidget[i]->GetPolyDataAlgorithm());
    ps->SetNormal(riw[0]->GetResliceCursor()->GetPlane(i)->GetNormal());
    ps->SetCenter(riw[0]->GetResliceCursor()->GetPlane(i)->GetOrigin());


    // If the reslice plane has modified, update it on the 3D widget
    this->planeWidget[i]->UpdatePlacement();
  }


  // Render in response to changes.
  this->Render();
}
void VTKRenwin::openFolder()
{
    QString dir = QFileDialog::getExistingDirectory(this, tr("打开影像文件夹"),"/home",QFileDialog::ShowDirsOnly| QFileDialog::DontResolveSymlinks);
    if(!dir.isEmpty())
    {
        this->slot_ReaderDICOMImage(dir.toLocal8Bit().data());
    }
}
void VTKRenwin::slot_ReaderDICOMImage(const char *fn)
{
    reader->SetDirectoryName(fn);
    reader->Update();
    reader->GetOutput()->GetDimensions(imageDims);              //获取维度


    for (auto i=0;i<4;i++)
    {
        textActor[i] = vtkSmartPointer<vtkTextActor>::New();
        textActor[i]->SetDisplayPosition(5, 5);
        textActor[i]->GetTextProperty()->SetFontSize(14);
    }


    textActor[0]->SetInput(QString::fromUtf8("Sagittal").toUtf8());
    textActor[0]->GetTextProperty()->SetColor(0, 1, 0);


    textActor[1]->SetInput(QString::fromUtf8("Coronal").toUtf8());
    textActor[1]->GetTextProperty()->SetColor(0, 0, 1);


    textActor[2]->SetInput(QString::fromUtf8("Axial").toUtf8());
    textActor[2]->GetTextProperty()->SetColor(1, 0, 0);


    textActor[3]->SetInput(QString::fromUtf8("3D").toUtf8());
    textActor[3]->GetTextProperty()->SetColor(1, 1, 0);


    for (int i = 0; i < 3; i++)
    {
      riw[i] = vtkSmartPointer< vtkResliceImageViewer >::New();
      riw[i]->GetRenderer()->AddActor(textActor[i]);
      vtkNew<vtkGenericOpenGLRenderWindow> renderWindow;
      riw[i]->SetRenderWindow(renderWindow);
    }


    ui->view1->SetRenderWindow(riw[0]->GetRenderWindow());
    riw[0]->SetupInteractor(ui->view1->GetRenderWindow()->GetInteractor());


    ui->view2->SetRenderWindow(riw[1]->GetRenderWindow());
    riw[1]->SetupInteractor(ui->view2->GetRenderWindow()->GetInteractor());


    ui->view3->SetRenderWindow(riw[2]->GetRenderWindow());
    riw[2]->SetupInteractor(ui->view3->GetRenderWindow()->GetInteractor());


    for (int i = 0; i < 3; i++)
    {
      // make them all share the same reslice cursor object.
      vtkResliceCursorLineRepresentation *rep = vtkResliceCursorLineRepresentation::SafeDownCast(riw[i]->GetResliceCursorWidget()->GetRepresentation());
      riw[i]->SetResliceCursor(riw[0]->GetResliceCursor());


      rep->GetResliceCursorActor()->GetCursorAlgorithm()->SetReslicePlaneNormal(i);


      riw[i]->SetInputData(reader->GetOutput());
      riw[i]->SetSliceOrientation(i);
      riw[i]->SetResliceModeToAxisAligned();
    }


    vtkSmartPointer<vtkCellPicker> picker = vtkSmartPointer<vtkCellPicker>::New();
    picker->SetTolerance(0.005);


    vtkSmartPointer<vtkProperty> ipwProp = vtkSmartPointer<vtkProperty>::New();


    vtkSmartPointer< vtkRenderer > ren = vtkSmartPointer< vtkRenderer >::New();


    ren->AddActor(textActor[3]);


    vtkNew<vtkGenericOpenGLRenderWindow> renderWindow;


    this->ui->view4->SetRenderWindow(renderWindow);
    this->ui->view4->GetRenderWindow()->AddRenderer(ren);
    vtkRenderWindowInteractor *iren = this->ui->view4->GetInteractor();


    for (int i = 0; i < 3; i++)
    {
      planeWidget[i] = vtkSmartPointer<vtkImagePlaneWidget>::New();
      planeWidget[i]->SetInteractor( iren );
      planeWidget[i]->SetPicker(picker);
      planeWidget[i]->RestrictPlaneToVolumeOn();
      double color[3] = {0, 0, 0};
      color[i] = 1;
      planeWidget[i]->GetPlaneProperty()->SetColor(color);


      color[0] /= 4.0;
      color[1] /= 4.0;
      color[2] /= 4.0;
      riw[i]->GetRenderer()->SetBackground( color );


      planeWidget[i]->SetTexturePlaneProperty(ipwProp);
      planeWidget[i]->TextureInterpolateOff();
      planeWidget[i]->SetResliceInterpolateToLinear();
      planeWidget[i]->SetInputConnection(reader->GetOutputPort());
      planeWidget[i]->SetPlaneOrientation(i);
      planeWidget[i]->SetSliceIndex(imageDims[i]/2);
      planeWidget[i]->DisplayTextOn();
      planeWidget[i]->SetDefaultRenderer(ren);
      planeWidget[i]->SetWindowLevel(1358, -27);
      planeWidget[i]->On();
      planeWidget[i]->InteractionOn();
    }


    vtkSmartPointer<vtkResliceCursorCallback> cbk = vtkSmartPointer<vtkResliceCursorCallback>::New();


    for (int i = 0; i < 3; i++)
    {
      cbk->IPW[i] = planeWidget[i];
      cbk->RCW[i] = riw[i]->GetResliceCursorWidget();
      riw[i]->GetResliceCursorWidget()->AddObserver(
          vtkResliceCursorWidget::ResliceAxesChangedEvent, cbk );
      riw[i]->GetResliceCursorWidget()->AddObserver(
          vtkResliceCursorWidget::WindowLevelEvent, cbk );
      riw[i]->GetResliceCursorWidget()->AddObserver(
          vtkResliceCursorWidget::ResliceThicknessChangedEvent, cbk );
      riw[i]->GetResliceCursorWidget()->AddObserver(
          vtkResliceCursorWidget::ResetCursorEvent, cbk );
      riw[i]->GetInteractorStyle()->AddObserver(
          vtkCommand::WindowLevelEvent, cbk );


      // Make them all share the same color map.
      riw[i]->SetLookupTable(riw[0]->GetLookupTable());
      planeWidget[i]->GetColorMap()->SetLookupTable(riw[0]->GetLookupTable());
      //planeWidget[i]->GetColorMap()->SetInput(riw[i]->GetResliceCursorWidget()->GetResliceCursorRepresentation()->GetColorMap()->GetInput());
      planeWidget[i]->SetColorMap(riw[i]->GetResliceCursorWidget()->GetResliceCursorRepresentation()->GetColorMap());


    }


//    this->ui->view1->show();
//    this->ui->view2->show();
//    this->ui->view3->show();
}
void VTKRenwin::Render()
{
  for (int i = 0; i < 3; i++)
  {
    riw[i]->Render();
  }
  this->ui->view3->GetRenderWindow()->Render();
}


void VTKRenwin::AddDistanceMeasurementToView1()
{
  this->AddDistanceMeasurementToView(1);
}


void VTKRenwin::AddDistanceMeasurementToView(int i)
{
  // remove existing widgets.
  if (this->DistanceWidget[i])
  {
    this->DistanceWidget[i]->SetEnabled(0);
    this->DistanceWidget[i] = nullptr;
  }


  // add new widget
  this->DistanceWidget[i] = vtkSmartPointer< vtkDistanceWidget >::New();
  this->DistanceWidget[i]->SetInteractor(
    this->riw[i]->GetResliceCursorWidget()->GetInteractor());


  // Set a priority higher than our reslice cursor widget
  this->DistanceWidget[i]->SetPriority(
    this->riw[i]->GetResliceCursorWidget()->GetPriority() + 0.01);


  vtkSmartPointer< vtkPointHandleRepresentation2D > handleRep =
    vtkSmartPointer< vtkPointHandleRepresentation2D >::New();
  vtkSmartPointer< vtkDistanceRepresentation2D > distanceRep =
    vtkSmartPointer< vtkDistanceRepresentation2D >::New();
  distanceRep->SetHandleRepresentation(handleRep);
  this->DistanceWidget[i]->SetRepresentation(distanceRep);
  distanceRep->InstantiateHandleRepresentation();
  distanceRep->GetPoint1Representation()->SetPointPlacer(riw[i]->GetPointPlacer());
  distanceRep->GetPoint2Representation()->SetPointPlacer(riw[i]->GetPointPlacer());


  // Add the distance to the list of widgets whose visibility is managed based
  // on the reslice plane by the ResliceImageViewerMeasurements class
  this->riw[i]->GetMeasurements()->AddItem(this->DistanceWidget[i]);


  this->DistanceWidget[i]->CreateDefaultRepresentation();
  this->DistanceWidget[i]->EnabledOn();
}

vtk实现MPR、MIP、minIP、aveIP
C++ 爱好者 make_it_simple888
06-22 4108
本文参考：VTK Examples中MIP和MPR的功能实现与源码分析 另参考：6种常见的三维重建方式 先编译VTK、VTK Examples 找到MPR示例，这个示例所在的位置在： VTK_Source\VTK-8.1.2\VTK-8.1.2\Examples\GUI\Qt\FourPaneViewer-build\QtVTKRenderWindows.sln 在代码中设置序列的...
VTK笔记-计算MPR切面-vtkImageReslice输出视口设置
黑山老妖的博客
08-04 3747
设置输出参数   SetOutputSpacing设置输出数据的体素间距。默认的输出间距是通过ResliceAxes排列的输入间距。   SetOutputOrigin设置输出数据的左下角开始的起点，默认的输出原点是通过ResliceAxes排列的输入原点。   SetOutputExtent设置输出数据的范围，默认的输出范围是通过ResliceAxes排列的输入范围。 virtual void SetOutputSpacing(double x, double y, double z); virtual
利用VTK实现MPR 多角度视图
02-05
利用VTK实现MPR 多角度视图
基于VTK的MPR实现
热门推荐
seugxf的博客
03-30 1万+
基于VTK的MPR实现 多平面重建（MPR）是CT三维数据呈现的重要内容，其在三维数据的任一点空间位置，采用XY、XZ和YZ三个平面切空间数据得到三个切面分别为轴状面、冠状面和矢状面，而且X/Y/Z三个轴可以绕三维坐标原点任意旋转。 以下我们探讨一下利用visualization toolkit （VTK）如何来实现MRP的三视图。 在VTK中有一个类vtkImageReslice，其堪称几何图...
VTK四视图
weixin_34406796的博客
06-21 1214
基于Qt的Vtk 2x2视图实现方法。 转载于:https://blog.51cto.com/weiyuqingcheng/1940578
VTK学习日志：基于VTK9.3.0+Visual Studio c++实现DICOM影像MPR多平面重建+V R体绘制4个视图展示功能的实现(二)
编程技术探索者，分享C/C++、C#、Java、数据库等开发经验，聚焦实战技巧与AI兴趣，助力编程爱好者成长。
06-30 1113
基于VTK9.3.0+Visual Studio c++实现DICOM影像MPR多平面重建+V R体绘制4个视图展示功能的实现
VTK Python MPR 三维重建（一） 多层面重建 四视图
q610098308的专栏
01-30 8553
除了MPR之外，在CT重建后处理中还有很多别的常用方法，包括后面有时间我会慢慢补；
VTK技术实现多角度MPR视图的详细指南
在MPR视图的实现中，将数据源（例如，三维体数据）连接到`vtkImageReslice`，再将处理后的数据通过`vtkImageActor`等渲染到视图中。 7. C++编程实践 VTK支持C++编程语言，并且有大量的示例程序（如MPR.cxx）来展示...
vtk mpr python 定位线功能如何实现
最新发布
11-21
MPR (Multiplanar Reconstruction)是医学图像处理中的术语，表示多平面重建，它允许从三维数据中生成二维视图。 在Python中，结合VTK库来实现MPR通常涉及到以下几个步骤： 1. 导入必要的模块：首先需要导入`vtk`...
一个标准的医学四视图浏览应用程序以及源代码
03-08
一个标准的医学四视图浏览应用程序，包含源代码，源代码比较老，需要的环境是QT 4.8.4 + VS2010 + VTK 5.10.0，详情见博客：https://blog.youkuaiyun.com/weixin_38293453/article/details/129406204。 软件已经完成了...
FourPaneViewer_VTKQT视图_vtk_
10-03
VTK-7.1.1 Qt 例子，经典4视图源代码，附带20张核磁图像数据，直接运行exe即可。
VTK+ITK 4视图DEMO
06-09
VTK+ITK 4视图DEMO
vtk中三视图显示
07-02
显示四视图，没有体绘制，只有体切片显示 。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
vtk窗口-视图分割
05-24
用VS2013配置PCL后可以运行此程序，程序有PCL的属性列表，改一下就好，用VTK实现窗口视图分割成四个小窗口，每个窗口显示不同的模型
vtk显示mpr影像(QVTKOpenGLNativeWidget)
Pailugou的博客
03-29 1419
该项目是自己在学习VTK时尝试显示dicom，自己对vtk接口理解不是很透彻，目前只能做到显示图像和鼠标滚轮切换层，后期如果有项目锻炼，加深理解后再修改，本文使用的是QVTKOpenGLNativeWidget控件进行显示图像，只列举主要的代码，其他的部分需要自己根据自己的工程情况进行添加界面。下面是vtkInteractorStyleImage子类，主要用于鼠标交互。
练习：VTK 四视图显示（三视图+三正交切片）
LS_JOKER的博客
01-05 3688
主要功能如下：根据三正交切片的位置联动显示其他窗口切片，在三正交切片调整窗宽窗位后其他三视图同步窗宽窗位，并显示切片序号。版本：vtk9.2.0+vs2022。
mhd四视图显示 vtk+Qt
JosiasAnas的博客
08-25 1679
VTK+Qt读取mhd文件 可以进行四视图显示，并且拖动平面可以动态显示 在窗口cpp文件的源代码： #include “vtkmainwindow.h” #include “ui_vtkmainwindow.h” //VTK #include “vtkSmartPointer.h” #include “vtkXMLPolyDataReader.h” #include “vtkPolyDataM...
VTK经典四格图
捕鲸叉的专栏
04-22 312
右下角的是使用Volume绘制的三维图。
VTK之MPR重建源码分析（VTK官方例子）
suqiangchuan2752的博客
08-08 1867
vtk之MPR重建源码分析
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
