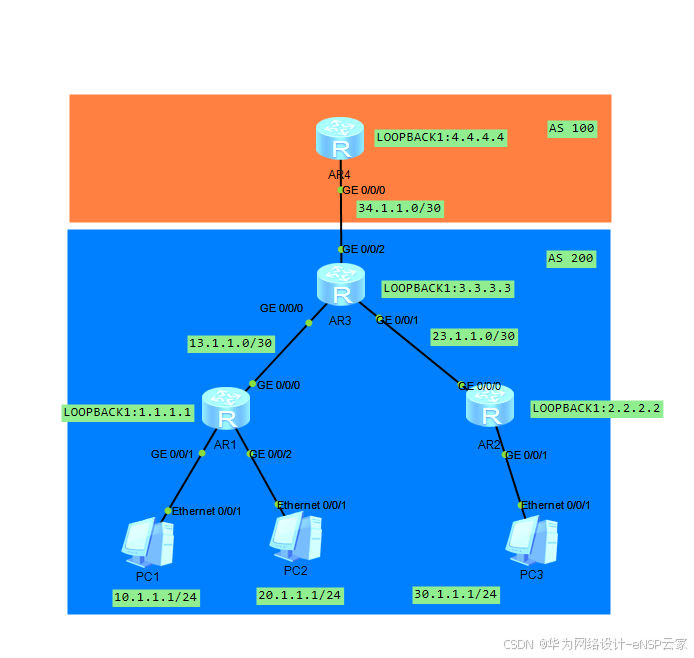

配置路由器LOOPBACK1地址，AR1使用1.1.1.1/32，AR2使用2.2.2.2/32，AR3使用3.3.3.3/32，AR4使用4.4.4.4/32。配置路由器之间的互联接口地址，AR1和AR3之间使用13.1.1.0/30，AR2和AR3之间使用23.1.1.0/30，AR3和AR4之间使用34.1.1.0/30。AR1的GE0/0/1使用10.1.1.1/24网段，AR1的GE0/0/2使用20.1.1.1/24网段，AR2的GE0/0/1使用30.1.1.1/24网段，PC1配置10.1.1.2/24，PC2配置20.1.1.2/24，PC3配置30.1.1.2/24

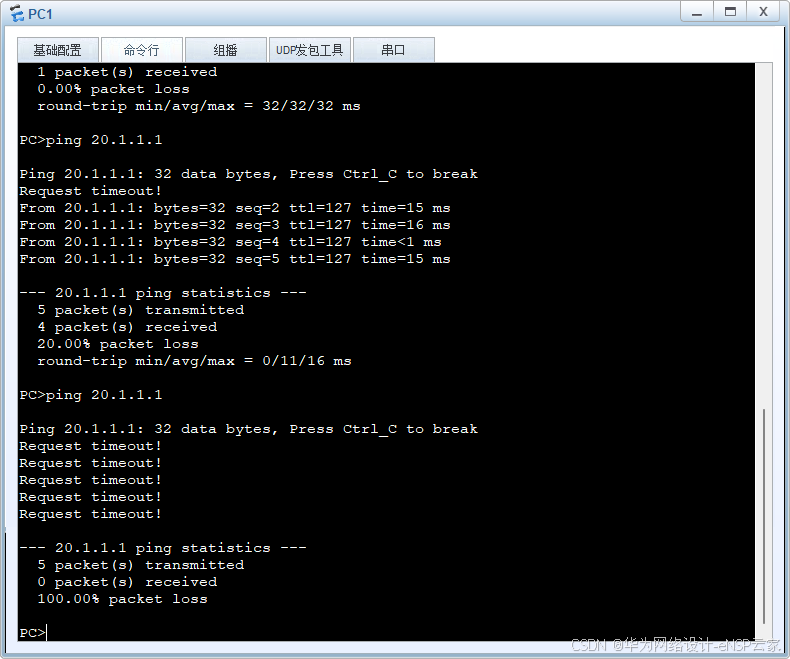

在AR1上GE0/0/1配置接口traffic-policy，禁止PC2访问PC1.
AS200自治域使用ISIS路由协议联通各路由器LOOPBACK地址，使用LOOPBACK地址建立IBGP连接。所有设备使用IS-IS进程号100，仅工作在Leve-2，区域号为86.0931，开销类型为wide。各设备的system id使用环回口1进行映射，如AR1的IP是1.1.1.1，其system id为0010.0100.1001。
AR3和AR4配置静态路由，使用LOOPBACK地址建立EBGP链接。
AR3上需要学习到10.1.1.0/24，20.1.1.0/24，30.1.1.0/24的路由。

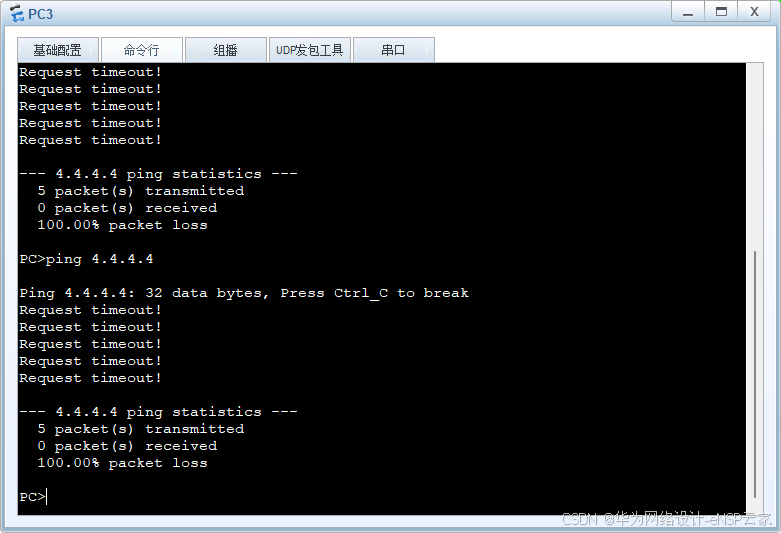

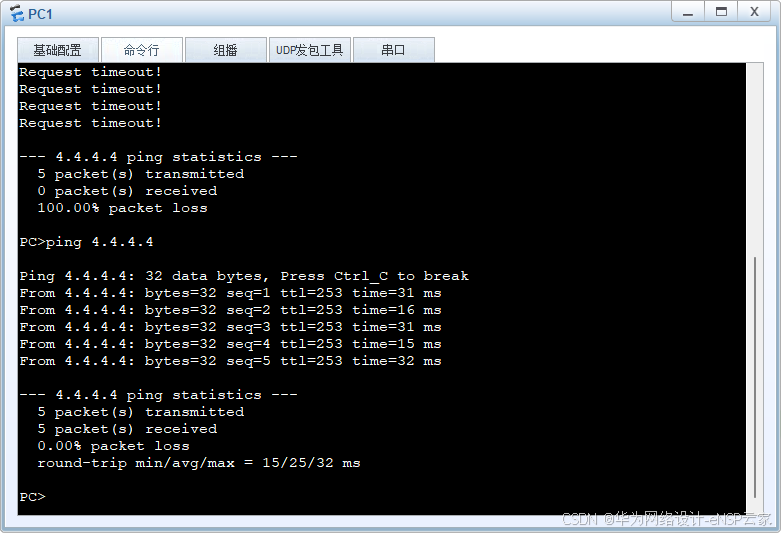

在AR4的bgp邻居关系上配置路由策略，实现PC3无法访问AR4的LOOPBACK地址，PC1和PC2可以PING通AR4的LOOPBACK地址。

$ 18812668402 $ 我在

[AR1]
[AR1]un in en
Info: Information center is disabled.
[AR1]
[AR1]sys AR1
[AR1]
[AR1]isis 100
[AR1-isis-100]
[AR1-isis-100]net 86.0931.0010.0100.1001.00
[AR1-isis-100]
[AR1-isis-100]is-level level-2
Info: IS Level Changed, Resetting ISIS...
[AR1-isis-100]
[AR1-isis-100]cost-style wide
Info: Cost style changed, Resetting ISIS...
[AR1-isis-100]
[AR1-isis-100]inte g0/0/1
[AR1-GigabitEthernet0/0/1]
[AR1-GigabitEthernet0/0/1]ip ad 10.1.1.254 24
[AR1-GigabitEthernet0/0/1]
[AR1-GigabitEthernet0/0/1]isis en 100
[AR1-GigabitEthernet0/0/1]
[AR1-GigabitEthernet0/0/1]inte g0/0/2
[AR1-GigabitEthernet0/0/2]
[AR1-GigabitEthernet0/0/2]ip ad 20.1.1.254 24
[AR1-GigabitEthernet0/0/2]
[AR1-GigabitEthernet0/0/2]isis en 100
[AR1-GigabitEthernet0/0/2]
[AR1-GigabitEthernet0/0/2]inte g0/0/0
[AR1-GigabitEthernet0/0/0]
[AR1-GigabitEthernet0/0/0]ip ad 13.1.1.2 30
[AR1-GigabitEthernet0/0/0]
[AR1-GigabitEthernet0/0/0]isis en 100
[AR1-GigabitEthernet0/0/0]
[AR1-GigabitEthernet0/0/0]inte loop1
[AR1-LoopBack1]
[AR1-LoopBack1]ip ad 1.1.1.1 32
[AR1-LoopBack1]
[AR1-LoopBack1]isis en 100
[AR1-LoopBack1]
[AR1]traffic classifier 1
[AR1-classifier-1]if-match acl 2000
[AR1-classifier-1]qu
[AR1]traffic behavior 1
[AR1-behavior-1]deny
[AR1-behavior-1]q
[AR1]traffic policy 1
[AR1-trafficpolicy-1]classifier 1 behavior 1
[AR1-trafficpolicy-1]q
[AR1]acl 2000
[AR1-acl-basic-2000]ru pe so 20.1.1.0 0.0.0.255
[AR1-acl-basic-2000]inte g0/0/1
[AR1-GigabitEthernet0/0/1]traffic-policy 1 inbound
[AR1-GigabitEthernet0/0/1]traffic-policy 1 outbound

The device is running!

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]
[Huawei]un in en
Info: Information center is disabled.
[Huawei]
[Huawei]sys AR2
[AR2]
[AR2]isis 100
[AR2-isis-100]
[AR2-isis-100]net 86.0931.0020.0200.2002.00
[AR2-isis-100]
[AR2-isis-100]is-level level-2
Info: IS Level Changed, Resetting ISIS...
[AR2-isis-100]
[AR2-isis-100]cost-style wide
Info: Cost style changed, Resetting ISIS...
[AR2-isis-100]
[AR2-isis-100]inte g0/0/1
[AR2-GigabitEthernet0/0/1]
[AR2-GigabitEthernet0/0/1]ip ad 30.1.1.254 24
[AR2-GigabitEthernet0/0/1]
[AR2-GigabitEthernet0/0/1]isis en 100
[AR2-GigabitEthernet0/0/1]
[AR2-GigabitEthernet0/0/1]inte g0/0/0
[AR2-GigabitEthernet0/0/0]
[AR2-GigabitEthernet0/0/0]ip ad 23.1.1.2 30
[AR2-GigabitEthernet0/0/0]
[AR2-GigabitEthernet0/0/0]isis en 100
[AR2-GigabitEthernet0/0/0]
[AR2-GigabitEthernet0/0/0]inte loop1
[AR2-LoopBack1]
[AR2-LoopBack1]ip ad 2.2.2.2 32
[AR2-LoopBack1]
[AR2-LoopBack1]isis en 100
[AR2-LoopBack1]
[AR2-LoopBack1]

The device is running!

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]
[Huawei]un in en
Info: Information center is disabled.
[Huawei]
[Huawei]sys AR3
[AR3]
[AR3]isis 100
[AR3-isis-100]
[AR3-isis-100]net 86.0931.0030.0300.3003.00
[AR3-isis-100]
[AR3-isis-100]is-level level-2
Info: IS Level Changed, Resetting ISIS...
[AR3-isis-100]
[AR3-isis-100]cost-style wide
Info: Cost style changed, Resetting ISIS...
[AR3-isis-100]
[AR3-isis-100]inte g0/0/1
[AR3-GigabitEthernet0/0/1]
[AR3-GigabitEthernet0/0/1]ip ad 23.1.1.1 30
[AR3-GigabitEthernet0/0/1]
[AR3-GigabitEthernet0/0/1]isis en 100
[AR3-GigabitEthernet0/0/1]
[AR3-GigabitEthernet0/0/1]inte g0/0/0
[AR3-GigabitEthernet0/0/0]
[AR3-GigabitEthernet0/0/0]ip ad 13.1.1.1 30
[AR3-GigabitEthernet0/0/0]
[AR3-GigabitEthernet0/0/0]isis en 100
[AR3-GigabitEthernet0/0/0]
[AR3-GigabitEthernet0/0/0]inte g0/0/2
[AR3-GigabitEthernet0/0/2]
[AR3-GigabitEthernet0/0/2]ip ad 34.1.1.2 30
[AR3-GigabitEthernet0/0/2]
[AR3-GigabitEthernet0/0/2]inte loop1
[AR3-LoopBack1]
[AR3-LoopBack1]ip ad 3.3.3.3 32
[AR3-LoopBack1]
[AR3-LoopBack1]isis en 100
[AR3-LoopBack1]
[AR3-LoopBack1]ip route-sta 4.4.4.4 32 34.1.1.1
[AR3]
[AR3]bgp 200
[AR3-bgp]
[AR3-bgp]pe 4.4.4.4 as 100
[AR3-bgp]pe 4.4.4.4 con loop 1
[AR3-bgp]pe 4.4.4.4 eb
[AR3-bgp]pe 4.4.4.4 ebgp-max-hop 255
[AR3-bgp]
[AR3]isis 100
[AR3-isis-100]im bgp
[AR3-isis-100]im sta

The device is running!

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]un in en
Info: Information center is disabled.
[Huawei]sys AR4
[AR4]inte g0/0/0
[AR4-GigabitEthernet0/0/0]ip ad 34.1.1.1 30
[AR4-GigabitEthernet0/0/0]inte loo1
[AR4-LoopBack1]ip ad 4.4.4.4 32
[AR4]ip route-static 3.3.3.3 32 34.1.1.2
[AR4]bgp 100
[AR4-bgp]pe 3.3.3.3 as 200
[AR4-bgp]pe 3.3.3.3 con loop1
[AR4-bgp]pe 3.3.3.3 eb 255
[AR4-bgp]net 4.4.4.4 32
[AR4]ip ip-prefix 1 pe 10.1.1.0 24
[AR4]ip ip-prefix 1 pe 20.1.1.0 24
[AR4]rou 1 pe no 10
Info: New Sequence of this List.
[AR4-route-policy]if ip
[AR4-route-policy]if ip-prefix 1
[AR4-route-policy]bgp 100
[AR4-bgp]pe 3.3.3.3 route-policy 1 im

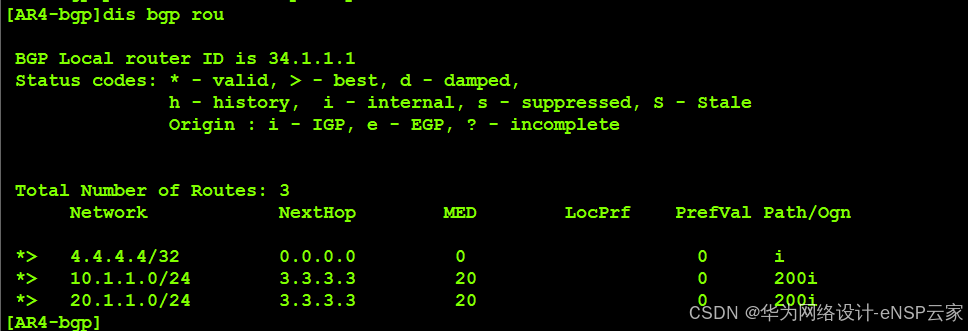

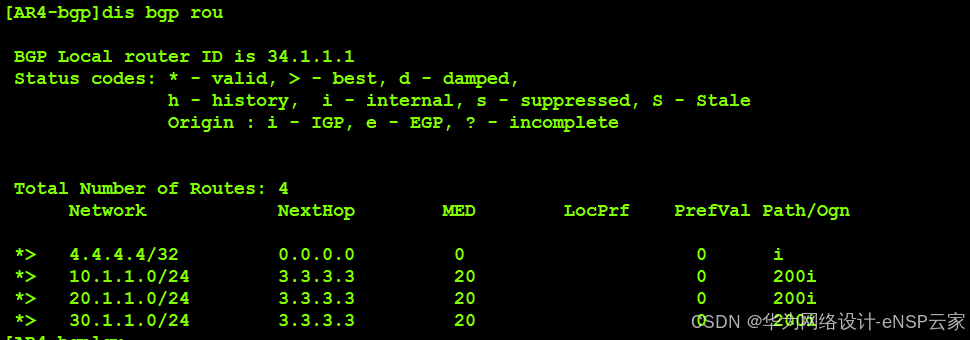

做路由策略前
