CentOS7部署双节点OpenStack

CentOS7部署双节点OpenStack

第一阶段 配置基础虚拟机CentOS7

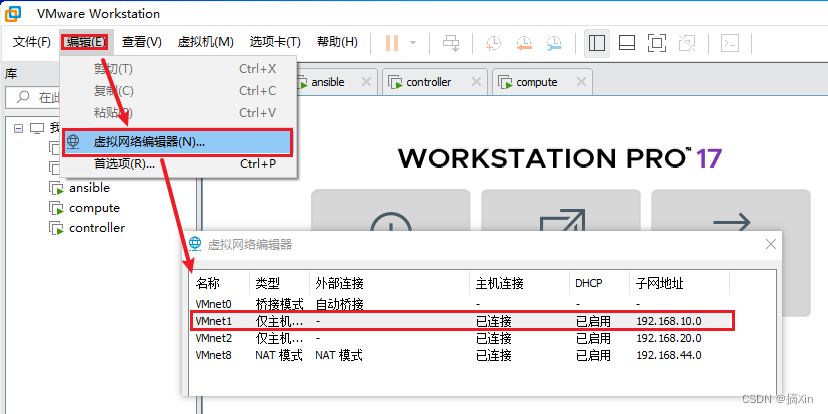

设置虚拟网络配置

创建虚拟机

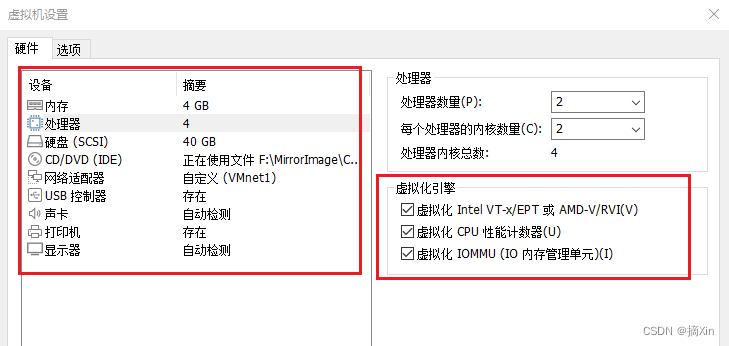

1.安装虚拟机配置如上图
2.时区、网卡不需要其他设置
3.镜像以CentOS官网中为主
本篇文章中虚拟机的密码统一为：1

配置虚拟主机

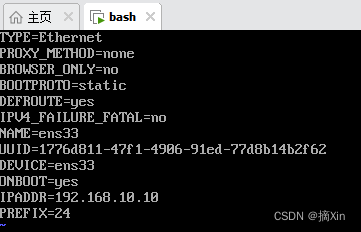

修改网卡

重启网卡

service network restart

关闭防火墙

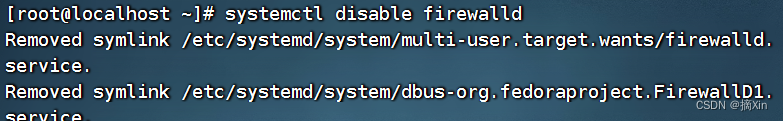

永久关闭防火墙(重启服务器防火墙不会重新开启)

systemctl disable firewalld

清空yum源

rm -rf /etc/yum.repos.d/*

修改hosts配置

[root@localhost ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.10.10 controller
192.168.10.20 compute

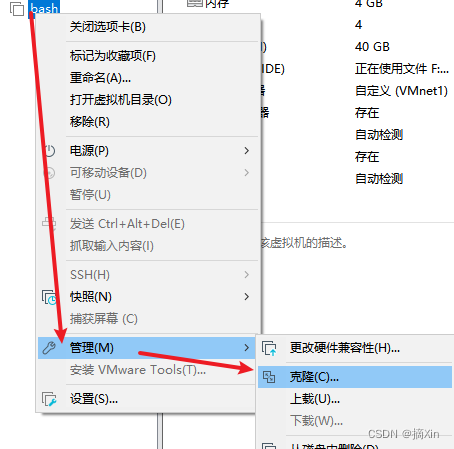

克隆bash主机为控制节点、计算节点

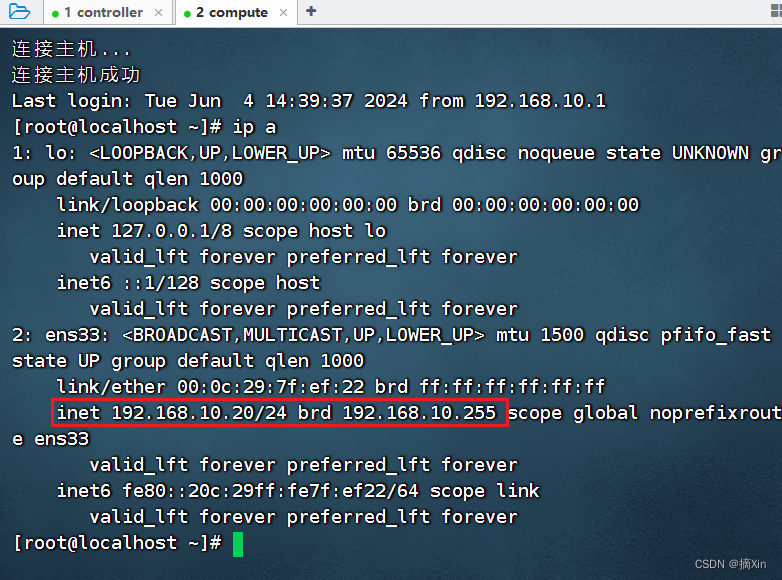

按照表格中的IP修改对应的主机IP

名称	ip
conterller	192.168.10.10
compute	192.168.10.20

修改主机名称

[controller]
[root@localhost ~]# hostnamectl set-hostname controller
[root@localhost ~]# bash
[root@controller ~]#

[compute]
[root@localhost ~]# hostnamectl set-hostname controller
[root@localhost ~]# bash
[root@compute ~]#

挂载镜像、yum配置

【controller】节点配置

挂载镜像

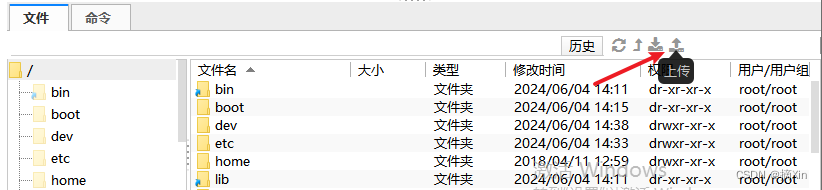

不管什么方法将宿主机中的镜像上传至controller节点就可以

镜像↓

创建文件夹
[root@controller /]# mkdir /opt/centos7
[root@controller /]# mkdir /opt/iaas

挂载第一个镜像
[root@controller /]# mount -o loop CentOS-7-x86_64-DVD-2009.iso /mnt/
mount: /dev/loop0 写保护，将以只读方式挂载
[root@controller /]# cp -rvf /mnt/* /opt/centos7/
[root@controller /]# umount /mnt/

挂载第二个镜像
[root@controller /]# mount -o loop chinaskills_cloud_iaas.iso /mnt/
mount: /dev/loop0 写保护，将以只读方式挂载
[root@controller /]# cp -rvf /mnt/* /opt/iaas/
[root@controller /]# umount /mnt/

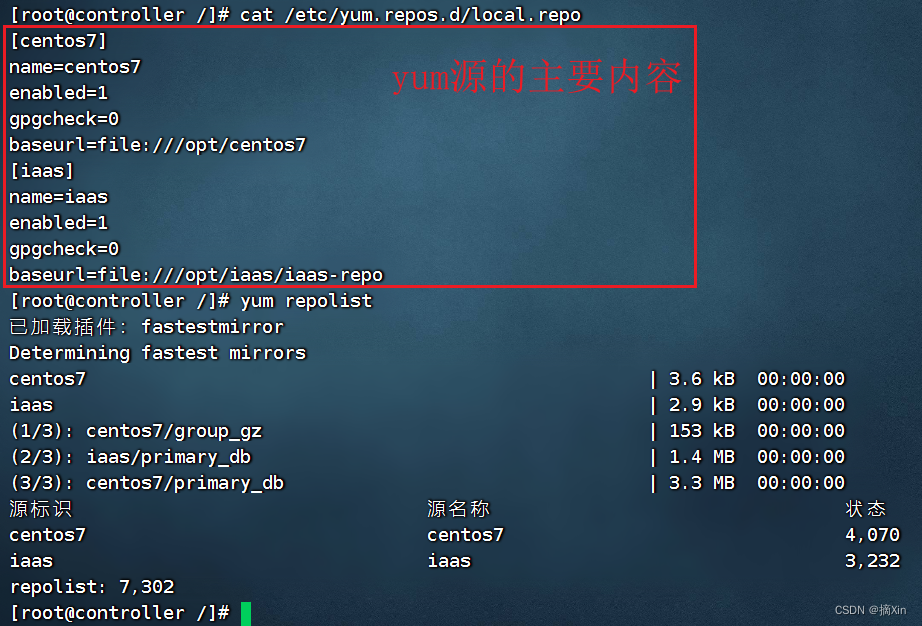

配置yum源

[centos7]
name=centos7
enabled=1
gpgcheck=0
baseurl=file:///opt/centos7
[iaas]
name=iaas
enabled=1
gpgcheck=0
baseurl=file:///opt/iaas/iaas-repo

安装ftp软件

安装vsftpd软件
[root@controller /]# yum install vsftpd -y

修改vsftpd的配置文件 将 引号内的文本追加到vsftpd.conf
[root@controller /]# echo "anon_root=/opt" >> /etc/vsftpd/vsftpd.conf

开启服务设置为开机自启动
[root@controller /]# systemctl restart vsftpd
[root@controller /]# systemctl enable vsftpd
Created symlink from /etc/systemd/system/multi-user.target.wants/vsftpd.service to /usr/lib/systemd/system/vsftpd.service.

【compute】节点配置

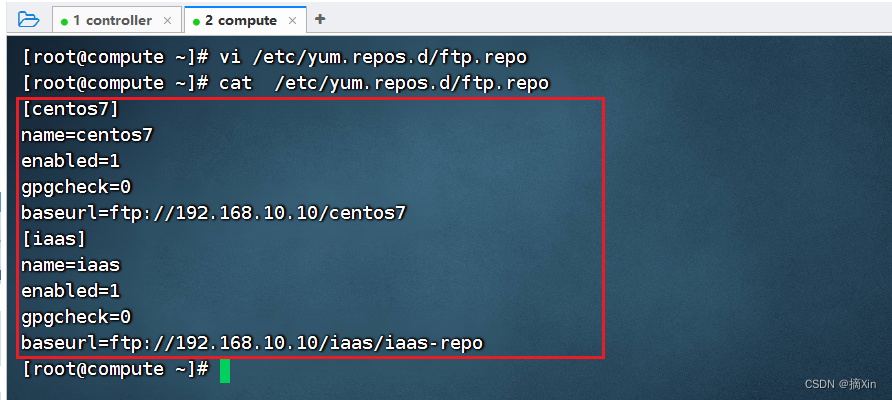

修改yum源即可

更新yum源
yum repolist

第二阶段 开始OpenStack的部署

安装OpenStack软件包

[root@controller ~]# yum install iaas-xiandian -y

[root@compute ~]# yum install iaas-xiandian -y

修改配置文件

vi /etc/xiandian/openrc.sh

文件内容：部署OpenStack的核心内容

#--------------------system Config--------------------##
##Controller Server Manager IP. example:x.x.x.x
HOST_IP=192.168.10.10

##Controller HOST Password. example:000000
HOST_PASS=1

##Controller Server hostname. example:controller
HOST_NAME=controller

##Compute Node Manager IP. example:x.x.x.x
HOST_IP_NODE=192.168.10.20

##Compute HOST Password. example:000000
HOST_PASS_NODE=1

##Compute Node hostname. example:compute
HOST_NAME_NODE=compute

##--------------------Chrony Config-------------------##
##Controller network segment IP.  example:x.x.0.0/16(x.x.x.0/24)
network_segment_IP=192.168.0.0/16

##--------------------Rabbit Config ------------------##
##user for rabbit. example:openstack
RABBIT_USER=openstack

##Password for rabbit user .example:000000
RABBIT_PASS=1

##--------------------MySQL Config---------------------##
#Password for MySQL root user . exmaple:000000
DB_PASS=1

##--------------------Keystone Config------------------##
##Password for Keystore admin user. exmaple:000000
DOMAIN_NAME=demo
ADMIN_PASS=1
DEMO_PASS=1

##Password for Mysql keystore user. exmaple:000000
KEYSTONE_DBPASS=1

##--------------------Glance Config--------------------##
##Password for Mysql glance user. exmaple:000000
GLANCE_DBPASS=1

##Password for Keystore glance user. exmaple:000000
GLANCE_PASS=1

##--------------------Nova Config----------------------##
##Password for Mysql nova user. exmaple:000000
NOVA_DBPASS=1

##Password for Keystore nova user. exmaple:000000
NOVA_PASS=1

##--------------------Neturon Config-------------------##
##Password for Mysql neutron user. exmaple:000000
NEUTRON_DBPASS=1

##Password for Keystore neutron user. exmaple:000000
NEUTRON_PASS=1

##metadata secret for neutron. exmaple:000000
METADATA_SECRET=1

#注意此处的IP 设置为虚拟机本机IP 在controller中为192.168.10.10 compute中为192.168.10.20
##Tunnel Network Interface. example:x.x.x.x
INTERFACE_IP=192.168.10.10

##External Network Interface. example:eth1
INTERFACE_NAME=ens33

##External Network The Physical Adapter. example:provider
Physical_NAME=provider

##First Vlan ID in VLAN RANGE for VLAN Network. exmaple:101
minvlan=1

##Last Vlan ID in VLAN RANGE for VLAN Network. example:200
maxvlan=400

##--------------------Cinder Config--------------------##
##Password for Mysql cinder user. exmaple:000000
CINDER_DBPASS=1

##Password for Keystore cinder user. exmaple:000000
CINDER_PASS=1

##Cinder Block Disk. example:md126p3
BLOCK_DISK=sda1

##--------------------Swift Config---------------------##
##Password for Keystore swift user. exmaple:000000
SWIFT_PASS=1

##The NODE Object Disk for Swift. example:md126p4.
OBJECT_DISK=sda1

##The NODE IP for Swift Storage Network. example:x.x.x.x.
STORAGE_LOCAL_NET_IP=192.168.10.10

##--------------------Heat Config----------------------##
##Password for Mysql heat user. exmaple:000000
HEAT_DBPASS=1

##Password for Keystore heat user. exmaple:000000
HEAT_PASS=1

##--------------------Zun Config-----------------------##
##Password for Mysql Zun user. exmaple:000000
ZUN_DBPASS=1

##Password for Keystore Zun user. exmaple:000000
ZUN_PASS=1

##Password for Mysql Kuryr user. exmaple:000000
KURYR_DBPASS=1

##Password for Keystore Kuryr user. exmaple:000000
KURYR_PASS=1

##--------------------Ceilometer Config----------------##
##Password for Gnocchi ceilometer user. exmaple:000000
CEILOMETER_DBPASS=1

##Password for Keystore ceilometer user. exmaple:000000
CEILOMETER_PASS=1

##--------------------AODH Config----------------##
##Password for Mysql AODH user. exmaple:000000
AODH_DBPASS=1

##Password for Keystore AODH user. exmaple:000000
AODH_PASS=1

##--------------------Barbican Config----------------##
##Password for Mysql Barbican user. exmaple:000000
BARBICAN_DBPASS=1

##Password for Keystore Barbican user. exmaple:000000
BARBICAN_PASS=1

执行shell文件

各个主机执行文件

iaas-pre-host.sh

部署OpenStack

controller控制节点

iaas-install-mysql.sh
iaas-install-keystone.sh
iaas-install-glance.sh
iaas-install-nova-controller.sh
iaas-install-neutron-controller.sh
iaas-install-dashboard.sh
iaas-install-cinder-controller.sh
iaas-install-swift-controller.sh

compute计算节点

iaas-install-nova-compute.sh
iaas-install-neutron-compute.sh
iaas-install-cinder-compute.sh
iaas-install-swift-compute.sh

第三阶段 OK了

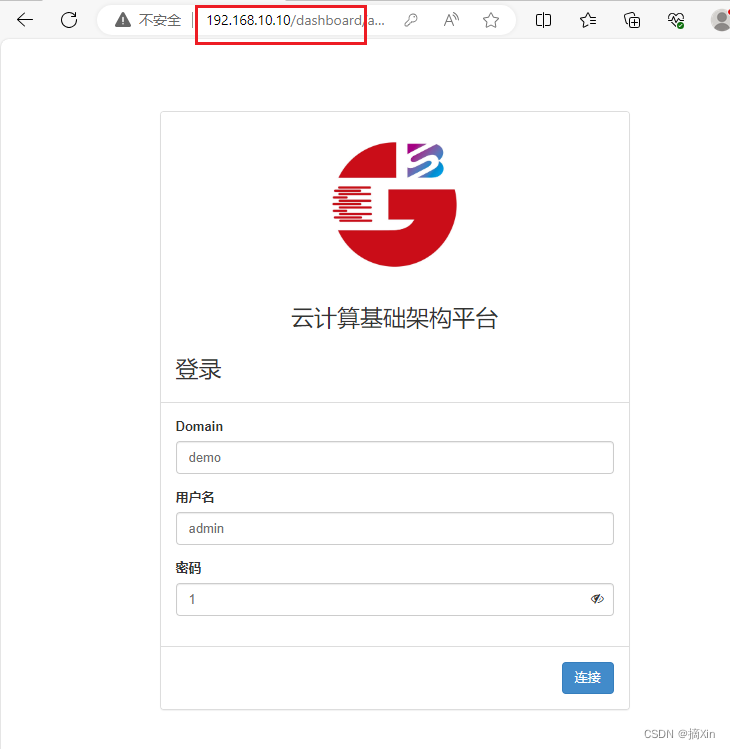

网址：http://192.168.10.10/dashboard

域 demo
用户名 admin
密码 1
