mybatis自动生成实体xml--generator

1.

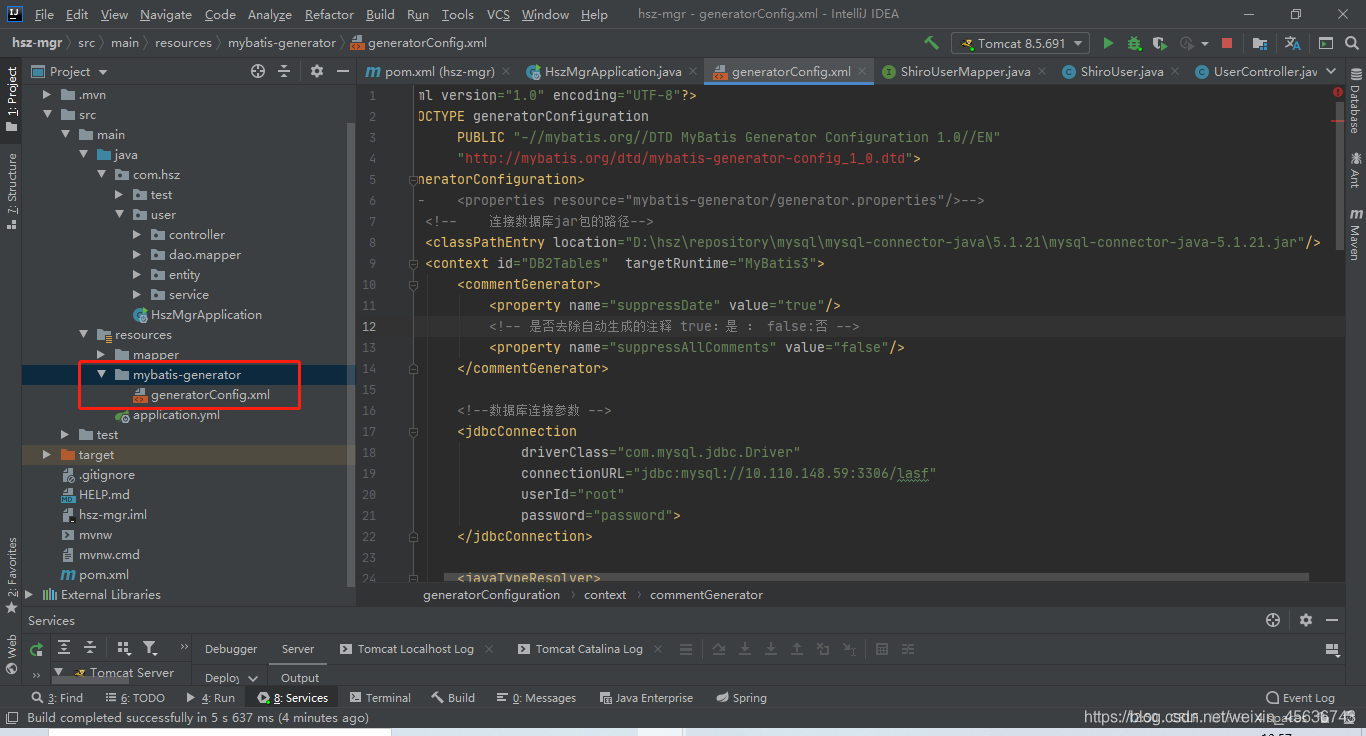

resources目录下创建 mybatis-generator文件夹，并添加generatorConfig.xml 文件。

2.

粘进去
修改 mysql驱动jar包位置，这里加完pom plugin里面可以不加，相反这里不加pom里需要加上；
数据库连接地址，
entity、mapper、存放位置，
修改 table标签 数据库对应的表明，和要生成实体的表明。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!--    <properties resource="mybatis-generator/generator.properties"/>-->
    <!--    连接数据库jar包的路径-->
    <classPathEntry location="D:\hsz\repository\mysql\mysql-connector-java\5.1.21\mysql-connector-java-5.1.21.jar"/>
    <context id="DB2Tables"  targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="false"/>
        </commentGenerator>

        <!--数据库连接参数 -->
        <jdbcConnection
                driverClass="com.mysql.jdbc.Driver"
                connectionURL="jdbc:mysql://10.110.148.59:3306/lasf"
                userId="root"
                password="password">
        </jdbcConnection>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 实体类的包名和存放路径 -->
        <javaModelGenerator targetPackage="com.hsz.user.entity" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- 生成映射文件*.xml的位置-->
        <sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>

        <!-- 生成DAO的包名和位置 -->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.hsz.user.dao.mapper" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!-- tableName：数据库中的表名或视图名；domainObjectName：生成的实体类的类名-->


        <table tableName="SHIRO_USER" domainObjectName="ShiroUser"/>
<!--        <table tableName="SHIRO_USER" domainObjectName="ShiroUser"-->
<!--               enableCountByExample="false"-->
<!--               enableUpdateByExample="false"-->
<!--               enableDeleteByExample="false"-->
<!--               enableSelectByExample="false"-->
<!--               selectByExampleQueryId="false"/>-->
        <!--
                <table tableName="xxx" domainObjectName="xxx"
                       enableCountByExample="false"
                       enableUpdateByExample="false"
                       enableDeleteByExample="false"
                       enableSelectByExample="false"
                       selectByExampleQueryId="false"/>
                ...
                <table tableName="xxx" domainObjectName="xxx"
                       enableCountByExample="false"
                       enableUpdateByExample="false"
                       enableDeleteByExample="false"
                       enableSelectByExample="false"
                       selectByExampleQueryId="false"/>
        -->
    </context>
</generatorConfiguration>

3.

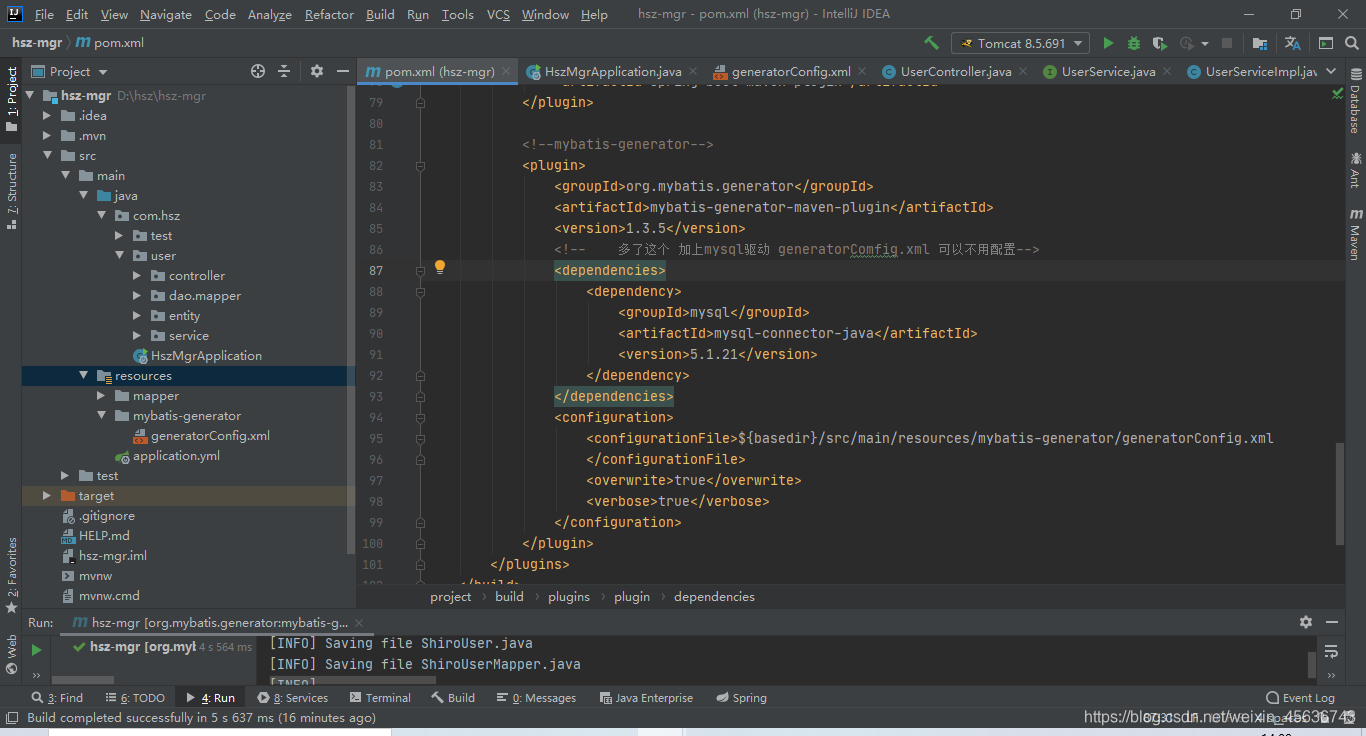

pom 文件添加mysql驱动

 <!--mybatis-generator-->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.5</version>
                <!--    多了这个 加上mysql驱动 generatorComfig.xml 可以不用配置-->
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>5.1.21</version>
                    </dependency>
                </dependencies>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/mybatis-generator/generatorConfig.xml
                    </configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
            </plugin>

4.

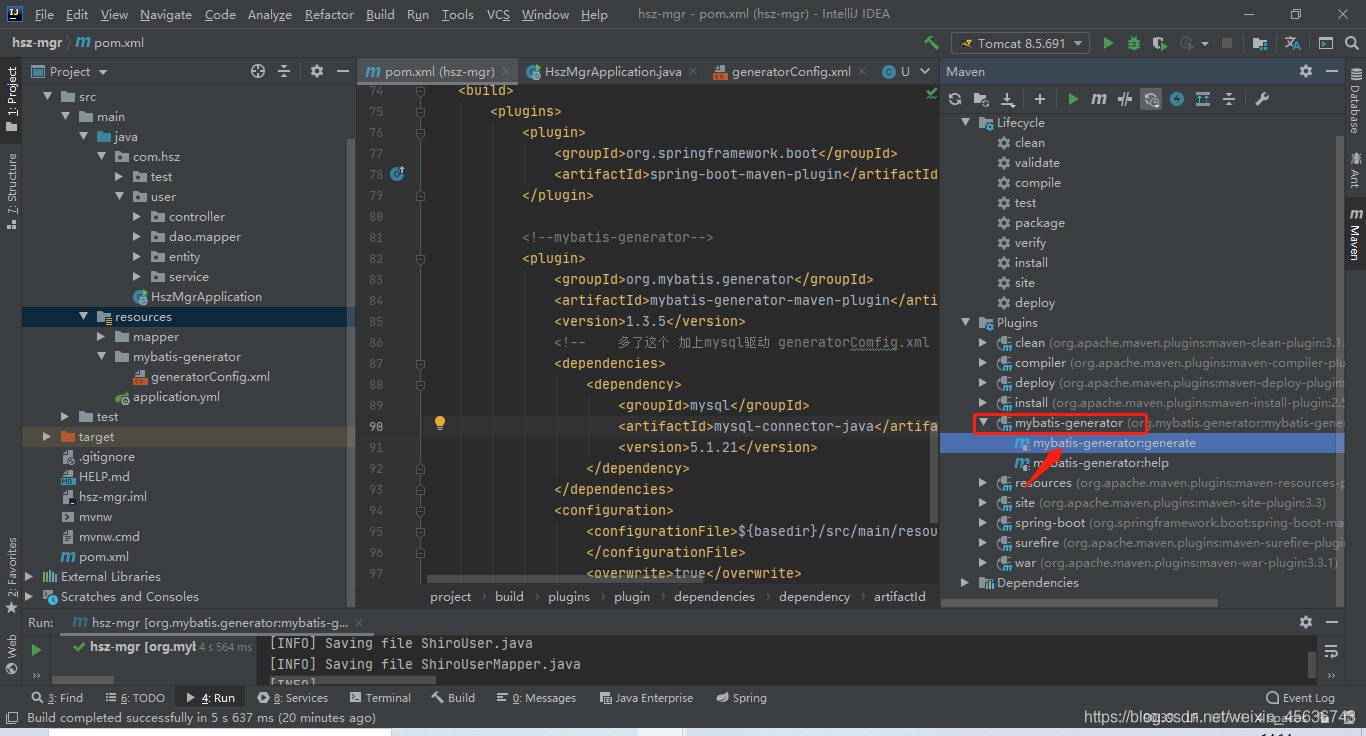

双击 mybatis-generator:generate 就可以生成了，下面附上完整的pom’

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.hsz</groupId>
    <artifactId>hsz-mgr</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>hsz-mgr</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-boot.version>2.3.0.RELEASE</spring-boot.version>
    </properties>

    <packaging>war</packaging>

    <repositories>
        <repository>
            <id>nexus-aliyun</id>
            <name>Nexus aliyun</name>
            <url>http://maven.aliyun.com/nexus/content/groups/public</url>
        </repository>
    </repositories>

    <dependencies>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.0</version>
        </dependency>

        <!--Mysql驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.21</version>
        </dependency>

        <!--JDBC 连接-->
<!--        <dependency>-->
<!--            <groupId>org.springframework.boot</groupId>-->
<!--            <artifactId>spring-boot-starter-jdbc</artifactId>-->
<!--        </dependency>-->

        <!--WEB依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--支持外置tomcat-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>


        <!--test测试-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>

            <!--mybatis-generator-->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.5</version>
                <!--    多了这个 加上mysql驱动 generatorComfig.xml 可以不用配置-->
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>5.1.21</version>
                    </dependency>
                </dependencies>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/mybatis-generator/generatorConfig.xml
                    </configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>
