EasyPOI 详细教程以及注解的使用
参考以上文档
http://doc.wupaas.com/docs/easypoi/easypoi-1c0u96flii98v
https://www.cnblogs.com/H-Dream/p/11482433.html
https://blog.youkuaiyun.com/lksdove/article/details/90439913
Easypoi介绍
Easypoi 为谁而开发
不太熟悉poi的
不想写太多重复太多的
只是简单的导入导出的
喜欢使用模板的
都可以使用easypoi
Easypoi的目标是什么 Easypoi的目标不是替代poi,而是让一个不懂导入导出的快速使用poi完成Excel和word的各种操作,而不是看很多api才可以完成这样工作
为什么会写Easypoi
以前的以前(岁月真TMD的快)我虽然写了不少代码但还是很少写poi,然后跳到一家公司之后就和业务人员聊上了,来这个需要个报表,这个报表样式是这样的,这个表头是这样的,就这样我写了大量的poi代码,每次都是大量的篇幅,copy to copy,无聊的一逼,然后加入了jeecg,jeecg中有一个小的工具类,虽然我也不知道是谁写的,然是可以用注解搞定最简单的导出,突然豁然开朗,我可以完善,让我从报表的苦海当中脱离出来,这样我花了一周的时间做了第一个版本支持导入导出放到了jeecg,发现还是不错的,慢慢的用的人越来越多,我就把这块独立出来了,再然后有人提出了模板,然后就加入了模板功能,提出了word的需求,加入了word的功能,后来工作忙了虽然没再参与jeecg,但还是一直维持这easypoi的更新,根据见识的增长也不断的重构这代码,直到现在
独特的功能
基于注解的导入导出,修改注解就可以修改Excel
支持常用的样式自定义
基于map可以灵活定义的表头字段
支持一堆多的导出,导入
支持模板的导出,一些常见的标签,自定义标签
支持HTML/Excel转换,如果模板还不能满足用户的变态需求,请用这个功能
支持word的导出,支持图片,Excel
使用
1.easypoi 父包–作用大家都懂得
2.easypoi-annotation 基础注解包,作用与实体对象上,拆分后方便maven多工程的依赖管理
3.easypoi-base 导入导出的工具包,可以完成Excel导出,导入,Word的导出,Excel的导出功能
4.easypoi-web 耦合了spring-mvc 基于AbstractView,极大的简化spring-mvc下的导出功能
5.sax 导入使用xercesImpl这个包(这个包可能造成奇怪的问题哈),word导出使用poi-scratchpad,都作为可选包了
如果不使用spring mvc的便捷福利,直接引入easypoi-base 就可以了,easypoi-annotation
加入坐标依赖:
<!-- easypoi的支持 -->
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-base</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-web</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-annotation</artifactId>
<version>3.2.0</version>
</dependency>
或者直接引用easypoi-spring-boot-starter
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-spring-boot-starter</artifactId>
<version>3.3.0</version>
</dependency>
注解介绍
easypoi起因就是Excel的导入导出,最初的模板是实体和Excel的对应,model–row,filed–col 这样利用注解我们可以和容易做到excel到导入导出 经过一段时间发展,现在注解有5个类分别是
-
@Excel 作用到filed上面,是对Excel一列的一个描述
-
@ExcelCollection 表示一个集合,主要针对一对多的导出,比如一个老师对应多个科目,科目就可以用集合表示
-
@ExcelEntity 表示一个继续深入导出的实体,但他没有太多的实际意义,只是告诉系统这个对象里面同样有导出的字段;
-
@ExcelIgnore 和名字一样表示这个字段被忽略跳过这个导入导出;
-
@ExcelTarget 这个是作用于最外层的对象,描述这个对象的id,以便支持一个对象可以针对不同导出做出不同处理
@Excel
这个是必须使用的注解,如果需求简单只使用这一个注解也是可以的,涵盖了常用的Excel需求,需要大家熟悉这个功能,主要分为基础,图片处理,时间处理,合并处理几块,name_id是上面讲的id用法,这里就不累言了
属性 | 类型 | 默认值 | 功能 |
---|---|---|---|
name | String | null | 列名,支持name_id |
needMerge | boolean | fasle | 是否需要纵向合并单元格(用于含有list中,单个的单元格,合并list创建的多个row) |
orderNum | String | “0” | 列的排序,支持name_id |
replace | String[] | {} | 值得替换 导出是{a_id,b_id} 导入反过来 |
savePath | String | “upload” | 导入文件保存路径,如果是图片可以填写,默认是upload/className/ IconEntity这个类对应的就是upload/Icon/ |
type | int | 1 | 导出类型 1 是文本 2 是图片,3 是函数,10 是数字 默认是文本 |
width | double | 10 | 列宽 |
height | double | 10 | 列高,后期打算统一使用@ExcelTarget的height,这个会被废弃,注意 |
isStatistics | boolean | fasle | 自动统计数据,在追加一行统计,把所有数据都和输出 这个处理会吞没异常,请注意这一点 |
isHyperlink | boolean | false | 超链接,如果是需要实现接口返回对象 |
isImportField | boolean | true | 校验字段,看看这个字段是不是导入的Excel中有,如果没有说明是错误的Excel,读取失败,支持name_id |
exportFormat | String | “” | 导出的时间格式,以这个是否为空来判断是否需要格式化日期 |
importFormat | String | “” | 导入的时间格式,以这个是否为空来判断是否需要格式化日期 |
format | String | “” | 时间格式,相当于同时设置了exportFormat 和 importFormat |
databaseFormat | String | “yyyyMMddHHmmss” | 导出时间设置,如果字段是Date类型则不需要设置 数据库如果是string 类型,这个需要设置这个数据库格式,用以转换时间格式输出 |
numFormat | String | “” | 数字格式化,参数是Pattern,使用的对象是DecimalFormat |
imageType | int | 1 | 导出类型 1 从file读取 2 是从数据库中读取 默认是文件 同样导入也是一样的 |
suffix | String | “” | 文字后缀,如% 90 变成90% |
isWrap | boolean | true | 是否换行 即支持\n |
mergeRely | int[] | {} | 合并单元格依赖关系,比如第二列合并是基于第一列 则{0}就可以了 |
mergeVertical | boolean | fasle | 纵向合并内容相同的单元格 |
fixedIndex | int | -1 | 对应excel的列,忽略名字 |
isColumnHidden | boolean | false | 是否需要隐藏该列 |
enumExportField | String | “” | 枚举导出使用的字段 |
enumImportMethod | String | “” | 枚举导入使用的函数 |
@ExcelTarget
限定一个到处实体的注解,以及一些通用设置,作用于最外面的实体
属性 | 类型 | 默认值 | 功能 |
---|---|---|---|
value | String | null | 定义excel导出ID 来限定导出字段 |
@ExcelEntity
标记是不是
导出excel 标记为实体类,一遍是一个内部属性类,标记是否继续穿透,可以自定义内部 id
属性 | 类型 | 默认值 | 功能 |
---|---|---|---|
id | String | “” | 定义excel导出ID 来限定导出字段,处理一个类对应多个不同名称的情况 |
name | String | “” | 导出时,对应数据库的字段 主要是用户区分每个字段, 不能有annocation重名的 导出时的列名,导出排序跟定义了annotation的字段的顺序有关 可以使用a_id,b_id来确实是否使用 |
show | boolean | false | 如果等于true,name必须有值, Excel的表头会变成两行,同时改Excel内部数据不参与总排序,排序用下面这个来代替,内部再排序,排序取当中最小值排序 |
@ExcelCollection
一对多的集合注解,用以标记集合是否被数据以及集合的整体排序
属性 | 类型 | 默认值 | 功能 |
---|---|---|---|
id | String | “” | 定义excel导出ID 来限定导出字段,处理一个类对应多个不同名称的情况 |
name | String | null | 导出时,对应数据库的字段 主要是用户区分每个字段, 不能有annocation重名的 导出时的列名 ,导出排序跟定义了annotation的字段的顺序有关 可以使用a_id,b_id来确实是否使用 |
orderNum | String | “0” | 展示到第几个同样可以使用a_id,b_id |
type | Class<?> | ArrayList.class | 导入时创建对象使用,创建时创建的类型 默认值是 arrayList |
@ExcelIgnore
忽略这个属性,多使用需循环引用中
案例1:
1.加入坐标依赖:
<!-- easypoi的支持 -->
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-base</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-web</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-annotation</artifactId>
<version>3.2.0</version>
</dependency>
2. 创建实体类
package com.easypoi;
import cn.afterturn.easypoi.excel.annotation.Excel;
import java.util.Date;
/**
* @author y
* @create 2020-07-04 23:21
*/
public class StudentEntity implements java.io.Serializable
{
/**
* id
*/
private String id;
/**
* 学生姓名
*/
@Excel(name = "学生姓名", height = 20, width = 30, isImportField = "true_st")
private String name;
/**
* 学生性别
*/
@Excel(name = "学生性别", replace = { "男_1", "女_2" }, suffix = "生", isImportField = "true_st")
private int sex;
@Excel(name = "出生日期", databaseFormat = "yyyyMMddHHmmss", format = "yyyy-MM-dd", isImportField = "true_st", width = 20)
private Date birthday;
@Excel(name = "进校日期", databaseFormat = "yyyyMMddHHmmss", format = "yyyy-MM-dd")
private Date registrationDate;
@Override
public String toString()
{
return "StudentEntity{" + "id='" + id + '\'' + ", name='" + name + '\'' + ", sex=" + sex + ", birthday=" + birthday + ", registrationDate=" + registrationDate + '}';
}
public StudentEntity()
{
}
public StudentEntity(String id, String name, int sex, Date birthday, Date registrationDate)
{
this.id = id;
this.name = name;
this.sex = sex;
this.birthday = birthday;
this.registrationDate = registrationDate;
}
public String getId()
{
return id;
}
public void setId(String id)
{
this.id = id;
}
public String getName()
{
return name;
}
public void setName(String name)
{
this.name = name;
}
public int getSex()
{
return sex;
}
public void setSex(int sex)
{
this.sex = sex;
}
public Date getBirthday()
{
return birthday;
}
public void setBirthday(Date birthday)
{
this.birthday = birthday;
}
public Date getRegistrationDate()
{
return registrationDate;
}
public void setRegistrationDate(Date registrationDate)
{
this.registrationDate = registrationDate;
}
}
3.导出测试:
package com.easypoi;
import cn.afterturn.easypoi.excel.ExcelExportUtil;
import cn.afterturn.easypoi.excel.entity.ExportParams;
import org.apache.poi.ss.usermodel.Workbook;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
/**
* @author yfq
* @create 2020-07-04 23:23
*/
public class EasyPOITest
{
public static void main(String[] args) throws IOException
{
List<StudentEntity> list = new ArrayList<StudentEntity>();
StudentEntity stu = new StudentEntity("1", "张三", 2, new Date(), new Date());
boolean add = list.add(stu);
Workbook Workbook = ExcelExportUtil.exportExcel(new ExportParams(), StudentEntity.class, list);
Workbook.write(new FileOutputStream(new File("G:\\"+"hahhah.xls")));
Workbook.close();
}
}
4. 导入测试
import cn.afterturn.easypoi.excel.ExcelImportUtil;
import cn.afterturn.easypoi.excel.entity.ImportParams;
import com.easypoi.StudentEntity;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.util.List;
/**
* @author yfq
* @create 2020-07-05 00:17
*/
public class Test
{
public static void main(String[] args) throws Exception
{
FileInputStream fileInputStream = new FileInputStream(new File("G:\\hahhah.xls"));
List<Object> list = ExcelImportUtil.importExcel(fileInputStream, StudentEntity.class, new ImportParams());
System.out.println(list);
}
}
5. 实际开发中将进一步封装:
package com.easypoi;
import cn.afterturn.easypoi.excel.ExcelExportUtil;
import cn.afterturn.easypoi.excel.ExcelImportUtil;
import cn.afterturn.easypoi.excel.entity.ExportParams;
import cn.afterturn.easypoi.excel.entity.ImportParams;
import cn.afterturn.easypoi.excel.entity.enmus.ExcelType;
import org.apache.commons.lang3.StringUtils;
import org.apache.poi.ss.usermodel.Workbook;
import org.springframework.web.multipart.MultipartFile;
import javax.servlet.http.HttpServletResponse;
import java.io.File;
import java.io.IOException;
import java.io.InputStream;
import java.net.URLEncoder;
import java.util.List;
import java.util.Map;
import java.util.NoSuchElementException;
/**
* @author yfq
* @create 2020-07-05 00:05
*/
public class ExcelUtils
{
/**
* excel 导出
*
* @param list 数据列表
* @param fileName 导出时的excel名称
* @param response
*/
public static void exportExcel(List<Map<String, Object>> list, String fileName, HttpServletResponse response) throws IOException {
defaultExport(list, fileName, response);
}
/**
* 默认的 excel 导出
*
* @param list 数据列表
* @param fileName 导出时的excel名称
* @param response
*/
private static void defaultExport(List<Map<String, Object>> list, String fileName, HttpServletResponse response) throws IOException {
//把数据添加到excel表格中
Workbook workbook = ExcelExportUtil.exportExcel(list, ExcelType.HSSF);
downLoadExcel(fileName, response, workbook);
}
/**
* excel 导出
*
* @param list 数据列表
* @param pojoClass pojo类型
* @param fileName 导出时的excel名称
* @param response
* @param exportParams 导出参数(标题、sheet名称、是否创建表头,表格类型)
*/
private static void defaultExport(List<?> list, Class<?> pojoClass, String fileName, HttpServletResponse response, ExportParams exportParams) throws IOException {
//把数据添加到excel表格中
Workbook workbook = ExcelExportUtil.exportExcel(exportParams, pojoClass, list);
downLoadExcel(fileName, response, workbook);
}
/**
* excel 导出
*
* @param list 数据列表
* @param pojoClass pojo类型
* @param fileName 导出时的excel名称
* @param exportParams 导出参数(标题、sheet名称、是否创建表头,表格类型)
* @param response
*/
public static void exportExcel(List<?> list, Class<?> pojoClass, String fileName, ExportParams exportParams, HttpServletResponse response) throws IOException {
defaultExport(list, pojoClass, fileName, response, exportParams);
}
/**
* excel 导出
*
* @param list 数据列表
* @param title 表格内数据标题
* @param sheetName sheet名称
* @param pojoClass pojo类型
* @param fileName 导出时的excel名称
* @param response
*/
public static void exportExcel(List<?> list, String title, String sheetName, Class<?> pojoClass, String fileName, HttpServletResponse response) throws IOException {
defaultExport(list, pojoClass, fileName, response, new ExportParams(title, sheetName, ExcelType.XSSF));
}
/**
* excel 导出
*
* @param list 数据列表
* @param title 表格内数据标题
* @param sheetName sheet名称
* @param pojoClass pojo类型
* @param fileName 导出时的excel名称
* @param isCreateHeader 是否创建表头
* @param response
*/
public static void exportExcel(List<?> list, String title, String sheetName, Class<?> pojoClass, String fileName, boolean isCreateHeader, HttpServletResponse response) throws IOException {
ExportParams exportParams = new ExportParams(title, sheetName, ExcelType.XSSF);
exportParams.setCreateHeadRows(isCreateHeader);
defaultExport(list, pojoClass, fileName, response, exportParams);
}
/**
* excel下载
*
* @param fileName 下载时的文件名称
* @param response
* @param workbook excel数据
*/
private static void downLoadExcel(String fileName, HttpServletResponse response, Workbook workbook) throws IOException {
try {
response.setCharacterEncoding("UTF-8");
response.setHeader("content-Type", "application/vnd.ms-excel");
response.setHeader("Content-Disposition", "attachment;filename=" + URLEncoder.encode(fileName + "." + ExcelTypeEnum.XLSX.getValue(), "UTF-8"));
workbook.write(response.getOutputStream());
} catch (Exception e) {
throw new IOException(e.getMessage());
}
}
/**
* excel 导入
*
* @param file excel文件
* @param pojoClass pojo类型
* @param <T>
* @return
*/
public static <T> List<T> importExcel(MultipartFile file, Class<T> pojoClass) throws IOException {
return importExcel(file, 1, 1, pojoClass);
}
/**
* excel 导入
*
* @param filePath excel文件路径
* @param titleRows 表格内数据标题行
* @param headerRows 表头行
* @param pojoClass pojo类型
* @param <T>
* @return
*/
public static <T> List<T> importExcel(String filePath, Integer titleRows, Integer headerRows, Class<T> pojoClass) throws IOException {
if (StringUtils.isBlank(filePath)) {
return null;
}
ImportParams params = new ImportParams();
params.setTitleRows(titleRows);
params.setHeadRows(headerRows);
params.setNeedSave(true);
params.setSaveUrl("/excel/");
try {
return ExcelImportUtil.importExcel(new File(filePath), pojoClass, params);
} catch (NoSuchElementException e) {
throw new IOException("模板不能为空");
} catch (Exception e) {
throw new IOException(e.getMessage());
}
}
/**
* excel 导入
*
* @param file excel文件
* @param titleRows 表格内数据标题行
* @param headerRows 表头行
* @param pojoClass pojo类型
* @param <T>
* @return
*/
public static <T> List<T> importExcel(MultipartFile file, Integer titleRows, Integer headerRows, Class<T> pojoClass) throws IOException {
return importExcel(file, titleRows, headerRows, false, pojoClass);
}
/**
* excel 导入
*
* @param file 上传的文件
* @param titleRows 表格内数据标题行
* @param headerRows 表头行
* @param needVerfiy 是否检验excel内容
* @param pojoClass pojo类型
* @param <T>
* @return
*/
public static <T> List<T> importExcel(MultipartFile file, Integer titleRows, Integer headerRows, boolean needVerfiy, Class<T> pojoClass) throws IOException {
if (file == null) {
return null;
}
try {
return importExcel(file.getInputStream(), titleRows, headerRows, needVerfiy, pojoClass);
} catch (Exception e) {
throw new IOException(e.getMessage());
}
}
/**
* excel 导入
*
* @param inputStream 文件输入流
* @param titleRows 表格内数据标题行
* @param headerRows 表头行
* @param needVerfiy 是否检验excel内容
* @param pojoClass pojo类型
* @param <T>
* @return
*/
public static <T> List<T> importExcel(InputStream inputStream, Integer titleRows, Integer headerRows, boolean needVerfiy, Class<T> pojoClass) throws IOException {
if (inputStream == null) {
return null;
}
ImportParams params = new ImportParams();
params.setTitleRows(titleRows);
params.setHeadRows(headerRows);
params.setSaveUrl("/excel/");
params.setNeedSave(true);
params.setNeedVerfiy(needVerfiy);
try {
return ExcelImportUtil.importExcel(inputStream, pojoClass, params);
} catch (NoSuchElementException e) {
throw new IOException("excel文件不能为空");
} catch (Exception e) {
throw new IOException(e.getMessage());
}
}
/**
* Excel 类型枚举
*/
enum ExcelTypeEnum {
XLS("xls"), XLSX("xlsx");
private String value;
ExcelTypeEnum(String value) {
this.value = value;
}
public String getValue() {
return value;
}
public void setValue(String value) {
this.value = value;
}
}
}
案例2:
1.加入依赖:
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-base</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-web</artifactId>
<version>3.2.0</version>
</dependency>
<dependency>
<groupId>cn.afterturn</groupId>
<artifactId>easypoi-annotation</artifactId>
<version>3.2.0</version>
</dependency>
2.定义实体类:
2.1 部门
package com.easypoi;
import cn.afterturn.easypoi.excel.annotation.Excel;
public class Department {
private Long id;
@Excel(name = "部门名称")
private String name;
}
2.2 员工
package com.easypoi;
import cn.afterturn.easypoi.excel.annotation.Excel;
import cn.afterturn.easypoi.excel.annotation.ExcelEntity;
import cn.afterturn.easypoi.excel.annotation.ExcelTarget;
import java.io.Serializable;
import java.util.Date;
public class Employee implements Serializable
{
private Long id;
@Excel(name = "用户名称")
private String username;
@Excel(name = "邮件",width = 20)
private String email;
@Excel(name = "年龄")
private Integer age = 18;
@Excel(name = "生日",format = "yyyy-MM-dd")
private Date bornDate = new Date();
@Excel(name = "性别",replace={"男_true","女_false"})
private Boolean sex = true;
@ExcelEntity
private Department department;
@Excel(name="头像",type = 2)
private String headImage;
}
3. 测试:
import cn.afterturn.easypoi.excel.ExcelExportUtil;
import cn.afterturn.easypoi.excel.entity.ExportParams;
import com.easypoi.Department;
import com.easypoi.Employee;
import org.apache.poi.ss.usermodel.Workbook;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
/**
* @author yfq
* @create 2020-07-05 21:56
*/
public class Test2
{
public static void main(String[] args) throws IOException
{
Department department1 = new Department();
department1.setId(1L);
department1.setName("教学部");
Department department2 = new Department();
department2.setId(2L);
department2.setName("IT部");
//准备员工数据
Employee e1 = new Employee();
e1.setId(1L);
e1.setUsername("张三");
e1.setSex(false);
e1.setEmail("zhang@qq.com");
e1.setDepartment(department1);
e1.setHeadImage("G:\\1.jpg");
Employee e2 = new Employee();
e2.setId(2L);
e2.setUsername("李四");
e2.setSex(false);
e2.setEmail("li@qq.com");
e2.setDepartment(department2);
e2.setHeadImage("G:\\2.jpg");
List<Employee> list = new ArrayList<Employee>();
list.add(e1);
list.add(e2);
/**
* 进行相应的展出
* 参数1:一些基本配置(表头等)
* 参数2:导出的类型
* 参数3:导出的数据
*/
Workbook workbook = ExcelExportUtil.exportExcel(new ExportParams("员工信息","员工数据"),
Employee.class, list);
//保存数据
FileOutputStream fos = new FileOutputStream("G:\\emp.xls");
workbook.write(fos);
fos.close();
}
}

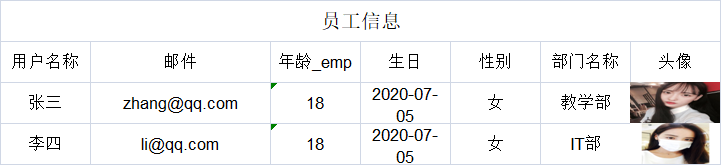

结果:
总结:
显示图片,设置type = 2 :代表这个一个图片展示
