Verilog练习_6_Procedure（合集）

1、Alwaysblock1

// synthesis verilog_input_version verilog_2001
module top_module(
    input a,
    input b,
    input sel_b1,
    input sel_b2,
    output wire out_assign,
    output reg out_always   );

    assign out_assign = a & b ;
    always @(*) out_always = a & b ; //本身只有一句所以不用加begin/end
endmodule

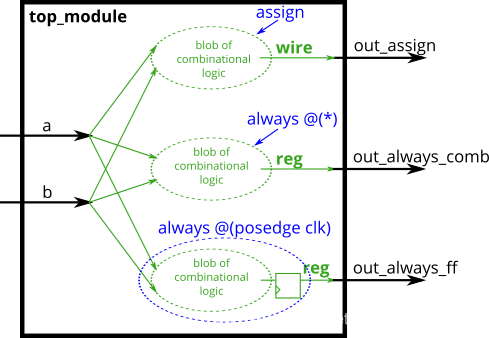

2、Alwaysblock2

要求：Build an XOR gate 3 ways

// synthesis verilog_input_version verilog_2001
module top_module(
    input clk,
    input a,
    input b,
    output wire out_assign,
    output reg out_always_comb,
    output reg out_always_ff   );

    assign out_assign = a ^ b;
    always @(*)  out_always_comb = a ^ b;
    always @(posedge clk) out_always_ff <= a ^ b;
endmodule

Tips:阻塞分配与非阻塞分配
在Verilog中有三种类型的赋值
Continuous assignments (assign x = y;). Can only be used when not inside a procedure (“always block”).
Procedural blocking assignment: (x = y;). Can only be used inside a procedure.
Procedural non-blocking assignment: (x <= y;). Can only be used inside a procedure.

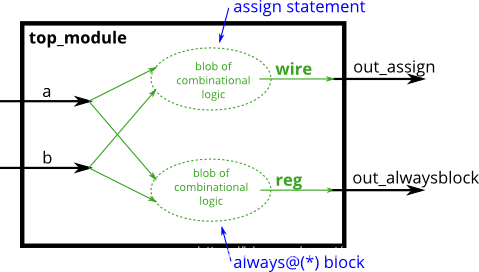

3、Always if

// synthesis verilog_input_version verilog_2001
module top_module(
    input a,
    input b,
    input sel_b1,
    input sel_b2,
    output wire out_assign,
    output reg out_always   );

    always @(*) begin
        if (sel_b1 == 1 && sel_b2 == 1) begin
        out_always = b;
    end
    else begin
        out_always = a;
    end
end
    assign out_assign = (sel_b1 == 1 && sel_b2 == 1)? b : a;

endmodule

4、Always if2

注意：此题为改错题

我的代码：

// synthesis verilog_input_version verilog_2001
module top_module (
    input      cpu_overheated,
    output reg shut_off_computer,
    input      arrived,
    input      gas_tank_empty,
    output reg keep_driving  ); //

    always @(*) begin
        if (cpu_overheated)
           shut_off_computer = 1;
        else
           shut_off_computer = 0;
    end

    always @(*) begin
        if (arrived == 0 && gas_tank_empty == 0)//只有一句就没加begin\end上同
           keep_driving = 1;
        else
          keep_driving = 0;
    end

endmodule

5、Always case

说明：When sel is between 0 and 5, choose the corresponding data input. Otherwise, output 0.

// synthesis verilog_input_version verilog_2001
module top_module (
    input [2:0] sel,
    input [3:0] data0,
    input [3:0] data1,
    input [3:0] data2,
    input [3:0] data3,
    input [3:0] data4,
    input [3:0] data5,
    output reg [3:0] out   );//

    always@(*) begin  // This is a combinational circuit
        case(sel)
            3'b000:out = data0;
            3'b001:out = data1;
            3'b010:out = data2;
            3'b011:out = data3;
            3'b100:out = data4;
            3'b101:out = data5;
            default:out = 0;//data0;
        endcase

    end

endmodule

6、Always case2

说明：A priority encoder is a combinational circuit that, when given an input bit vector, outputs the position of the first 1 bit in the vector. For example, a 8-bit priority encoder given the input 8’b10010000 would output 3’d4, because bit[4] is first bit that is high.

我的代码：

// synthesis verilog_input_version verilog_2001
module top_module (
    input [3:0] in,
    output reg [1:0] pos  );
    always @(*)begin
    case(in)
        4'd0:pos = 0;
        4'd1:pos = 0;
        4'd2:pos = 1;
        4'd3:pos = 0;
        4'd4:pos = 2;
        4'd5:pos = 0;
        4'd6:pos = 1;
        4'd7:pos = 0;
        4'd8:pos = 3;
        4'd9:pos = 0;
        4'd10:pos = 1;
        4'd11:pos = 0;
        4'd12:pos = 2;
        4'd13:pos = 0;
        4'd14:pos = 1;
        4'd15:pos = 0;
        default: pos = 2'b0;
    endcase

    end
endmodule

7、Always casez

注意： This is what casez is for: It treats bits that have the value z as don’t-care in the comparison.

为8位输入构建优先级编码器。

我的代码：

// synthesis verilog_input_version verilog_2001
module top_module (
    input [7:0] in,
    output reg [2:0] pos  );

	always @(*) begin
        casez (in[7:0])
        8'bzzzzzzz1: pos = 0;   // in[3:1] can be anything
        8'bzzzzzz1z: pos = 1;
        8'bzzzzz1zz: pos = 2;
        8'bzzzz1zzz: pos = 3;
        8'bzzz1zzzz: pos = 4;   // in[3:1] can be anything
        8'bzz1zzzzz: pos = 5;
        8'bz1zzzzzz: pos = 6;
        8'b1zzzzzzz: pos = 7;
        default: pos = 0;
    endcase

end
endmodule

8、Always nolatches

这个题是判断按键按下
映射表：

我的代码：
(not sure)

// synthesis verilog_input_version verilog_2001
module top_module (
    input [15:0] scancode,
    output reg left,
    output reg down,
    output reg right,
    output reg up  );

    always @(*) begin
    up = 1'b0; down = 1'b0; left = 1'b0; right = 1'b0;
    case (scancode)
        16'he06b:left	=1;
        16'he072:down	=1;
        16'he074:right	=1;
        16'he075:up		=1;
        //default:
    endcase
end

endmodule
