缓和曲线放样资料计算与精度评定程序编写

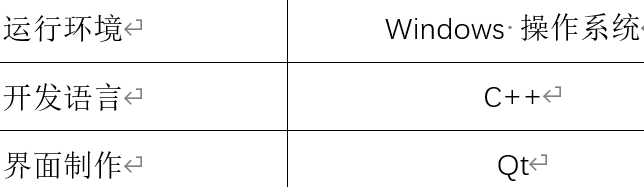

软件约束

软件界面

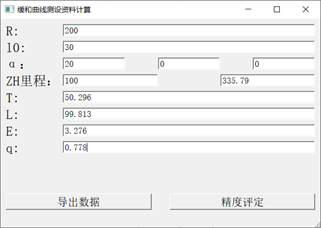

“缓和曲线放样资料计算与精度评定软件”主要有两个子界面，图6.1所示界面用于计算缓和曲线放样资料，图6.2所示界面用于测设数据精度评定。

软件操作

缓和曲线放样资料计算

1. 在窗口中输入各个常数的值；

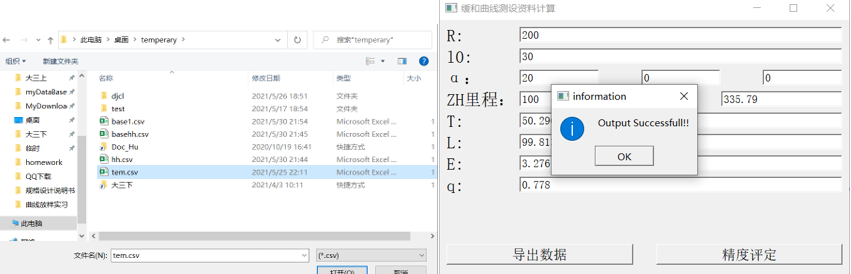

2. 点击“导出数据”，选择导出的文件，当弹出如图6.4（右）的数据导出成功的提示后，代表数据导出成功；

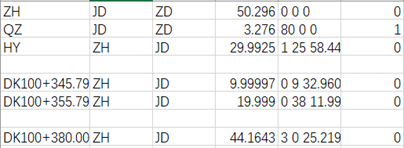

3. 我们打开导出的文件，内容如图6.5所示，每一行数据从左到右代表：放样点，置镜点，后视点，距离值，角度值，正反拨。

测设数据精度评定

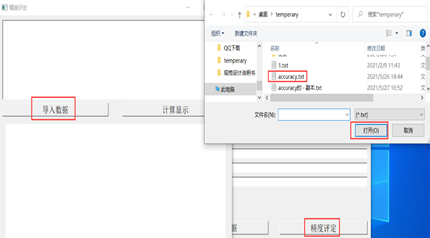

1. 首先点击“导入数据”，选择待精度评定的数据文件；

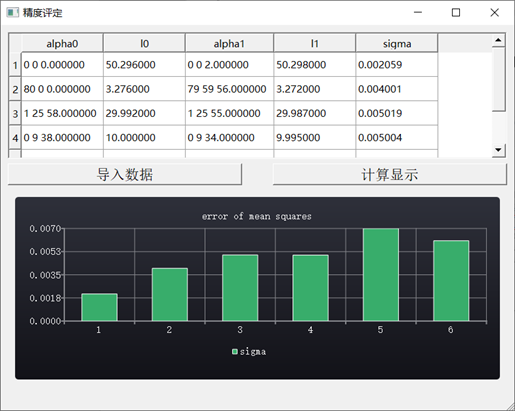

2. 点击“计算显示”，界面中会分别用图和表格的形式表示各个点的精度情况。


附录：源代码

LayOffCaculate.h

#ifndef LAYOFFCACULATE_H
#define LAYOFFCACULATE_H
#include<iostream>
#include<vector>
#define PI 3.141592653589793238
using namespace std;
struct Point {
	string name;
	string zhiJing;
	string houShi;
	double juLi;
	double rad;
	int ZhengFan;
	double liCheng;
};
double dgree2rad(int dd, int mm, double ss);
void rad2degree(int &dd, int &mm, double &ss, double rad);
double biaozhunLicheng2Caculate(size_t bignum, double smallnum);
void caculateLicheng2Biaozhun(size_t &bignum, double &smallnum, double cacunum);
double fangxiangAngle(double dx, double dy);



class ZhuDian {
public:
	ZhuDian(double r_, double l0_, double alpha_, double zh_lc_, double t_, double l_, double e_)
		:r(r_), l0(l0_), alpha(alpha_), zh_lc(zh_lc_),t(t_), l(l_), e(e_) {}
	Point caculateZH();
	Point caculateQZ();
	Point caculateHY();

private:
	double r, l0, alpha, zh_lc, t, l, e;
};

class HuanHe {
public:
	HuanHe(Point ZH_, Point HY_, double r_, double l0_)    //拷贝类型
	:ZH(ZH_),HY(HY_),r(r_),l0(l0_){}
	vector<Point> caculateHH();
protected:
	int point_count();
private:
	Point ZH, HY;
	double r;
	double l0;
};

class YuanQX {
public:
	YuanQX(double r_, double l0_, Point HY_,Point QZ_, Point ZH_)
	:r(r_),l0(l0_),HY(HY_),QZ(QZ_),ZH(ZH_){};

	vector<Point> caculateYQX();

protected:
	double caculateM();
	double caculateP();
	double caculateBelta0();
private:
	double r, l0;
	Point HY, QZ, ZH;

};
#endif LAYOFFCACULATE_H

LayOffCaculate.cpp

#include "LayOffCaculate.h"
#include <string>
double dgree2rad(int dd, int mm, double ss) {
	dd = dd + mm / 60 + ss / 3600;
	return dd * PI / 180;
}
void rad2degree(int &dd, int &mm, double &ss, double rad) {
	double temp;
	temp = rad * 180 / PI;
	dd = int(temp);

	mm = int((temp - dd) * 60);

	ss = ((temp - dd) * 60 - mm) * 60;
}
double biaozhunLicheng2Caculate(size_t bignum, double smallnum) {
	return bignum * 1000 + smallnum;
}
void caculateLicheng2Biaozhun(size_t &bignum, double &smallnum, double cacunum) {
	bignum = int(cacunum / 1000);
	smallnum = cacunum - bignum * 1000;
}
double fangxiangAngle(double dx, double dy) {//未检测
	double angle;

	//if (dx == 0) {
	//	if(dy>=0)
	//		return angle = 0.0;
	//}
	//if (dy == 0) { angle = PI / 2; }
	if (dy != 0 && dx != 0) {
		angle = abs(atan(dy / dx));

		if (dx > 0 && dy > 0) {
			angle = angle;
		}
		if (dx < 0 && dy>0) {
			angle = PI - angle;
		}
		if (dx < 0 && dy < 0) {
			angle = PI + angle;
		}
		if (dx > 0 && dy < 0) {
			angle = 2 * PI - angle;
		}
	}
	return angle;
}


Point ZhuDian::caculateZH()
{
	Point ZH;
	ZH.name = "ZH";
	ZH.zhiJing = "JD";
	ZH.houShi = "ZD";
	ZH.juLi = t;
	ZH.rad = 0.0;
	ZH.ZhengFan = 0;
	ZH.liCheng = zh_lc;
	return ZH;

}

Point ZhuDian::caculateQZ()
{
	Point QZ;
	QZ.name = "QZ";
	QZ.zhiJing = "JD";
	QZ.houShi = "ZD";
	QZ.juLi = e;
	QZ.rad = (PI - alpha) / 2;
	QZ.ZhengFan = 1;
	QZ.liCheng = zh_lc + l / 2;
	return QZ;
}

Point ZhuDian::caculateHY()
{
	Point HY;
	HY.name = "HY";
	HY.zhiJing = "ZH";
	HY.houShi = "JD";

	double x = l0 - pow(l0,3) / 40 / pow(r,2);
	double y = pow(l0, 2) / 6 / r;
	HY.rad = atan(y / x);
	HY.juLi = sqrt(pow(x, 2) + pow(y, 2));
	HY.ZhengFan = 0;
	HY.liCheng = zh_lc + l0;
	return HY;
}

vector<Point> HuanHe::caculateHH()
{
	int count = point_count();
	count--;
	vector<Point> hh_point_list;
	Point hh_point;
	double li,  licheng,smallnum;
	size_t bignum;
	double x, y;
	for (int i = 1; i <= count; i++) {
		li = 10 * i;
		x = li - pow(li, 5) / 40 / pow(r, 2)/pow(l0,2);
		y = pow(li, 3) / 6 / r/l0;

		cout << "x=" << x << "   y=" << y << endl;

		licheng = ZH.liCheng + li;


		caculateLicheng2Biaozhun(bignum, smallnum, licheng);




		hh_point.name = "DK" + to_string(bignum) + "+" + to_string(smallnum);
		hh_point.zhiJing = "ZH";
		hh_point.houShi = "JD";
		hh_point.juLi = sqrt(pow(x, 2) + pow(y, 2));
		hh_point.liCheng = licheng;
		hh_point.rad = atan(y / x);
		cout << hh_point.rad << endl;

		hh_point.ZhengFan = 0;

		hh_point_list.push_back(hh_point);
	}
	return hh_point_list;

}

int HuanHe::point_count()
{
	double zh_hy =  HY.liCheng- ZH.liCheng;
	int count = int(zh_hy / 10);
	return count;
}

vector<Point> YuanQX::caculateYQX()
{
	int hy_temp = HY.liCheng / 20;
	hy_temp = hy_temp * 20;
	int count = int((QZ.liCheng - hy_temp) / 20);


	vector<Point> yqx_point_list;
	Point yqx_point;
	double li, alphai, x, y,smallnum;
	size_t bignum;
	for (int i = 1; i <= count; i++) {
		li = hy_temp-ZH.liCheng + 20 * i;
		alphai = (li - l0) / r + caculateBelta0();
		x = r * sin(alphai) + caculateM();
		y = r * (1 - cos(alphai)) + caculateP();
		caculateLicheng2Biaozhun(bignum, smallnum, li+ZH.liCheng);

		yqx_point.name = "DK" + to_string(bignum) + "+" + to_string(smallnum);
		yqx_point.zhiJing = "ZH";
		yqx_point.houShi = "JD";
		yqx_point.juLi = sqrt(pow(x, 2) + pow(y, 2));
		yqx_point.liCheng = li+ZH.liCheng;
		yqx_point.rad = atan(y / x);
		yqx_point.ZhengFan = 0;
		yqx_point_list.push_back(yqx_point);
	}
	return yqx_point_list;
}



double YuanQX::caculateM()
{
	return l0 / 2 - pow(l0, 3) / 240 / pow(r, 2);
}

double YuanQX::caculateP()
{
	return pow(l0, 2) / 24 / r;
}

double YuanQX::caculateBelta0()
{
	return l0 / 2 / r;
}

MainWindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include<QMainWindow>
//#include<MyMathLib/LayOffCaculate.h>
#include "LayOffCaculate.h"
#include<vector>
#include <iostream>
QT_BEGIN_HEADER
namespace Ui { class MainWindow; }
QT_END_HEADER

class MainWindow :public QMainWindow
{
	Q_OBJECT
public:
	MainWindow(QWidget *parent = nullptr);
	~MainWindow();

public slots:
	void caculateClick();
	void accuracyClick();


private:
	Ui::MainWindow *ui;
	double r, l0, rad, zh_lc, t, l, e;
	Si::Point zh, qz, hy;
	vector<Si::Point> hh_point_list, yqx_point_list;
	std::string qstr2str(const QString qstr)
	{
		QByteArray cdata = qstr.toLocal8Bit();
		return std::string(cdata);
	}
	QString str2qstr(const std::string str)
	{
		return QString::fromLocal8Bit(str.data());
	}

};
#endif MAINWINDOW_H

MainWindow.cpp

#include "MainWindow.h"
#include "ui_MainWindow.h"
#include <qfiledialog.h>
#include <QMessageBox>
#include <fstream>
#include <sstream>
#include <iostream>
#include "AccuracyWindow.h"
#include <qdebug.h>
#include<qstandarditemmodel.h>
#include<string>



MainWindow::MainWindow(QWidget *parent)
	:QMainWindow(parent)    //继承
	,ui(new Ui::MainWindow)    //在ui中，mainwindow继承了ui_mainwindow
{
	ui->setupUi(this);


	//r = 200;
	//l0 = 30;
	//rad = Si::dgree2rad(20, 00, 00);
	//zh_lc = Si::biaozhunLicheng2Caculate(100, 335.79);
	//t = 50.296;
	//l = 99.813;
	//e = 3.276;



	//
	connect(ui->btn_out, SIGNAL(clicked()), this, SLOT(caculateClick()));
	connect(ui->btn_accuracy, SIGNAL(clicked()), this, SLOT(accuracyClick()));
}
MainWindow::~MainWindow()
{
	delete ui;
}
void MainWindow::accuracyClick()
{
	AccuracyWindow *accuracyWindow = new AccuracyWindow();
	accuracyWindow->show();
}
using namespace Si;
void MainWindow::caculateClick()
{
	r = atof(ui->input_r->text().toStdString().c_str());
	l0= atof(ui->input_l0->text().toStdString().c_str());

	int dd, mm;
	double ss, smallnum;
	size_t bignum;
	dd= atoi(ui->input_a0->text().toStdString().c_str());
	mm= atoi(ui->input_a1->text().toStdString().c_str());
	ss= atof(ui->input_a2->text().toStdString().c_str());
	rad = dgree2rad(dd, mm, ss);

	bignum= atoi(ui->input_zh0->text().toStdString().c_str());
	smallnum= atof(ui->input_zh1->text().toStdString().c_str());
	zh_lc = biaozhunLicheng2Caculate(bignum, smallnum);


	t= atof(ui->input_t->text().toStdString().c_str());
	l= atof(ui->input_l->text().toStdString().c_str());
	e= atof(ui->input_e->text().toStdString().c_str());


	ZhuDian zd(r, l0, rad, zh_lc, t, l, e);
	hy = zd.caculateHY();
	zh = zd.caculateZH();
	qz = zd.caculateQZ();


	HuanHe hh(zh, hy, r, l0);
	hh_point_list = hh.caculateHH();

	YuanQX yqx(r, l0, hy, qz, zh);
	yqx_point_list = yqx.caculateYQX();

	//打开文件
	QString filename;
	filename = QFileDialog::getOpenFileName(this, QString::fromLocal8Bit("选择导出文件"), "", tr("(*.csv)"));
	std::ofstream ofs;
	string str_filename = qstr2str(filename);
	ofs.open(str_filename, std::ios::trunc);//打开清空内容
	//先写入主点测设资料
	//ofs << "主点测设" << std::endl;
	//string temp = "放样点,置镜点,后视点,距离,角度,正反拨";
	//ofs << temp << std::endl;
	rad2degree(dd, mm, ss, zh.rad);
	ofs << zh.name << "," << zh.zhiJing << "," << zh.houShi << "," << zh.juLi << "," << dd << " " << mm << " " << ss << "," << zh.ZhengFan << std::endl;

	rad2degree(dd, mm, ss, qz.rad);
	ofs << qz.name << "," << qz.zhiJing << "," << qz.houShi << "," << qz.juLi << "," << dd << " " << mm << " " << ss << "," << qz.ZhengFan << std::endl;

	rad2degree(dd, mm, ss, hy.rad);
	ofs << hy.name << "," << hy.zhiJing << "," << hy.houShi << "," << hy.juLi << "," << dd << " " << mm << " " << ss << "," << hy.ZhengFan << std::endl;

	ofs << std::endl;

	//ofs << "详细测设-缓和曲线" << std::endl;
	//ofs << temp << std::endl;

	for (int i = 0; i < hh_point_list.size(); i++) {
		rad2degree(dd, mm, ss, hh_point_list[i].rad);
		ofs << hh_point_list[i].name << "," << hh_point_list[i].zhiJing << "," << hh_point_list[i].houShi
			<< "," << hh_point_list[i].juLi << "," << dd << " " << mm << " " << ss << ","
			<< hh_point_list[i].ZhengFan << std::endl;

	}

	ofs << std::endl;
	//ofs <<"详细测设-圆曲线"<< std::endl;
	//ofs << temp << std::endl;
	for (int i = 0; i < yqx_point_list.size(); i++) {
		rad2degree(dd, mm, ss, yqx_point_list[i].rad);
		ofs << yqx_point_list[i].name << "," << yqx_point_list[i].zhiJing << "," << yqx_point_list[i].houShi
			<< "," << yqx_point_list[i].juLi << "," << dd << " " << mm << " " << ss << ","
			<< yqx_point_list[i].ZhengFan << std::endl;

	}

	ofs.close();
	QMessageBox::information(NULL, "information", "Output Successfull!!");



}

AccuracyWindow.h

#ifndef ACCURACYWINDOW_H
#define ACCURACYWINDOW_H
#include<QtCharts>
#include<QMainWindow>
#include <vector>
#include<string>
using namespace std;

QT_BEGIN_HEADER
namespace Ui { class AccuracyWindow; }
QT_END_HEADER

class AccuracyWindow :public QMainWindow
{
	Q_OBJECT
public:
	AccuracyWindow(QWidget *parent = nullptr);
	vector<double> accuracyCaculate();
	~AccuracyWindow();

public slots:
	void InputFileData();
	void CaculateShow();


private:
	Ui::AccuracyWindow *ui;
	vector<double> alpha0_list;
	vector<double> alpha1_list, juli0_list, juli1_list;
	std::string qstr2str(const QString qstr)
	{
		QByteArray cdata = qstr.toLocal8Bit();
		return std::string(cdata);
	}
	QString str2qstr(const std::string str)
	{
		return QString::fromLocal8Bit(str.data());
	}

};
#endif ACCURACYWINDOW_H

AccuracyWindow.cpp

//#include "MainWindow.h"
#include "AccuracyWindow.h"
#include <fstream>
#include <sstream>
#include "ui_AccuracyWindow.h"
#include "LayOffCaculate.h"
#include <qfiledialog.h>
#include<QChartView>

//using namespace Si;
using namespace QtCharts;
AccuracyWindow::AccuracyWindow(QWidget *parent)
	:QMainWindow(parent)    //继承
	,ui(new Ui::AccuracyWindow)    //在ui中，mainwindow继承了ui_mainwindow
{
	ui->setupUi(this);
	connect(ui->pushButton, SIGNAL(clicked()), this, SLOT(InputFileData()));
	connect(ui->btn_caculate, SIGNAL(clicked()), this, SLOT(CaculateShow()));

}
vector<double> AccuracyWindow::accuracyCaculate()
{
	vector<double> mm_list;

	double mm, jltemp, alphatemp;
	for (size_t i = 0; i < juli0_list.size(); i++) {
		jltemp = juli0_list[i] - juli1_list[i];
		alphatemp = abs(alpha0_list[i] - alpha1_list[i]);
		mm = sqrt(pow(jltemp, 2) + pow(alphatemp*juli0_list[i], 2));
		mm_list.push_back(mm);
	}

	return mm_list;
}
AccuracyWindow::~AccuracyWindow()
{
	delete ui;
}
#include<qdebug.h>
namespace Si {

	//根据字符分割字符串
	std::vector<std::string> string_split_by_character(const std::string &str, const char &character) {
		std::vector<std::string> mod_vec_str;  //返回值
		if (str.empty()) {
			mod_vec_str.push_back(str);
		}
		size_t position = 0;
		std::string mod_str = str;
		while ((position = mod_str.find(character, position)) != std::string::npos) {
			mod_vec_str.push_back(mod_str.substr(0, position));
			mod_str = mod_str.substr(position + 1, mod_str.size());
			position = 0;
		}
		if (!mod_str.empty()) {
			mod_vec_str.push_back(mod_str);
		}
		return mod_vec_str;
	}

}
void AccuracyWindow::InputFileData()
{
	juli0_list.clear();
	juli1_list.clear();
	alpha0_list.clear();
	alpha1_list.clear();
	QString filename;
	filename = QFileDialog::getOpenFileName(this, QString::fromLocal8Bit("选择数据文件"), "", tr("(*.txt)"));
	string str_filename = qstr2str(filename);

	std::ifstream ifs;
	ifs.open(str_filename);

	std::string temp;
	std::string alpha0, alpha1, jl0, jl1;
	int dd, mm;
	double ss;

	std::vector<string> alpha_temp;


	vector<string> temp_list;
	while (std::getline(ifs, temp)) {
		temp_list = Si::string_split_by_character(temp,',');
		//原始方向距离：
		    //方向

		alpha_temp = Si::string_split_by_character(temp_list[0], ' ');
		jl0 = temp_list[1];
		dd = atoi(alpha_temp[0].c_str());
		mm= atoi(alpha_temp[1].c_str());
		ss= atof(alpha_temp[2].c_str());

		alpha0_list.push_back(Si::dgree2rad(dd, mm, ss));
		juli0_list.push_back(atof(jl0.c_str()));

		//实测方向距离：
		alpha_temp = Si::string_split_by_character(temp_list[2], ' ');
		jl0 = temp_list[3];
		dd = atoi(alpha_temp[0].c_str());
		mm = atoi(alpha_temp[1].c_str());
		ss = atof(alpha_temp[2].c_str());

		alpha1_list.push_back(Si::dgree2rad(dd, mm, ss));
		juli1_list.push_back(atof(jl0.c_str()));


	}

}
#include<qstandarditemmodel.h>
#include<qdebug.h>
#include<qbarseries.h>
void AccuracyWindow::CaculateShow()
{




	vector<double> mm_list = accuracyCaculate();
	//表格
	QStandardItemModel* model = new QStandardItemModel();
	//QStringList labels;
	//labels << QStringLiteral("理论角度值") << QStringLiteral("理论距离值") << QStringLiteral("实际角度值") << QStringLiteral("实际距离值") << QStringLiteral("点位中误差");
	//QStringList labels = QObject::trUtf8("理论角度值,理论距离值,实际角度值,实际距离值,点位中误差").simplified().split(",");//将string转为QStringList
	QStringList labels = QObject::trUtf8("alpha0,l0,alpha1,l1,sigma").simplified().split(",");
	model->setHorizontalHeaderLabels(labels);
	QStandardItem *item = nullptr;
	double ss;
	int dd, mm;
	string dms;
	for (size_t i=0; i < juli0_list.size(); i++) {
		Si::rad2degree(dd, mm, ss, alpha0_list[i]);


		dms = std::to_string(dd) + " " + std::to_string(mm) + " " + std::to_string(ss);
		item = new QStandardItem(QString::fromStdString(dms));
		model->setItem(i, 0, item);

		item = new QStandardItem(QString::fromStdString(std::to_string(juli0_list[i])));
		model->setItem(i, 1, item);

		Si::rad2degree(dd, mm, ss, alpha1_list[i]);
		dms = std::to_string(dd) + " " + std::to_string(mm) + " " + std::to_string(ss);
		item = new QStandardItem(QString::fromStdString(dms));
		model->setItem(i, 2, item);

		item = new QStandardItem(QString::fromStdString(std::to_string(juli1_list[i])));
		model->setItem(i, 3, item);

		item = new QStandardItem(QString::fromStdString(std::to_string(mm_list[i])));
		model->setItem(i, 4, item);
	}
	ui->tableView->setModel(model);


	//画图
	QBarSeries *series = new QBarSeries;
	QBarCategoryAxis *axis = new QBarCategoryAxis();
	QBarSet *set = new QBarSet(QStringLiteral("sigma"));

	for (double i = 0; i < juli0_list.size(); i++) {
		set->append(mm_list[i]);

	}
	series->append(set);
	QChart *chart = new QChart();
	chart->addSeries(series);
	chart->setTitle(QString::fromLocal8Bit("error of mean squares"));
	chart->setAnimationOptions(QChart::SeriesAnimations);  //动画
	QStringList categories;
	for (size_t i = 0; i < juli0_list.size(); i++) {

		categories.push_back(QString::fromLocal8Bit(to_string(i).c_str()));
	}


	axis->append(categories);
	chart->createDefaultAxes();
	chart->setAxisX(axis, series);
	chart->legend()->setVisible(true); //设置图例为显示状态
	chart->legend()->setAlignment(Qt::AlignBottom);//设置图例的显示位置在底部

	ui->mychart->setChart(chart);
	ui->mychart->setRenderHint(QPainter::Antialiasing);
	chart->createDefaultAxes();
	chart->setTheme(QChart::ChartThemeDark);
}
