SpringBoot整合Druid、MyBatis与PageHelper-优快云博客

本文链接：https://blog.youkuaiyun.com/weixin_45176922/article/details/103260343

1、springboot配置数据库连接池druid

有兴趣学习的可以访问下列地址:
https://github.com/alibaba/druid/tree/master/druid-spring-boot-starter

相关pom依赖
druid所需pom依赖

<dependency>
     <groupId>com.alibaba</groupId>
     <artifactId>druid-spring-boot-starter</artifactId>
     <version>1.1.10</version>
  </dependency>

导入一个需要使用到的切面包

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aspects</artifactId>
</dependency>

application.yml配置druid

server:
  port: 80
  servlet:
    context-path: /

spring:
  datasource:
    #1.JDBC
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/t226?useUnicode=true&characterEncoding=UTF-8&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=UTC
    username: root
    password: 123456
    druid:
      #2.连接池配置
      #初始化连接池的连接数量 大小，最小，最大
      initial-size: 5
      min-idle: 5
      max-active: 20
      #配置获取连接等待超时的时间
      max-wait: 60000
       #配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
      time-between-eviction-runs-millis: 60000
      # 配置一个连接在池中最小生存的时间，单位是毫秒
      min-evictable-idle-time-millis: 30000
      validation-query: SELECT 1 FROM DUAL
      test-while-idle: true
      test-on-borrow: true
      test-on-return: false
      # 是否缓存preparedStatement，也就是PSCache  官方建议MySQL下建议关闭   个人建议如果想用SQL防火墙 建议打开
      pool-prepared-statements: true
      max-pool-prepared-statement-per-connection-size: 20
      # 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
      filter:
        stat:
          merge-sql: true
          slow-sql-millis: 5000
      #3.基础监控配置
      web-stat-filter:
        enabled: true
        url-pattern: /*
        #设置不统计哪些URL
        exclusions: "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"
        session-stat-enable: true
        session-stat-max-count: 100
      stat-view-servlet:
        enabled: true
        url-pattern: /druid/*
        reset-enable: true
        #设置监控页面的登录名和密码
        login-username: admin
        login-password: admin
        allow: 127.0.0.1
        #deny: 192.168.1.100

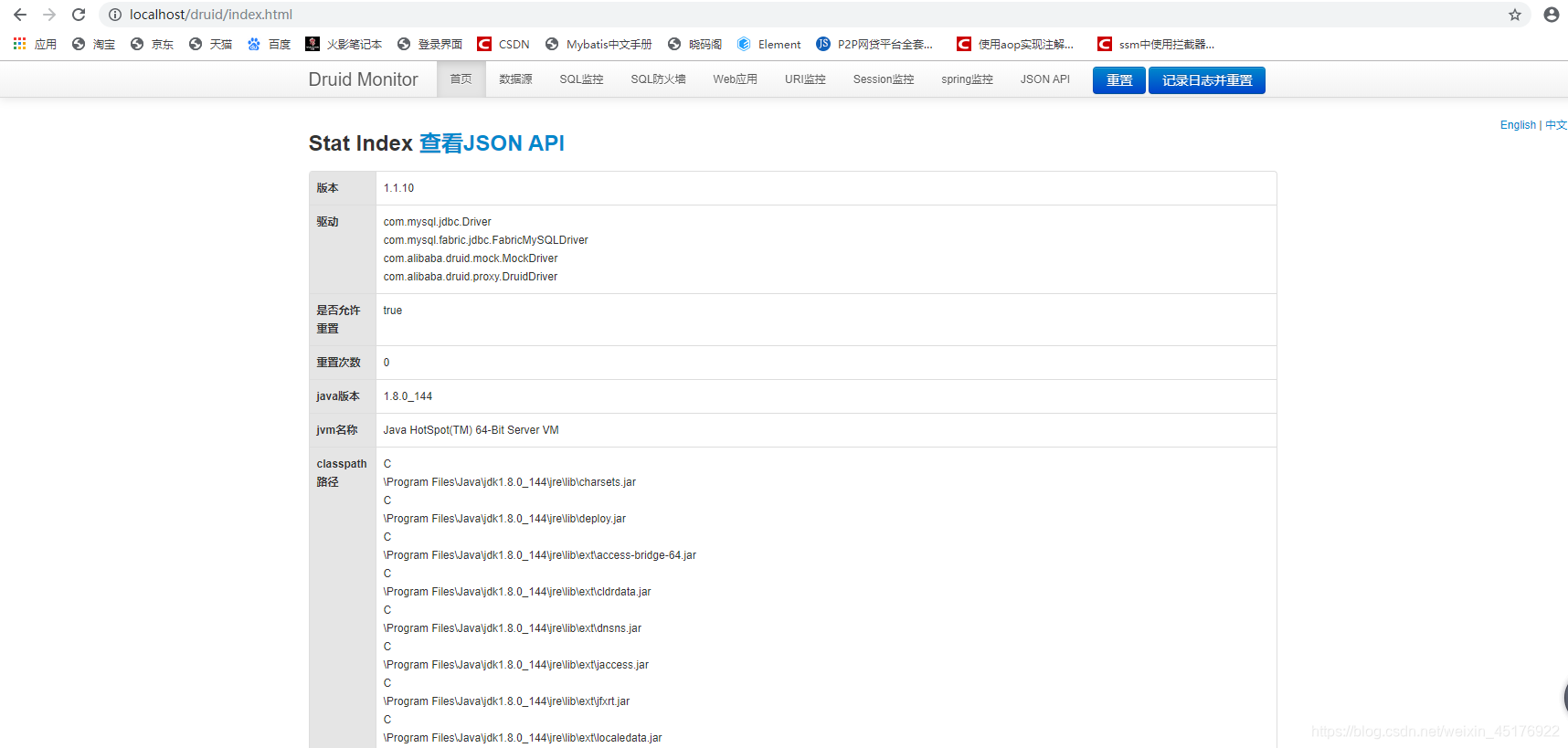

springboot整合druid成功截图
启动SpringBoot项目访问druid， http://localhost:tomcat端口号/项目名称/druid/
在这里插入图片描述
模仿数据库的页面加载时间

package com.qukang.springboot02.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author 屈康
 * @site www.qk.com
 * @company 不讲理公司
 * @create  2019-11-26 15:56
 */
@RestController
@RequestMapping("/demo")
public class HelloController {
    @RequestMapping("/say1")
    public String say1(){
        return "说活1";
    }

    @RequestMapping("/say2")
    public String say2(){
        try {
            Thread.sleep(2000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        return "说活2";
    }

    @RequestMapping("/say3")
    public String say3(){
        try {
            Thread.sleep(5000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        return "说活3";
    }
}

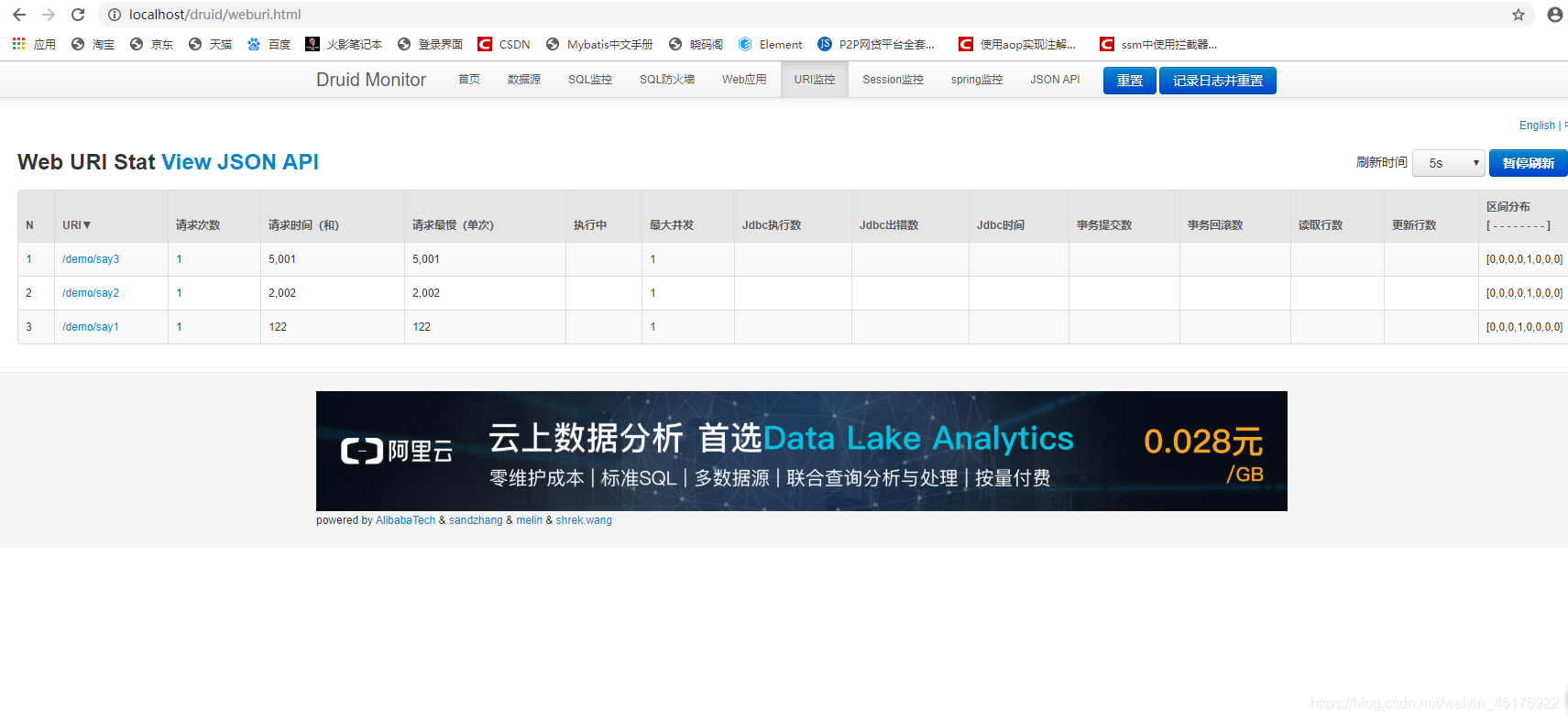

druid回馈的数据
在这里插入图片描述

2、springboot整合mybatis

springboot整合mybatis逆向生成插件
相关pom依赖
先将mysql的版本降低

<!--更改springboot中的mysql版本，逆向生成不兼容高版本-->
<mysql.version>5.1.44</mysql.version>

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>${mysql.version}</version>
    <scope>runtime</scope>
</dependency>

<resources>
    <!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
    <resource>
        <directory>src/main/java</directory>
        <includes>
            <include>**/*.xml</include>
        </includes>
    </resource>
    <!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
    <resource>
        <directory>src/main/resources</directory>
        <includes>
            <include>*.properties</include>
            <include>*.xml</include>
            <include>*.yml</include>
        </includes>
    </resource>
</resources>

<plugin>
    <groupId>org.mybatis.generator</groupId>
    <artifactId>mybatis-generator-maven-plugin</artifactId>
    <version>1.3.2</version>
    <dependencies>
        <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
    </dependencies>
    <configuration>
        <overwrite>true</overwrite>
    </configuration>
</plugin>

逆向生成配置文件generatorConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!-- 引入配置文件 -->
    <properties resource="jdbc.properties"/>

    <!--指定数据库jdbc驱动jar包的位置-->
    <classPathEntry location="F:\\initPath\\mvn_repository\\mysql\\mysql-connector-java\\5.1.44\\mysql-connector-java-5.1.44.jar"/>

    <!-- 一个数据库一个context -->
    <context id="infoGuardian">
        <!-- 注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
            <property name="suppressDate" value="true"/> <!-- 是否生成注释代时间戳 -->
        </commentGenerator>

        <!-- jdbc连接 -->
        <jdbcConnection driverClass="${jdbc.driver}"
                        connectionURL="${jdbc.url}" userId="${jdbc.username}" password="${jdbc.password}"/>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用bigDecimal， false可自动转化以下类型（Long, Integer, Short, etc.） -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 01 指定javaBean生成的位置 -->
        <!-- targetPackage：指定生成的model生成所在的包名 -->
        <!-- targetProject：指定在该项目下所在的路径  -->
        <javaModelGenerator targetPackage="com.qukang.springboot02.entity"
                            targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
            <!-- 是否对model添加构造函数 -->
            <property name="constructorBased" value="true"/>
            <!-- 是否针对string类型的字段在set的时候进行trim调用 -->
            <property name="trimStrings" value="false"/>
            <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法，只有构造方法 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>

        <!-- 02 指定sql映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.qukang.mapper"
                         targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- 03 生成XxxMapper接口 -->
        <!-- type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象 -->
        <!-- type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象 -->
        <!-- type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口 -->
        <javaClientGenerator targetPackage="com.qukang.springboot02.mapper"
                             targetProject="src/main/java" type="XMLMAPPER">
            <!-- 是否在当前路径下新加一层schema,false路径com.oop.eksp.user.model， true:com.oop.eksp.user.model.[schemaName] -->
            <property name="enableSubPackages" value="false"/>
        </javaClientGenerator>

        <!-- 配置表信息 -->
        <!-- schema即为数据库名 -->
        <!-- tableName为对应的数据库表 -->
        <!-- domainObjectName是要生成的实体类 -->
        <!-- enable*ByExample是否生成 example类 -->
        <!--<table schema="" tableName="t_book" domainObjectName="Book"-->
        <!--enableCountByExample="false" enableDeleteByExample="false"-->
        <!--enableSelectByExample="false" enableUpdateByExample="false">-->
        <!--&lt;!&ndash; 忽略列，不生成bean 字段 &ndash;&gt;-->
        <!--&lt;!&ndash; <ignoreColumn column="FRED" /> &ndash;&gt;-->
        <!--&lt;!&ndash; 指定列的java数据类型 &ndash;&gt;-->
        <!--&lt;!&ndash; <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> &ndash;&gt;-->
        <!--</table>-->
        <table schema="" tableName="t_mvc_book" domainObjectName="Book"
               enableCountByExample="false" enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false">
        </table>
    </context>
</generatorConfiguration>

使用@Repository注解，在启动类中添加@MapperScan(“xxxx”)注解，用于扫描Mapper类的包。扫描多个包：

@MapperScan({”com.qukang.*.*”,”com.qukang.*.*”})

//启用事物管理器

@MapperScan("com.qukang.springboot02.mapper")
@EnableTransactionManagement

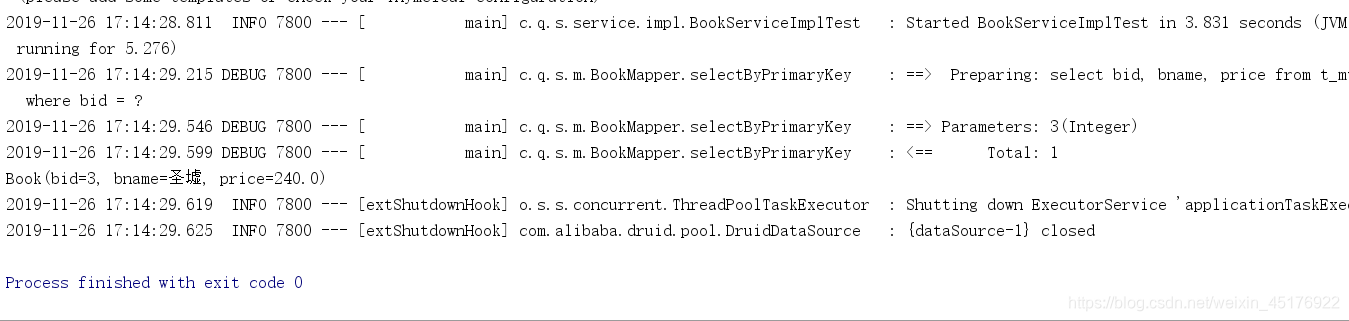

测试数据库调用方法

package com.qukang.springboot02.service.impl;


import com.github.pagehelper.Page;
import com.qukang.springboot02.entity.Book;
import com.qukang.springboot02.service.BookService;
import com.qukang.springboot02.uitls.PageBean;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

/**
 * @author 屈康
 * @site www.qk.com
 * @company 不讲理公司
 * @create  2019-11-26 16:18
 */
@SpringBootTest
public class BookServiceImplTest {
    @Autowired
    private BookService bookService;
    @Test
//删除，有事务
    public void deleteByPrimaryKey() {
        bookService.deleteByPrimaryKey(2);
    }
//查询，没事务
    @Test
    public void selectByPrimaryKey() {
        System.out.println(bookService.selectByPrimaryKey(2));
    }
}

在这里插入图片描述

3、springboot整合pagehelper

导入相关pom依赖

<dependency>
    <groupId>com.github.pagehelper</groupId>
     <artifactId>pagehelper-spring-boot-starter</artifactId>
    <version>1.2.3</version>
</dependency>

配置application.yml文件

pagehelper:
  helperDialect: mysql
  reasonable: true
  supportMethodsArguments: true
  params: count=countSql

logging:
  level:
    com.qukang.springboot02.mapper: debug

切面拦截类
PagerAspect.java

package com.qukang.springboot02.aspect;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.qukang.springboot02.uitls.PageBean;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;

import java.util.List;

@Component
@Aspect
public class PagerAspect {

    @Around("execution(* *..*Service.*Pager(..))")
    public Object invoke(ProceedingJoinPoint args) throws Throwable{
        Object[] params = args.getArgs();
        PageBean pageBean = null;
        for (Object param : params) {
            if(param instanceof PageBean){
                pageBean = (PageBean) param;
                break;
            }
        }

        if (pageBean !=null && pageBean.isPagination())
        PageHelper.startPage(pageBean.getPage(),pageBean.getRows());

        Object proceed = args.proceed(params);

        if (pageBean !=null && pageBean.isPagination()){
            PageInfo pageInfo = new PageInfo((List)proceed);
            pageBean.setTotal(pageInfo.getTotal()+"");
        }
        return proceed;
    }
}

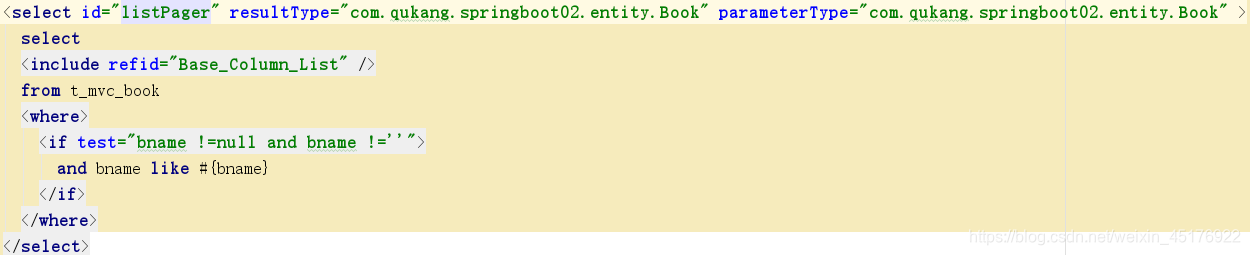

sql语句
在这里插入图片描述
mapper层

   List<Book> listPager(Book book);

service

  List<Book> listPager(Book book, PageBean pageBean);

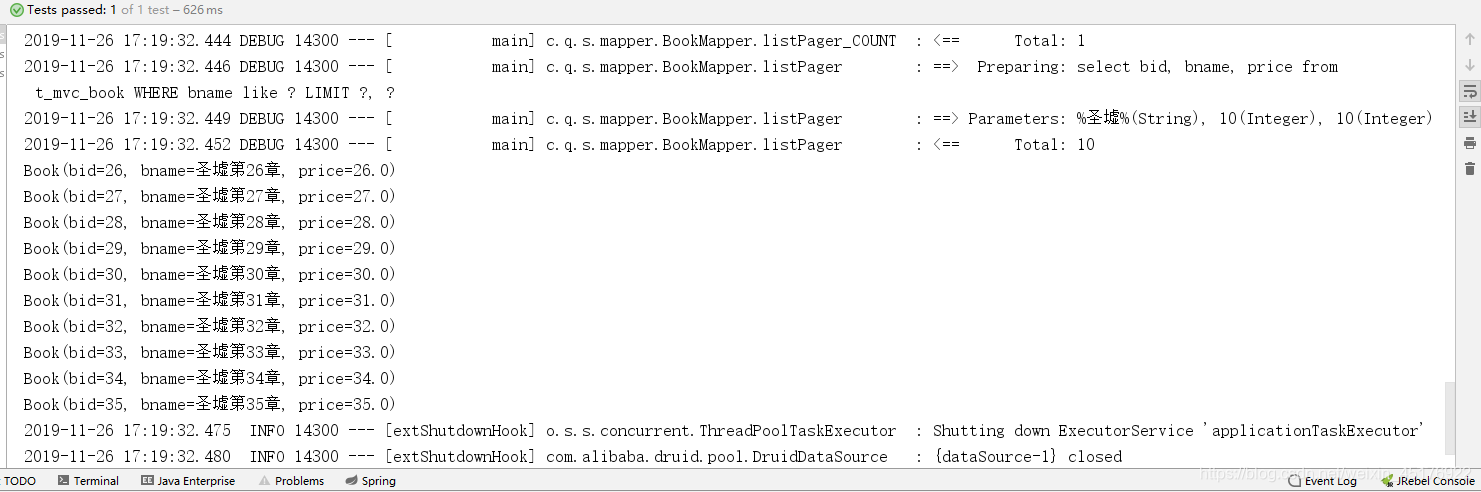

测试方法

package com.qukang.springboot02.service.impl;


import com.github.pagehelper.Page;
import com.qukang.springboot02.entity.Book;
import com.qukang.springboot02.service.BookService;
import com.qukang.springboot02.uitls.PageBean;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

/**
 * @author 屈康
 * @site www.qk.com
 * @company 不讲理公司
 * @create  2019-11-26 16:18
 */
@SpringBootTest
public class BookServiceImplTest {
    @Autowired
    private BookService bookService;
    @Test
    public void listPager() {
        Book book=new Book();
        book.setBname("%圣墟%");
        PageBean pageBean=new PageBean();
        pageBean.setPage(2);
        for (Book book1 : bookService.listPager(book, pageBean)) {
            System.out.println(book1);
        }
    }
}

启动层

package com.qukang.springboot02;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.EnableAspectJAutoProxy;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@MapperScan("com.qukang.springboot02.mapper")
@EnableTransactionManagement
@EnableAspectJAutoProxy
@SpringBootApplication
public class Springboot02Application {

    public static void main(String[] args) {
        SpringApplication.run(Springboot02Application.class, args);
    }

}
