anycad第一步

C#引用anycad

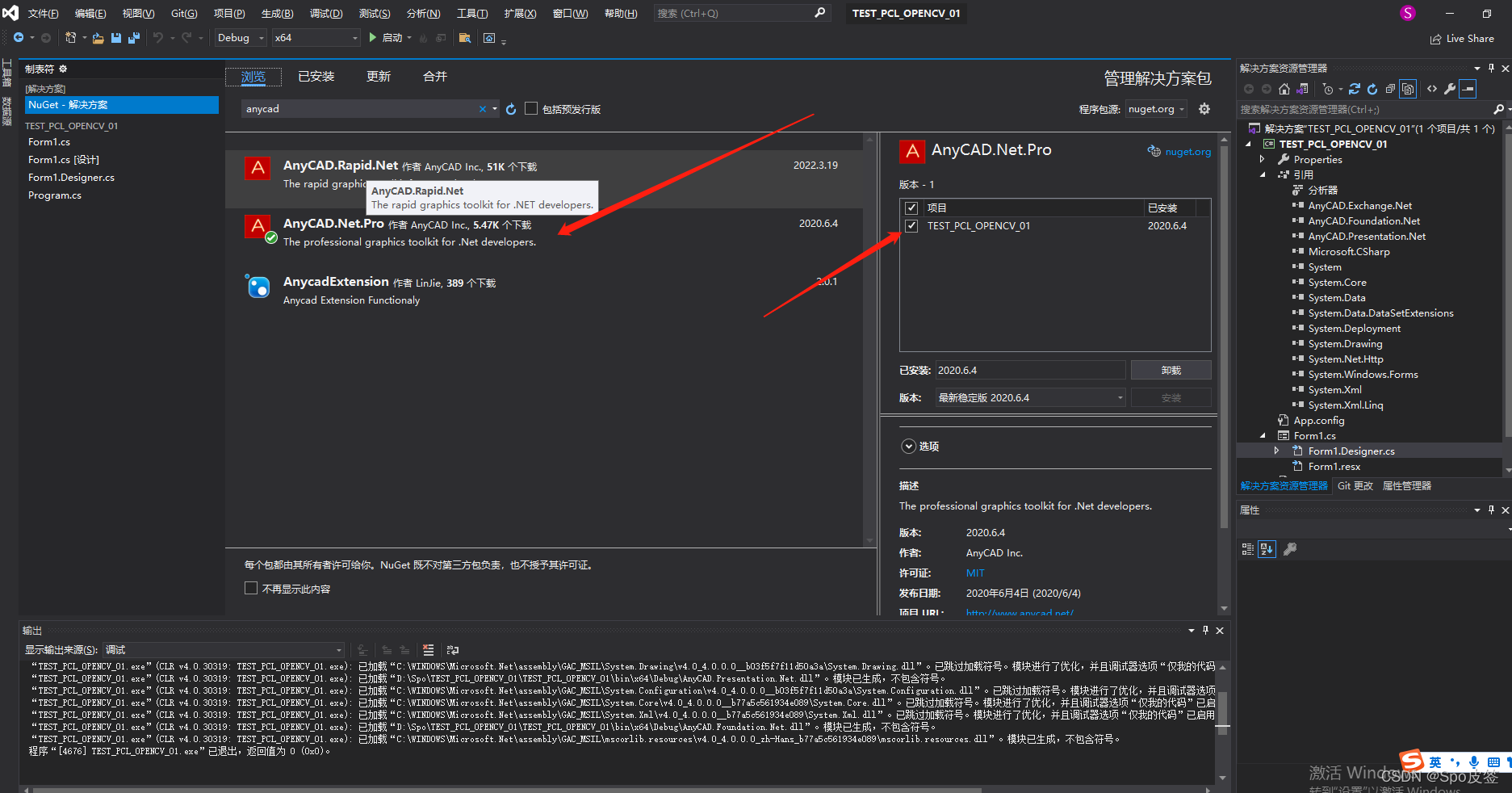

C#下载anycad 并在Form1里面添加panel容器

添加后代码直接复制

using AnyCAD.Presentation;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace TEST_PCL_OPENCV_01
{
    public partial class Form1 : Form
    {
        private RenderWindow3d m_RenderView = null;
        public AnyCAD.Presentation.RenderWindow3d RenderView
        {
            get { return m_RenderView; }
            set { m_RenderView = value; }
        }
        public Form1()
        {
            InitializeComponent();

        }

        private void Form1_Load(object sender, EventArgs e)
        {
            var container = this.panel1;
            m_RenderView = new RenderWindow3d();
            m_RenderView.Size = container.ClientSize;
            m_RenderView.Dock = System.Windows.Forms.DockStyle.Fill;
            container.Controls.Add(m_RenderView);
        }

        private void panel1_Paint(object sender, PaintEventArgs e)
        {

        }
    }
}

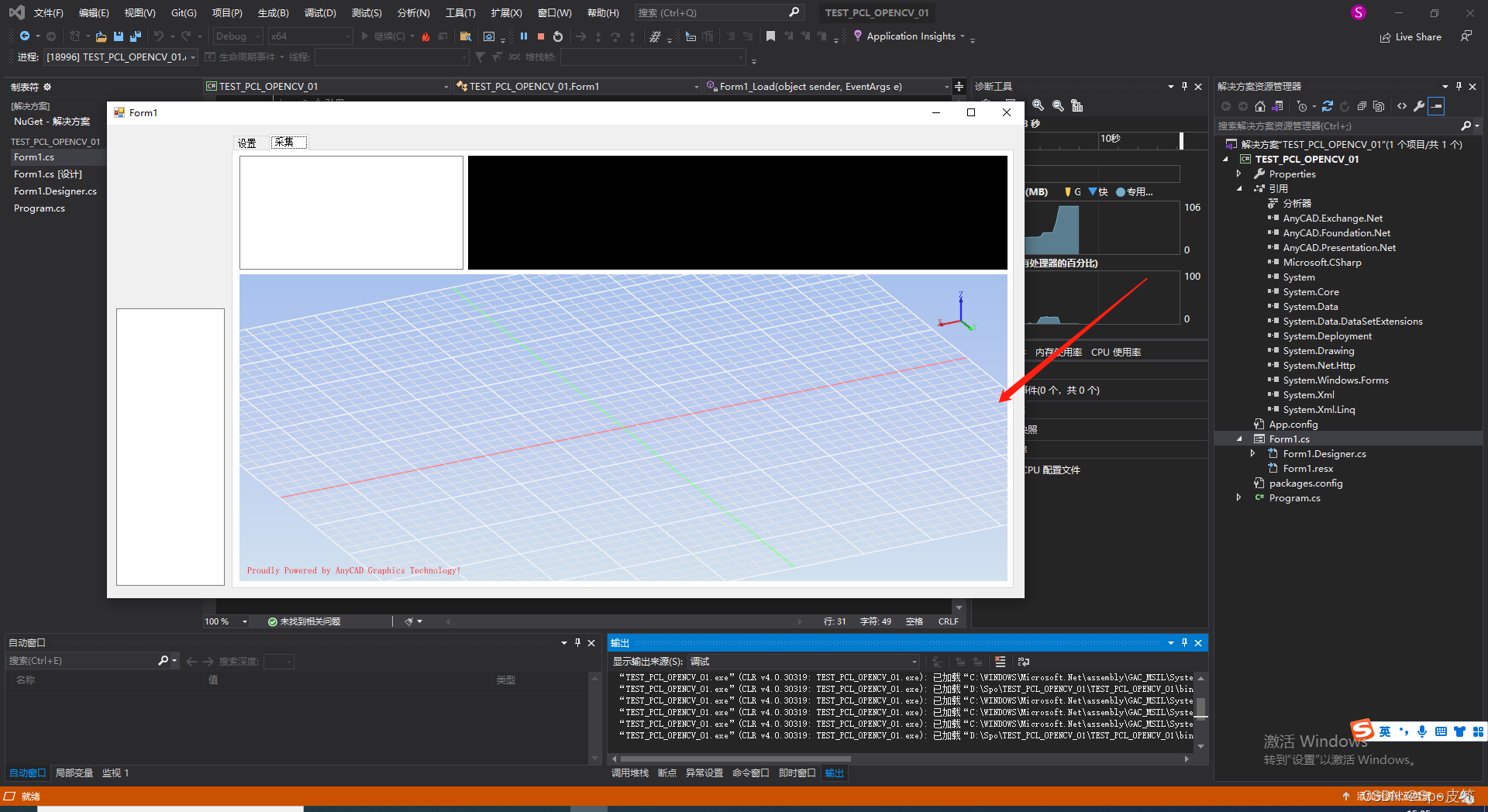

效果
