PCL配置环境

PCL安装包以及vs2019

PCL-1.10.1-AllInOne-msvc2019-win64。pcl-1.10.1-pdb-msvc2019-win64。

安装包

把压缩包里的拷贝到安装程序BIN目录里面

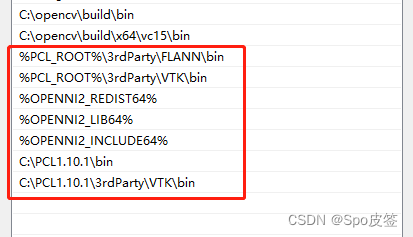

环境变量

%PCL_ROOT%\3rdParty\FLANN\bin
%PCL_ROOT%\3rdParty\VTK\bin
%OPENNI2_REDIST64%
%OPENNI2_LIB64%
%OPENNI2_INCLUDE64%
C:\PCL1.10.1\bin

vs2019

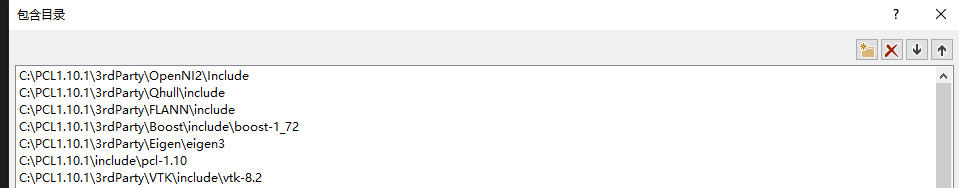

C:\PCL1.10.1\3rdParty\OpenNI2\Include;
C:\PCL1.10.1\3rdParty\Qhull\include;
C:\PCL1.10.1\3rdParty\FLANN\include;
C:\PCL1.10.1\3rdParty\Boost\include\boost-1_72;
C:\PCL1.10.1\3rdParty\Eigen\eigen3;
C:\PCL1.10.1\include\pcl-1.10;
C:\PCL1.10.1\3rdParty\VTK\include\vtk-8.2;

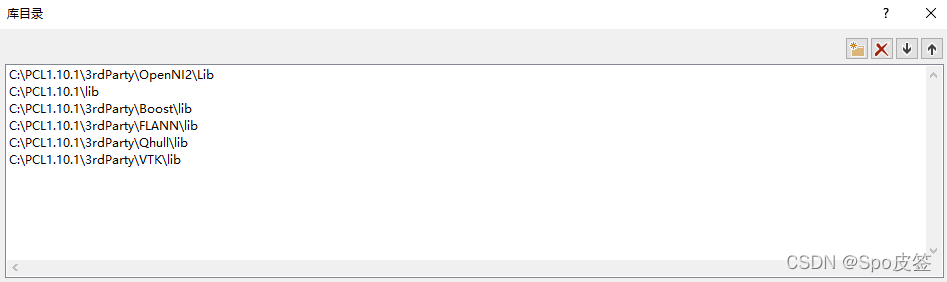

C:\PCL1.10.1\3rdParty\OpenNI2\Lib;
C:\PCL1.10.1\lib;
C:\PCL1.10.1\3rdParty\Boost\lib;
C:\PCL1.10.1\3rdParty\FLANN\lib;
C:\PCL1.10.1\3rdParty\Qhull\lib;
C:\PCL1.10.1\3rdParty\VTK\lib;$(LibraryPath)

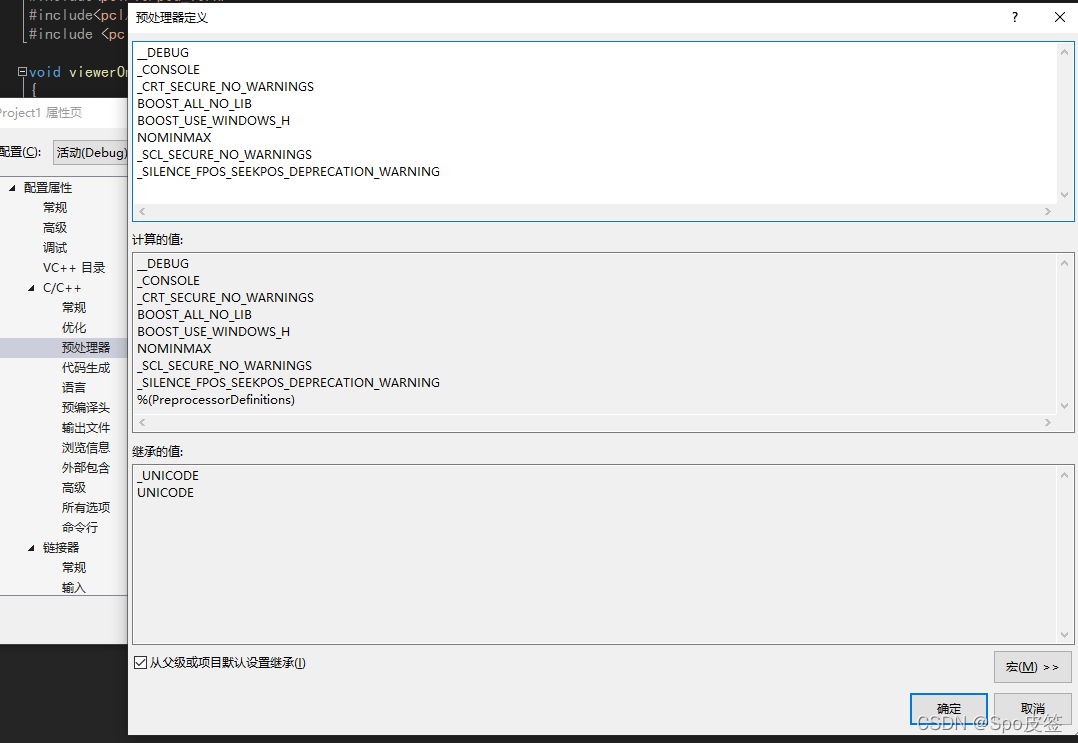

__DEBUG
_CONSOLE
_CRT_SECURE_NO_WARNINGS
BOOST_ALL_NO_LIB
BOOST_USE_WINDOWS_H
NOMINMAX
_SCL_SECURE_NO_WARNINGS
_SILENCE_FPOS_SEEKPOS_DEPRECATION_WARNING

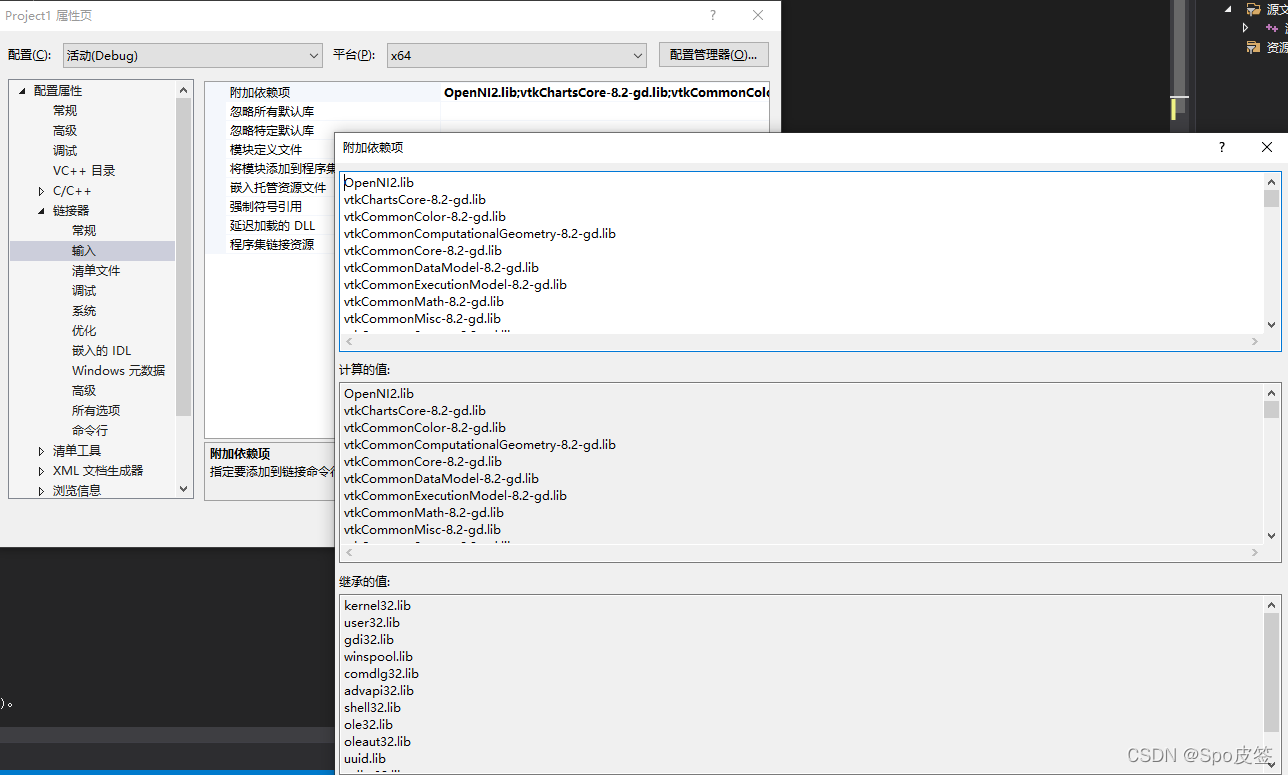

OpenNI2.lib
vtkChartsCore-8.2-gd.lib
vtkCommonColor-8.2-gd.lib
vtkCommonComputationalGeometry-8.2-gd.lib
vtkCommonCore-8.2-gd.lib
vtkCommonDataModel-8.2-gd.lib
vtkCommonExecutionModel-8.2-gd.lib
vtkCommonMath-8.2-gd.lib
vtkCommonMisc-8.2-gd.lib
vtkCommonSystem-8.2-gd.lib
vtkCommonTransforms-8.2-gd.lib
vtkDICOMParser-8.2-gd.lib
vtkDomainsChemistry-8.2-gd.lib
vtkDomainsChemistryOpenGL2-8.2-gd.lib
vtkdoubleconversion-8.2-gd.lib
vtkexodusII-8.2-gd.lib
vtkexpat-8.2-gd.lib
vtkFiltersAMR-8.2-gd.lib
vtkFiltersCore-8.2-gd.lib
vtkFiltersExtraction-8.2-gd.lib
vtkFiltersFlowPaths-8.2-gd.lib
vtkFiltersGeneral-8.2-gd.lib
vtkFiltersGeneric-8.2-gd.lib
vtkFiltersGeometry-8.2-gd.lib
vtkFiltersHybrid-8.2-gd.lib
vtkFiltersHyperTree-8.2-gd.lib
vtkFiltersImaging-8.2-gd.lib
vtkFiltersModeling-8.2-gd.lib
vtkFiltersParallel-8.2-gd.lib
vtkFiltersParallelImaging-8.2-gd.lib
vtkFiltersPoints-8.2-gd.lib
vtkFiltersProgrammable-8.2-gd.lib
vtkFiltersSelection-8.2-gd.lib
vtkFiltersSMP-8.2-gd.lib
vtkFiltersSources-8.2-gd.lib
vtkFiltersStatistics-8.2-gd.lib
vtkFiltersTexture-8.2-gd.lib
vtkFiltersTopology-8.2-gd.lib
vtkFiltersVerdict-8.2-gd.lib
vtkfreetype-8.2-gd.lib
vtkGeovisCore-8.2-gd.lib
vtkgl2ps-8.2-gd.lib
vtkglew-8.2-gd.lib
vtkGUISupportMFC-8.2-gd.lib
vtkhdf5-8.2-gd.lib
vtkhdf5_hl-8.2-gd.lib
vtkImagingColor-8.2-gd.lib
vtkImagingColor-8.2.lib
vtkImagingCore-8.2-gd.lib
vtkImagingCore-8.2.lib
vtkImagingFourier-8.2-gd.lib
vtkImagingFourier-8.2.lib
vtkImagingGeneral-8.2-gd.lib
vtkImagingGeneral-8.2.lib
vtkImagingHybrid-8.2-gd.lib
vtkImagingHybrid-8.2.lib
vtkImagingMath-8.2-gd.lib
vtkImagingMath-8.2.lib
vtkImagingMorphological-8.2-gd.lib
vtkImagingMorphological-8.2.lib
vtkImagingSources-8.2-gd.lib
vtkImagingSources-8.2.lib
vtkImagingStatistics-8.2-gd.lib
vtkImagingStatistics-8.2.lib
vtkImagingStencil-8.2-gd.lib
vtkImagingStencil-8.2.lib
vtkInfovisCore-8.2-gd.lib
vtkInfovisLayout-8.2-gd.lib
vtkInteractionImage-8.2-gd.lib
vtkInteractionStyle-8.2-gd.lib
vtkInteractionWidgets-8.2-gd.lib
vtkIOAMR-8.2-gd.lib
vtkIOAsynchronous-8.2-gd.lib
vtkIOCityGML-8.2-gd.lib
vtkIOCore-8.2-gd.lib
vtkIOEnSight-8.2-gd.lib
vtkIOExodus-8.2-gd.lib
vtkIOExport-8.2-gd.lib
vtkIOExportOpenGL2-8.2-gd.lib
vtkIOExportPDF-8.2-gd.lib
vtkIOGeometry-8.2-gd.lib
vtkIOImage-8.2-gd.lib
vtkIOImport-8.2-gd.lib
vtkIOInfovis-8.2-gd.lib
vtkIOLegacy-8.2-gd.lib
vtkIOLSDyna-8.2-gd.lib
vtkIOMINC-8.2-gd.lib
vtkIOMovie-8.2-gd.lib
vtkIONetCDF-8.2-gd.lib
vtkIOParallel-8.2-gd.lib
vtkIOParallelXML-8.2-gd.lib
vtkIOPLY-8.2-gd.lib
vtkIOSegY-8.2-gd.lib
vtkIOSQL-8.2-gd.lib
vtkIOTecplotTable-8.2-gd.lib
vtkIOVeraOut-8.2-gd.lib
vtkIOVideo-8.2-gd.lib
vtkIOXML-8.2-gd.lib
vtkIOXMLParser-8.2-gd.lib
vtkjpeg-8.2-gd.lib
vtkjsoncpp-8.2-gd.lib
vtklibharu-8.2-gd.lib
vtklibxml2-8.2-gd.lib
vtklz4-8.2-gd.lib
vtklzma-8.2-gd.lib
vtkmetaio-8.2-gd.lib
vtkNetCDF-8.2-gd.lib
vtkogg-8.2-gd.lib
vtkParallelCore-8.2-gd.lib
vtkpng-8.2-gd.lib
vtkproj-8.2-gd.lib
vtkpugixml-8.2-gd.lib
vtkRenderingAnnotation-8.2-gd.lib
vtkRenderingContext2D-8.2-gd.lib
vtkRenderingContextOpenGL2-8.2-gd.lib
vtkRenderingCore-8.2-gd.lib
vtkRenderingExternal-8.2-gd.lib
vtkRenderingFreeType-8.2-gd.lib
vtkRenderingGL2PSOpenGL2-8.2-gd.lib
vtkRenderingImage-8.2-gd.lib
vtkRenderingLabel-8.2-gd.lib
vtkRenderingLOD-8.2-gd.lib
vtkRenderingOpenGL2-8.2-gd.lib
vtkRenderingVolume-8.2-gd.lib
vtkRenderingVolumeOpenGL2-8.2-gd.lib
vtksqlite-8.2-gd.lib
vtksys-8.2-gd.lib
vtktheora-8.2-gd.lib
vtktiff-8.2-gd.lib
vtkverdict-8.2-gd.lib
vtkViewsContext2D-8.2-gd.lib
vtkViewsCore-8.2-gd.lib
vtkViewsInfovis-8.2-gd.lib
vtkzlib-8.2-gd.lib
pcl_commond.lib
pcl_featuresd.lib
pcl_filtersd.lib
pcl_iod.lib
pcl_io_plyd.lib
pcl_kdtreed.lib
pcl_keypointsd.lib
pcl_mld.lib
pcl_octreed.lib
pcl_outofcored.lib
pcl_peopled.lib
pcl_recognitiond.lib
pcl_registrationd.lib
pcl_sample_consensusd.lib
pcl_searchd.lib
pcl_segmentationd.lib
pcl_stereod.lib
pcl_surfaced.lib
pcl_trackingd.lib
pcl_visualizationd.lib

Cpp代码

//数据可视化
#include<iostream>
#include<pcl/io/pcd_io.h>
#include<pcl/point_types.h>
#include <pcl/visualization/cloud_viewer.h>

void viewerOneOff(pcl::visualization::PCLVisualizer& viewer)    //设置背景颜色
{

}

int main(int argc, char** argv)
{
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>);
	//*打开点云文件
	PCL_INFO("测试开始");
	if (pcl::io::loadPCDFile<pcl::PointXYZ>("D:\\点云PCD\\rabbit.pcd", *cloud) == -1)
		//根据自己pcd文件的路径进行添加
	{
		PCL_ERROR("Couldn't read file rabbit.pcd\n");
		return(-1);
	}
	std::cout << cloud->points.size() << std::endl;   //points.size() 表示数据的大小也就是说点云文件中多少个点
	pcl::visualization::CloudViewer viewer("cloud viewer");  //showCloud 函数是同步的，在此处等待直到渲染显示为止
	viewer.showCloud(cloud);    //该注册函数在可视化时只调用一次

	viewer.runOnVisualizationThreadOnce(viewerOneOff);   //该注册函数在渲染输出是每次都调用

	while (!viewer.wasStopped())
	{

	}
	system("pause");
	return 0;
}

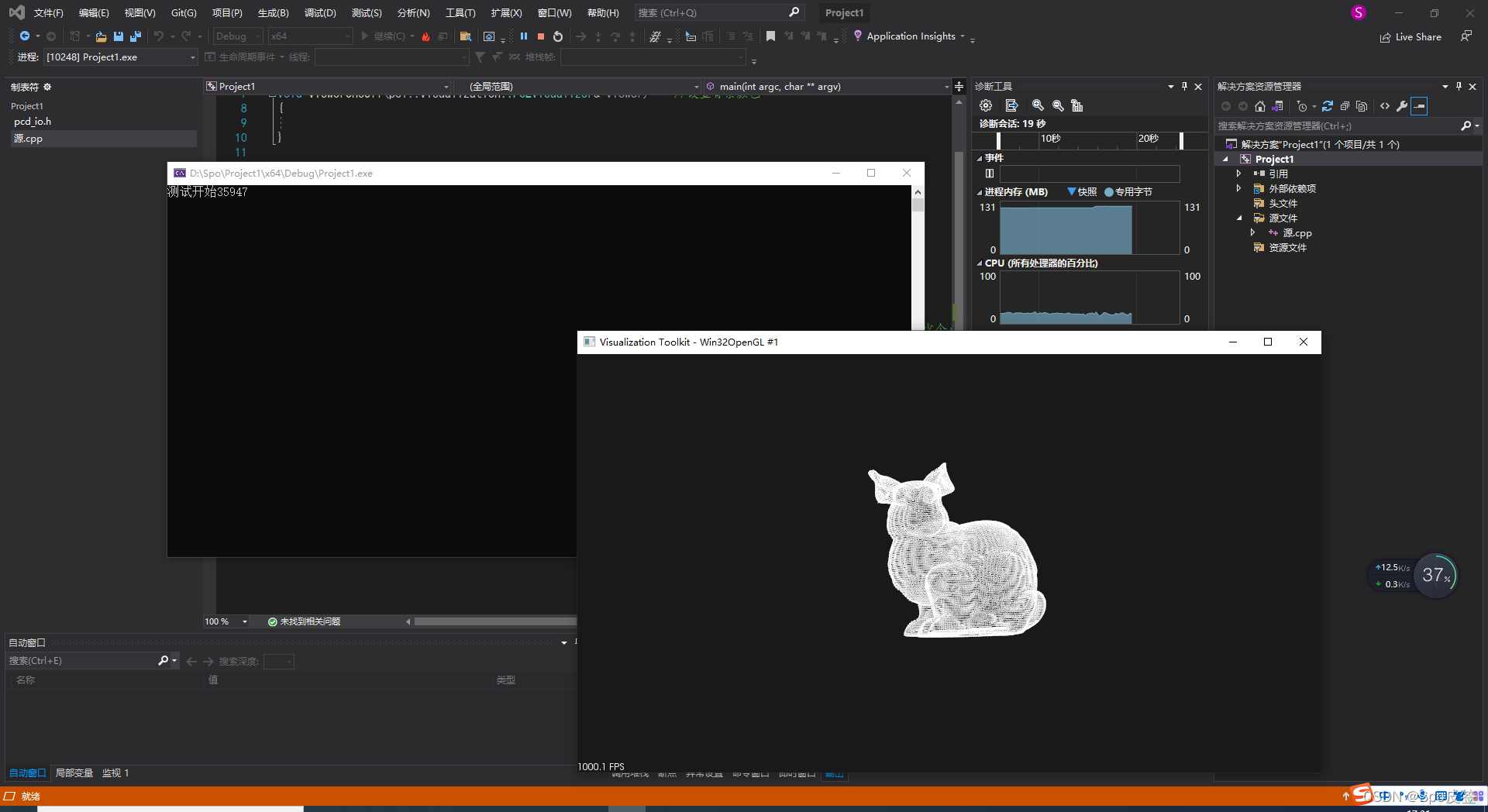

效果
