三种插值算法的对比

插值算法

interpolation.cpp

#include <utility>
#include <stdexcept>
#include "interpolation.h"

constexpr double C_PI = 3.14159265358979323846;

static inline bool fuzzyIsNull(double d)
{
    return std::abs(d) < 0.000000000001;
}

static inline bool fuzzyIsNull(float f)
{
    return std::abs(f) <= 0.00001f;
}

Interpolation::Vector<Interpolation::data_type> SineInterp::interp(const Vector<data_type> &data, unsigned int interpNum) noexcept(false)
{
    // 理论上正弦插值每个周期至少需要三个点才能重现波形
    if(data.size() < 3)
    {
        throw std::invalid_argument("[SineInterp::interp] data.size() < 3;");
    }

    const int sz = static_cast<int>(data.size());
    int M = int(interpNum) + 1;

    Vector<data_type> ret((sz - 1) * interpNum + sz);
    for(int i = 0; i < sz; ++i)
    {
        ret[M * i] = data[i];
    }

    for(int k = 0; k < sz - 1; ++k)
    {
        for(int m = 1; m < M; ++m)
        {
            for(int n = 0; n < sz; ++n)
            {
                data_type x = (k - n + static_cast<data_type>(m) / M) * C_PI;
                ret[k * M + m] += data[n] * (std::sin(x) / x);
            }
        }
    }

    return std::move(ret);
}

Interpolation::Vector<Interpolation::data_type> CubicHermiteInterp::interp(const Vector<data_type> &data, unsigned int interNum) noexcept(false)
{
    // 只要x坐标是等间隔的,波形最终形状就与x无关,因此自己构造与y相等个数的x坐标
    const size_type sz = data.size();
    Vector<data_type> x(sz);
    for(size_type i = 0; i < sz; ++i)
    {
        x[i] = static_cast<data_type>(i * 10);
    }

    return std::move(interp(x, data, interNum).second);
}

std::pair<Interpolation::Vector<Interpolation::data_type>, Interpolation::Vector<Interpolation::data_type> >
CubicHermiteInterp::interp(const Vector<data_type> &x,
                           const Vector<data_type> &y,
                           unsigned int interpNum) noexcept(false)
{
    if(x.size() != y.size())
    {
        throw std::invalid_argument("[CubicHermiteInterp::interp] x.size() != y.size()");
    }

    const size_type sz = x.size();

    // 判断x值是否递增
    data_type deltaX = 0;
    for(size_type i = 0; i < sz - 1; ++i)
    {
        deltaX = x[i+1] - x[i];
        if(deltaX <= 0)
        {
            throw std::invalid_argument("[CubicHermiteInterp::interp] x vector not monotone increasing;");
        }
    }

    // 求取中间每个点处的斜率
    Vector<data_type> derivative(sz);
    for(size_type i = 1; i < sz - 1; ++i)
    {
        if((y[i] > y[i+1] && y[i] > y[i-1])
                || (y[i] < y[i+1] && y[i] < y[i-1]))
        {
            derivative[i] = 0;
            continue;
        }

        double deltaY1 = y[i] - y[i - 1];
        double deltaY2 = y[i+1] - y[i];
        double prevRatio = deltaY1 / (x[i] - x[i - 1]);
        double backRatio = deltaY2 / (x[i + 1] - x[i]);
        double deltaY = deltaY1 + deltaY2;
        // 非极值点,导数应该起到让通过该点的曲线能够单调的平滑过渡到极值点,这里存在优化空间
        if(fuzzyIsNull(deltaY1) || fuzzyIsNull(deltaY2))
        {
            derivative[i] = 0;
        }
        else
        {
            derivative[i] = prevRatio * (deltaY2 / deltaY) + backRatio * (deltaY1 / deltaY);
        }
    }

    // 求第一个点处的斜率
    double ratio0 = (y[0] - y[1]) / (x[0] - x[1]);
    if(fuzzyIsNull(derivative[1]))
    {
        derivative[0] = ratio0 * 2;  // 后一个点是极值点,曲线在第一段应该更陡
    }
    else
    {
        derivative[0] = ratio0 / 2;  // 后一个点不是极值点,曲线在第一段应该趋于平缓
    }

    // 求取最后一个点处的斜率
    const size_type iLast = sz - 1;
    double ratioN = (y[iLast] - y[iLast - 1]) / (x[iLast] - x[iLast - 1]);
    if(derivative[iLast-1] < -1 || derivative[iLast-1] > 1)
    {
        derivative[iLast] = ratioN / 2;    // 倒数第二个点处曲线较平滑,最后一段也应该趋于平缓
    }
    else
    {
        derivative[iLast] = ratioN * 2;    // 倒数第二个点处曲线较陡,最后一段也应该保持这个趋势
    }

    const size_type n = interpNum;
    const size_type M = interpNum + 1;
    const size_type retSz = (x.size() - 1) * interpNum + x.size();
    Vector<data_type> retY(retSz);
    Vector<data_type> retX(retSz);
    for(size_type k = 0; k < sz - 1; ++k)
    {
        retY[k * M] = y[k];
        retX[k * M] = x[k];

        for(size_type j = 1; j <= n; ++j)
        {
            auto currX = x[k] + (x[k+1] - x[k]) * j / (n + 1);
            auto div1 = (currX - x[k+1]) / (x[k] - x[k+1]);
            auto div2 = (currX - x[k]) / (x[k+1] - x[k]);

            auto currY = div1 * div1 * (1 + 2 * div2) * y[k]
                    + div2 * div2 * (1 + 2 * div1) * y[k+1]
                    + div1 * div1 * (currX - x[k]) * derivative[k]
                    + div2 * div2 * (currX - x[k+1]) * derivative[k+1];

            retY[k * M + j] = currY;
            retX[k * M + j] = currX;
        }
    }

    retY.back() = y.back();

    return std::move(std::make_pair(std::move(retX), std::move(retY)));
}


Interpolation::Vector<Interpolation::data_type> SplineInterp::interp(const Vector<data_type> &data,
                                                                     unsigned int interpNum) noexcept(false)
{
    const size_type sz = data.size();
    Vector<data_type> xData(sz);
    for(size_type i = 0; i < sz; ++i)
    {
        xData[i] = static_cast<data_type>(i * 10);
    }

    return std::move(interp(xData, data, interpNum).second);
}

std::pair<Interpolation::Vector<Interpolation::data_type>, Interpolation::Vector<Interpolation::data_type>>
SplineInterp::interp(const Vector<data_type> &x,
                     const Vector<data_type> &y,
                     unsigned int interpNum) noexcept(false)
{
    if(!setDatas(x, y))
    {
        return std::make_pair(Vector<data_type>(), Vector<data_type>());
    }

    const size_type sz = (x.size() - 1) * interpNum + x.size();
    const size_type M = interpNum + 1;

    Vector<data_type> xDatas(sz);
    Vector<data_type> yDatas(sz);
    for(size_type i = 0; i < x.size() - 1; ++i)
    {
        xDatas[M*i] = x[i];
        yDatas[M*i] = y[i];

        data_type delta = (x[i+1] - x[i]) / M;
        data_type xVal = 0;
        for(size_type j = 1; j <= interpNum; ++j)
        {
            xVal = x[i] + delta * j;
            xDatas[M*i+j] = xVal;
            yDatas[M*i+j] = value(xVal);
        }
    }

    xDatas.back() = x.back();
    yDatas.back() = y.back();

    return std::move(std::make_pair(std::move(xDatas), std::move(yDatas)));
}

bool SplineInterp::setDatas(const Vector<data_type> &x, const Vector<data_type> &y) noexcept(false)
{
    if(x.size() != y.size())
    {
        throw std::invalid_argument("[SplineInterp::setDatas] x.size() != y.size();");
    }

    if(x.size() <= 2)
    {
        reset();
        return false;
    }

    const size_type sz = x.size();
    m_x = x;
    m_y = y;

    m_a.resize(sz - 1);
    m_b.resize(sz - 1);
    m_c.resize(sz - 1);

    bool ok = buildSpline(x, y);

    if(!ok)
    {
        reset();
    }

    return ok;
}

Interpolation::data_type SplineInterp::value(data_type xVal) const
{
    if(m_a.size() == 0)
    {
        return 0.0;
    }

    const size_type i = lookup(xVal);

    const data_type delta = xVal - m_x[i];

    return ((((m_a[i] * delta) + m_b[i])
             * delta + m_c[i]) * delta + m_y[i]);
}

bool SplineInterp::isValid() const
{
    return m_a.size() != 0;
}

void SplineInterp::reset()
{
    m_a.resize(0);
    m_b.resize(0);
    m_c.resize(0);

    m_x.resize(0);
    m_y.resize(0);
}

bool SplineInterp::buildSpline(const Vector<data_type> &x, const Vector<data_type> &y)
{
    const size_type sz = x.size();

    const data_type *px = x.data();
    const data_type *py = y.data();

    data_type *a = m_a.data();
    data_type *b = m_b.data();
    data_type *c = m_c.data();

    // 判断x值是否递增
    Vector<data_type> h(sz - 1);
    for(size_type i = 0; i < sz - 1; ++i)
    {
        h[i] = px[i+1] - px[i];
        if(h[i] <= 0)
        {
            return false;
        }
    }

    Vector<data_type> d(sz - 1);
    data_type dy1 = (py[1] - py[0]) / h[0];
    for(size_type i = 1; i < sz - 1; ++i)
    {
        b[i] = c[i] = h[i];
        a[i] = 2.0 * (h[i-1] + h[i]);

        const data_type dy2 = (py[i+1] - py[i]) / h[i];
        d[i] = 6.0 * (dy1 - dy2);
        dy1 = dy2;
    }

    //
    // solve it
    //

    // L-U Factorization
    for(size_type i = 1; i < sz - 2; ++i)
    {
        c[i] /= a[i];
        a[i+1] -= b[i] * c[i];
    }

    // forward elimination
    Vector<data_type> s(sz);
    s[1] = d[1];
    for(size_type i = 2; i < sz - 1; ++i)
    {
        s[i] = d[i] - c[i-1] * s[i-1];
    }

    // backward elimination
    s[sz - 2] = - s[sz - 2] / a[sz - 2];
    for(size_type i = sz - 3; i > 0; --i)
    {
        s[i] = -(s[i] + b[i] * s[i+1]) / a[i];
    }
    s[sz - 1] = s[0] = 0.0;

    //
    // Finally, determine the spline coefficients
    //
    for(size_type i = 0; i < sz - 1; ++i)
    {
        a[i] = (s[i+1] - s[i]) / (6.0 * h[i]);
        b[i] = 0.5 * s[i];
        c[i] = (py[i+1] - py[i]) / h[i] - (s[i+1] + 2.0 * s[i]) * h[i] / 6.0;
    }

    return true;
}

Interpolation::size_type SplineInterp::lookup(data_type xVal) const
{
    size_type i1 = 0;
    const size_type sz = m_x.size();

    if(xVal <= m_x[0])
    {
        i1 = 0;
    }
    else if(xVal >= m_x[sz - 2])
    {
        i1 = sz - 2;
    }
    else
    {
        i1 = 0;
        size_type i2 = sz - 2;
        size_type i3 = 0;

        while(i2 - i1 > 1)
        {
            i3 = i1 + ((i2 - i1) >> 1);

            if(m_x[i3] > xVal)
            {
                i2 = i3;
            }
            else
            {
                i1 = i3;
            }
        }
    }

    return i1;

 interpolation.h

#ifndef INTERPOLATION_H
#define INTERPOLATION_H

#include <vector>
#include <cmath>


#ifdef _MSC_FULL_VER
    #if _MSC_VER < 1600
        #error "should use C++11 implementation"
    #else
        #pragma execution_character_set("utf-8")
    #endif
#elif __cplusplus < 201103L
    #error "should use C++11 implementation"
#endif

class Interpolation
{
public:
    using data_type = double;
    template<typename T> using Vector = std::vector<T>;
    using size_type = Vector<data_type>::size_type;

    Interpolation() = default;
    virtual ~Interpolation() = default;

    // 定义接口
    /// data: 需要插值的原始数据
    /// interNum: 每相邻两个点之间插入数据的个数
    virtual Vector<data_type> interp(const Vector<data_type> &data, unsigned int interNum) noexcept(false) = 0;
};

// 正弦插值
class SineInterp : public Interpolation
{
public:

    Vector<data_type> interp(const Vector<data_type> &data, unsigned int interpNum) noexcept(false) override;
};

// 三次埃尔米特插值
class CubicHermiteInterp : public Interpolation
{
public:

    /// x坐标等间隔时并且不关心x坐标,可调用此函数
    Vector<data_type> interp(const Vector<data_type> &data, unsigned int interNum) noexcept(false) override;

    /// x坐标非等间隔或同时需要x坐标, 调用此函数
    /// 返回值: pair--first为x坐标向量, second为y坐标向量
    std::pair<Vector<data_type>, Vector<data_type>>
    interp(const Vector<data_type> &x,
           const Vector<data_type> &y,
           unsigned int interpNum) noexcept(false);
};

// 三次样条曲线插值
class SplineInterp : public Interpolation
{
public:
    /// x坐标等间隔时并且不关心x坐标,可调用此函数
    Vector<data_type> interp(const Vector<data_type> &data, unsigned int interpNum)noexcept(false) override;

    /// x坐标非等间隔或同时需要x坐标, 调用此函数
    /// 返回值: pair--first为x坐标向量, second为y坐标向量
    std::pair<Vector<data_type>, Vector<data_type>>
    interp(const Vector<data_type> &x,
           const Vector<data_type> &y,
           unsigned int interpNum) noexcept(false);

protected:
    bool setDatas(const Vector<data_type> &x, const Vector<data_type> &y) noexcept(false);

    void reset();

    bool isValid() const;

    data_type value(data_type xVal) const;

    bool buildSpline(const Vector<data_type> &x, const Vector<data_type> &y);

    size_type lookup(data_type xVal) const;

private:
    // 系数
    Vector<data_type> m_a;
    Vector<data_type> m_b;
    Vector<data_type> m_c;

    // 控制点
    Vector<data_type> m_x;
    Vector<data_type> m_y;
};


#endif // INTERPOLATION_H

 main.cpp

#include <iostream>
#include <vector>
#include "interpolation.h"

using namespace std;

int main()
{
    SineInterp sine;
    CubicHermiteInterp cubic;
    SplineInterp spline;

    vector<double> y = {23, 93, 33, 46, 80, 14, 96, 42, 16};

    auto y1 = sine.interp(y, 10);
    auto y2 = cubic.interp(y, 10);
    auto y3 = spline.interp(y, 10);

    auto print = [](const vector<double> &y)
    {
        for(auto d : y)
        {
            cout << d << "\t";
        }
        cout << endl;
    };

    cout << "sine interp data is: " << y1.size() << endl;
    print(y1);

    cout << "cubic interp data is: " << y2.size() << endl;
    print(y2);

    cout << "spline interp data is: " << y3.size() << endl;
    print(y3);

    return 0;
}

输出结果

fang@fang-virtual-machine:~/桌面/2Dinterpolation-master/2Dinterpolation-master$ g++ main.cpp interpolation.cpp -o main
fang@fang-virtual-machine:~/桌面/2Dinterpolation-master/2Dinterpolation-master$ ./main
sine interp data is: 89
23	29.0578	35.7788	43.0315	50.64	58.3885	66.0278	73.2861	79.8806	85.5322	89.9806	93	94.4136	94.107292.0397	88.2502	82.8613	76.0776	68.1796	59.5132	50.4743	41.4906	33	25.428	19.1647	14.5422	11.8158	11.14712.5929	16.1004	21.5057	28.5419	36.8505	46	55.508	64.8675	73.574	81.1542	87.1923	91.3542	93.4068	93.232190.8347	86.3424	80	72.1559	63.2431	53.7549	44.2178	35.1611	27.0881	20.4473	15.6073	12.8371	12.2907	14	17.8734	23.7023	31.1739	39.89	49.3898	59.177	68.7472	77.6162	85.346	91.5678	96	98.4613	98.877	97.279593.8021	88.6671	82.1699	74.6581	66.51	58.1105	49.8293	42	34.9028	28.7516	23.6853	19.7649	16.9756	15.232914.3939	14.2712	14.6488	15.2991	16
cubic interp data is: 89
23	35.1488	46.1405	55.9752	64.6529	72.1736	78.5372	83.7438	87.7934	90.686	92.4215	93	91.6026	87.770882.0458	74.9684	67.0796	58.9204	51.0316	43.9542	38.2292	34.3974	33	33.1615	33.6243	34.356	35.3242	36.496437.8403	39.3235	40.9134	42.5778	44.2841	46	48.205	51.2524	54.9205	58.9876	63.2318	67.4315	71.3648	74.810177.5455	79.3494	80	78.4628	74.2479	67.9504	60.1653	51.4876	42.5124	33.8347	26.0496	19.7521	15.5372	14	15.9098	21.1465	28.9707	38.6431	49.4245	60.5755	71.3569	81.0293	88.8535	94.0902	96	95.006	92.2431	88.04	82.7252	76.6273	70.0751	63.3971	56.922	50.9784	45.8948	42	38.855	35.8135	32.8932	30.1115	27.4861	25.034622.7745	20.7234	18.8989	17.3186	16
spline interp data is: 89
23	32.8706	42.5659	51.9104	60.7289	68.846	76.0864	82.2747	87.2356	90.7936	92.7736	93	91.3753	88.112583.5022	77.8353	71.4025	64.4943	57.4017	50.4152	43.8256	37.9236	33	29.2849	26.7664	25.3721	25.0297	25.666627.2105	29.5889	32.7295	36.5598	41.0075	46	51.4378	57.1127	62.7891	68.2316	73.2047	77.473	80.8009	82.95383.6939	82.788	80	75.2117	68.7745	61.1574	52.8291	44.2584	35.9142	28.2654	21.7807	16.9291	14.1792	14	16.6952	21.9079	29.1163	37.7985	47.4326	57.4967	67.4688	76.8271	85.0497	91.6146	96	97.8274	97.2918	94.731990.4862	84.8932	78.2914	71.0194	63.4157	55.8189	48.5675	42	36.3831	31.6956	27.8448	24.7375	22.2809	20.382118.9479	17.8856	17.1022	16.5046	16

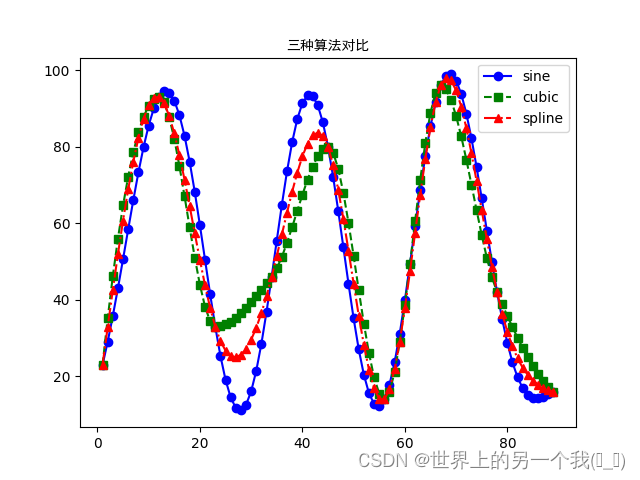

 绘制图形

import matplotlib.pyplot as plt
from matplotlib.font_manager import FontProperties

# 输入数据
x = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, \
     15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, \
     27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, \
     41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, \
     58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, \
     75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89]  # x轴数据

y1 = [23, 29.0578, 35.7788, 43.0315, 50.64, 58.3885, 66.0278, 73.2861, 79.8806, 85.5322,89.9806,93,\
     94.4136, 94.1072, 92.0397, 88.2502,82.8613,76.0776,68.1796,59.5132,50.4743,41.4906,\
     33, 25.428, 19.1647, 14.5422,11.8158,11.147,12.5929,16.1004,21.5057,28.5419,36.8505,46,\
     55.508, 64.8675, 73.574, 81.1542,87.1923,91.3542,93.4068,93.2321,90.8347,86.3424,\
     80, 72.1559, 63.2431, 53.7549, 44.2178,35.1611,27.0881,20.4473,15.6073,12.8371,12.2907,14,\
     17.8734, 23.7023,31.1739, 39.89,49.3898,59.177,68.7472,77.6162,85.346,91.5678,96,\
     98.4613,98.877,97.2795,93.8021,88.6671,82.1699,74.6581,66.51,58.1105,49.8293,42,\
     34.9028,28.7516,23.6853,19.7649,16.9756,15.2329,14.3939,14.2712,14.6488,15.2991,16]  # y轴数据
y2 = [23,35.1488,46.1405,55.9752,64.6529,72.1736,78.5372,83.7438,87.7934,90.686,92.4215,\
      93,91.6026,87.7708,82.0458,74.9684,67.0796,58.9204,51.0316,43.9542,38.2292,34.3974,\
      33,33.1615,33.6243,34.356, 35.3242,36.4964,37.8403,39.3235,40.9134,42.5778,44.2841,\
      46,48.205,51.2524, 54.9205, 58.9876, 63.2318,67.4315,71.3648,74.8101,77.5455,79.3494,\
      80,78.4628,74.2479, 67.9504,60.1653,51.4876,42.5124,33.8347,26.0496,19.7521,15.5372,\
      14,15.9098,21.1465, 28.9707,38.6431, 49.4245,60.5755,71.3569,81.0293,88.8535,94.0902,\
      96,95.006,92.2431, 88.04, 82.7252,76.6273,70.0751,63.3971,56.922,50.9784,45.8948,42,\
      38.855,35.8135,32.8932,30.1115,27.4861,25.0346,22.7745,20.7234,18.8989,17.3186,16]
y3 = [23, 32.8706, 42.5659, 51.9104, 60.7289, 68.846, 76.0864, 82.2747, 87.2356, \
      90.7936, 92.7736, 93, 91.3753, 88.1125, 83.5022, 77.8353, 71.4025, 64.4943, \
      57.4017, 50.4152, 43.8256, 37.9236, 33, 29.2849, 26.7664, 25.3721, 25.0297, \
      25.6666, 27.2105, 29.5889, 32.7295, 36.5598, 41.0075, 46, 51.4378, 57.1127, \
      62.7891, 68.2316, 73.2047, 77.473, 80.8009, 82.953, 83.6939, 82.788, \
      80, 75.2117, 68.7745, 61.1574, 52.8291, 44.2584, 35.9142, 28.2654, 21.7807,\
      16.9291, 14.1792, 14, 16.6952, 21.9079, 29.1163, 37.7985, 47.4326, 57.4967,\
      67.4688, 76.8271, 85.0497, 91.6146, 96, 97.8274, 97.2918, 94.7319, 90.4862, \
      84.8932, 78.2914, 71.0194, 63.4157, 55.8189, 48.5675, 42, 36.3831, 31.6956, \
      27.8448, 24.7375, 22.2809, 20.3821, 18.9479, 17.8856, 17.1022, 16.5046, 16]

# 设置字体为中文字体，例如SimHei（宋体）或者MS Gothic（等线）
font = FontProperties(family='SimHei')

# 创建折线图
plt.plot(x, y1, marker='o', linestyle='-', color='blue', label='sine')
plt.plot(x, y2, marker='s', linestyle='--', color='green', label='cubic')
plt.plot(x, y3, marker='^', linestyle='-.', color='red', label='spline')

# 添加标题和标签
plt.title('三种算法对比', fontproperties=font)
# plt.xlabel('X轴标签')
# plt.ylabel('Y轴标签')

# 添加图例
plt.legend()

# 显示图形
plt.show()

结果图
