组成图

import numpy as np
import pandas  as pd
import matplotlib.pyplot as plt
import matplotlib as mpl
import seaborn as sns
import warnings;warnings.filterwarnings(action='once')
%%cmd
pip install pywaffle
from pywaffle import Waffle
data = {'Democtatic':48,'Republican':46,'Libertarian':3}
fig = plt.figure(figsize=(8,3),
                 FigureClass=Waffle, #画布类型
                 rows=5,
                 icons = 'child',
                 icon_size = 20,
                 values=data,
                 colors=("#232066","#983d3d","#dcb732"),
                 legend={'loc':'upper right', #控制图例在的位置，左上角，左下角，右上角，右下角
                        'bbox_to_anchor':(1.5,1)}#当存在这个元组是，图例的位置是相对于这个点来定位的
)
df = pd.read_csv("C:/Users/GYX/Desktop/mpg_ggplot2.csv")
df.groupby("class").size().reset_index()
df_class = df.groupby("class").size().reset_index(name="counts")
n_categories = df_class.shape[0]
#获取颜色
colors = [plt.cm.inferno_r(i/float(n_categories)) for i in range (n_categories)]
#plt.cm.inferno_r()函数中输入任意一个小数，几个可到邮给颜色
cla = [n[1] for n in df_class[["class","counts"]].itertuples()]
df = pd.read_csv("C:/Users/GYX/Desktop/mpg_ggplot2.csv")
#按车辆类型
df_class = df.groupby('class').size().reset_index(name='class_counts')
n_categories = df_class.shape[0]
#colors_class = [plt.cm.Set3(i/float(n_categories)) for i in range(n_categories)]
colors_class = [plt.cm.nipy_spectral(i/float(n_categories)) for i in range(n_categories)] ## plt.cm.nipy_spectral()里的颜色都比较深
label_class = [n[1] for n in df_class[['class','class_counts']].itertuples()]

#按气缸数

df_cyl = df.groupby('cyl').size().reset_index(name='cyl_counts')
n_categories = df_cyl.shape[0]
#colors_cyl = [plt.cm.Spectral(i/float(n_categories)) for i in range(n_categories)]
colors_cyl = [plt.cm.nipy_spectral(i/float(n_categories)) for i in range(n_categories)]
label_cyl = [n[1] for n in df_cyl[['cyl','cyl_counts']].itertuples()]

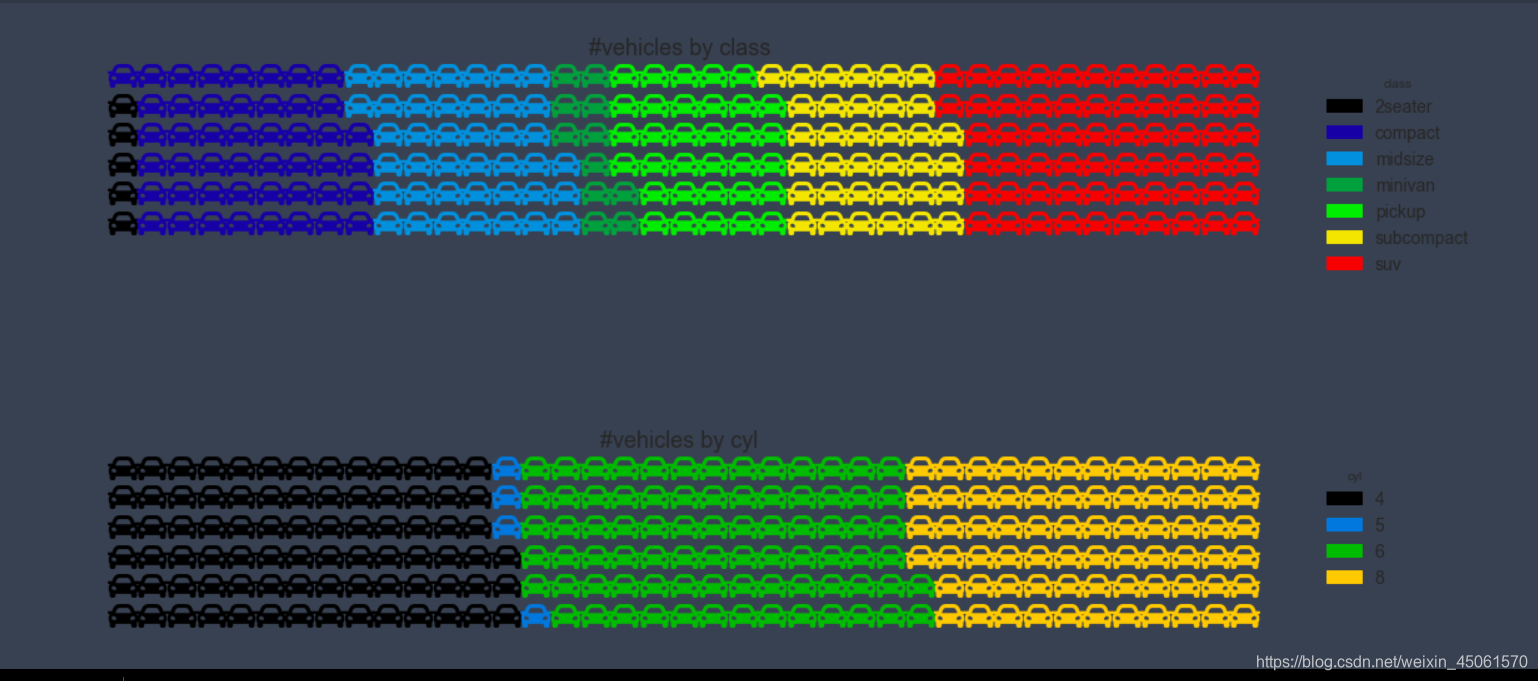

fig = plt.figure(
   FigureClass = Waffle,#绘制华夫饼
    plots={ #绘制多个图像
        '211': #3 表示3行，1 表示1列， 1 表示这是第一个
        {
            'values':df_class['class_counts'],#数据集
            'labels':label_class,
            'legend':{'loc':'upper left','bbox_to_anchor':(1.05,1),'fontsize':14,'title':'class'},
            'colors':colors_class,
            'title':{'label':"#vehicles by class",'loc':'center','fontsize':18}
        },
        '212':
        {
           'values':df_cyl['cyl_counts'],
            'labels':label_cyl,
            'legend':{'loc':'upper left','bbox_to_anchor':(1.05,1),'fontsize':14,'title':'cyl'},#这里的title是图例的title
            'colors':colors_cyl,
             'title':{'label':"#vehicles by cyl",'loc':'center','fontsize':18}
        },
    },
    rows = 6,
    figsize = (16,14),
    icons = 'car',
    icon_size=25,
)
