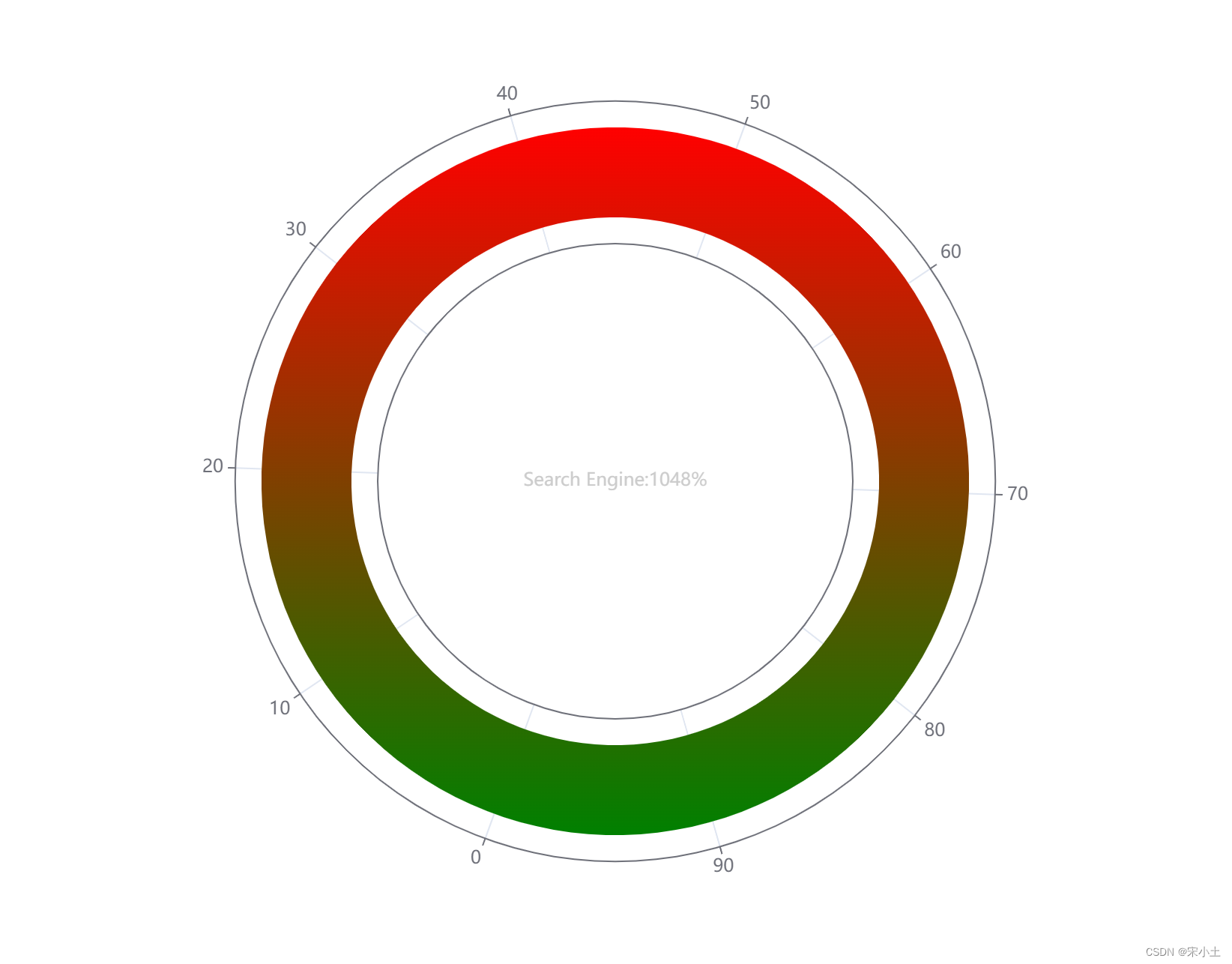

Echarts环形图demo

---

前言

环形图demo，只是自己留存写过的demo，方便后期项目又类似的时候视觉还原会更快

option = {
  tooltip: {
    show: true,
    // position: 'right',
    trigger: 'item',
    formatter: `{b}:{c}%`
  },
  graphic: {
    elements: [
      {
        type: 'image',
        style: {
          // image: require("../../assets/leader/one.png"),//这里放的是圆圈中的图片
          width: 35,
          height: 35
        },
        left: 'center',
        top: 'center'
      }
    ]
  },
  polar: {
    radius: ['50%', '80%'],
    center: ['50%', '50%']
  },
  angleAxis: {
    max: 100,
    show: true,
    startAngle: 250
  },
  radiusAxis: {
    type: 'category',
    show: true,
    axisLabel: {
      show: false
    },
    axisLine: {
      show: false
    },
    axisTick: {
      show: false
    }
  },
  series: [
    {
      type: 'bar',
      roundCap: true,
      barWidth: 60,
      showBackground: true,
      backgroundStyle: {
        color: 'rgba(255, 255, 255)'
      },
      data: [{ value: 1048, name: 'Search Engine' }],
      coordinateSystem: 'polar',
      itemStyle: {
        normal: {
          color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
            {
              offset: 0,
              color: 'red'
            },
            {
              offset: 1,
              color: 'green'
            }
          ])
        }
      },
      label: {
        show: true,
        formatter: '{b}:{c}%'
      }
    }
  ]
};
