本文介绍了如何使用PyTorch库加载预训练的VGG19模型，并创建VGG19_out类来提取不同层级的特征。作者还展示了如何实现Perceptual_loss模块，用于计算图像的特征相似度，通过MSE Loss进行权重调整。核心内容涉及深度学习模型应用和特征提取技术。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

import torch
import torch.nn as nn
import numpy as np
from torchvision import models
import os, cv2


device = torch.device("cuda" if torch.cuda.is_available() else "cpu")



class Vgg19_out(nn.Module):
    def __init__(self, requires_grad=False):
        super(Vgg19_out, self).__init__()
        vgg = models.vgg19(pretrained=False).to(device)  # .cuda()
        vgg.load_state_dict(torch.load(r'E:\lianxi\vgg19-dcbb9e9d.pth'))
        vgg.eval()
        vgg_pretrained_features = vgg.features
        # print('vgg_pretrained:',vgg_pretrained_features)

        self.requires_grad = requires_grad
        self.slice1 = torch.nn.Sequential()
        self.slice2 = torch.nn.Sequential()
        self.slice3 = torch.nn.Sequential()
        self.slice4 = torch.nn.Sequential()
        self.slice5 = torch.nn.Sequential()
        for x in range(4):
            self.slice1.add_module(str(x), vgg_pretrained_features[x])
        # print('0-3:',self.slice1)
        for x in range(4, 9):
            self.slice2.add_module(str(x), vgg_pretrained_features[x])
        # print('4-8:', self.slice2)
        for x in range(9, 14):
            self.slice3.add_module(str(x), vgg_pretrained_features[x])
        # print('9-13:', self.slice3)
        for x in range(14, 23):
            self.slice4.add_module(str(x), vgg_pretrained_features[x])
        # print('14-22:', self.slice4)
        for x in range(23, 32):
            self.slice5.add_module(str(x), vgg_pretrained_features[x])
        # print('23-31:', self.slice5)
        if not self.requires_grad:
            for param in self.parameters():
                param.requires_grad = False

    def forward(self, X):
        h_relu1 = self.slice1(X)
        h_relu2 = self.slice2(h_relu1)
        h_relu3 = self.slice3(h_relu2)
        h_relu4 = self.slice4(h_relu3)
        h_relu5 = self.slice5(h_relu4)
        out = [h_relu1, h_relu2, h_relu3, h_relu4, h_relu5]
        return out

class Perceptual_loss(nn.Module):
    def __init__(self):
        super(Perceptual_loss, self).__init__()
        self.vgg = Vgg19_out().to(device)
        self.criterion = nn.MSELoss()
        self.weights = [1.0/2.6, 1.0/16, 1.0/3.7, 1.0/5.6, 1.0]# 权重

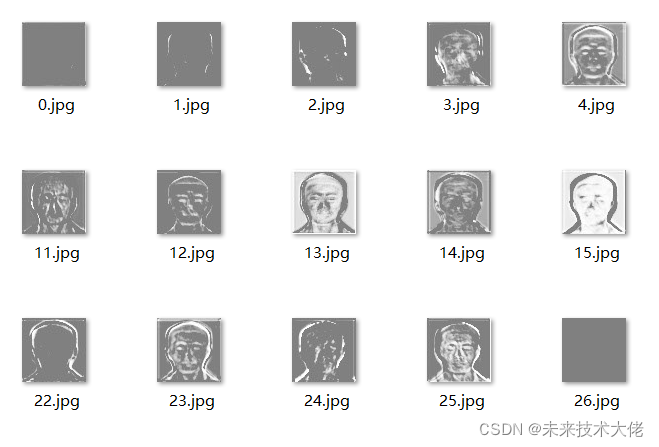

    def forward(self,x):  #显示x_vgg[0]的64个特征图
         x_vgg = self.vgg(x) （x-vgg[0]->(1,64,256,256)）
         for i in range(x_vgg[2].shape[1]):
             fea = x_vgg[2][:,i,:,:]
             fea = fea.view(fea.shape[1],fea.shape[2])
             fea = fea.data.cpu().numpy()
             # use sigmod to [0,1]
             fea = 1.0/(1 + np.exp(-1 * fea))
             # to [0,255]
             fea = np.round(255*fea)
             cv2.imwrite('./feature_save5_2/' + str(i) + '.jpg', fea)

if __name__ == "__main__":
    fea_save_path = "./feature_save5_2/" #特征图保存地址
    if not os.path.exists(fea_save_path):
        os.mkdir(fea_save_path)
    img = np.array(cv2.imread(r"E:\lianxi\Laser_date\0357_fake_B.png")) / 255.0
    img = img.transpose((2, 0, 1))
    # print(img.shape)
    img_torch = torch.unsqueeze(torch.from_numpy(img), 0)
    img_torch = torch.as_tensor(img_torch, dtype=torch.float32).to(device)
    perceptual_loss = Perceptual_loss()
    fea_img = perceptual_loss(img_torch)
