（三）Spring Security （spring-boot-starter-security）应用详解

如何通过Spring Boot开发Spring Security应用，Spring Boot提供spring-boot-starter-security用于开发Spring Security应用。

创建maven工程

创建maven工程 security-spring-boot，工程结构如下：

引入以下依赖：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.cyj</groupId>
    <artifactId>security-spring-boot</artifactId>
    <version>1.0-SNAPSHOT</version>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <dependencies>
        <!--spring boot web 依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--spring security依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <!--lombok 依赖-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.0</version>
        </dependency>
        <!--spring boot test 依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>security-spring-boot</finalName>
        <pluginManagement>
            <plugins>
                <plugin>
                    <groupId>org.apache.tomcat.maven</groupId>
                    <artifactId>tomcat7-maven-plugin</artifactId>
                    <version>2.2</version>
                </plugin>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <configuration>
                        <source>1.8</source>
                        <target>1.8</target>
                    </configuration>
                </plugin>

                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <configuration>
                        <encoding>utf-8</encoding>
                        <useDefaultDelimiters>true</useDefaultDelimiters>
                        <resources>
                            <resource>
                                <directory>src/main/resources</directory>
                                <filtering>true</filtering>
                                <includes>
                                    <include>**/*</include>
                                </includes>
                            </resource>
                            <resource>
                                <directory>src/main/java</directory>
                                <includes>
                                    <include>**/*.xml</include>
                                </includes>
                            </resource>
                        </resources>
                    </configuration>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>

</project>

spring 容器配置

SpringBoot工程启动会自动扫描启动类所在包下的所有Bean，加载到spring容器。
（一）Spring Boot配置文件
在resources下添加application.properties，内容如下：

server.port=8080
server.servlet.context‐path=/security‐spring-boot
spring.application.name = security‐spring-boot

（二）Spring Boot 启动类

package com.cyj.security.springboot;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @program: Spring-Security-OAuth2
 * @Description:
 * @Author C_Y_J
 * @create: 2021-01-28 20:11
 **/
@SpringBootApplication
public class SecuritySpringBootApp {
    public static void main(String[] args) {
        SpringApplication.run(SecuritySpringBootApp.class, args);
    }
}

安全配置

由于Spring boot starter自动装配机制，这里无需使用@EnableWebSecurity，WebSecurityConfig内容如下

package com.cyj.security.springboot.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.password.NoOpPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;

/**
 * @program: Spring-Security-OAuth2
 * @Description:
 * @Author C_Y_J
 * @create: 2021-01-28 20:27
 **/
@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {
    /**
     * 定义用户信息服务（查询用户信息）
     *
     * @return
     */
    @Bean
    @Override
    public UserDetailsService userDetailsService() {
        //暂时使用内存查询
        InMemoryUserDetailsManager manager = new InMemoryUserDetailsManager();
        manager.createUser(User.withUsername("zhangsan").password("123").authorities("p1").build());
        manager.createUser(User.withUsername("lisi").password("456").authorities("p2").build());
        return manager;
    }

    /**
     * 密码编码器
     *
     * @return
     */
    @Bean
    public PasswordEncoder passwordEncoder() {
        return NoOpPasswordEncoder.getInstance();
    }

    /**
     * 安全拦截机制（最重要）
     *
     * @param http
     * @throws Exception
     */
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .authorizeRequests()
                .antMatchers("/r/r1").hasAuthority("p1")
                .antMatchers("/r/r2").hasAuthority("p2")
                //所有/r/**的请求必须认证通过
                .antMatchers("/r/**").authenticated()
                //除了/r/**，其它的请求可以访问
                .anyRequest().permitAll();
        http
                //允许表单登录
                .formLogin()
                //自定义登录成功的页面地址
                .successForwardUrl("/login-success");

    }
}

controller

package com.cyj.security.springboot.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @program: Spring-Security-OAuth2
 * @Description:
 * @Author C_Y_J
 * @create: 2021-01-28 20:41
 **/
@RestController
public class LoginController {
    @RequestMapping(value = "/login-success", produces = {"text/plain;charset=utf-8"})
    public String loginSuccess() {
        return " 登录成功";
    }

    @GetMapping(value = "/r/r1", produces = {"text/plain;charset=UTF-8"})
    public String r1() {
        return " 访问资源1";
    }

    @GetMapping(value = "/r/r2", produces = {"text/plain;charset=UTF-8"})
    public String r2() {
        return " 访问资源2";
    }

}

测试

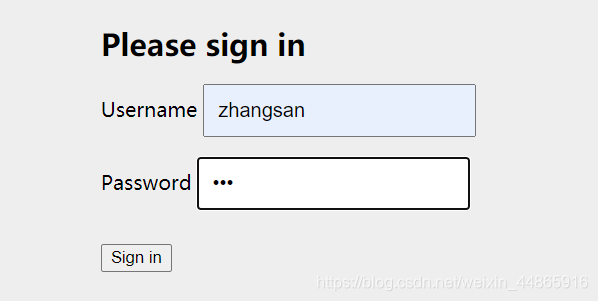

访问 http://localhost:8080/security-spring-boot/login

输入正确的账号和密码，登录成功
访问/r/r1和/r/r2，有权限时则正常访问，否则返回403（拒绝访问）

后续文章是讲解工作原理

讲完工作原理后，我将在目前的工程基础上完善：数据库查询用户，讲解会话，会话控制，退出功能
