文章目录

Window Assigner
窗口触发器 Trigger
Evictor
Tumbling Windows（滚动窗口）
Sliding Windows（滑动窗口）

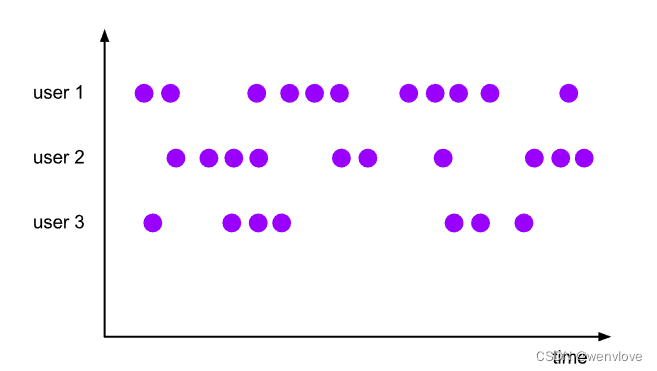

Global Windows

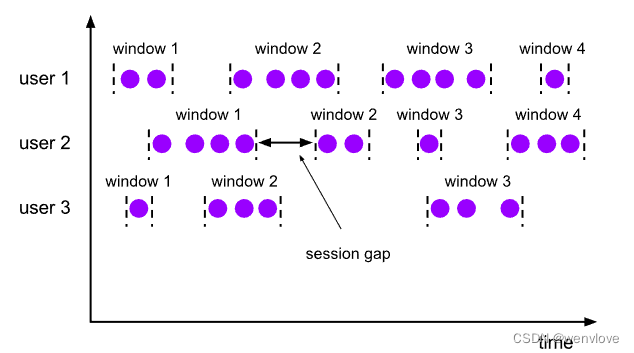

Session Windows

Window 是 Flink 处理无限流的核心，Window 将无限事件流划分为有限大小的桶，基于这个桶我们可以做各种计算。
窗口的几要术：
1.窗口分配器 window assigner
2.触发器 trigger
3.驱逐器 evictor

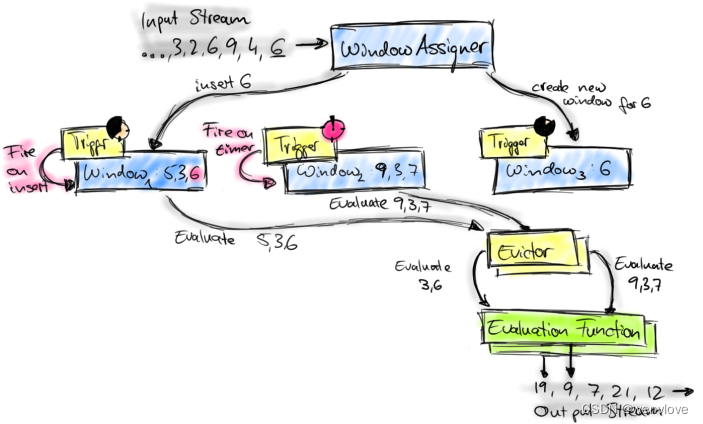

在这里插入图片描述
每条进入窗口的元素都会交由 WindowAssigner 处理，WindowAssigner 会决定元素被分到那个或那些窗口，窗口只是一个 ID 标识，并不存储窗口中的元素，实际存储数据的是 state。
每个窗口都有一个 Trigger 用来决定窗口何时被触发或清理。
窗口触发后，会经过 Evictor 过滤。
过滤后的元素发送到下游 function 计算

Window Assigner

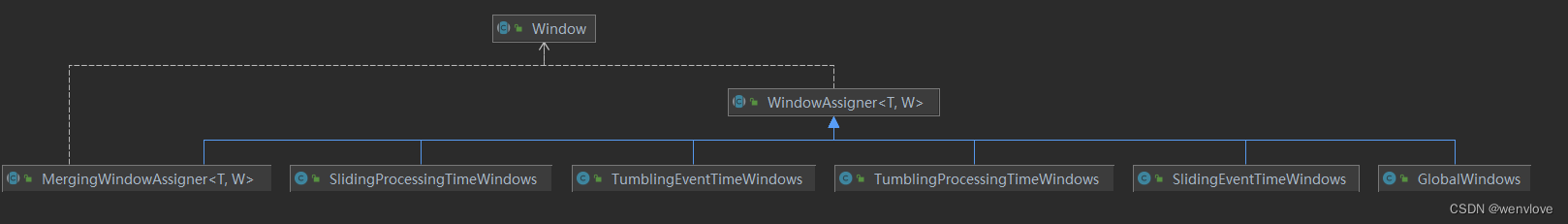

在这里插入图片描述
窗口分配器主要分为三类：
1.全局窗口分配器
2.滚动窗口分配器
3.滑动窗口分配器
WindowAssigner 主要功能
窗口分配方法 assignWindows
窗口触发方法 getDefaultTrigger
窗口分配器上下文信息 WindowAssignerContext

窗口触发器 Trigger

org.apache.flink.streaming.api.windowing.triggers.TriggerResult
CONTINUE 不做任何事情
FIRE 触发 window
PURGE 清空整个 window 的元素并销毁窗口
FIRE_AND_PURGE 触发窗口，然后销毁窗口

Evictor

Evictor：可以译为“驱逐者”。在Trigger触发之后，在窗口被处理之前，Evictor（如果有Evictor的话）会用来剔除窗口中不需要的元素，相当于一个filte

Tumbling Windows（滚动窗口）

滚动窗口分配器将每个元素分配给指定窗口大小的窗口。翻滚窗口具有固定大小并且不会重叠。例如，如果指定一个大小为 5 分钟的滚动窗口，则将评估当前窗口并每五分钟启动一个新窗口，如下图所示。

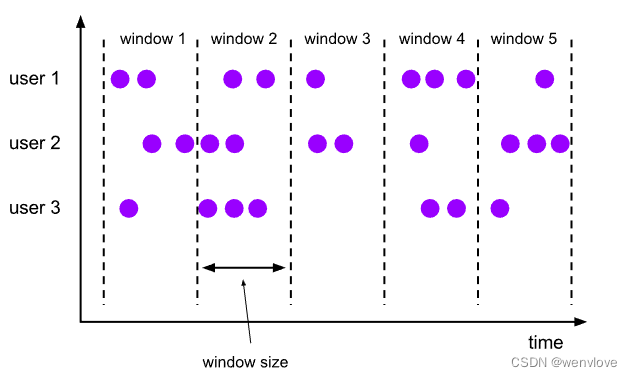

在这里插入图片描述

public class TumblingWindowsBaseEventTime {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);


        /*
            Tumbling Windows 滚动窗口

                1.窗口不重叠
                2.触发窗口计算，并销毁窗口中的元素

         */


        // 从 socket 读取数据源
        DataStreamSource<String> socketTextStream = env.socketTextStream("10.199.241.213", 9099);

        // 将数据源转换成 Tuple2 结构
        SingleOutputStreamOperator<Tuple2<String, Long>> mapStream = socketTextStream.map(new MapFunction<String, Tuple2<String, Long>>() {
            @Override
            public Tuple2<String, Long> map(String val) throws Exception {
                String[] elems = val.split(" ");
                return Tuple2.of(elems[0], Long.parseLong(elems[1]) * 1000L);
            }
        });

        // 抽取 watermark
        SingleOutputStreamOperator<Tuple2<String, Long>> withWatermarkStream = mapStream.assignTimestampsAndWatermarks(
                WatermarkStrategy
                        .<Tuple2<String, Long>>forBoundedOutOfOrderness(Duration.ofSeconds(0L))
                        .withTimestampAssigner(new SerializableTimestampAssigner<Tuple2<String, Long>>() {
                            @Override
                            public long extractTimestamp(Tuple2<String, Long> elems, long l) {
                                return elems.f1;
                            }
                        })
        );

        // 按第一个元素分组
        KeyedStream<Tuple2<String, Long>, String> keyedStream = withWatermarkStream.keyBy(r -> r.f0);

        // 开一个 5 s 的滚动窗口
        WindowedStream<Tuple2<String, Long>, String, TimeWindow> timeWindowWindowedStream = keyedStream.window(TumblingEventTimeWindows.of(Time.seconds(5L)));

        // 统计窗口中的元素
        SingleOutputStreamOperator<String> countWinElemsStream = timeWindowWindowedStream.process(
                new ProcessWindowFunction<Tuple2<String, Long>, String, String, TimeWindow>() {
                    @Override
                    public void process(String key, Context context, Iterable<Tuple2<String, Long>> elements, Collector<String> out) throws Exception {

                        System.out.println("当前 watermark：" + context.currentWatermark() + " -> " + new Timestamp(context.currentWatermark()) + " :::: 当前时间：" + new Timestamp(System.currentTimeMillis()) );
                        Timestamp winStart = new Timestamp(context.window().getStart());
                        Timestamp winEnd = new Timestamp(context.window().getEnd());

                        long cnt = elements.spliterator().getExactSizeIfKnown();

                        out.collect("key = " + key + "\t window [ " + winStart + " - " + winEnd + " ) 有 " + cnt + "条元素");

                    }
                }
        );

        countWinElemsStream.print();

        env.execute();


    }

}

[hdfs@hdfs03 ~]$ nc -lk 9099
a 1
a 5
    > 当前 watermark：4999 -> 1970-01-01 08:00:04.999 :::: 当前时间：2023-02-20 18:20:08.86
	> key = a	 window [ 1970-01-01 08:00:00.0 - 1970-01-01 08:00:05.0 ) 有 1条元素
a 4 迟到数据
a 7
a 9
a 8
a 10
    > 当前 watermark：9999 -> 1970-01-01 08:00:09.999 :::: 当前时间：2023-02-20 18:20:24.033
    > key = a	 window [ 1970-01-01 08:00:05.0 - 1970-01-01 08:00:10.0 ) 有 4条元素
a 11
a 15
    > 当前 watermark：14999 -> 1970-01-01 08:00:14.999 :::: 当前时间：2023-02-20 18:20:31.526
    > key = a	 window [ 1970-01-01 08:00:10.0 - 1970-01-01 08:00:15.0 ) 有 2条元素


public class TumblingWindowsBaseProcessingTime {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);


        /*
            Tumbling Windows 滚动窗口

                1.窗口不重叠
                2.触发窗口计算，并销毁窗口中的元素

         */


        // 从 socket 读取数据源
        DataStreamSource<String> socketTextStream = env.socketTextStream("10.199.241.213", 9099);

        // 将数据源转换成 Tuple2 结构
        SingleOutputStreamOperator<Tuple2<String, Long>> mapStream = socketTextStream.map(new MapFunction<String, Tuple2<String, Long>>() {
            @Override
            public Tuple2<String, Long> map(String val) throws Exception {
                String[] elems = val.split(" ");
                return Tuple2.of(elems[0], Long.parseLong(elems[1]) * 1000L);
            }
        });

        // 抽取 watermark
        SingleOutputStreamOperator<Tuple2<String, Long>> withWatermarkStream = mapStream.assignTimestampsAndWatermarks(
                WatermarkStrategy.forMonotonousTimestamps()
        );

        // 按第一个元素分组
        KeyedStream<Tuple2<String, Long>, String> keyedStream = withWatermarkStream.keyBy(r -> r.f0);

        // 开一个 5 s 的滚动窗口
        WindowedStream<Tuple2<String, Long>, String, TimeWindow> timeWindowWindowedStream = keyedStream.window(TumblingProcessingTimeWindows.of(Time.seconds(5L)));

        // 统计窗口中的元素
        SingleOutputStreamOperator<String> countWinElemsStream = timeWindowWindowedStream.process(
                new ProcessWindowFunction<Tuple2<String, Long>, String, String, TimeWindow>() {
                    @Override
                    public void process(String key, Context context, Iterable<Tuple2<String, Long>> elements, Collector<String> out) throws Exception {

                        System.out.println("当前 watermark：" + context.currentWatermark() + " :::: 当前时间：" + new Timestamp(System.currentTimeMillis()) );
                        Timestamp winStart = new Timestamp(context.window().getStart());
                        Timestamp winEnd = new Timestamp(context.window().getEnd());

                        long cnt = elements.spliterator().getExactSizeIfKnown();

                        out.collect("key = " + key + "\t window [ " + winStart + " - " + winEnd + " ) 有 " + cnt + "条元素");

                    }
                }
        );

        countWinElemsStream.print();

        env.execute();


    }

}


[hdfs@hdfs03 ~]$ nc -lk 9099
a 1
a 5
a 3
    > 上面 3 条数据 5秒内输入，然后等待窗口触发
    > 当前 watermark：-9223372036854775808 :::: 当前时间：2023-02-20 18:31:35.017
    > key = a	 window [ 2023-02-20 18:31:30.0 - 2023-02-20 18:31:35.0 ) 有 3条元素
a 10
    > 等待 5 s，触发窗口
    > 当前 watermark：-9223372036854775808 :::: 当前时间：2023-02-20 18:31:40.001
    > key = a	 window [ 2023-02-20 18:31:35.0 - 2023-02-20 18:31:40.0 ) 有 1条元素
a 2
    > 等待 5 s，触发窗口
    > 当前 watermark：-9223372036854775808 :::: 当前时间：2023-02-20 18:31:45.007
    > key = a	 window [ 2023-02-20 18:31:40.0 - 2023-02-20 18:31:45.0 ) 有 1条元素

滚动事件时间窗口分配器 TumblingEventTimeWindows

# org.apache.flink.streaming.api.windowing.assigners.TumblingEventTimeWindows

    protected TumblingEventTimeWindows(long size, long offset, WindowStagger windowStagger) {
        if (Math.abs(offset) >= size) {
            throw new IllegalArgumentException(
                    "TumblingEventTimeWindows parameters must satisfy abs(offset) < size");
        }

        this.size = size;
        this.globalOffset = offset;
        this.windowStagger = windowStagger;
    }


分配窗口
    public Collection<TimeWindow> assignWindows(
            Object element, long timestamp, WindowAssignerContext context) {
        if (timestamp > Long.MIN_VALUE) {
            if (staggerOffset == null) {
                staggerOffset =
                        windowStagger.getStaggerOffset(context.getCurrentProcessingTime(), size);
            }
            // Long.MIN_VALUE is currently assigned when no timestamp is present
            long start =
                    TimeWindow.getWindowStartWithOffset(
                            timestamp, (globalOffset + staggerOffset) % size, size);
            return Collections.singletonList(new TimeWindow(start, start + size));
        } else {
            throw new RuntimeException(
                    "Record has Long.MIN_VALUE timestamp (= no timestamp marker). "
                            + "Is the time characteristic set to 'ProcessingTime', or did you forget to call "
                            + "'DataStream.assignTimestampsAndWatermarks(...)'?");
        }
    }

窗口触发器
    public Trigger<Object, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return EventTimeTrigger.create();
    }

org.apache.flink.streaming.api.windowing.triggers.EventTimeTrigger
        // 每条数据来都会执行该方法
        public TriggerResult onElement(
            Object element, long timestamp, TimeWindow window, TriggerContext ctx)
            throws Exception {
        if (window.maxTimestamp() <= ctx.getCurrentWatermark()) {
            // if the watermark is already past the window fire immediately
            return TriggerResult.FIRE;
        } else {
            ctx.registerEventTimeTimer(window.maxTimestamp());
            return TriggerResult.CONTINUE;
        }
    }
	// 时间时间窗口触发规则
    public TriggerResult onEventTime(long time, TimeWindow window, TriggerContext ctx) {
        return time == window.maxTimestamp() ? TriggerResult.FIRE : TriggerResult.CONTINUE;
    }

TumblingProcessingTimeWindows

# org.apache.flink.streaming.api.windowing.assigners.TumblingProcessingTimeWindows

    创建窗口
    private TumblingProcessingTimeWindows(long size, long offset, WindowStagger windowStagger) {
        if (Math.abs(offset) >= size) {
            throw new IllegalArgumentException(
                    "TumblingProcessingTimeWindows parameters must satisfy abs(offset) < size");
        }

        this.size = size;
        this.globalOffset = offset;
        this.windowStagger = windowStagger;
    }

	// 分配窗口规则
    public Collection<TimeWindow> assignWindows(
            Object element, long timestamp, WindowAssignerContext context) {
        final long now = context.getCurrentProcessingTime();
        if (staggerOffset == null) {
            staggerOffset =
                    windowStagger.getStaggerOffset(context.getCurrentProcessingTime(), size);
        }
        long start =
                TimeWindow.getWindowStartWithOffset(
                        now, (globalOffset + staggerOffset) % size, size);
        return Collections.singletonList(new TimeWindow(start, start + size));
    }

	// 窗口触发器
    public Trigger<Object, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return ProcessingTimeTrigger.create();
    }

org.apache.flink.streaming.api.windowing.triggers.ProcessingTimeTrigger

    public TriggerResult onElement(
            Object element, long timestamp, TimeWindow window, TriggerContext ctx) {
        ctx.registerProcessingTimeTimer(window.maxTimestamp());
        return TriggerResult.CONTINUE;
    }

    @Override
    public TriggerResult onProcessingTime(long time, TimeWindow window, TriggerContext ctx) {
        return TriggerResult.FIRE;
    }

Sliding Windows（滑动窗口）

滑动窗口分配器将元素分配给固定长度的窗口。与滚动窗口分配器类似，窗口的大小由窗口大小参数配置。一个附加的窗口滑动参数控制滑动窗口启动的频率。因此，如果幻灯片小于窗口大小，则滑动窗口可以重叠。在这种情况下，元素被分配给多个窗口。

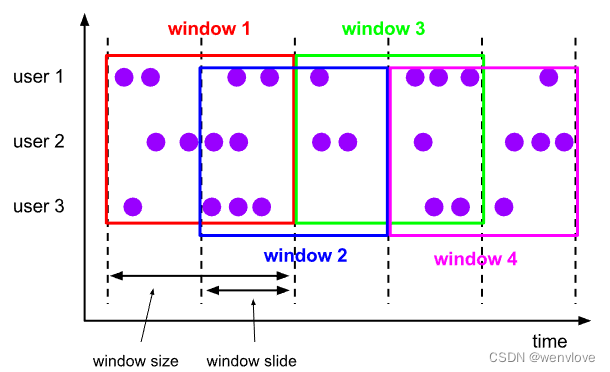

例如，您可以让大小为 10 分钟的窗口按 5 分钟滑动。这样，您每 5 分钟就会获得一个窗口，其中包含在过去 10 分钟内到达的事件，如下图所示。
在这里插入图片描述

public class SlidingWindowsBaseEventTime {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        /*
            Sliding Windows 滚动窗口

                1.窗口重叠
                2.每隔滑动步长秒触发窗口计算，但会保留窗口部分元素
                3.下边界 移动到 上边界 是清空下边界的所有元素

         */


        SingleOutputStreamOperator<Tuple2<String, Long>> withWatermarkStream = env
                .socketTextStream("10.199.241.213", 9099)
                .map(new MapFunction<String, Tuple2<String, Long>>() {
                    @Override
                    public Tuple2<String, Long> map(String val) throws Exception {
                        String[] elems = val.split(" ");
                        return Tuple2.of(elems[0], Long.parseLong(elems[1]) * 1000L);
                    }
                })
                .assignTimestampsAndWatermarks(
                        WatermarkStrategy
                                .<Tuple2<String, Long>>forBoundedOutOfOrderness(Duration.ofSeconds(0))
                                .withTimestampAssigner(new SerializableTimestampAssigner<Tuple2<String, Long>>() {
                                    @Override
                                    public long extractTimestamp(Tuple2<String, Long> elem, long l) {
                                        return elem.f1;
                                    }
                                })
                );

        SingleOutputStreamOperator<String> countWinProcessStream = withWatermarkStream
                .keyBy(r -> r.f0)
                // 窗口大小为 5 s，窗口滑动步长为 3 s
                .window(SlidingEventTimeWindows.of(Time.seconds(5), Time.seconds(3)))
                .process(new ProcessWindowFunction<Tuple2<String, Long>, String, String, TimeWindow>() {
                    @Override
                    public void process(String key, Context context, Iterable<Tuple2<String, Long>> elements, Collector<String> out) throws Exception {

                        System.out.println("当前 watermark = " + context.currentWatermark() + " --> " + new Timestamp(context.currentWatermark()) + " ::: current time = " + new Timestamp(System.currentTimeMillis()));

                        Timestamp winStart = new Timestamp(context.window().getStart());
                        Timestamp winEnd = new Timestamp(context.window().getEnd());

                        long cnt = elements.spliterator().getExactSizeIfKnown();

                        out.collect("key = " + key + "\t window [ " + winStart + " - " + winEnd + " ) 有 " + cnt + " 条元素");


                    }
                });

        countWinProcessStream.print();


        env.execute();


    }

}

public class SlidingWindowsBaseProcessingTime {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        /*
            Sliding Windows 滚动窗口

                1.窗口重叠
                2.每隔滑动步长秒触发窗口计算，但会保留窗口部分元素
                3.下边界 移动到 上边界 是清空下边界的所有元素

         */


        SingleOutputStreamOperator<Tuple2<String, Long>> withWatermarkStream = env
                .socketTextStream("10.199.241.213", 9099)
                .map(new MapFunction<String, Tuple2<String, Long>>() {
                    @Override
                    public Tuple2<String, Long> map(String val) throws Exception {
                        String[] elems = val.split(" ");
                        return Tuple2.of(elems[0], Long.parseLong(elems[1]) * 1000L);
                    }
                })
                .assignTimestampsAndWatermarks(
                        WatermarkStrategy.forMonotonousTimestamps()
                );

        SingleOutputStreamOperator<String> countWinProcessStream = withWatermarkStream
                .keyBy(r -> r.f0)
                // 窗口大小为 5 s，窗口滑动步长为 3 s
                .window(SlidingProcessingTimeWindows.of(Time.seconds(5), Time.seconds(3)))
                .process(new ProcessWindowFunction<Tuple2<String, Long>, String, String, TimeWindow>() {
                    @Override
                    public void process(String key, Context context, Iterable<Tuple2<String, Long>> elements, Collector<String> out) throws Exception {

                        System.out.println("当前 watermark = " + context.currentWatermark() + " --> " + new Timestamp(context.currentWatermark()) + " ::: current time = " + new Timestamp(System.currentTimeMillis()));

                        Timestamp winStart = new Timestamp(context.window().getStart());
                        Timestamp winEnd = new Timestamp(context.window().getEnd());

                        long cnt = elements.spliterator().getExactSizeIfKnown();

                        out.collect("key = " + key + "\t window [ " + winStart + " - " + winEnd + " ) 有 " + cnt + " 条元素");


                    }
                });

        countWinProcessStream.print();


        env.execute();


    }

}

SlidingEventTimeWindows

# org.apache.flink.streaming.api.windowing.assigners.SlidingEventTimeWindows

    // 创建窗口
    protected SlidingEventTimeWindows(long size, long slide, long offset) {
        if (Math.abs(offset) >= slide || size <= 0) {
            throw new IllegalArgumentException(
                    "SlidingEventTimeWindows parameters must satisfy "
                            + "abs(offset) < slide and size > 0");
        }

        this.size = size;
        this.slide = slide;
        this.offset = offset;
    }

    // 分配窗口
    public Collection<TimeWindow> assignWindows(
            Object element, long timestamp, WindowAssignerContext context) {
        if (timestamp > Long.MIN_VALUE) {
            List<TimeWindow> windows = new ArrayList<>((int) (size / slide));
            long lastStart = TimeWindow.getWindowStartWithOffset(timestamp, offset, slide);
            for (long start = lastStart; start > timestamp - size; start -= slide) {
                windows.add(new TimeWindow(start, start + size));
            }
            return windows;
        } else {
            throw new RuntimeException(
                    "Record has Long.MIN_VALUE timestamp (= no timestamp marker). "
                            + "Is the time characteristic set to 'ProcessingTime', or did you forget to call "
                            + "'DataStream.assignTimestampsAndWatermarks(...)'?");
        }
    }

	// 触发器
    public Trigger<Object, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return EventTimeTrigger.create();
    }

org.apache.flink.streaming.api.windowing.triggers.EventTimeTrigger
        public TriggerResult onElement(
            Object element, long timestamp, TimeWindow window, TriggerContext ctx)
            throws Exception {
        if (window.maxTimestamp() <= ctx.getCurrentWatermark()) {
            // if the watermark is already past the window fire immediately
            return TriggerResult.FIRE;
        } else {
            ctx.registerEventTimeTimer(window.maxTimestamp());
            return TriggerResult.CONTINUE;
        }
    }

    public TriggerResult onEventTime(long time, TimeWindow window, TriggerContext ctx) {
        return time == window.maxTimestamp() ? TriggerResult.FIRE : TriggerResult.CONTINUE;
    }

SlidingProcessingTimeWindows

# org.apache.flink.streaming.api.windowing.assigners.SlidingProcessingTimeWindows
        // 初始化
        private SlidingProcessingTimeWindows(long size, long slide, long offset) {
        if (Math.abs(offset) >= slide || size <= 0) {
            throw new IllegalArgumentException(
                    "SlidingProcessingTimeWindows parameters must satisfy "
                            + "abs(offset) < slide and size > 0");
        }

        this.size = size;
        this.slide = slide;
        this.offset = offset;
    }

	// 分配窗口
    public Collection<TimeWindow> assignWindows(
            Object element, long timestamp, WindowAssignerContext context) {
        timestamp = context.getCurrentProcessingTime();
        List<TimeWindow> windows = new ArrayList<>((int) (size / slide));
        long lastStart = TimeWindow.getWindowStartWithOffset(timestamp, offset, slide);
        for (long start = lastStart; start > timestamp - size; start -= slide) {
            windows.add(new TimeWindow(start, start + size));
        }
        return windows;
    }

	// 触发器
    public Trigger<Object, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return ProcessingTimeTrigger.create();
    }

org.apache.flink.streaming.api.windowing.triggers.ProcessingTimeTrigger

    public TriggerResult onElement(
            Object element, long timestamp, TimeWindow window, TriggerContext ctx) {
        ctx.registerProcessingTimeTimer(window.maxTimestamp());
        return TriggerResult.CONTINUE;
    }
    public TriggerResult onProcessingTime(long time, TimeWindow window, TriggerContext ctx) {
        return TriggerResult.FIRE;
    }

Global Windows

全局窗口的 assigner 将拥有相同 key 的所有数据分发到一个全局窗口。这样的窗口模式仅在你指定了自定义的 trigger 时有用。否则，计算不会发生，因为全局窗口没有天然的终点去触发其中积累的数据。

在这里插入图片描述
以滑动计数窗口为例

public class CountWindowsBaseEventTime {

    public static void main(String[] args) throws Exception {

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env.setParallelism(1);

        /*
            Count Window 计数窗口

                窗口指定条数触发窗口计算，并清除前滑动步长个元素，滚动窗口步长等于窗口大小



         */

        SingleOutputStreamOperator<Tuple2<String, Long>> withWatermarkStream = env
                .socketTextStream("10.199.241.213", 9099)
                .map(new MapFunction<String, Tuple2<String, Long>>() {
                    @Override
                    public Tuple2<String, Long> map(String val) throws Exception {
                        String[] elems = val.split(" ");
                        return Tuple2.of(elems[0], Long.parseLong(elems[1]) * 1000L);
                    }
                })
                .assignTimestampsAndWatermarks(
                        WatermarkStrategy
                                .<Tuple2<String, Long>>forBoundedOutOfOrderness(Duration.ofSeconds(0))
                                .withTimestampAssigner(new SerializableTimestampAssigner<Tuple2<String, Long>>() {
                                    @Override
                                    public long extractTimestamp(Tuple2<String, Long> elem, long l) {
                                        return elem.f1;
                                    }
                                })
                );

        SingleOutputStreamOperator<String> countWinProcessStream = withWatermarkStream
                .keyBy(r -> r.f0)
                .countWindow(10, 5)
                .process(new ProcessWindowFunction<Tuple2<String, Long>, String, String, GlobalWindow>() {
                    @Override
                    public void process(String key, Context context, Iterable<Tuple2<String, Long>> elements, Collector<String> out) throws Exception {
                        System.out.println("当前 watermark = " + context.currentWatermark() + " --> " + new Timestamp(context.currentWatermark()) + " ::: current time = " + new Timestamp(System.currentTimeMillis()));

                        Timestamp win = new Timestamp(context.currentWatermark());

                        long cnt = elements.spliterator().getExactSizeIfKnown();

                        out.collect("key = " + key + "\t window [ " + win + " ) 有 " + cnt + " 条元素");
                    }
                });

        env.execute();


    }

}

GlobalWindows

# org.apache.flink.streaming.api.windowing.assigners.GlobalWindows

    分配窗口
    public Collection<GlobalWindow> assignWindows(
            Object element, long timestamp, WindowAssignerContext context) {
        return Collections.singletonList(GlobalWindow.get());
    }

	触发器
    public Trigger<Object, GlobalWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return new NeverTrigger();
    }

CountEvictor

# org.apache.flink.streaming.api.windowing.evictors.CountEvictor

    驱逐器
    @Override
    public void evictBefore(
            Iterable<TimestampedValue<Object>> elements, int size, W window, EvictorContext ctx) {
        if (!doEvictAfter) {
            evict(elements, size, ctx);
        }
    }

    @Override
    public void evictAfter(
            Iterable<TimestampedValue<Object>> elements, int size, W window, EvictorContext ctx) {
        if (doEvictAfter) {
            evict(elements, size, ctx);
        }
    }

    private void evict(Iterable<TimestampedValue<Object>> elements, int size, EvictorContext ctx) {
        if (size <= maxCount) {
            return;
        } else {
            int evictedCount = 0;
            for (Iterator<TimestampedValue<Object>> iterator = elements.iterator();
                    iterator.hasNext(); ) {
                iterator.next();
                evictedCount++;
                if (evictedCount > size - maxCount) {
                    break;
                } else {
                    iterator.remove();
                }
            }
        }
    }

CountTrigger

# org.apache.flink.streaming.api.windowing.triggers.CountTrigger
    触发器
        @Override
    public TriggerResult onElement(Object element, long timestamp, W window, TriggerContext ctx)
            throws Exception {
        ReducingState<Long> count = ctx.getPartitionedState(stateDesc);
        count.add(1L);
        if (count.get() >= maxCount) {
            count.clear();
            return TriggerResult.FIRE;
        }
        return TriggerResult.CONTINUE;
    }

    @Override
    public TriggerResult onEventTime(long time, W window, TriggerContext ctx) {
        return TriggerResult.CONTINUE;
    }

    @Override
    public TriggerResult onProcessingTime(long time, W window, TriggerContext ctx)
            throws Exception {
        return TriggerResult.CONTINUE;
    }

Session Windows

会话窗口的 assigner 会把数据按活跃的会话分组。与滚动窗口和滑动窗口不同，会话窗口不会相互重叠，且没有固定的开始或结束时间。会话窗口在一段时间没有收到数据之后会关闭，即在一段不活跃的间隔之后。会话窗口的 assigner 可以设置固定的会话间隔（session gap）或用 session gap extractor 函数来动态地定义多长时间算作不活跃。当超出了不活跃的时间段，当前的会话就会关闭，并且将接下来的数据分发到新的会话窗口。

在这里插入图片描述

public class SessionWindows {

    public static void main(String[] args) throws Exception {


        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);


        /*

            Session Windows  会话窗口

                1.指定时间内没有数据到来触发窗口计算并清空窗口中元素


                nc -lk 9099
                q
                w
                e
                r
                t
                y
                [waiting at least 5s]
                1
                w
                e
                r
                t
                ...

         */

        env
                .socketTextStream("127.0.0.1", 9099)
                .keyBy(event -> 1)
                // 5s 没有数据到来就触发窗口
                .window(ProcessingTimeSessionWindows.withGap(Time.seconds(5)))
                .process(
                        // ProcessWindowFunction<IN, OUT, KEY, W extends Window>
                        new ProcessWindowFunction<String, String, Integer, TimeWindow>() {
                            @Override
                            public void process(Integer key, Context context, Iterable<String> elements, Collector<String> out) throws Exception {

                                Timestamp winStart = new Timestamp(context.window().getStart());
                                Timestamp winEnd = new Timestamp(context.window().getEnd());

                                int count = 0;

                                Iterator<String> iterator = elements.iterator();
                                while (iterator.hasNext()) {
                                    iterator.next();
                                    count++;
                                }

                                String result = String.format("window [ %s - %s ] 窗口中有 %d 条元素", winStart, winEnd, count);

                                out.collect(result);

                            }
                        })
                .print();


        env.execute();


    }

}

ProcessingTimeSessionWindows

# org.apache.flink.streaming.api.windowing.assigners.ProcessingTimeSessionWindows

    // 分配窗口
    @Override
    public Collection<TimeWindow> assignWindows(
            Object element, long timestamp, WindowAssignerContext context) {
        long currentProcessingTime = context.getCurrentProcessingTime();
        return Collections.singletonList(
                new TimeWindow(currentProcessingTime, currentProcessingTime + sessionTimeout));
    }

	// 触发器
    @Override
    public Trigger<Object, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return ProcessingTimeTrigger.create();
    }

    // 合并窗口
    public static <T> DynamicProcessingTimeSessionWindows<T> withDynamicGap(
            SessionWindowTimeGapExtractor<T> sessionWindowTimeGapExtractor) {
        return new DynamicProcessingTimeSessionWindows<>(sessionWindowTimeGapExtractor);
    }

DynamicProcessingTimeSessionWindows

# org.apache.flink.streaming.api.windowing.assigners.DynamicProcessingTimeSessionWindows

    // 分配窗口
    public Collection<TimeWindow> assignWindows(
            T element, long timestamp, WindowAssignerContext context) {
        long currentProcessingTime = context.getCurrentProcessingTime();
        long sessionTimeout = sessionWindowTimeGapExtractor.extract(element);
        if (sessionTimeout <= 0) {
            throw new IllegalArgumentException("Dynamic session time gap must satisfy 0 < gap");
        }
        return Collections.singletonList(
                new TimeWindow(currentProcessingTime, currentProcessingTime + sessionTimeout));
    }

	// 触发器
    public Trigger<T, TimeWindow> getDefaultTrigger(StreamExecutionEnvironment env) {
        return (Trigger<T, TimeWindow>) ProcessingTimeTrigger.create();
    }

	// 合并窗口
    public void mergeWindows(Collection<TimeWindow> windows, MergeCallback<TimeWindow> c) {
        TimeWindow.mergeWindows(windows, c);
    }

org.apache.flink.streaming.api.windowing.windows.TimeWindow#mergeWindows

    public static void mergeWindows(
            Collection<TimeWindow> windows, MergingWindowAssigner.MergeCallback<TimeWindow> c) {

        // sort the windows by the start time and then merge overlapping windows

        List<TimeWindow> sortedWindows = new ArrayList<>(windows);

        Collections.sort(
                sortedWindows,
                new Comparator<TimeWindow>() {
                    @Override
                    public int compare(TimeWindow o1, TimeWindow o2) {
                        return Long.compare(o1.getStart(), o2.getStart());
                    }
                });

        List<Tuple2<TimeWindow, Set<TimeWindow>>> merged = new ArrayList<>();
        Tuple2<TimeWindow, Set<TimeWindow>> currentMerge = null;

        for (TimeWindow candidate : sortedWindows) {
            if (currentMerge == null) {
                currentMerge = new Tuple2<>();
                currentMerge.f0 = candidate;
                currentMerge.f1 = new HashSet<>();
                currentMerge.f1.add(candidate);
            } else if (currentMerge.f0.intersects(candidate)) {
                currentMerge.f0 = currentMerge.f0.cover(candidate);
                currentMerge.f1.add(candidate);
            } else {
                merged.add(currentMerge);
                currentMerge = new Tuple2<>();
                currentMerge.f0 = candidate;
                currentMerge.f1 = new HashSet<>();
                currentMerge.f1.add(candidate);
            }
        }

        if (currentMerge != null) {
            merged.add(currentMerge);
        }

        for (Tuple2<TimeWindow, Set<TimeWindow>> m : merged) {
            if (m.f1.size() > 1) {
                c.merge(m.f1, m.f0);
            }
        }
    }
