YOLO-letter box

最细致讲解yolov8模型推理完整代码--（前处理，后处理） - 博客-中国极客 (chinageek.org)

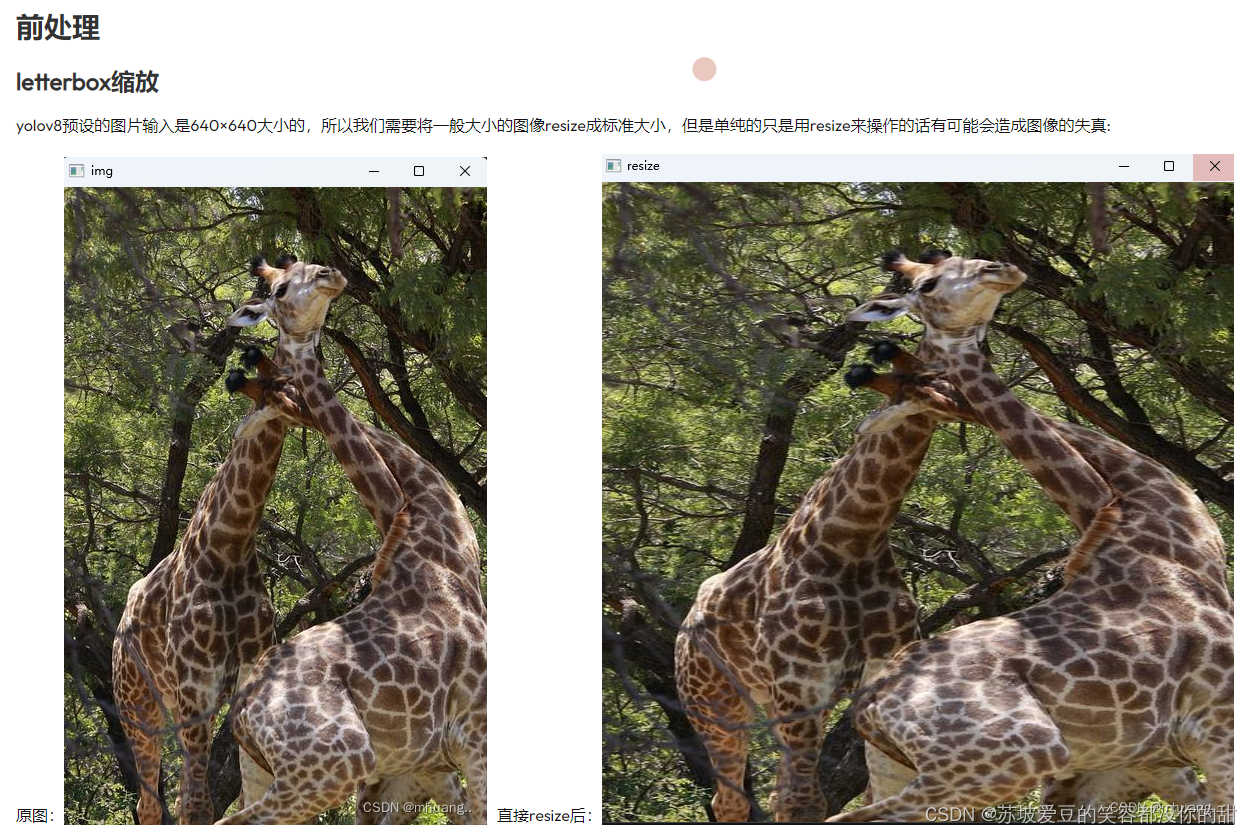

直接用resize，图片会变形，宽高比会不对

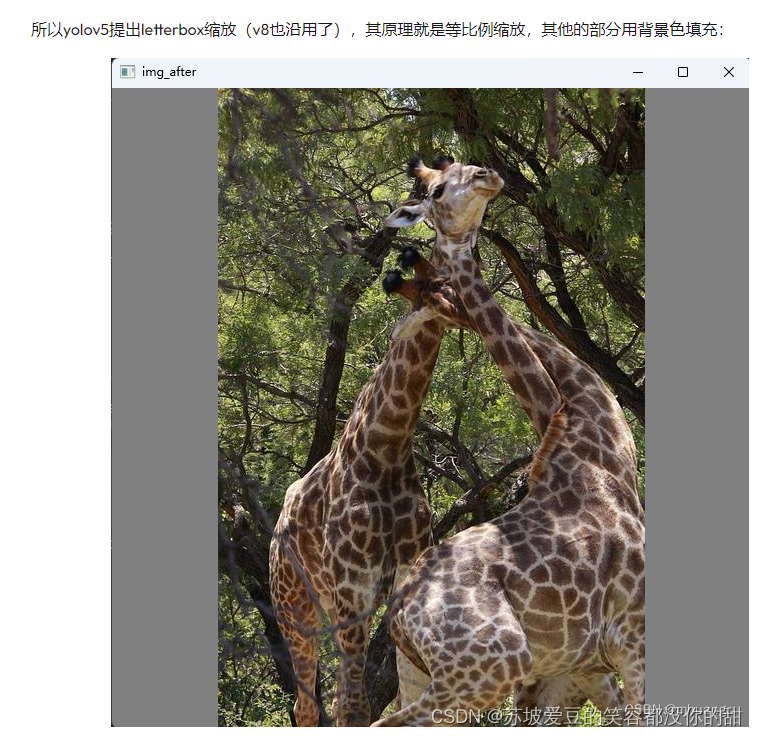

letterbox函数就是把图片弄到想要的大小，保持宽高比，然后少掉的部分，用灰边填充

def letterbox(im, new_shape=(640, 640), color=(114, 114, 114), auto=True, scaleFill=False, scaleup=True, stride=32):
    # Resize and pad image while meeting stride-multiple constraints
    shape = im.shape[:2]  # current shape [height, width]
    if isinstance(new_shape, int):
        new_shape = (new_shape, new_shape)

    # Scale ratio (new / old)
    r = min(new_shape[0] / shape[0], new_shape[1] / shape[1])
    if not scaleup:  # only scale down, do not scale up (for better val mAP)
        r = min(r, 1.0)

    # Compute padding
    ratio = r, r  # width, height ratios
    new_unpad = int(round(shape[1] * r)), int(round(shape[0] * r))
    dw, dh = new_shape[1] - new_unpad[0], new_shape[0] - new_unpad[1]  # wh padding
    if auto:  # minimum rectangle
        dw, dh = np.mod(dw, stride), np.mod(dh, stride)  # wh padding
    elif scaleFill:  # stretch
        dw, dh = 0.0, 0.0
        new_unpad = (new_shape[1], new_shape[0])
        ratio = new_shape[1] / shape[1], new_shape[0] / shape[0]  # width, height ratios

    dw /= 2  # divide padding into 2 sides
    dh /= 2

    if shape[::-1] != new_unpad:  # resize
        im = cv2.resize(im, new_unpad, interpolation=cv2.INTER_LINEAR)
    top, bottom = int(round(dh - 0.1)), int(round(dh + 0.1))
    left, right = int(round(dw - 0.1)), int(round(dw + 0.1))
    im = cv2.copyMakeBorder(im, top, bottom, left, right, cv2.BORDER_CONSTANT, value=color)  # add border
    return im, ratio, (dw, dh)

letterbox的源代码中， stride默认是32，有个auto参数要注意，如果auto是true，它会给你最小能被32整除的大小来resize，就算我们给的resize是640*640，它最后给你的图可能是640*512，因为512就能被32整除了，然而onnx模型中，size是固定的640，所以我们就不能auto=True，不然尺寸不对，image_array格式的取[0]

# Padded resize
img_array640 = letterbox(img_array, (640, 640), stride=32,auto=False)[0]

Scale Boxes

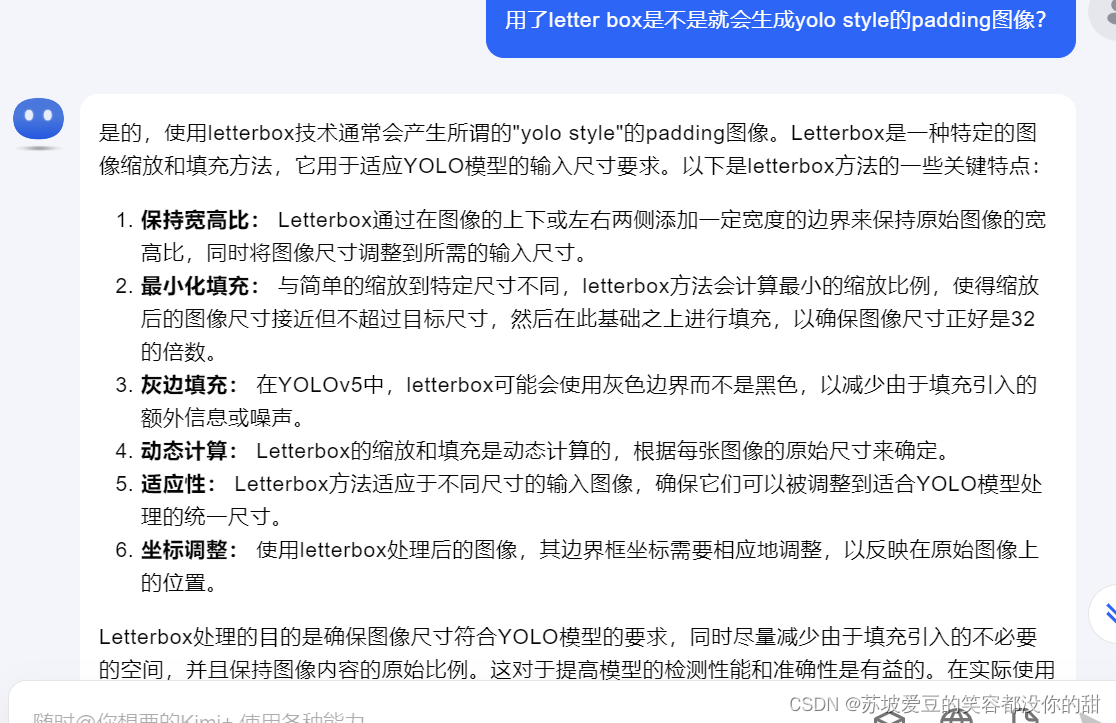

用了letter box之后，这个函数的padding参数要是True

scale_box=scale_boxes(img1_shape=im.shape, boxes=xyxy, img0_shape=img0_shape, ratio_pad=None, padding=True, xywh=False)

def scale_boxes(img1_shape, boxes, img0_shape, ratio_pad=None, padding=True, xywh=False):
    """
    Rescales bounding boxes (in the format of xyxy by default) from the shape of the image they were originally
    specified in (img1_shape) to the shape of a different image (img0_shape).

    Args:
        img1_shape (tuple): The shape of the image that the bounding boxes are for, in the format of (height, width).
        boxes (torch.Tensor): the bounding boxes of the objects in the image, in the format of (x1, y1, x2, y2)
        img0_shape (tuple): the shape of the target image, in the format of (height, width).
        ratio_pad (tuple): a tuple of (ratio, pad) for scaling the boxes. If not provided, the ratio and pad will be
            calculated based on the size difference between the two images.
        padding (bool): If True, assuming the boxes is based on image augmented by yolo style. If False then do regular
            rescaling.
        xywh (bool): The box format is xywh or not, default=False.

    Returns:
        boxes (torch.Tensor): The scaled bounding boxes, in the format of (x1, y1, x2, y2)
    """
    if ratio_pad is None:  # calculate from img0_shape
        gain = min(img1_shape[0] / img0_shape[0], img1_shape[1] / img0_shape[1])  # gain  = old / new
        pad = (
            round((img1_shape[1] - img0_shape[1] * gain) / 2 - 0.1),
            round((img1_shape[0] - img0_shape[0] * gain) / 2 - 0.1),
        )  # wh padding
    else:
        gain = ratio_pad[0][0]
        pad = ratio_pad[1]

    if padding:
        boxes[..., 0] -= pad[0]  # x padding
        boxes[..., 1] -= pad[1]  # y padding
        if not xywh:
            boxes[..., 2] -= pad[0]  # x padding
            boxes[..., 3] -= pad[1]  # y padding
        print(boxes)
    boxes[..., :4] /= gain

    return clip_boxes_1(boxes, img0_shape)
