微服务项目，应用Eureka, Redis, RabbitMQ

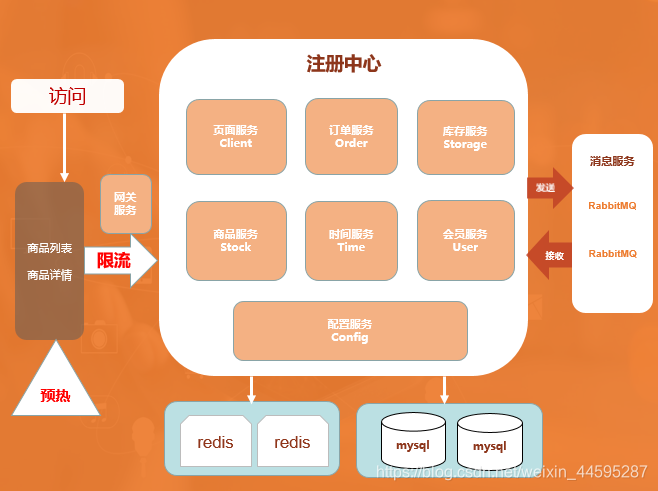

1.设计思路

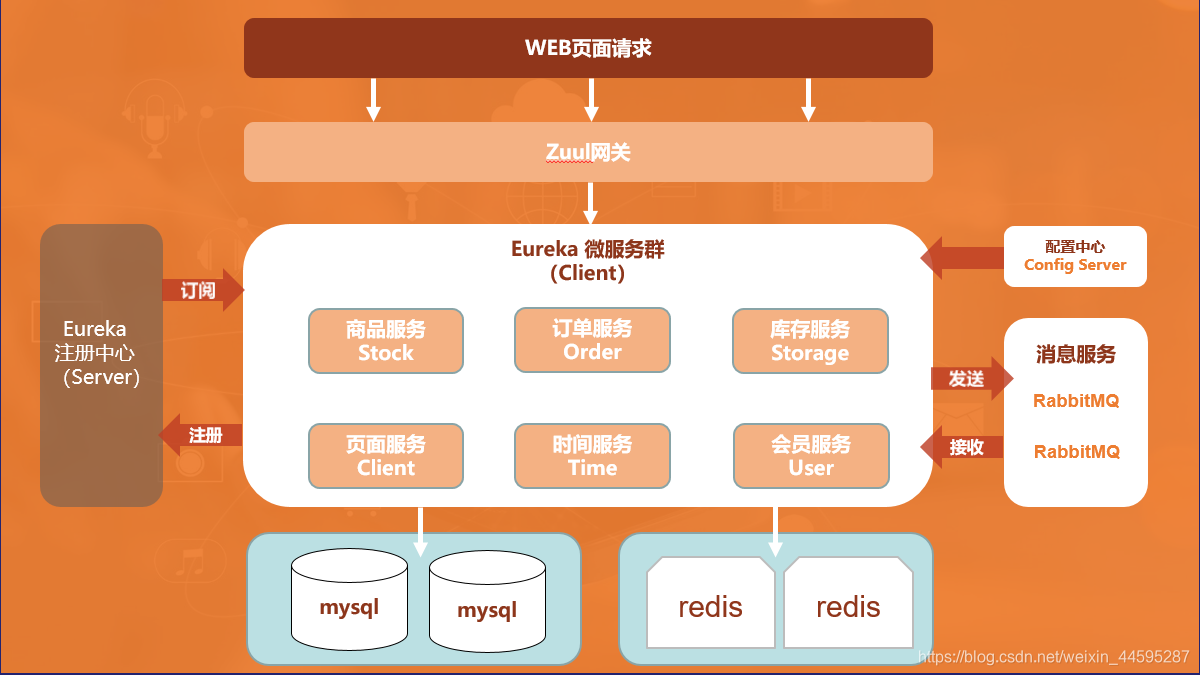

2.技术架构

（1）Eureka Client：

时间服务（leyouTimeServer，端口号8000）：为页面服务提供时间统一的接口。

商品服务（leyouStock，端口号7000）：对外提供的接口（商品列表、商品详情、秒杀政策）。

库存服务（leyouStorage，端口号6001）：队列监听，在队列中提取消息与数据库交互减少库存。

会员服务（leyouUser，端口号5000）：为页面服务提供会员数据接口，会员的添加、修改、登录。

订单服务（leyouOrder，端口号4000）：队列监听，在队列中提取消息与数据库交互生成订单。

页面服务（leyouClient，端口号3000）：为前端页面提供数据接口。

（2）Eureka Server：

注册中心（leyouServer，端口号9000）各服务都在注册中心进行注册。

配置中心（leyouConfig）：提供所有服务需要的配置。

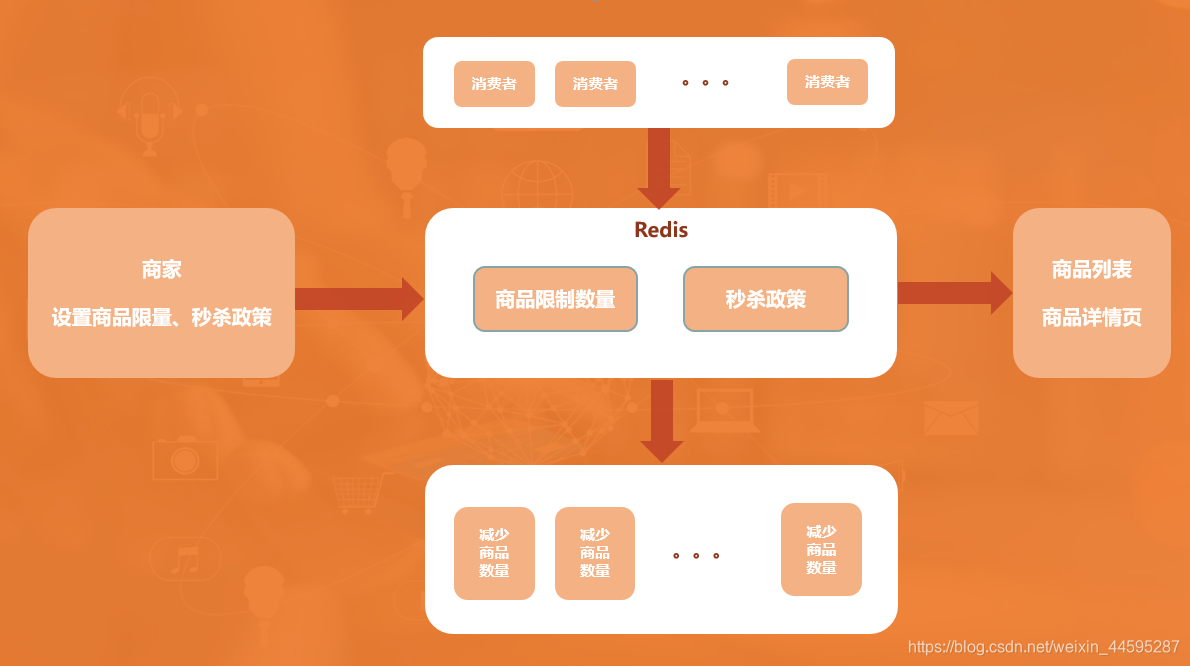

（3）Redis的应用

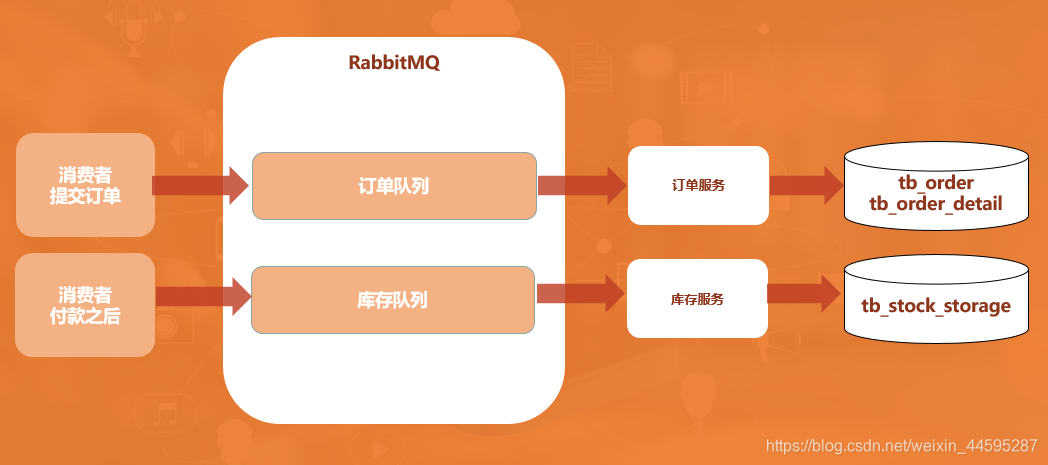

（4）RabbitMQ的应用：

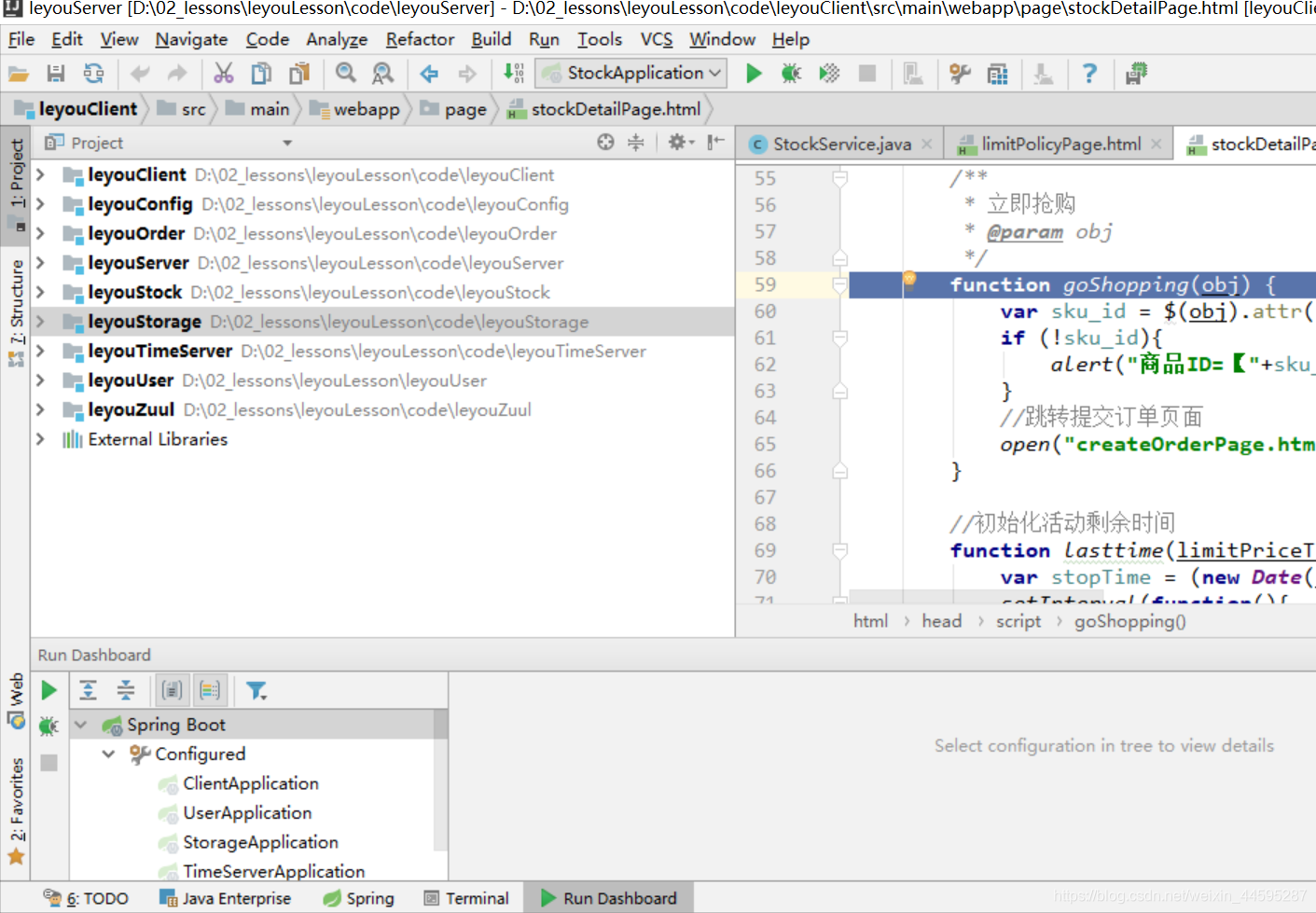

3.整体项目目录

4.创建Eureka注册中心（端口号9000）,leyouServer

（1）配置pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-parent</artifactId>
        <version>2.1.6.RELEASE</version>
    </parent>

    <groupId>com.itheima</groupId>
    <artifactId>leyou</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR2</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

（2）配置文件application.properties

server.port=9000
eureka.client.service-url.defaultZone=http://localhost:9000/eureka/
eureka.instance.hostname=localhost
spring.application.name=leyou-server
#不从服务器拿服务信息
eureka.client.fetch-registry=false
#不在服务端注册
eureka.client.register-with-eureka=false

（3）启动类

① @EnableEurekaServer，意思为启动Eureka服务端

@SpringBootApplication
@EnableEurekaServer
public class ServerApplication {

   public static void main(String[] args) {
      SpringApplication.run(ServerApplication.class, args);
   }
}

5.创建时间服务（端口号8000），leyouTimeServer

（1）pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-parent</artifactId>
        <version>2.1.6.RELEASE</version>
    </parent>

    <groupId>com.itheima</groupId>
    <artifactId>leyou</artifactId>
    <version>1.0-SNAPSHOT</version>
    <name>leyouTimeServer</name>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR2</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

（2）配置文件application.properties

server.port=8000
spring.application.name=leyou-time-server
eureka.client.service-url.defaultZone=http://localhost:9000/eureka/

（3）启动类

① @EnableEurekaClient，意思为启动Eureka客户端

@SpringBootApplication
@EnableEurekaClient
public class TimeServerApplication {

   public static void main(String[] args) {
      SpringApplication.run(TimeServerApplication.class, args);
   }
}

（3）TimeController.java

用途：给前端秒杀提供统一的时间标准，在TimeController里写入如下代码：

@RestController
public class TimeController {

    @RequestMapping(value = "/getTime")
    public String getTime(){
        SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm");
        return simpleDateFormat.format(new Date());
    }
}

5.创建商品服务（端口号7000）,leyouStock

（1）pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-parent</artifactId>
        <version>2.1.6.RELEASE</version>
    </parent>

    <groupId>com.itheima</groupId>
    <artifactId>leyou</artifactId>
    <version>1.0-SNAPSHOT</version>

    <name>leyouStock</name>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.41</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Greenwich.SR2</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

（2）配置文件application.properties

server.port=7000
spring.application.name=leyou-stock
eureka.client.service-url.defaultZone=http://localhost:9000/eureka/

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://172.20.175.147:3305/code1_2?useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTC
spring.datasource.username=root
spring.datasource.password=123456

#redis数据库编号，存在0~15共16个数据库
spring.redis.database=0
#redis服务器IP
spring.redis.host=127.0.0.1
#redis端口号
spring.redis.port=6379
#redis密码
spring.redis.password=leyou
#redis请求超时时间，超过此值redis自动断开连接
spring.redis.timeout=10000ms
#jedis最大连接数，超过此值则提示获取不到连接异常
spring.redis.jedis.pool.max-active=32
#jedis最大等待时间，超过此值会提示连接超时异常
spring.redis.jedis.pool.max-wait=10000ms
#jedis最大等待连接数
spring.redis.jedis.pool.max-idle=32
#jedis最小等待连接数
spring.redis.jedis.pool.min-idle=0

（3）启动类

① @EnableEurekaClient，意思为启动Eureka客户端

②加入负载均衡RestTemplate

@SpringBootApplication
@EnableEurekaClient
public class LeyouStockApplication {

    public static void main(String[] args) {
        SpringApplication.run(LeyouStockApplication.class, args);
    }

    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }

}

（4）StockController.java

@RestController
public class StockController {

    @Autowired
    private IStockService iStockService;

    @RequestMapping(value = "/getStockList")
    public Map<String, Object> getStockList(){
        return iStockService.getStockList();
    }

    @RequestMapping("/getStock/{sku_id}")
    public Map<String,Object> getStock(@PathVariable("sku_id") String sku_id){
        return iStockService.getStock(sku_id);
    }

    @RequestMapping(value = "/insertLimitPolicy/{json}")
    public Map<String, Object> insertLimitPolicy(@PathVariable("json") String json){
        Map<String, Object> policyInfo = JSONObject.parseObject(json, Map.class);
        return iStockService.insertLimitPolicy(policyInfo);
    }
}

（5）StockServiceImpl.java

①将秒杀政策写入Redis和MySQL

//工具类，将信息写入MySQL和redis
@Override
@Transactional(rollbackOn = Exception.class)
public Map<String,Object> insertLimitPolicy(Map<String,Object> policyInfo){
	HashMap<String, Object> resultMap = new HashMap<>();

	//1.传入参数判读
	if(policyInfo==null || policyInfo.isEmpty()){
		resultMap.put("result",false);
		resultMap.put("msg","您传入的参数有误");
		return resultMap;
	}

	//2. 写入redis,StringRedisTemplate
	//redis 中取key： LIMIT_POLICY_{sku_id}, value: policyInfo --> String
	//设置redis存在的有效期， 有效期：结束时间减去当前时间

	long diff = 0;
	SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm");
	String now = restTemplate.getForObject("http://leyou-time-server/getTime", String.class);
	try {
		Date end_time = simpleDateFormat.parse(policyInfo.get("end_time").toString());
		Date now_time = simpleDateFormat.parse(now);

		diff = (end_time.getTime()-now_time.getTime())/1000; //有效期为秒

		if (diff<0){
			resultMap.put("result",false);
			resultMap.put("msg","结束时间不能小于当前时间");
			return resultMap;
		}

	} catch (ParseException e) {
		e.printStackTrace();
	}

	//3. 存入MySQL
	boolean result = iStockDao.insertLimitPolicy(policyInfo);

	//如果没有执行成功，返回错误信息
	if (!result){
		resultMap.put("result", false);
		resultMap.put("msg", "数据库写入政策时失败！");
		return resultMap;
	}


	String policy = JSON.toJSONString(policyInfo);
	//4.1 商品政策写入Redis,并设置redis的有效期
	stringRedisTemplate.opsForValue().set("LIMIT_POLICY_"+policyInfo.get("sku_id"),policy,diff, TimeUnit.SECONDS);

	//4.2 从MySQL中将该商品信息取出写入redis
	ArrayList<Map<String, Object>> list = iStockDao.getStock(policyInfo.get("sku_id").toString());
	String sku = JSON.toJSONString(list.get(0));
	stringRedisTemplate.opsForValue().set("SKU_"+policyInfo.get("sku_id").toString(),sku,diff, TimeUnit.SECONDS);

	//5. 返回正常信息
	resultMap.put("result", true);
	resultMap.put("msg", "政策写入完毕！");
	return resultMap;
}

②从Redis中得到商品对应的政策

把Map/JSON形的String转换为Map

//工具类，从redis中得到商品政策
private Map<String,Object> getLimitPolicy(ArrayList<Map<String,Object>> list){
	HashMap<String, Object> resultMap = new HashMap<>();

	for(Map<String,Object> skuMap: list){
		//3.1 根据sku_id,从redis取出产品相应的政策
		String policy = stringRedisTemplate.opsForValue().get("LIMIT_POLICY_" + skuMap.get("sku_id").toString());
		System.out.println(policy);

		//3.2 判断输入的政策是否为空
		if(policy!=null && !policy.equals("")){
			//把Map形的String转换为Map
			Map policyInfo = JSONObject.parseObject(policy, Map.class);

			//3.3 判断开始时间小于等于当前时间，并且当前时间小于等于结束时间
			SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm");

			//3.3.1用RestTemplate操作URL，获取值
			String now = restTemplate.getForObject("http://leyou-time-server/getTime", String.class);
			try {
				Date end_time = simpleDateFormat.parse(policyInfo.get("end_time").toString());
				Date begin_time = simpleDateFormat.parse(policyInfo.get("begin_time").toString());
				Date now_time = simpleDateFormat.parse(now);
				if(begin_time.getTime()<=now_time.getTime()&&now_time.getTime()<=end_time.getTime()){
					skuMap.put("limitPrice",policyInfo.get("price"));
					skuMap.put("limitQuanty", policyInfo.get("quanty"));
					skuMap.put("limitBeginTime", policyInfo.get("begin_time"));
					skuMap.put("limitEndTime", policyInfo.get("end_time"));
					skuMap.put("nowTime", now);
				}
			} catch(ParseException e) {
				e.printStackTrace();
			}
		}
	}
	resultMap.put("result",true);
	resultMap.put("msg","");
	return resultMap;
}

6.常用数据写入Redis，设置生命周期

stringRedisTemplate.opsForValue().
    set("LIMIT_POLICY_" + policyInfo.get("sku_id"), policy, diff, TimeUnit.SECONDS);

//工具类，将信息写入MySQL和redis
@Override
@Transactional(rollbackOn = Exception.class)
public Map<String, Object> insertLimitPolicy(Map<String, Object> policyInfo) {
	HashMap<String, Object> resultMap = new HashMap<>();

	//1.传入参数判读
	if (policyInfo == null || policyInfo.isEmpty()) {
		resultMap.put("result", false);
		resultMap.put("msg", "您传入的参数有误");
		return resultMap;
	}

	//2. 写入redis,StringRedisTemplate
	//redis 中取key： LIMIT_POLICY_{sku_id}, value: policyInfo --> String
	//设置redis存在的有效期， 有效期：结束时间减去当前时间

	long diff = 0;
	SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm");
	String now = restTemplate.getForObject("http://leyou-time-server/getTime", String.class);
	try {
		Date end_time = simpleDateFormat.parse(policyInfo.get("end_time").toString());
		Date now_time = simpleDateFormat.parse(now);

		diff = (end_time.getTime() - now_time.getTime()) / 1000; //有效期为秒

		if (diff < 0) {
			resultMap.put("result", false);
			resultMap.put("msg", "结束时间不能小于当前时间");
			return resultMap;
		}

	} catch (ParseException e) {
		e.printStackTrace();
	}

	//3. 存入MySQL
	boolean result = iStockDao.insertLimitPolicy(policyInfo);

	//如果没有执行成功，返回错误信息
	if (!result) {
		resultMap.put("result", false);
		resultMap.put("msg", "数据库写入政策时失败！");
		return resultMap;
	}


	String policy = JSON.toJSONString(policyInfo);
	//4.1 商品政策写入Redis,并设置redis的有效期
	stringRedisTemplate.opsForValue().set("LIMIT_POLICY_" + policyInfo.get("sku_id"), policy, diff, TimeUnit.SECONDS);

	//4.2 从MySQL中将该商品信息取出写入redis
	ArrayList<Map<String, Object>> list = iStockDao.getStock(policyInfo.get("sku_id").toString());
	String sku = JSON.toJSONString(list.get(0));
	stringRedisTemplate.opsForValue().set("SKU_" + policyInfo.get("sku_id").toString(), sku, diff, TimeUnit.SECONDS);

	//5. 返回正常信息
	resultMap.put("result", true);
	resultMap.put("msg", "政策写入完毕！");
	return resultMap;
}

7.Redis计数器，超过设置的值直接返回错误，不提供后续服务

if (stringRedisTemplate.opsForValue().increment("SKU_QUANTY_" + sku_id, 1) <= limitQuanty) {

@Override
public Map<String,Object> createOrder(String sku_id, String user_id){
	Map<String,Object> resultMap = new HashMap<String,Object>();

	//1.判断sku_id
	if(sku_id==null || sku_id.equals("")){
		resultMap.put("result",false);
		resultMap.put("msg","无sku_id参数");
		return resultMap;
	}

	//订单id取当前的时间
	String order_id = String.valueOf((int)(Math.random()*10000+1))+String.valueOf((int)(Math.random()*10000+1))+String.valueOf((int)(Math.random()*10000+1))+String.valueOf((int)(Math.random()*10000+1));
//        String order_id = UUID.randomUUID().toString().replace("-", "").substring(6);

	//2.从Redis中取存入的活动政策limitpolicy
	String key = "LIMIT_POLICY_"+sku_id;
	String policy = stringRedisTemplate.opsForValue().get(key);
//        String policy = stringRedisTemplate.opsForValue().get("LIMIT_POLICY_" + sku_id);

	if(policy!=null && !policy.equals("")){
		Map<String,Object> policyMap = JSONObject.parseObject(policy, Map.class);

		SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm");
		String now = restTemplate.getForObject("http://leyou-time-server/getTime",String.class);

		try {
			Date end_time = simpleDateFormat.parse(policyMap.get("end_time").toString());
			Date begin_time = simpleDateFormat.parse(policyMap.get("begin_time").toString());
			Date now_time = simpleDateFormat.parse(now);

			//3. 判断时间是否合法
			if(begin_time.getTime()<=now_time.getTime() && now_time.getTime()<=end_time.getTime()) {
				int limitQuanty = Integer.parseInt(policyMap.get("quanty").toString());

				//4. Redis计数器
				if (stringRedisTemplate.opsForValue().increment("SKU_QUANTY_" + sku_id, 1) <= limitQuanty) {
                                         。。。。。。。。。。。

					try {
						amqpTemplate.convertAndSend("order_queue",order);
					}catch (Exception e){
						resultMap.put("result", false);
						resultMap.put("msg", "写入队列异常！");
						return resultMap;
					}
				}else {
					//超出Redis计数器,直接踢回
					//如果超出了计数器，返回商品已经售完了
					resultMap.put("result", false);
					resultMap.put("msg", "3亿9被踢回去了！");
					return resultMap;
				}
			}else {
				//结束时间大于当前时间，活动已过期
				resultMap.put("result", false);
				resultMap.put("msg", "活动已过期或时间还未到！");
				return resultMap;
			}
		} catch (ParseException e) {
			e.printStackTrace();
		}
	}else {
		//policy为空
		resultMap.put("result", false);
		resultMap.put("msg", "Redis里面无LIMIT_POLICY！");
		return resultMap;
	}

	//正常返回
	resultMap.put("result",true);
	resultMap.put("msg","数据正常返回");
	resultMap.put("order_id",order_id);

	return resultMap;
}

8. RabbitMQ队列的配置和使用

（1）写队列

①订单队列OrderQueue

@Component
public class OrderQueue {

    @Autowired
    private IOrderService iOrderService;

    @RabbitListener(queues = "order_queue")
    public void insertOrder(String msg) {  //此处的msg就是订单信息
        //1. 接受信息并输出
        System.out.println("order_queue接收到信息：" + msg);

        //2.调用写入订单的方法
        Map orderInfo = JSONObject.parseObject(msg, Map.class);
        Map<String, Object> resulthMap = new HashMap<String, Object>();

        resulthMap = iOrderService.insertOrder(orderInfo);

        //3.如果没写成功输出错误信息
        if (!(Boolean) resulthMap.get("result")) {
            System.out.println("order_queue处理信息失败！ ");
        }

        System.out.println("order_queue处理信息成功 ");
    }

}

②配置MQConfig，设置队列持久化

public class MQConfig {

    @Bean
    public Queue queueOrder() {
        return new Queue("order_queue", true);
    }
}

（2）使用队列

amqpTemplate.convertAndSend("order_queue", order);//交由队列order_queue处理insertOrder

@Service
public class OrderServiceImpl implements IOrderService {
    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    @Autowired
    private AmqpTemplate amqpTemplate;

    @Autowired
    private IOrderDao iOrderDao;

    @Override
    public Map<String, Object> createOrder(String sku_id, String user_id) {
        Map<String, Object> resultMap = new HashMap<String, Object>();

        //2.从Redis中取存入的活动政策limitpolicy
        String policy = stringRedisTemplate.opsForValue().get("LIMIT_POLICY_" + sku_id);
        Map<String, Object> orderInfo = new HashMap<String, Object>();
	orderInfo.put("order_id", order_id);
    	String order = JSON.toJSONString(orderInfo);

	try {
	    amqpTemplate.convertAndSend("order_queue", order);
	} catch (Exception e) {
	       resultMap.put("result", false);
	       resultMap.put("msg", "写入队列异常！");
	       return resultMap;
	}

        //正常返回
        resultMap.put("result", true);
        resultMap.put("msg", "数据正常返回");
        resultMap.put("order_id", order_id);

        return resultMap;
    }

①②③④⑤
