检测数据库detectron2代码解析（二）BACKBONE

facebookresearch发表的检测数据库detectron2几乎涵盖了当下最新的各种检测代码。

1. 模型建立

def build_model(cfg):
    """
    构建整个模型架构，由 ``cfg.MODEL.META_ARCHITECTURE`` 定义。
    根据配置函数里面的内容，找到对应的函数，然后调用创建模型。
    """
    meta_arch = cfg.MODEL.META_ARCHITECTURE
    model = META_ARCH_REGISTRY.get(meta_arch)(cfg)
    model.to(torch.device(cfg.MODEL.DEVICE))
    _log_api_usage("modeling.meta_arch." + meta_arch)
    return model

把META_ARCH_REGISTRY打印出来看一下，是registry类型，类似于字典，get函数根据关键字取值

Registry of META_ARCH:
╒═══════════════════╤════════════════════════════════════════════════════════════════════════╕
│ Names             │ Objects                                                                │
╞═══════════════════╪════════════════════════════════════════════════════════════════════════╡
│ GeneralizedRCNN   │ <class 'detectron2.modeling.meta_arch.rcnn.GeneralizedRCNN'>           │
├───────────────────┼────────────────────────────────────────────────────────────────────────┤
│ ProposalNetwork   │ <class 'detectron2.modeling.meta_arch.rcnn.ProposalNetwork'>           │
├───────────────────┼────────────────────────────────────────────────────────────────────────┤
│ SemanticSegmentor │ <class 'detectron2.modeling.meta_arch.semantic_seg.SemanticSegmentor'> │
├───────────────────┼────────────────────────────────────────────────────────────────────────┤
│ PanopticFPN       │ <class 'detectron2.modeling.meta_arch.panoptic_fpn.PanopticFPN'>       │
├───────────────────┼────────────────────────────────────────────────────────────────────────┤
│ RetinaNet         │ <class 'detectron2.modeling.meta_arch.retinanet.RetinaNet'>            │
╘═══════════════════╧════════════════════════════════════════════════════════════════════════╛

2. 配置文件

使用配置文件如下

_BASE_: "../Base-RCNN-FPN.yaml"
MODEL:
  WEIGHTS: "detectron2://ImageNetPretrained/MSRA/R-50.pkl"
  MASK_ON: True
  RESNETS:
    DEPTH: 50
  RPN:
    BBOX_REG_LOSS_TYPE: "giou"
    BBOX_REG_LOSS_WEIGHT: 2.0
  ROI_BOX_HEAD:
    BBOX_REG_LOSS_TYPE: "giou"
    BBOX_REG_LOSS_WEIGHT: 10.0

Base-RCNN-FPN.yaml如下

MODEL:
  META_ARCHITECTURE: "GeneralizedRCNN"
  BACKBONE:
    NAME: "build_resnet_fpn_backbone"
  RESNETS:
    OUT_FEATURES: ["res2", "res3", "res4", "res5"]
  FPN:
    IN_FEATURES: ["res2", "res3", "res4", "res5"]
  ANCHOR_GENERATOR:
    SIZES: [[32], [64], [128], [256], [512]]  # One size for each in feature map
    ASPECT_RATIOS: [[0.5, 1.0, 2.0]]  # Three aspect ratios (same for all in feature maps)
  RPN:
    IN_FEATURES: ["p2", "p3", "p4", "p5", "p6"]
    PRE_NMS_TOPK_TRAIN: 2000  # Per FPN level
    PRE_NMS_TOPK_TEST: 1000  # Per FPN level
    # Detectron1 uses 2000 proposals per-batch,
    # (See "modeling/rpn/rpn_outputs.py" for details of this legacy issue)
    # which is approximately 1000 proposals per-image since the default batch size for FPN is 2.
    POST_NMS_TOPK_TRAIN: 1000
    POST_NMS_TOPK_TEST: 1000
  ROI_HEADS:
    NAME: "StandardROIHeads"
    IN_FEATURES: ["p2", "p3", "p4", "p5"]
  ROI_BOX_HEAD:
    NAME: "FastRCNNConvFCHead"
    NUM_FC: 2
    POOLER_RESOLUTION: 7
  ROI_MASK_HEAD:
    NAME: "MaskRCNNConvUpsampleHead"
    NUM_CONV: 4
    POOLER_RESOLUTION: 14
DATASETS:
  TRAIN: ("coco_2017_train",)
  TEST: ("coco_2017_val",)
SOLVER:
  IMS_PER_BATCH: 16
  BASE_LR: 0.02
  STEPS: (60000, 80000)
  MAX_ITER: 90000
INPUT:
  MIN_SIZE_TRAIN: (640, 672, 704, 736, 768, 800)
VERSION: 2

3. GeneralizedRCNN

注意到META_ARCHITECTURE为GeneralizedRCNN，则

model = GeneralizedRCNN.get(meta_arch)(cfg)

打印model得到的结果看一下，如下，包含以下三个类

1. backbone
2. proposal_generator
3. roi_heads

GeneralizedRCNN(
  (backbone): FPN(...)
  (proposal_generator): RPN(...)
  (roi_heads): StandardROIHeads(
    (box_pooler): ROIPooler(...)
    (box_head): FastRCNNConvFCHead(...)
    (box_predictor): FastRCNNOutputLayers(
      (cls_score): Linear(in_features=1024, out_features=81, bias=True)
      (bbox_pred): Linear(in_features=1024, out_features=320, bias=True)
    )
  )
)

GeneralizedRCNN类的定义

class GeneralizedRCNN(nn.Module):
    """
    包含以下三个内容：
    1. 每张图像特征提取（又名主干）
    2. 区域建议网络生成
    3. 每个区域的特征提取和预测
    """

    @configurable
    def __init__(
        self,
        *,
        backbone: Backbone,
        proposal_generator: nn.Module,
        roi_heads: nn.Module,
        pixel_mean: Tuple[float],
        pixel_std: Tuple[float],
        input_format: Optional[str] = None,
        vis_period: int = 0,
    ):
        """
        Args:
            backbone: a backbone module, must follow detectron2's backbone interface
            proposal_generator: a module that generates proposals using backbone features
            roi_heads: a ROI head that performs per-region computation
            pixel_mean, pixel_std: list or tuple with #channels element, representing
                the per-channel mean and std to be used to normalize the input image
            input_format: describe the meaning of channels of input. Needed by visualization
            vis_period: the period to run visualization. Set to 0 to disable.
        """
        super().__init__()
        self.backbone = backbone
        self.proposal_generator = proposal_generator
        self.roi_heads = roi_heads

        self.input_format = input_format
        self.vis_period = vis_period
        if vis_period > 0:
            assert input_format is not None, "input_format is required for visualization!"

        self.register_buffer("pixel_mean", torch.tensor(pixel_mean).view(-1, 1, 1), False)
        self.register_buffer("pixel_std", torch.tensor(pixel_std).view(-1, 1, 1), False)
        assert (
            self.pixel_mean.shape == self.pixel_std.shape
        ), f"{self.pixel_mean} and {self.pixel_std} have different shapes!"

4. backbone

初始化backbone的时候，会使用一个Backbone类来初始化，其中仅定义了一些基本函数的名字。

class Backbone(nn.Module, metaclass=ABCMeta):
    """
    网络主干的基类
    """

    def __init__(self):
        """
        The `__init__` method of any subclass can specify its own set of arguments.
        """
        super().__init__()

    @abstractmethod
    def forward(self):
        """
        Subclasses must override this method, but adhere to the same return type.

        Returns:
            dict[str->Tensor]: mapping from feature name (e.g., "res2") to tensor
        """
        pass

    @property
    def size_divisibility(self) -> int:
        """
        Some backbones require the input height and width to be divisible by a
        specific integer. This is typically true for encoder / decoder type networks
        with lateral connection (e.g., FPN) for which feature maps need to match
        dimension in the "bottom up" and "top down" paths. Set to 0 if no specific
        input size divisibility is required.
        """
        return 0

    def output_shape(self):
        """
        Returns:
            dict[str->ShapeSpec]
        """
        # this is a backward-compatible default
        return {
            name: ShapeSpec(
                channels=self._out_feature_channels[name], stride=self._out_feature_strides[name]
            )
            for name in self._out_features
        }

而在调用from_config函数的时候，会使用build_backbone函数，用来构造backbone，使用的类为

backbone_name = cfg.MODEL.BACKBONE.NAME

打印backbone_name为

'build_resnet_fpn_backbone'

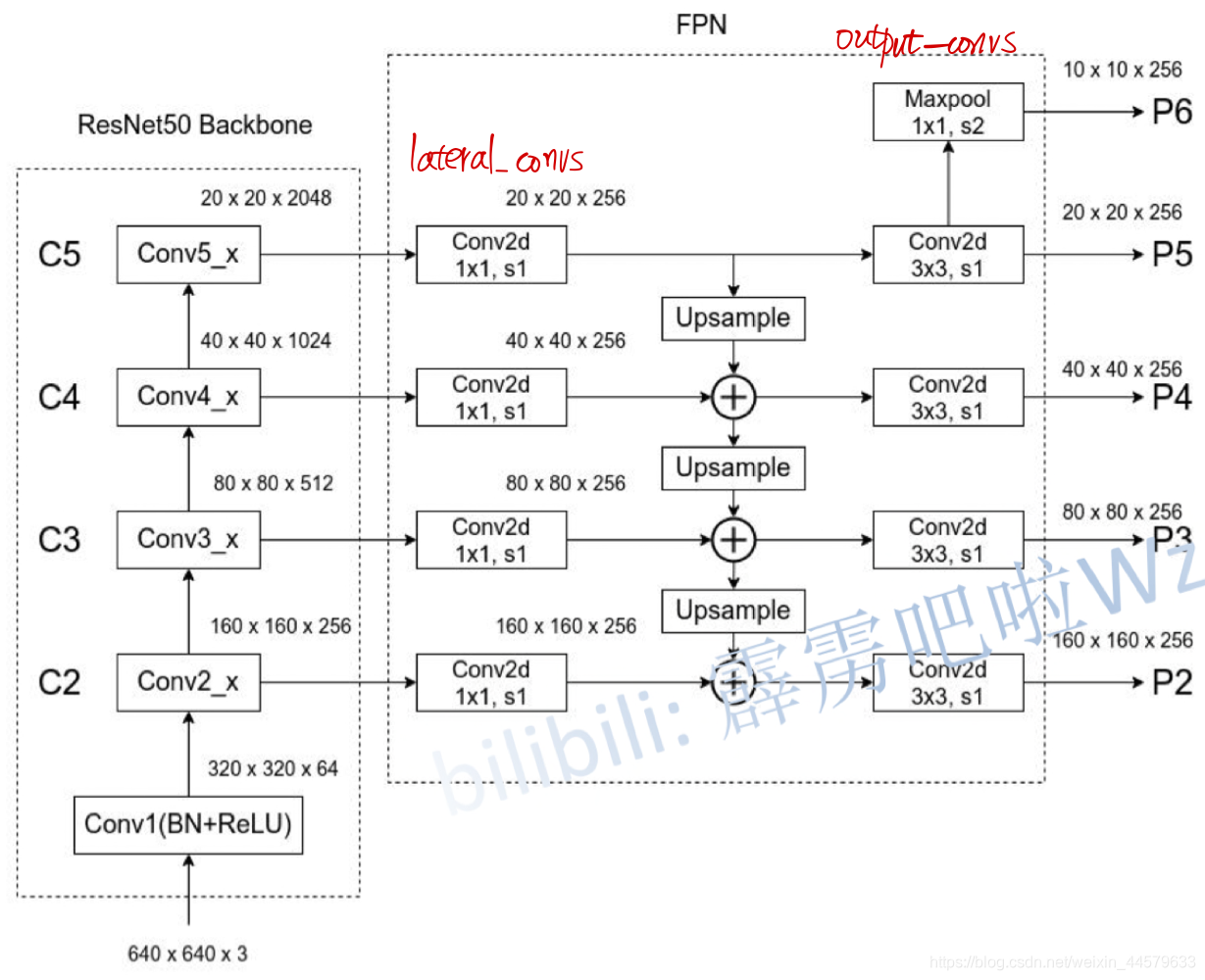

顾名思义，就是包含resnet网络和fpn网络的建立

4.1 BasicStem

resnet中最基本的网络单元，包含一个卷积层、一个激活层和一个最大池化层

class BasicStem(CNNBlockBase):
    """
    The standard ResNet stem (layers before the first residual block),
    with a conv, relu and max_pool.
    """

    def __init__(self, in_channels=3, out_channels=64, norm="BN"):
        """
        Args:
            norm (str or callable): norm after the first conv layer.
                See :func:`layers.get_norm` for supported format.
        """
        super().__init__(in_channels, out_channels, 4)
        self.in_channels = in_channels
        self.conv1 = Conv2d(
            in_channels,
            out_channels,
            kernel_size=7,
            stride=2,
            padding=3,
            bias=False,
            norm=get_norm(norm, out_channels),
        )
        weight_init.c2_msra_fill(self.conv1)

    def forward(self, x):
        x = self.conv1(x)
        x = F.relu_(x)
        x = F.max_pool2d(x, kernel_size=3, stride=2, padding=1)
        return x

4.2 BasicBlock

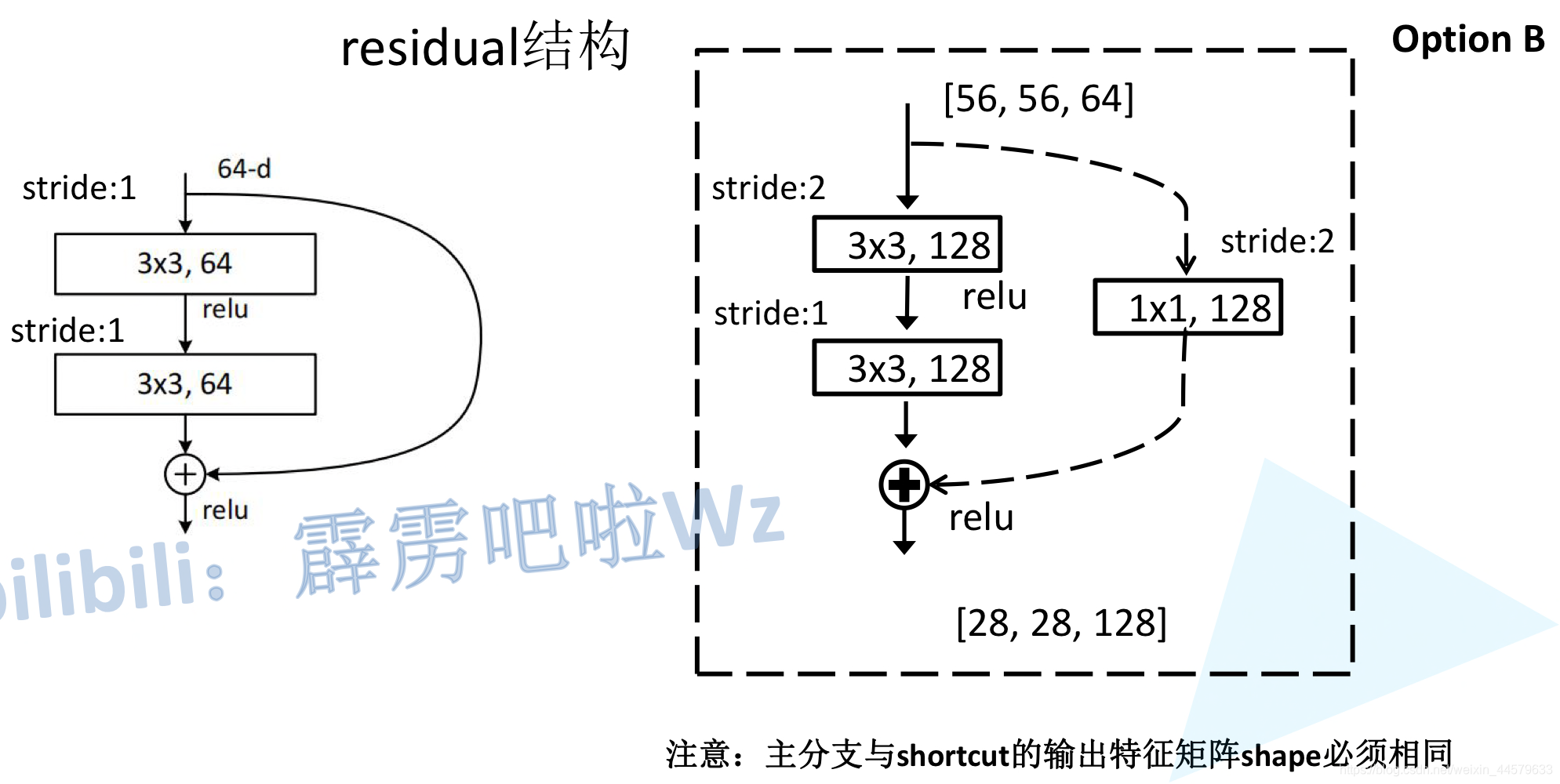

一个基本的残差模块BasicBlock如左图所示，包含两个 3x3 的卷积层和一个残差。

特别地，在每一个layer的第一个BasicBlock，为了调整输入通道和输出通道的深度相同，需要在shortcut路径上增加一个1x1卷积层。

class BasicBlock(CNNBlockBase):
    """
    The basic residual block for ResNet-18 and ResNet-34 defined in :paper:`ResNet`,
    with two 3x3 conv layers and a projection shortcut if needed.
    """

    def __init__(self, in_channels, out_channels, *, stride=1, norm="BN"):
        """
        Args:
            in_channels (int): Number of input channels.
            out_channels (int): Number of output channels.
            stride (int): Stride for the first conv.
            norm (str or callable): normalization for all conv layers.
                See :func:`layers.get_norm` for supported format.
        """
        super().__init__(in_channels, out_channels, stride)

        # 在每一个layer的第一个BasicBlock，为了调整输入通道和输出通道的深度相同
        # 需要在shortcut路径上增加一个1x1卷积层
        if in_channels != out_channels:
            self.shortcut = Conv2d(
                in_channels,
                out_channels,
                kernel_size=1,
                stride=stride,
                bias=False,
                norm=get_norm(norm, out_channels),
            )
        else:
            self.shortcut = None

        self.conv1 = Conv2d(
            in_channels,
            out_channels,
            kernel_size=3,
            stride=stride,
            padding=1,
            bias=False,
            norm=get_norm(norm, out_channels),
        )

        self.conv2 = Conv2d(
            out_channels,
            out_channels,
            kernel_size=3,
            stride=1,
            padding=1,
            bias=False,
            norm=get_norm(norm, out_channels),
        )

        for layer in [self.conv1, self.conv2, self.shortcut]:
            if layer is not None:  # shortcut can be None
                weight_init.c2_msra_fill(layer)

    def forward(self, x):
        out = self.conv1(x)
        out = F.relu_(out)
        out = self.conv2(out)

        # 是否在shortcut路径上增加一个1x1卷积层
        if self.shortcut is not None:
            shortcut = self.shortcut(x)
        else:
            shortcut = x

        out += shortcut
        out = F.relu_(out)
        return out

4.3 make_stage

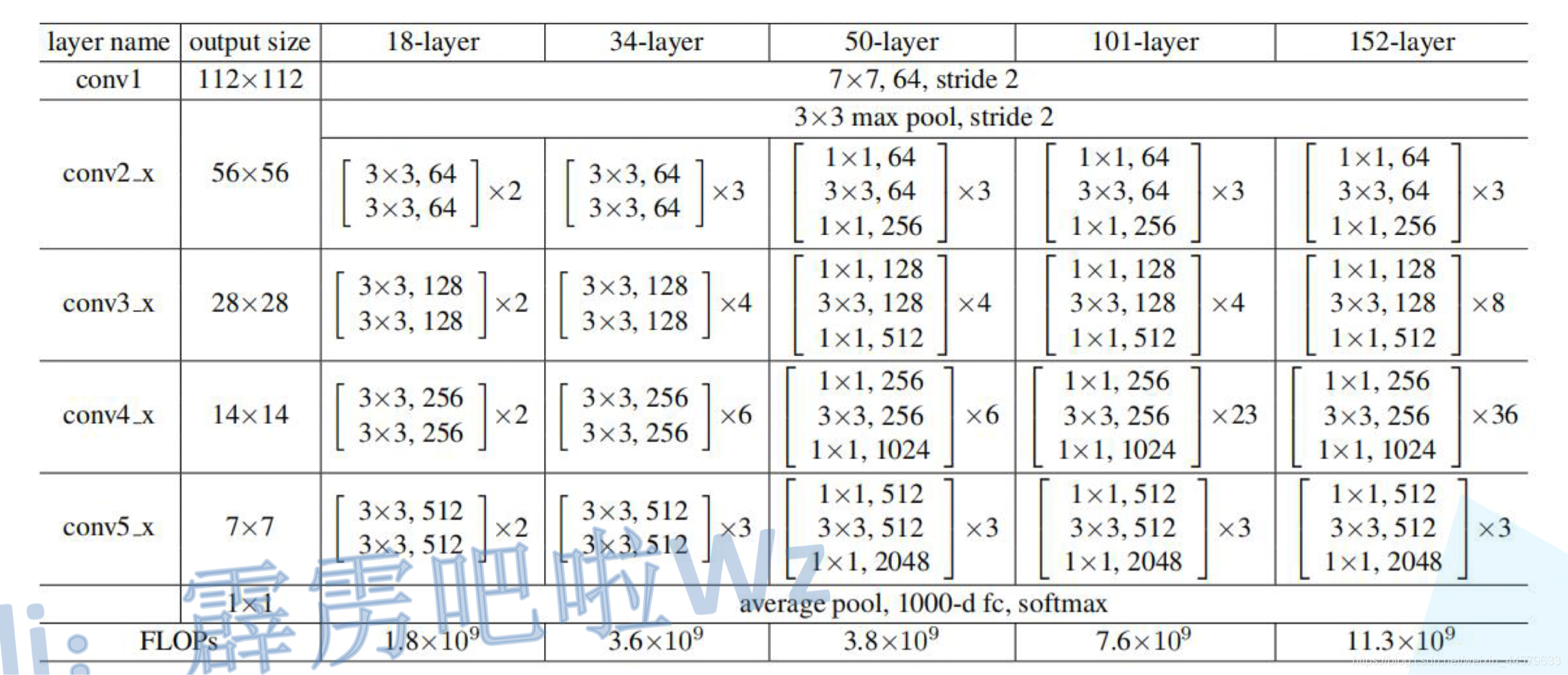

利用BasicBlock重复num_block遍，构建下图中的每一个layer

    def make_stage(block_class, num_blocks, *, in_channels, out_channels, **kwargs):
        """
        Create a list of blocks of the same type that forms one ResNet stage.
        Args:
            block_class (type): a subclass of CNNBlockBase that's used to create all blocks in this
                stage. A module of this type must not change spatial resolution of inputs unless its
                stride != 1.
            num_blocks (int): number of blocks in this stage
            in_channels (int): input channels of the entire stage.
            out_channels (int): output channels of **every block** in the stage.
            kwargs: other arguments passed to the constructor of
                `block_class`. If the argument name is "xx_per_block", the
                argument is a list of values to be passed to each block in the
                stage. Otherwise, the same argument is passed to every block
                in the stage.
        Returns:
            list[CNNBlockBase]: a list of block module.
        """
        blocks = []
        # import pdb;pdb.set_trace()

        # 添加num_block个basicblock
        for i in range(num_blocks):
            curr_kwargs = {}
            for k, v in kwargs.items():
                if k.endswith("_per_block"):
                    assert len(v) == num_blocks, (
                        f"Argument '{k}' of make_stage should have the "
                        f"same length as num_blocks={num_blocks}."
                    )
                    newk = k[: -len("_per_block")]
                    assert newk not in kwargs, f"Cannot call make_stage with both {k} and {newk}!"
                    curr_kwargs[newk] = v[i]
                else:
                    curr_kwargs[k] = v
            import pdb;pdb.set_trace()
            blocks.append(
                block_class(in_channels=in_channels, out_channels=out_channels, **curr_kwargs)
            )
            in_channels = out_channels
        # import pdb;pdb.set_trace()
        return blocks

4.4 ResNet

利用layer构建完整的ResNet网络：

第2到第5层卷积层：

def build_resnet_backbone(cfg, input_shape):
    """
    Create a ResNet instance from config.
    Returns:
        ResNet: a :class:`ResNet` instance.
    """
    # need registration of new blocks/stems?
    # import pdb;pdb.set_trace()
    norm = cfg.MODEL.RESNETS.NORM
    stem = BasicStem(
        in_channels=input_shape.channels,
        out_channels=cfg.MODEL.RESNETS.STEM_OUT_CHANNELS,
        norm=norm,
    )

    # fmt: off
    freeze_at           = cfg.MODEL.BACKBONE.FREEZE_AT
    out_features        = cfg.MODEL.RESNETS.OUT_FEATURES
    depth               = cfg.MODEL.RESNETS.DEPTH
    num_groups          = cfg.MODEL.RESNETS.NUM_GROUPS
    width_per_group     = cfg.MODEL.RESNETS.WIDTH_PER_GROUP
    bottleneck_channels = num_groups * width_per_group
    in_channels         = cfg.MODEL.RESNETS.STEM_OUT_CHANNELS
    out_channels        = cfg.MODEL.RESNETS.RES2_OUT_CHANNELS
    stride_in_1x1       = cfg.MODEL.RESNETS.STRIDE_IN_1X1
    res5_dilation       = cfg.MODEL.RESNETS.RES5_DILATION
    deform_on_per_stage = cfg.MODEL.RESNETS.DEFORM_ON_PER_STAGE
    deform_modulated    = cfg.MODEL.RESNETS.DEFORM_MODULATED
    deform_num_groups   = cfg.MODEL.RESNETS.DEFORM_NUM_GROUPS
    # fmt: on
    assert res5_dilation in {1, 2}, "res5_dilation cannot be {}.".format(res5_dilation)

    num_blocks_per_stage = {
        18: [2, 2, 2, 2],
        34: [3, 4, 6, 3],
        50: [3, 4, 6, 3],
        101: [3, 4, 23, 3],
        152: [3, 8, 36, 3],
    }[depth]

    stages = []
    for idx, stage_idx in enumerate(range(2, 6)):
        # res5_dilation is used this way as a convention in R-FCN & Deformable Conv paper
        dilation = res5_dilation if stage_idx == 5 else 1
        first_stride = 1 if idx == 0 or (stage_idx == 5 and dilation == 2) else 2
        stage_kargs = {
            "num_blocks": num_blocks_per_stage[idx],
            "stride_per_block": [first_stride] + [1] * (num_blocks_per_stage[idx] - 1),
            "in_channels": in_channels,
            "out_channels": out_channels,
            "norm": norm,
        }
        # Use BasicBlock for R18 and R34.
        if depth in [18, 34]:
            stage_kargs["block_class"] = BasicBlock
        else:
            stage_kargs["bottleneck_channels"] = bottleneck_channels
            stage_kargs["stride_in_1x1"] = stride_in_1x1
            stage_kargs["dilation"] = dilation
            stage_kargs["num_groups"] = num_groups
            if deform_on_per_stage[idx]:
                stage_kargs["block_class"] = DeformBottleneckBlock
                stage_kargs["deform_modulated"] = deform_modulated
                stage_kargs["deform_num_groups"] = deform_num_groups
            else:
                stage_kargs["block_class"] = BottleneckBlock
        blocks = ResNet.make_stage(**stage_kargs)
        in_channels = out_channels
        out_channels *= 2
        bottleneck_channels *= 2
        stages.append(blocks)
    return ResNet(stem, stages, out_features=out_features, freeze_at=freeze_at)

前向传递函数：

    def forward(self, x):
        """
        Args:
            x: Tensor of shape (N,C,H,W). H, W must be a multiple of ``self.size_divisibility``.

        Returns:
            dict[str->Tensor]: names and the corresponding features
        """
        assert x.dim() == 4, f"ResNet takes an input of shape (N, C, H, W). Got {x.shape} instead!"
        outputs = {}
        # 第1层卷积层
        x = self.stem(x)
        if "stem" in self._out_features:
            outputs["stem"] = x

        # 第2到5层卷积层
        for name, stage in zip(self.stage_names, self.stages):
            x = stage(x)
            if name in self._out_features:
                outputs[name] = x

        # 池化层和全连接层
        if self.num_classes is not None:
            x = self.avgpool(x)
            x = torch.flatten(x, 1)
            x = self.linear(x)
            if "linear" in self._out_features:
                outputs["linear"] = x
        return outputs

5. FPN

FPN网络示意图如下，代码中用lateral_convs表示对特征图降维的卷积层，用output_convs表示特征图下采样融合后的输出卷积层。

class FPN(Backbone):
    """
    This module implements :paper:`FPN`.
    It creates pyramid features built on top of some input feature maps.
    """

    _fuse_type: torch.jit.Final[str]

    def __init__(
        self, bottom_up, in_features, out_channels, norm="", top_block=None, fuse_type="sum"
    ):
        """
        Args:
            bottom_up (Backbone): module representing the bottom up subnetwork.
                Must be a subclass of :class:`Backbone`. The multi-scale feature
                maps generated by the bottom up network, and listed in `in_features`,
                are used to generate FPN levels.
            in_features (list[str]): names of the input feature maps coming
                from the backbone to which FPN is attached. For example, if the
                backbone produces ["res2", "res3", "res4"], any *contiguous* sublist
                of these may be used; order must be from high to low resolution.
            out_channels (int): number of channels in the output feature maps.
            norm (str): the normalization to use.
            top_block (nn.Module or None): if provided, an extra operation will
                be performed on the output of the last (smallest resolution)
                FPN output, and the result will extend the result list. The top_block
                further downsamples the feature map. It must have an attribute
                "num_levels", meaning the number of extra FPN levels added by
                this block, and "in_feature", which is a string representing
                its input feature (e.g., p5).
            fuse_type (str): types for fusing the top down features and the lateral
                ones. It can be "sum" (default), which sums up element-wise; or "avg",
                which takes the element-wise mean of the two.
        """
        super(FPN, self).__init__()
        assert isinstance(bottom_up, Backbone)
        assert in_features, in_features

        # 自下而上的网络（例如 ResNet）的特征图步幅和通道
        input_shapes = bottom_up.output_shape()
        strides = [input_shapes[f].stride for f in in_features]
        in_channels_per_feature = [input_shapes[f].channels for f in in_features]
        # import pdb;pdb.set_trace()

        _assert_strides_are_log2_contiguous(strides)
        lateral_convs = []
        output_convs = []

        use_bias = norm == ""
        for idx, in_channels in enumerate(in_channels_per_feature):
            lateral_norm = get_norm(norm, out_channels)
            output_norm = get_norm(norm, out_channels)
            # 对特征图降维的卷积层
            lateral_conv = Conv2d(
                in_channels, out_channels, kernel_size=1, bias=use_bias, norm=lateral_norm
            )
            # 特征图下采样融合后的输出卷积层
            output_conv = Conv2d(
                out_channels,
                out_channels,
                kernel_size=3,
                stride=1,
                padding=1,
                bias=use_bias,
                norm=output_norm,
            )
            weight_init.c2_xavier_fill(lateral_conv)
            weight_init.c2_xavier_fill(output_conv)
            stage = int(math.log2(strides[idx]))
            self.add_module("fpn_lateral{}".format(stage), lateral_conv)
            self.add_module("fpn_output{}".format(stage), output_conv)

            lateral_convs.append(lateral_conv)
            output_convs.append(output_conv)
        # import pdb;pdb.set_trace()
        # 将转换按自上而下的顺序（从低到高分辨率）放置，以使自上而下的计算向前更清晰。
        self.lateral_convs = lateral_convs[::-1]
        self.output_convs = output_convs[::-1]

        # 该模块在原始FPN中用于从P5生成下采样的P6特征，也是第一个下采样模块
        self.top_block = top_block

        # 从backbone中获得的不同尺度的特征图
        self.in_features = tuple(in_features)

        # 之前获得的resnet_backbone
        self.bottom_up = bottom_up

        # 其余参数省略

6. Proposal_generator

打印配置文件中使用的Proposal_generator

name = cfg.MODEL.PROPOSAL_GENERATOR.NAME
PROPOSAL_GENERATOR_REGISTRY.get(name)(cfg, input_shape)

得到RPN：

RPN(
  (rpn_head): StandardRPNHead(
    (conv): Conv2d(
      256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1)
      (activation): ReLU()
    )
    (objectness_logits): Conv2d(256, 3, kernel_size=(1, 1), stride=(1, 1))
    (anchor_deltas): Conv2d(256, 12, kernel_size=(1, 1), stride=(1, 1))
  )
  (anchor_generator): DefaultAnchorGenerator(
    (cell_anchors): BufferList()
  )
)

6.1 anchor_generator

根据面积size和长宽比aspect_ratio生成不同大小和形状的anchors

    def generate_cell_anchors(self, sizes=(32, 64, 128, 256, 512), aspect_ratios=(0.5, 1, 2)):
        """
        生成一个存储规范anchors的张量，这些anchors都是以 (0, 0) 为中心的不同大小和 aspect_ratios 的anchors。
        我们稍后可以通过移动和平铺这些张量来构建完整特征图的anchors集（参见`meth:_grid_anchors`）。
        Args:
            sizes (tuple[float]):
            aspect_ratios (tuple[float]]):
        Returns:
            Tensor of shape (len(sizes) * len(aspect_ratios), 4) storing anchor boxes in XYXY format.
        """
        anchors = []
        for size in sizes:
            area = size ** 2.0
            for aspect_ratio in aspect_ratios:
                # 根据面积size和长宽比aspect_ratio计算w和h
                w = math.sqrt(area / aspect_ratio)
                h = aspect_ratio * w
                x0, y0, x1, y1 = -w / 2.0, -h / 2.0, w / 2.0, h / 2.0
                anchors.append([x0, y0, x1, y1])
        return torch.tensor(anchors)

并将获得的anchors放置在缓冲区

class BufferList(nn.Module):
    """
    Similar to nn.ParameterList, but for buffers
    """

    def __init__(self, buffers):
        super().__init__()
        for i, buffer in enumerate(buffers):
            # Use non-persistent buffer so the values are not saved in checkpoint
            self.register_buffer(str(i), buffer, persistent=False)

    def __len__(self):
        return len(self._buffers)

    def __iter__(self):
        return iter(self._buffers.values())

6.2 rpn_head

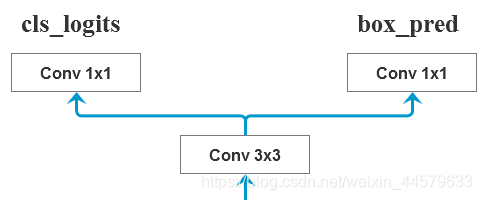

如图所示，将backbone得到的特征图首先通过一个3x3的卷积层

    def _get_rpn_conv(self, in_channels, out_channels):
        return Conv2d(
            in_channels,
            out_channels,
            kernel_size=3,
            stride=1,
            padding=1,
            activation=nn.ReLU(),
        )

然后用两个1x1的卷积层分别预测分类损失和边界框回归损失

class StandardRPNHead(nn.Module):
    """
    Standard RPN classification and regression heads described in :paper:`Faster R-CNN`.
    Uses a 3x3 conv to produce a shared hidden state from which one 1x1 conv predicts
    objectness logits for each anchor and a second 1x1 conv predicts bounding-box deltas
    specifying how to deform each anchor into an object proposal.
    """
    @configurable
    def __init__(
        self, *, in_channels: int, num_anchors: int, box_dim: int = 4, conv_dims: List[int] = (-1,)
    ):
        super().__init__()
        cur_channels = in_channels
        # Keeping the old variable names and structure for backwards compatiblity.
        # Otherwise the old checkpoints will fail to load.
        if len(conv_dims) == 1:
            out_channels = cur_channels if conv_dims[0] == -1 else conv_dims[0]
            # 3x3 conv for the hidden representation
            self.conv = self._get_rpn_conv(cur_channels, out_channels)
            cur_channels = out_channels
        else:
            self.conv = nn.Sequential()
            for k, conv_dim in enumerate(conv_dims):
                out_channels = cur_channels if conv_dim == -1 else conv_dim
                if out_channels <= 0:
                    raise ValueError(
                        f"Conv output channels should be greater than 0. Got {out_channels}"
                    )
                conv = self._get_rpn_conv(cur_channels, out_channels)
                self.conv.add_module(f"conv{k}", conv)
                cur_channels = out_channels
        # 1x1 conv 用于预测 objectness logits
        self.objectness_logits = nn.Conv2d(cur_channels, num_anchors, kernel_size=1, stride=1)
        # 1x1 conv 用于预测 box2box transform deltas
        self.anchor_deltas = nn.Conv2d(cur_channels, num_anchors * box_dim, kernel_size=1, stride=1)

7. ROIHeads

roi_heads包含三个部分：

1. box_pooler
2. box_head
3. box_predictor

(roi_heads): StandardROIHeads(
    (box_pooler): ROIPooler(
      (level_poolers): ModuleList(
        (0): ROIAlign(output_size=(7, 7), spatial_scale=0.25, sampling_ratio=0, aligned=True)
        (1): ROIAlign(output_size=(7, 7), spatial_scale=0.125, sampling_ratio=0, aligned=True)
        (2): ROIAlign(output_size=(7, 7), spatial_scale=0.0625, sampling_ratio=0, aligned=True)
        (3): ROIAlign(output_size=(7, 7), spatial_scale=0.03125, sampling_ratio=0, aligned=True)
      )
    )
    (box_head): FastRCNNConvFCHead(
      (flatten): Flatten(start_dim=1, end_dim=-1)
      (fc1): Linear(in_features=12544, out_features=1024, bias=True)
      (fc_relu1): ReLU()
      (fc2): Linear(in_features=1024, out_features=1024, bias=True)
      (fc_relu2): ReLU()
    )
    (box_predictor): FastRCNNOutputLayers(
      (cls_score): Linear(in_features=1024, out_features=81, bias=True)
      (bbox_pred): Linear(in_features=1024, out_features=320, bias=True)
    )
  )
