本文讨论了如何使用栈、队列以及数组模拟数据结构来解决列车车厢按照特定顺序重排的问题，分别展示了使用单调栈、单调队列和数组的方法实现代码及其运行结果。
完整可编译运行代码见：Github::Data-Structures-Algorithms-and-Applications/_10Train_carriages_rearrangement/
列车车厢重排问题

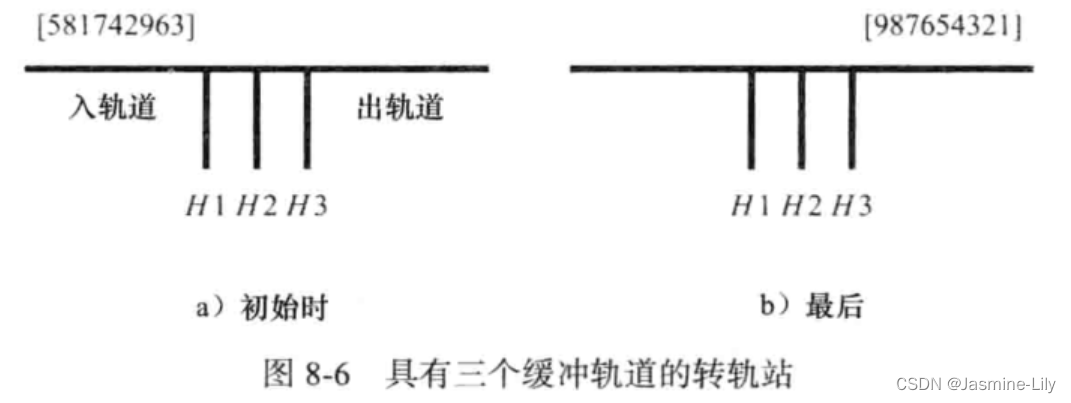

一列货运列车有 n 节车厢，每节车厢要停靠在不同的车站。假设 n个车站从 1 到n 编号，而且货运列车按照从n到1的顺序经过车站。车厢的编号与它们要停靠的车站编号相同。为了便于从列车上卸掉相应的车厢，必须按照从前至后、从1到 n 的顺序把车厢重新排列。这样排列之后，在每个车站只需卸掉最后一节车厢即可。车厢重排工作在一个转轨站（shunting yard）上进行，转轨站上有一个入轨道（input track）、一个出轨道（output track）和k个缓冲轨道（holding track）。缓冲轨道位于入轨道和出轨道之间。图 8-6a 显示了一个转轨站，其中有 3 个缓冲轨道 H1、H2 和 H3，即 k=3。开始时，挂有 n 节车厢的货车开始在入轨道，而最后在出轨道上的顺序是从右到左，从1 至n。在图 8-6a 中，n=9，车厢从后至前的初始顺序为5，8，1，7，4，2，9，6，3。图8-6b是按要求的顺序重新排列的结果。
使用栈解决
思路
为了重排车厢，我们从前至后检查入轨道上的车厢。如果正在检查的车厢是满足排列要求的下一节车厢，就直接把它移到出轨道上。如果不是，就把它移到一个缓冲轨道上，直到它满足排列要求时才将它移到出轨道上。缓冲轨道是按照 LIFO的方式管理的，车厢的进出都在缓冲轨道的顶部进行。在重排车厢过程中，仅允许以下移动：
- 车厢可以从入轨道的前端（即右端）移动到一个缓冲轨道的顶部或出轨道的后端（即左端）。
- 车厢可以从一个缓冲轨道的顶部移到出轨道的后端。
- 使用单调栈，栈顶到栈底的元素从小到大。
代码
#include <iostream>
#include <stack>
#include <vector>
using namespace std;
/*列车车厢重排全局变量*/
stack<int>* trackStack;//缓冲轨道数组
vector<int> outputTrackStack;//输出数组
int numberOfCarsStack;//需要重排的列车数目
int numberOfTracksStack;//缓冲轨道数目
int smallestCarStack;//在缓冲轨道中编号最小的车厢
int itsTrackStack;//停靠着最小编号车厢的缓冲轨道
/*列车车厢重排问题*/
/*将编号最小的车厢从缓冲轨道移到出轨道*/
void outputFromHoldingTrackStack()
{
//从栈itsTrack中删除编号最小的车厢
outputTrackStack.push_back(trackStack[itsTrackStack].top());
trackStack[itsTrackStack].pop();
cout << "Move car " << smallestCarStack << " from holding track " << itsTrackStack << " to output track" << endl;
//检查所有的栈顶，寻找编号最小的车厢和它所属的栈itsTrack
smallestCarStack = numberOfCarsStack + 2;
for (int i = 1; i <= numberOfTracksStack; i++)
{
if (!trackStack[i].empty() && (trackStack[i].top() < smallestCarStack))
{
smallestCarStack = trackStack[i].top();
itsTrackStack = i;
}
}
}
/*将车厢c移到一个缓冲轨道。返回false,当且仅当没有可用的缓冲轨道*/
bool putInHoldingTrackStack(int c)
{
//为车厢c寻找最适合的缓冲轨道
//初始化
int bestTrack = 0;//目前没有适合的缓冲轨道
int bestTop = numberOfCarsStack + 1;//取bestTrack中最顶部的车厢，便于比较
//扫描缓冲轨道
for (int i = 1; i <= numberOfTracksStack; i++)
{
//缓冲轨道i不为空
// 是一个单调栈，栈底到栈顶的数据是从小到大
if (!trackStack[i].empty())
{
if (c < trackStack[i].top() && trackStack[i].top() < bestTop)
{//缓冲轨道i的栈顶具有编号更小的车厢
bestTop = trackStack[i].top();
bestTrack = i;
}
}
else if (bestTrack == 0) bestTrack = i;
}
if (bestTrack == 0) return false;//没有可用的缓冲轨道
//把车厢c移动到轨道bestTrack
trackStack[bestTrack].push(c);
cout << "Move car " << c << " from input track to holding track " << bestTrack << endl;
//如果需要，更新smallestCar和itsTrack
if (c < smallestCarStack)
{
smallestCarStack = c;
itsTrackStack = bestTrack;
}
return true;
}
/*从初始顺序开始重排车厢；如果重排成功，返回true,否则返回false*/
bool railRoadStack(int inputOrder[], int theNumberOfCars, int theNumberOfTracks)
{
numberOfCarsStack = theNumberOfCars;
numberOfTracksStack = theNumberOfTracks;
/*创建用于缓冲轨道的栈*/
trackStack = new stack<int>[numberOfTracksStack + 1];
smallestCarStack = numberOfCarsStack + 1;//缓冲轨道中无车厢
int nextCarToOutput = 1;//当前需要被输出轨道的车厢编号
//重排车厢
for (int i = 0; i < numberOfCarsStack; i++)
{
if (inputOrder[i] == nextCarToOutput)
{
/*将车厢inputOrder[i]直接移到出轨道*/
cout << "Move car " << inputOrder[i] << " from input track to output track" << endl;
outputTrackStack.push_back(inputOrder[i]);
nextCarToOutput++;
/*从缓冲轨道移到出轨道*/
while (smallestCarStack == nextCarToOutput)
{
outputFromHoldingTrackStack();
nextCarToOutput++;
}
}
else
{
if(!putInHoldingTrackStack(inputOrder[i]))
return false;
}
}
return true;
}
int main()
{
// 列车车厢重排问题
cout << "railRoadStack()*****************" << endl;
int inputOrder[9] = { 5, 8, 1, 7, 4, 2, 9, 6, 3 };
railRoadStack(inputOrder, 9, 3);
for(int& data : outputTrackStack)
cout << data << " ";
cout << endl;
return 0;
}
运行结果
C:\Users\15495\Documents\Jasmine\Work\coding\cmake-build-debug\coding.exe
railRoadStack()*****************
Move car 5 from input track to holding track 1
Move car 8 from input track to holding track 2
Move car 1 from input track to output track
Move car 7 from input track to holding track 2
Move car 4 from input track to holding track 1
Move car 2 from input track to output track
Move car 9 from input track to holding track 3
Move car 6 from input track to holding track 2
Move car 3 from input track to output track
Move car 4 from holding track 1 to output track
Move car 5 from holding track 1 to output track
Move car 6 from holding track 2 to output track
Move car 7 from holding track 2 to output track
Move car 8 from holding track 2 to output track
Move car 9 from holding track 3 to output track
1 2 3 4 5 6 7 8 9
Process finished with exit code 0
使用队列解决
思路
为了重排车厢，我们从前至后检查入轨道上的车厢。如果正在检查的车厢是满足排列要求的下一节车厢，就直接把它移到出轨道上。如果不是，就把它移到一个缓冲轨道上，直到它满足排列要求时才将它移到出轨道上。缓冲轨道是按照 LILO的方式管理的，车厢的进出都在缓冲轨道的队头进行。在重排车厢过程中，仅允许以下移动：
- 车厢可以从入轨道的前端（即右端）移动到一个缓冲轨道的队尾或出轨道的后端（即左端）。
- 车厢可以从一个缓冲轨道的队头移到出轨道的后端。
- 使用单调队列，队头到队尾的元素从小到大。
代码
#include <iostream>
#include <queue>
using namespace std;
/*列车车厢重排全局变量*/
queue<int>* trackQueue;//缓冲轨道数组
queue<int> outputTrackQueue;//输出数组
int numberOfCarsQueue;//需要重排的列车数目
int numberOfTracksQueue;//缓冲轨道数目
int smallestCarQueue;//在缓冲轨道中编号最小的车厢
int itsTrackQueue;//停靠着最小编号车厢的缓冲轨道
/*列车车厢重排问题*/
/*将编号最小的车厢从缓冲轨道移到出轨道*/
void outputFromHoldingTrackQueue()
{
//从队列itsTrack中删除编号最小的车厢
outputTrackQueue.push(smallestCarQueue);
trackQueue[itsTrackQueue].pop();
cout << "Move car " << smallestCarQueue << " from holding track " << itsTrackQueue << " to output track" << endl;
//检查所有的队头，寻找编号最小的车厢和它所属的队itsTrackQueue
smallestCarQueue = numberOfCarsQueue + 2;
for (int i = 1; i <= numberOfTracksQueue; i++)
{
if (!trackQueue[i].empty() && (trackQueue[i].front() < smallestCarQueue))
{
smallestCarQueue = trackQueue[i].front();
itsTrackQueue = i;
}
}
}
/*将车厢c移到一个缓冲轨道。返回false,当且仅当没有可用的缓冲轨道*/
/*此处使用了单调队列：从队头元素到队尾元素是从小到大的顺序*/
bool putInHoldingTrackQueue(int c)
{
//为车厢c寻找最适合的缓冲轨道
//初始化
int bestTrack = 0;//目前没有适合的缓冲轨道
int bestTop = 0;//取bestTrack为0，便于比较
//扫描缓冲轨道
for (int i = 1; i <= numberOfTracksQueue; i++)
{
//缓冲轨道i不为空
if (!trackQueue[i].empty())
{
if (c > trackQueue[i].back() && trackQueue[i].back() > bestTop)
{//缓冲轨道i的队尾具有编号更大的车厢
bestTop = trackQueue[i].back();
bestTrack = i;
}
}
else//缓冲轨道i为空
if (bestTrack == 0) bestTrack = i;
}
if (bestTrack == 0) return false;//没有可用的缓冲轨道
//把车厢c移动到轨道bestTrack
trackQueue[bestTrack].push(c);
cout << "Move car " << c << " from input track to holding track " << bestTrack << endl;
//如果需要，更新smallestCar和itsTrack
if (c < smallestCarQueue)
{
smallestCarQueue = c;
itsTrackQueue = bestTrack;
}
return true;
}
/*从初始顺序开始重排车厢；如果重排成功，返回true,否则返回false*/
bool railRoadQueue(int inputOrder[], int theNumberOfCars, int theNumberOfTracks)
{
numberOfCarsQueue = theNumberOfCars;
numberOfTracksQueue = theNumberOfTracks;
/*创建用于缓冲轨道的队列*/
trackQueue = new queue<int>[numberOfTracksQueue + 1];
smallestCarQueue = numberOfCarsQueue + 1;//缓冲轨道中无车厢
int nextCarToOutput = 1;//当前需要被输出轨道的车厢编号
//重排车厢
for (int i = 0; i < numberOfCarsQueue; i++)
{
if (inputOrder[i] == nextCarToOutput)
{
/*将车厢inputOrder[i]直接移到出轨道*/
cout << "Move car " << inputOrder[i] << " from input track to output track" << endl;
outputTrackQueue.push(inputOrder[i]);
nextCarToOutput++;
/*从缓冲轨道移到出轨道*/
while (smallestCarQueue == nextCarToOutput)
{
outputFromHoldingTrackQueue();
nextCarToOutput++;
}
}
else
{
if (!putInHoldingTrackQueue(inputOrder[i]))
return false;
}
}
return true;
}
int main()
{
//列车车厢重排问题
cout << "railRoadQueue()*****************" << endl;
int inputOrder[9] = { 5, 8, 1, 7, 4, 2, 9, 6, 3 };
if(railRoadQueue(inputOrder, 9, 3)){
for(int i = 0; i < outputTrackQueue.size(); i++){
cout << outputTrackQueue.front() << " ";
outputTrackQueue.pop();
}
cout << endl;
}
return 0;
}
运行结果
C:\Users\15495\Documents\Jasmine\Work\coding\cmake-build-debug\coding.exe
railRoadQueue()*****************
Move car 5 from input track to holding track 1
Move car 8 from input track to holding track 1
Move car 1 from input track to output track
Move car 7 from input track to holding track 2
Move car 4 from input track to holding track 3
Move car 2 from input track to output track
Move car 9 from input track to holding track 1
Move car 6 from input track to holding track 3
Move car 3 from input track to output track
Move car 4 from holding track 3 to output track
Move car 5 from holding track 1 to output track
Move car 6 from holding track 3 to output track
Move car 7 from holding track 2 to output track
Move car 8 from holding track 1 to output track
Move car 9 from holding track 1 to output track
1 2 3 4 5
Process finished with exit code 0
既不使用栈也不使用队列解决
思路
使用数组模拟单调栈或单调队列。
代码
#include <iostream>
using namespace std;
/*不使用队列的列车车厢重排全局变量*/
/*存储车厢所在的轨道和轨道队尾的值*/
int* whichTrack; // track that has the car,存储了某车子在哪个轨道
int* lastCar; // last car in track
int numberOfCars;
int numberOfTracks;
/*不使用队列的列车车厢重排问题*/
void outputFromHoldingTrackNoQueues(int c)
{// Move car c from its holding track to the output track.
cout << "Move car " << c << " from holding track "
<< whichTrack[c] << " to output track" << endl;
// if c was the last car in its track, the track is now empty
if (c == lastCar[whichTrack[c]])
lastCar[whichTrack[c]] = 0;
}
bool putInHoldingTrackNoQueues(int c)
{// Put car c into a holding track.
// Return false iff there is no feasible holding track for this car.
// find best holding track for car c
// initialize
int bestTrack = 0, // best track so far
bestLast = 0; // last car in bestTrack
// scan tracks
for (int i = 1; i <= numberOfTracks; i++)
if (lastCar[i] != 0)
{// track i not empty
if (c > lastCar[i] && lastCar[i] > bestLast)
{
// track i has bigger car at its rear
bestLast = lastCar[i];
bestTrack = i;
}
}
else // track i empty
if (bestTrack == 0)
bestTrack = i;
if (bestTrack == 0)
return false; // no feasible track
// add c to bestTrack
whichTrack[c] = bestTrack;
lastCar[bestTrack] = c;
cout << "Move car " << c << " from input track "
<< "to holding track " << bestTrack << endl;
return true;
}
bool railroadNoQueues(int* inputOrder, int theNumberOfCars, int theNumberOfTracks)
{// Rearrange railroad cars beginning with the initial order.
// inputOrder[1:theNumberOfCars]
// Return true if successful, false if impossible.
numberOfCars = theNumberOfCars;
// keep last track open for output
numberOfTracks = theNumberOfTracks - 1;
// create the arrays lastCar and whichTrack
lastCar = new int[numberOfTracks + 1];
fill(lastCar + 1, lastCar + numberOfTracks + 1, 0);
whichTrack = new int[numberOfCars + 1];
fill(whichTrack + 1, whichTrack + numberOfCars + 1, 0);
int nextCarToOutput = 1;
// rearrange cars
for (int i = 1; i <= numberOfCars; i++)
if (inputOrder[i] == nextCarToOutput)
{// send car inputOrder[i] straight out
cout << "Move car " << inputOrder[i] << " from input "
<< "track to output track" << endl;
nextCarToOutput++;
// output from holding tracks
while (nextCarToOutput <= numberOfCars &&
whichTrack[nextCarToOutput] != 0)
{
outputFromHoldingTrackNoQueues(nextCarToOutput);
nextCarToOutput++;
}
}
else
// put car inputOrder[i] in a holding track
if (!putInHoldingTrackNoQueues(inputOrder[i]))
return false;
return true;
}
int main()
{
//列车车厢重排问题
cout << "railroadNoQueues()**************" << endl;
int p[] = {0, 3, 6, 9, 2, 4, 7, 1, 8, 5};
cout << "Input permutation is 369247185" << endl;
railroadNoQueues(p, 9, 3);
return 0;
}
运行结果
C:\Users\15495\Documents\Jasmine\Work\coding\cmake-build-debug\coding.exe
railroadNoQueues()**************
Input permutation is 369247185
Move car 3 from input track to holding track 1
Move car 6 from input track to holding track 1
Move car 9 from input track to holding track 1
Move car 2 from input track to holding track 2
Move car 4 from input track to holding track 2
Move car 7 from input track to holding track 2
Move car 1 from input track to output track
Move car 2 from holding track 2 to output track
Move car 3 from holding track 1 to output track
Move car 4 from holding track 2 to output track
Move car 8 from input track to holding track 2
Move car 5 from input track to output track
Move car 6 from holding track 1 to output track
Move car 7 from holding track 2 to output track
Move car 8 from holding track 2 to output track
Move car 9 from holding track 1 to output track
Process finished with exit code 0
扫一扫
6249
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
