SSM整合

@TOCSSM 整合
对于ssm整合网上有很多，这里只是自己为大家提供的一个ssm整合框架参考分享，这个是基于maven的管理工具写的

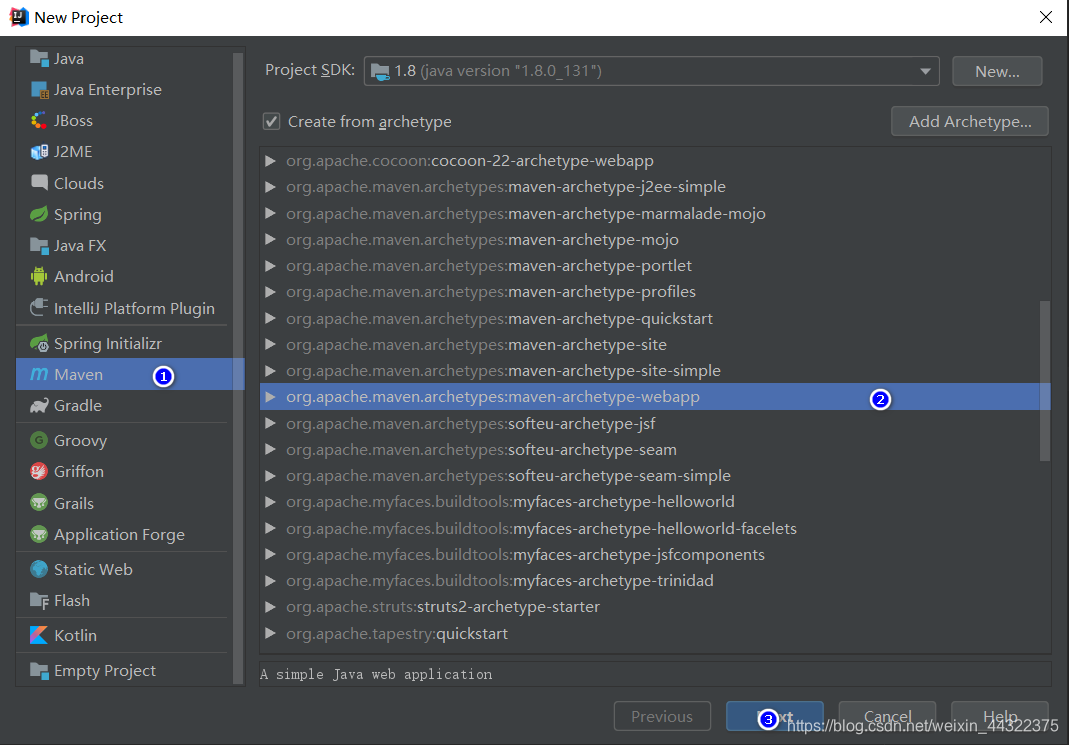

一、创建Maven工程项目

二、添加依赖（因为我的项目在有需要用到分页，json数据处理，所以我引用了这些依赖，不用的删除即可）

1. spring的依赖

• spring-core
• spring-context
• spring-context-support
• spring-beans
• spring-web
• spring-webmvc
• spring-aop
• spring-aspects
• spring-jdbc
• spring-tx

2. mybatis的依赖

• mybatis
• mybatis-spring

3. mysql的依赖

• mysql-connector-java

4. servlet，jsp，jstl等依赖

• javax.servlet-api
• javax.servlet.jsp-api
• jstl
• joda-time

5. json的依赖

• jackson-databind
• jackson-core
• jackson-annotations
• json-lib
• jackson-core-asl
• jackson-mapper-asl

6. 日志依赖

• log4j
• slf4j-api
• slf4j-log4j12

7. druid数据源依赖

• druid

8. pageHelper依赖

• pagehelper

9. lombok依赖

• lombok

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <spring.version>5.0.8.RELEASE</spring.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>
    <!--spring依赖    begin====================-->
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-core -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-context -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-context-support -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-beans -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-web -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-aop -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-aspects -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.springframework/spring-tx -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--spring依赖    end============================-->

    <!--json-->
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.9.3</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-core -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>2.9.3</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-annotations -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>2.9.3</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/net.sf.json-lib/json-lib -->
    <dependency>
      <groupId>net.sf.json-lib</groupId>
      <artifactId>json-lib</artifactId>
      <version>2.4</version>
      <classifier>jdk15</classifier>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.codehaus.jackson/jackson-core-asl -->
    <dependency>
      <groupId>org.codehaus.jackson</groupId>
      <artifactId>jackson-core-asl</artifactId>
      <version>1.9.2</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.codehaus.jackson/jackson-mapper-asl -->
    <dependency>
      <groupId>org.codehaus.jackson</groupId>
      <artifactId>jackson-mapper-asl</artifactId>
      <version>1.9.2</version>
    </dependency>
    <!--文件上传-->
    <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.3.1</version>
    </dependency>
    <!--mybatis-->
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.1</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.38</version>
    </dependency>
    <!--日志依赖-->
    <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api -->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>1.7.12</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-log4j12 -->
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>1.7.12</version>
      <scope>test</scope>
    </dependency>
    <!-- https://mvnrepository.com/artifact/log4j/log4j -->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>1.2.17</version>
    </dependency>
    <!--数据源引入-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.1.10</version>
    </dependency>
    <!--mybatis和spring整合-->
    <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.0</version>
    </dependency>
    <!--servlet，jsp，jstl等依赖-->
    <!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1.0</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>javax.servlet.jsp-api</artifactId>
      <version>2.3.1</version>
      <scope>provided</scope>
    </dependency>
    <!-- https://mvnrepository.com/artifact/javax.servlet/jstl -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <!--处理时间日期格式-->
    <!-- https://mvnrepository.com/artifact/joda-time/joda-time -->
    <dependency>
      <groupId>joda-time</groupId>
      <artifactId>joda-time</artifactId>
      <version>2.9.9</version>
    </dependency>
    <!--mybatis分页依赖-->
    <!-- https://mvnrepository.com/artifact/com.github.pagehelper/pagehelper -->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>5.1.2</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
    <!--lombok-->
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>1.16.6</version>
      <scope>provided</scope>
    </dependency>
  </dependencies>

三、配置文件
spring-mybatis.xml

1. 配置连接池
2. 引入properties文件
3. 配置sqlSessionFactory(其中可以配pageHelper插件)
4. 配置Mapper扫描

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-3.1.xsd
                        http://www.springframework.org/schema/tx
                        http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--配置读取properties文件 jdbc.properties-->
    <context:property-placeholder location="classpath:jdbc.properties"/>
    <context:property-placeholder location="classpath:log4j.properties"/>

    <!-- 配置1个阿里连接池 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init"
          destroy-method="close">
        <property name="driverClassName">
            <value>${jdbc_driverClassName}</value>
        </property>
        <property name="url">
            <value>${jdbc_url}</value>
        </property>
        <property name="username">
            <value>${jdbc_username}</value>
        </property>
        <property name="password">
            <value>${jdbc_password}</value>
        </property>
        <!-- 连接池最大使用连接数 -->
        <property name="maxActive">
            <value>20</value>
        </property>
        <!-- 初始化连接大小 -->
        <property name="initialSize">
            <value>1</value>
        </property>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait">
            <value>60000</value>
        </property>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle">
            <value>20</value>
        </property>
        <!-- 连接池最小空闲 -->
        <property name="minIdle">
            <value>3</value>
        </property>
        <!-- 自动清除无用连接 -->
        <property name="removeAbandoned">
            <value>true</value>
        </property>
        <!-- 清除无用连接的等待时间 -->
        <property name="removeAbandonedTimeout">
            <value>180</value>
        </property>
        <!-- 连接属性 -->
        <property name="connectionProperties">
            <value>clientEncoding=UTF-8</value>
        </property>
    </bean>
    <!--配置sqlSessionFactory-->
    <bean class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--设置数据源-->
        <property name="dataSource" ref="dataSource"/>
        <!--配置别名包扫描-->
        <property name="mapperLocations" value="classpath:mapping/*Mapper.xml"/>
        <!--在sqlSessionFactory中引入pagehelper的插件-->
        <property name="plugins">
            <array>
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                       <props>
                           <!--数据库类型-->
                           <prop key="helperDialect">mysql</prop>
                           <!--页码超出范围自动修正-->
                           <prop key="reasonable">true</prop>
                       </props>
                    </property>
                </bean>
            </array>
        </property>
    </bean>
    <!--配置Mapper扫描-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--设置Mapper扫描包-->
        <property name="basePackage" value="com.an.mapper"/>
    </bean>
</beans>

spring-sevice.xml

1. 配置Service包扫描
2. 配置事务管理器
3. 配置事务通知
4. 配置切面

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
    <!--配置@Service类的包扫描-->
    <context:component-scan base-package="com.an.service"/>

    <!-- 事务管理器 -->
    <bean id="transactionManager"	class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 数据源 -->
        <property name="dataSource" ref="dataSource" />
    </bean>

    <!-- 通知 -->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <!-- 传播行为 -->
            <tx:method name="save*" propagation="REQUIRED" />
            <tx:method name="insert*" propagation="REQUIRED" />
            <tx:method name="add*" propagation="REQUIRED" />
            <tx:method name="create*" propagation="REQUIRED" />
            <tx:method name="delete*" propagation="REQUIRED" />
            <tx:method name="update*" propagation="REQUIRED" />
            <tx:method name="find*" propagation="SUPPORTS" read-only="true" />
            <tx:method name="select*" propagation="SUPPORTS" read-only="true" />
            <tx:method name="get*" propagation="SUPPORTS" read-only="true" />
            <tx:method name="query*" propagation="SUPPORTS" read-only="true" />
        </tx:attributes>
    </tx:advice>

    <!-- 切面 -->
    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.an.service.*.*(..))" />
    </aop:config>

</beans>

springmvc.xml

1. 配置Controller扫描
2. 配置注解驱动
3. 配置静态资源处理器
4. 配置视图解析器

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd">
    <!-- 配置Controller扫描 -->
    <context:component-scan base-package="com.an.controller" />
    <!-- 配置注解驱动 -->
    <mvc:annotation-driven />
    <!-- 配置视图解析器 -->
    <bean	class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- 前缀 -->
        <property name="prefix" value="/WEB-INF/views/" />
        <!-- 后缀 -->
        <property name="suffix" value=".jsp" />
    </bean>
  <!--  静态资源处理-->
    <mvc:default-servlet-handler/>
</beans>

web.xml

1. 配置spring包扫描
2. 配置监听器
3. 配置过滤器
4. 配置前端控制器

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         id="WebApp_ID" version="2.5">
  <display-name>Archetype Created Web Application</display-name>
  <!--配置spring-->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:spring/spring-*.xml</param-value>
  </context-param>
  <!--配置监听器加载Spring-->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <listener>
    <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
  </listener>
  <!--配置过滤器，解决post的乱码问题-->
  <filter>
    <filter-name>encoding</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encoding</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <!--配置springmvc前端控制器-->
  <servlet>
    <servlet-name>dispatcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:springmvc.xml</param-value>
    </init-param>
    <!--配置springmvc什时候启动，参数必须为整数
        当大于等于0时springmvc随着容器启动而启动
        当小于零的是时候则在第一次请求进来的时候启动
        默认小于零-->
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>dispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

</web-app>

jdbc.properties

 jdbc_driverClassName=com.mysql.jdbc.Driver
jdbc_url=jdbc:mysql://localhost:3306/****?characterEncoding=utf-8
jdbc_username=****
jdbc_password=****

log4j.properties

log4j.rootLogger=DEBUG, stdout
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

将项目部署到Tomcat中，不要忘记将数据库中的密码，数据库，账号更改到你本地的数据库中。
包扫描的地址更改到你创建的包中。
