在使用图表的过程中略有感悟，所以简单记录一下

一、自定义点的折线图

我们用lv_chart的折线图LV_CHART_TYPE_LINE类型，只能设置y值，x值自动增加，对于想要实现不规则折线图的我来说完全不够用

散点图可自定义（x，y），设置任意点，但没线

结合这两个，可以如下配置散点图，以实现自定义折线图

简单来说就是隐去散点图的点，再让线显示出来

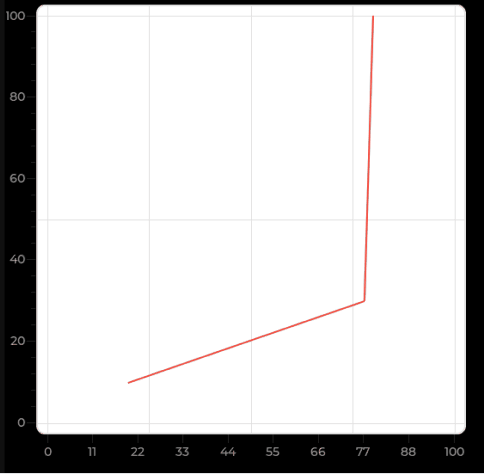

就是类似如下效果：

实现代码

void user_chart_test(lv_timer_t* timer)
{
    LV_UNUSED(timer);
    lv_obj_t *chart = timer->user_data;

    lv_chart_set_next_value2(chart,ser_test,lv_rand(0,100),lv_rand(0,100));
}

void lv_example_chart_test(void)
{
    chart_test = lv_chart_create(lv_scr_act());
    lv_obj_set_width(chart_test, 500);
    lv_obj_set_height(chart_test, 500);
    lv_obj_set_x(chart_test, 15);
    lv_obj_set_y(chart_test, 170);

    lv_obj_set_style_size(chart_test, 0, LV_PART_INDICATOR);
    lv_chart_set_type(chart_test, LV_CHART_TYPE_SCATTER);
    lv_chart_set_axis_tick(chart_test, LV_CHART_AXIS_PRIMARY_Y, 10, 5, 6, 5, true, 40);
    lv_chart_set_axis_tick(chart_test, LV_CHART_AXIS_PRIMARY_X, 10, 5, 10, 1, true, 30);
    lv_chart_set_point_count(chart_test, 10);
    lv_chart_set_range(chart_test, LV_CHART_AXIS_PRIMARY_Y, 0, 100);
    ser_test = lv_chart_add_series(chart_test, lv_palette_main(LV_PALETTE_RED), LV_CHART_AXIS_PRIMARY_Y);

    lv_timer_create(user_chart_test, 1000, chart_test);
}

二、旋转折线图

lvgl本身不支持旋转lv_chart，我试过很多ai提供的方式：交换x、y的值、把图表创建在lv_canvas上等等，都未实现

然后在上述一的启发下，仍是以散点图出发，交换x、y值，即实现竖直的折线图

2.1 旋转折线图实现

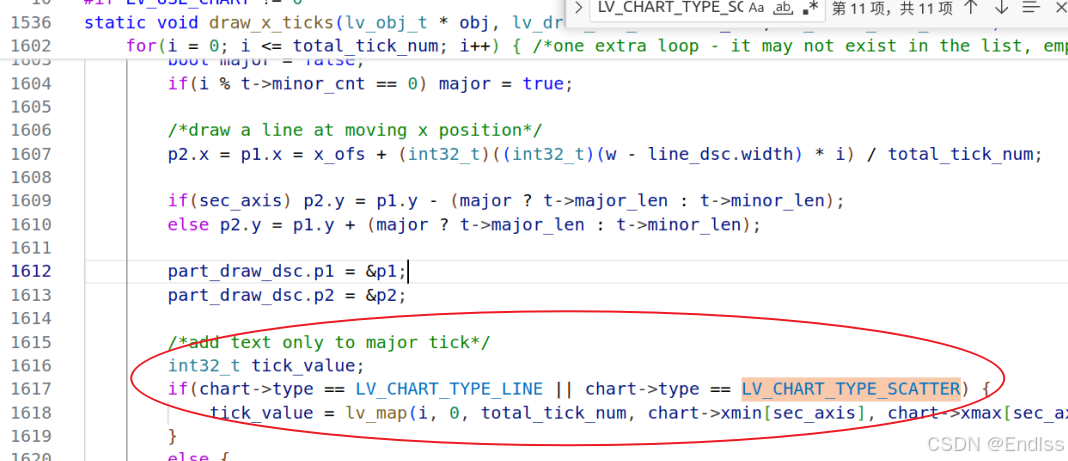

就是将图表旋转90°，因为项目有需要，故需要将这个组件进行旋转，找了很多资料都无法实现，最后看他们的底层代码，研究出来的，就是散点图画线，交换点的x，y值，就能实现

实现代码：

int index_i = 0;
#define POINT_COUNT 400  // 最大点数
int Ymin = 0;
int Ymax = POINT_COUNT;
int xEdge = 0;
int yEdge = 0;
int chart_Remainder = 0;
void update_chart(lv_chart_t * chart,lv_chart_series_t *ser,lv_coord_t x)
{

    int y = index_i;
    chart_Remainder = index_i % POINT_COUNT;
    if(chart_Remainder == POINT_COUNT-1)
    {
        xEdge = x;
        yEdge = index_i;
    }
    if(index_i  >= POINT_COUNT-1)
    {
        ser->x_points[(index_i+1) % POINT_COUNT] = LV_CHART_POINT_NONE;
        ser->y_points[(index_i+1) % POINT_COUNT] = LV_CHART_POINT_NONE;
    }
    if(chart_Remainder == 0)
    {
        ser->x_points[0] = xEdge;
        ser->y_points[0] = yEdge;

    }else
    {
        ser->x_points[chart_Remainder] = x;
        ser->y_points[chart_Remainder] = y;
    }
    printf("x[%d]=%d  y[%d]=%d\n",chart_Remainder,(int)ser->x_points[chart_Remainder],chart_Remainder,(int)ser->y_points[chart_Remainder]);
    index_i++;


    //图表滚动
    if(index_i > (POINT_COUNT*2)/5 && index_i < (POINT_COUNT*9)/10)
    {
        lv_coord_t move = 1000/(((POINT_COUNT*9)/10) - (POINT_COUNT*2)/5);
        lv_obj_scroll_by(chart, 0, -move, LV_ANIM_ON);
    }


    //图表y范围变化
    if(index_i >= Ymax-10)
    {
        lv_chart_set_range(chart, LV_CHART_AXIS_PRIMARY_Y, Ymax += 1 , Ymin += 1);
    }

    lv_chart_refresh(chart); // 刷新图表
}


void user_add_data_test(lv_timer_t* timer)
{
    LV_UNUSED(timer);
    lv_obj_t *chart = timer->user_data;

    update_chart(chart,ser,lv_rand(10,90));
}

void lv_example_chart_6(void)
{

    chart = lv_chart_create(ui_Eddy_Panel);
    lv_obj_set_width(chart, 300);
    lv_obj_set_height(chart, 790);
    lv_obj_set_x(chart, 15);
    lv_obj_set_y(chart, 170);

    lv_obj_set_style_size(chart, 0, LV_PART_INDICATOR);
    lv_chart_set_type(chart, LV_CHART_TYPE_SCATTER);
    lv_chart_set_axis_tick(chart, LV_CHART_AXIS_PRIMARY_Y, 10, 5, 6, 5, true, 40);
    lv_chart_set_axis_tick(chart, LV_CHART_AXIS_PRIMARY_X, 10, 5, 10, 1, true, 30);
    lv_chart_set_point_count(chart, POINT_COUNT);
    lv_chart_set_update_mode(chart, LV_CHART_UPDATE_MODE_SHIFT);
    lv_obj_refresh_ext_draw_size(chart);
    lv_chart_set_range(chart, LV_CHART_AXIS_PRIMARY_Y, POINT_COUNT, 0);
    //lv_obj_add_event_cb(chart, User_eddy_Chart_event_cb, LV_EVENT_DRAW_PART_BEGIN, NULL);
    lv_chart_set_zoom_y(chart, 500);

    ser = lv_chart_add_series(chart, lv_palette_main(LV_PALETTE_RED), LV_CHART_AXIS_PRIMARY_Y);
    lv_chart_set_all_value(chart,ser,LV_CHART_POINT_NONE);

    lv_timer_create(user_add_data_test, 30, chart);



}

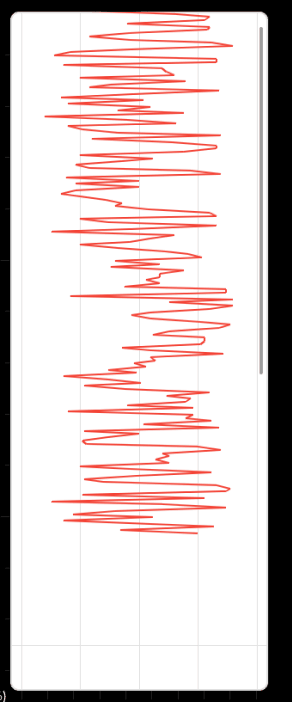

可以实现如下效果
