写在前面：

关于dubbo的原理和springboot以及mybatis的介绍，这里就不说了，想要了解的，可以百度。

主要介绍：

我这里主要分为三个项目，dubbo-interface-api 用来定义接口；dubbo-provider-api 生产者，dubbo-consumer-api 消费者。

其中，生产者和消费者分别需要引用dubbo-interface-api接口项目,版本信息如下：

spring boot	2.0.3
dubbo	2.6.2
mysql	5.1.46
mybatis-spring-boot	1.3.2
zookeeper	3.4.9

下面分别给出关键代码以及依赖：

dubbo-interface-api

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.3.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.example.dubbo</groupId>
	<artifactId>dubbo-interface-api</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>dubbo-interface-api</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>

		<dependency>
			<groupId>com.alibaba.boot</groupId>
			<artifactId>dubbo-spring-boot-starter</artifactId>
			<version>0.2.0</version>
		</dependency>

		<dependency>
			<groupId>org.apache.curator</groupId>
			<artifactId>curator-framework</artifactId>
			<version>2.12.0</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.jboss.resteasy/resteasy-jaxrs -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jaxrs</artifactId>
			<version>3.5.1.Final</version>
		</dependency>
		<dependency>
			<groupId>javax.json.bind</groupId>
			<artifactId>javax.json.bind-api</artifactId>
		</dependency>
		<dependency>
			<groupId>org.eclipse</groupId>
			<artifactId>yasson</artifactId>
			<version>1.0.1</version>
		</dependency>
		<dependency>
			<groupId>org.glassfish</groupId>
			<artifactId>javax.json</artifactId>
			<version>1.1.2</version>
		</dependency>
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jackson-provider</artifactId>
			<version>2.3.5.Final</version>
		</dependency>
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-client</artifactId>
			<version>3.5.1.Final</version>
		</dependency>
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-multipart-provider</artifactId>
			<version>3.5.1.Final</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<skip>true</skip>
				</configuration>
			</plugin>
		</plugins>
	</build>

</project>

接口定义

package com.example.dubbo.order;

import javax.ws.rs.Consumes;
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;

@Path("/dubbo/order")
public interface IOrderService {

	@Path("/getOrders")
	@GET
	@Consumes("application/json; charset=UTF-8")
	@Produces("application/json; charset=UTF-8")
	public String getOrderList();
}

实体类定义

package com.example.dubbo.dto;

public class Order {

	private String id;

	private String name;

	public String getId() {
		return id;
	}

	public void setId(String id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}
}

dubbo-provider-api

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.3.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.example.dubbo</groupId>
	<artifactId>dubbo-provider-api</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>dubbo-provider-api</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>
		<dependency>
			<groupId>com.example.dubbo</groupId>
			<artifactId>dubbo-interface-api</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>1.3.2</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>1.2.58</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<skip>true</skip>
				</configuration>
			</plugin>
		</plugins>
	</build>

</project>

provider.xml（放在/src/main/resources 目录下）：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd
		http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

	<!-- 1、指定当前服务/应用的名字（同样的服务名字相同，不要和别的服务同名） -->
	<dubbo:application name="microservice-provider"></dubbo:application>

	<!-- 2、指定注册中心的位置 -->
	<!-- <dubbo:registry address="zookeeper://192.2.2.2:2181?backup=192.2.2.3:2181,192.2.2.56:2181"></dubbo:registry> -->
	<!-- <dubbo:registry address="zookeeper://192.2.99.3:2181"></dubbo:registry> -->
	<dubbo:registry protocol="zookeeper" address="192.168.20.121:2181"></dubbo:registry>

	<!-- 3、指定通信规则（通信协议？通信端口） -->
	<!-- <dubbo:protocol name="dubbo" port="11005"></dubbo:protocol> <dubbo:protocol
		name="rest" port="12005" server="tomcat"></dubbo:protocol> -->
	<dubbo:protocol name="dubbo" port="11007"></dubbo:protocol>
	<dubbo:protocol name="rest" port="12007" server="tomcat"></dubbo:protocol>

	<!-- 4、暴露服务 ref：指向服务的真正的实现对象 -->
	<dubbo:service
		interface="com.example.dubbo.order.IOrderService" ref="OrderService"
		protocol="dubbo,rest" version="1.0.0">
	</dubbo:service>

	<!-- 服务的实现 -->
	<bean id="OrderService"
		class="com.example.dubbo.service.OrderServiceImpl"></bean>

</beans>

application.properties配置：

server.port=8093
server.servlet.context-path=

logging.path=./logs/oildubboprovider_log
logging.file=./logs/oildubboprovider_log/oildubboprovider.log
logging.pattern.file=%d{yyyy/MM/dd-HH:mm} [%thread] %-5level %logger- %msg%n
logging.level.com.welink.oil.mapper=debug

logging.config=classpath:logback-spring.xml
logging.level.root=INFO

spring.datasource.url=jdbc:mysql://192.168.20.121:3306/demo?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=false
spring.datasource.username=root
spring.datasource.password=!Hello121
spring.datasource.driver-class-name=com.mysql.jdbc.Driver

#mybatis
#mybatis.type-aliases-package=com.welink.oil.entity
mybatis.mapper-locations=classpath:mapping/*Mapper.xml

logback-spring.xml日志文件配置（放在/src/main/resources 目录下）

<?xml version="1.0" encoding="UTF-8"?>
<configuration>

    <include resource="org/springframework/boot/logging/logback/defaults.xml"/>
    <property name="CONSOLE_LOG_PATTERN" value="%clr(%d{yyyy-MM-dd HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr([%15.15t]){faint} %clr(%-40.40logger{39} %5.5L){cyan}%clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}"/>
	<property name="FILE_LOG_PATTERN" value="%d{yyyy-MM-dd HH:mm:ss.SSS} ${LOG_LEVEL_PATTERN:-%5p} ${PID:- } [%t] %-40.40logger{39} %5.5L: %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}"/>
    <property name="LOG_FILE" value="${LOG_FILE:-${LOG_PATH:-${LOG_TEMP:-${java.io.tmpdir:-/tmp}}/}spring.log}"/>

    <include resource="org/springframework/boot/logging/logback/console-appender.xml"/>

    <appender name="ROLLING-FILE"
              class="ch.qos.logback.core.rolling.RollingFileAppender">
        <encoder>
            <pattern>${FILE_LOG_PATTERN}</pattern>
        </encoder>
        <file>${LOG_FILE}</file>
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!-- daily rollover -->
            <!-- 日志命名:单个文件大于100MB 按照时间+自增i 生成log文件 -->
            <fileNamePattern>${LOG_FILE}.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
            <timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
                <maxFileSize>100MB</maxFileSize>
            </timeBasedFileNamingAndTriggeringPolicy>
            <!-- 最大保存时间：180天-->
            <maxHistory>180</maxHistory>
        </rollingPolicy>
    </appender>

    <root level="INFO">
        <appender-ref ref="CONSOLE"/>
        <appender-ref ref="ROLLING-FILE"/>
    </root>

</configuration>

mapper接口类定义：

package com.example.dubbo.mapper;

import java.util.List;

import com.example.dubbo.dto.Order;

public interface OrderMapper {

	public List<Order> selectOrders();
}

实现类定义：

package com.example.dubbo.service;

import java.util.List;

import javax.annotation.Resource;

import com.alibaba.fastjson.JSONObject;
import com.example.dubbo.dto.Order;
import com.example.dubbo.mapper.OrderMapper;
import com.example.dubbo.order.IOrderService;

public class OrderServiceImpl implements IOrderService{

	@Resource
	private OrderMapper orderMapper;

	@Override
	public String getOrderList() {
		List<Order> orders = orderMapper.selectOrders();
		String json = JSONObject.toJSONString(orders);
		return json;
	}

}

OrderMapper.xml定义

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.example.dubbo.mapper.OrderMapper">
	<select id="selectOrders" resultType="com.example.dubbo.dto.Order">
		select id as id,name as name
		from tbl_order
	</select>
</mapper>

启动类加两行注解：

package com.example.dubbo;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ImportResource;

@ImportResource(locations="classpath:provider.xml")
@SpringBootApplication
@MapperScan("com.example.dubbo.mapper")
public class DubboProviderApiApplication {

	public static void main(String[] args) {
		SpringApplication.run(DubboProviderApiApplication.class, args);
	}

}

@ImportResource 为provider.xml的位置

@MapperScan 为mapper接口定义的包名

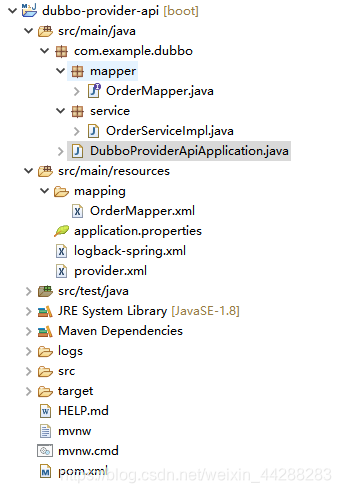

项目目录如下：

至此生产者已经搭建完毕，启动服务观察是否注册成功。(这里可以看我另一篇关于dubbo服务搭建的博文，那里有关于dubbo-admin的搭建）

下面介绍消费者的搭建

1.如果是rest请求，则直接请求http://ip+rest端口(参见provider.xml配置)+请求路径(参考dubbo-interface-api接口类中@Path的定义)

2.如果是通过dubbo服务请求，则需要一下配置

dubbo-consumer-api

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.8.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.example.dubbo</groupId>
	<artifactId>dubbo-consumer-ap</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>dubbo-consumer-ap</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>
		<dependency>
			<groupId>com.example.dubbo</groupId>
			<artifactId>dubbo-interface-api</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<skip>true</skip>
				</configuration>
			</plugin>
		</plugins>
	</build>

</project>

consumer.xml:(放在/src/main/resources 目录下)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
		http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd
		http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">

	<!-- 1、指定当前服务/应用的名字（同样的服务名字相同，不要和别的服务同名） -->
	<dubbo:application name="microservice-consumer"></dubbo:application>

	<!-- 2、指定注册中心的位置 -->
	<!-- <dubbo:registry address="zookeeper://192.2.2.2:2181?backup=192.2.2.3:2181,192.2.2.56:2181"></dubbo:registry> -->
	<!-- <dubbo:registry address="zookeeper://192.2.99.3:2181"></dubbo:registry> -->
	<dubbo:registry protocol="zookeeper" address="192.168.20.121:2181"></dubbo:registry>

</beans>

application.properties:

server.port=8094
server.servlet.context-path=/dubbo

OrderController.java定义

package com.example.dubbo.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.alibaba.dubbo.config.annotation.Reference;
import com.example.dubbo.order.IOrderService;

@Controller
public class OrderController {

	@Reference(version = "1.0.0",timeout = 3000,check = false)
	private IOrderService orderService;

	@RequestMapping("/getOrders")
	@ResponseBody
	public String getOrderList() {
		String result = orderService.getOrderList();
		return result;
	}

}

注意：

version:需与provider.xml中version对应，timeout为请求超时时间，check为启动时是否检查生产者在线

启动类修改：

package com.example.dubbo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ImportResource;

@ImportResource(locations="classpath:consumer.xml")
@SpringBootApplication
public class DubboConsumerApApplication {

	public static void main(String[] args) {
		SpringApplication.run(DubboConsumerApApplication.class, args);
	}

}

至此，消费者完毕，如需调用，请求http://ip+配置端口+请求路径，例如，例子中给出的代码请求路径为：http://127.0.0.1:12007/dubbo/getOrders

码字不易，如需转载，请标明原文地址，多谢观看。
