文章目录

知识补充
一、代码源码
二、代码分析——class CVRPEnv(gym.Env)
三、代码分析——class GATFeatureExtractor(BaseFeaturesExtractor):
- 1. def __init__(self, observation_space, num_nodes, embed_dim=32):
- 2. def forward(self, observations):
总结

知识补充

一、代码源码

import gymnasium as gym
from gymnasium import spaces
import numpy as np
import torch
import torch.nn as nn
from torch_geometric.nn import GATConv, global_mean_pool
from torch_geometric.data import Data, Batch
from stable_baselines3.common.torch_layers import BaseFeaturesExtractor
from stable_baselines3 import DQN
from stable_baselines3.common.monitor import Monitor
from stable_baselines3.common.vec_env import DummyVecEnv
from stable_baselines3.dqn.policies import DQNPolicy
import wandb
from wandb.integration.sb3 import WandbCallback
from gymnasium.envs.registration import register

# 首先，定义CVRP环境
class CVRPEnv(gym.Env):
    def __init__(self, num_nodes=10, vehicle_capacity=15):
        super(CVRPEnv, self).__init__()
        self.num_nodes = num_nodes
        self.vehicle_capacity = vehicle_capacity
        self.depot = np.array([0.0, 0.0])
        self.action_space = spaces.Discrete(self.num_nodes + 1)  # 包含仓库节点

        # 定义观测空间大小
        node_feature_size = (self.num_nodes + 1) * 3  # 每个节点3个特征
        adjacency_size = (self.num_nodes + 1) * (self.num_nodes + 1)  # 邻接矩阵大小
        observation_size = node_feature_size + adjacency_size + 1  # 加上车辆状态

        self.observation_space = spaces.Box(
            low=-np.inf,
            high=np.inf,
            shape=(observation_size,),
            dtype=np.float32
        )

    def reset(self, seed=None, options=None):
        super().reset(seed=seed)
        self.np_random, seed = gym.utils.seeding.np_random(seed)

        self.node_positions = self.np_random.uniform(-10, 10, size=(self.num_nodes, 2))
        self.demands = self.np_random.integers(1, 5, size=self.num_nodes)
        self.current_node = 0  # 起始于仓库
        self.visited = np.zeros(self.num_nodes + 1, dtype=bool)
        self.visited[0] = True  # 仓库已访问
        self.remaining_capacity = self.vehicle_capacity
        self.total_distance = 0.0
        self.done = False
        return self._get_observation(), {}

    def _get_observation(self):
        node_features = np.zeros((self.num_nodes + 1, 3), dtype=np.float32)
        node_features[0, :2] = self.depot
        node_features[0, 2] = 0.0  # 仓库需求为零
        node_features[1:, :2] = self.node_positions
        node_features[1:, 2] = self.demands

        positions = np.vstack((self.depot, self.node_positions))
        adjacency_matrix = np.linalg.norm(positions[:, np.newaxis, :] - positions[np.newaxis, :, :], axis=-1)
        adjacency_matrix = adjacency_matrix.astype(np.float32)

        current_vehicle_state = np.array([self.remaining_capacity], dtype=np.float32)

        # 将所有观测数据展开为一维向量
        observation = np.concatenate([
            node_features.flatten(),
            adjacency_matrix.flatten(),
            current_vehicle_state
        ]).astype(np.float32)

        return observation

    def step(self, action):
        if self.done:
            raise Exception("Episode is done")

        if action < 0 or action > self.num_nodes:
            raise ValueError("Invalid action")

        if self.visited[action]:
            reward = -10.0  # Penalty for visiting an already visited node
            done = False
            return self._get_observation(), reward, done, False, {}

        positions = np.vstack((self.depot, self.node_positions))
        distance = np.linalg.norm(positions[self.current_node] - positions[action])

        self.total_distance += distance

        if action != 0:
            demand = self.demands[action - 1]
            if demand > self.remaining_capacity:
                reward = -10.0  # Penalty for exceeding capacity
                done = True  # End the episode
                self.done = True
                return self._get_observation(), reward, done, False, {}
            else:
                self.remaining_capacity -= demand
        else:
            self.remaining_capacity = self.vehicle_capacity

        self.visited[action] = True
        self.current_node = action

        if np.all(self.visited[1:]):
            if self.current_node != 0:
                distance_to_depot = np.linalg.norm(positions[self.current_node] - positions[0])
                self.total_distance += distance_to_depot
                self.current_node = 0
            reward = -self.total_distance  # Reward is negative total distance
            done = True
            self.done = True
            return self._get_observation(), reward, done, False, {}
        else:
            reward = -distance  # Immediate reward is negative distance
            done = False
            return self._get_observation(), reward, done, False, {}


    def render(self):
        pass

    def close(self):
        pass

# 注册环境
register(
    id='CVRPEnv-v0',
    entry_point='__main__:CVRPEnv',
)

# 定义GAT特征提取器
class GATFeatureExtractor(BaseFeaturesExtractor):
    def __init__(self, observation_space, num_nodes, embed_dim=32):
        super(GATFeatureExtractor, self).__init__(observation_space, features_dim=embed_dim)
        self.num_nodes = num_nodes
        self.node_feature_dim = 3
        self.embed_dim = embed_dim

        self.gat1 = GATConv(self.node_feature_dim, embed_dim, heads=4, concat=False)
        self.gat2 = GATConv(embed_dim, embed_dim, heads=4, concat=False)

        self.fc = nn.Sequential(
            nn.Linear(embed_dim + 1, embed_dim),
            nn.ReLU(),
            nn.Linear(embed_dim, embed_dim),
            nn.ReLU(),
        )

    def forward(self, observations):
        # 从一维向量中恢复数据
        batch_size = observations.shape[0]
        node_feature_size = (self.num_nodes + 1) * 3
        adjacency_size = (self.num_nodes + 1) * (self.num_nodes + 1)

        node_features = observations[:, :node_feature_size].reshape(batch_size, self.num_nodes + 1, 3)
        adjacency_matrix = observations[:, node_feature_size:node_feature_size + adjacency_size].reshape(
            batch_size, self.num_nodes + 1, self.num_nodes + 1)
        current_vehicle_state = observations[:, -1].unsqueeze(-1)

        data_list = []
        for i in range(batch_size):
            x = node_features[i]
            adj = adjacency_matrix[i]
            edge_index = adj.nonzero(as_tuple=False).t().contiguous()
            data = Data(x=x, edge_index=edge_index)
            data_list.append(data)

        batch = Batch.from_data_list(data_list)
        x = batch.x
        edge_index = batch.edge_index

        x = self.gat1(x, edge_index)
        x = torch.relu(x)
        x = self.gat2(x, edge_index)
        x = torch.relu(x)

        graph_embedding = global_mean_pool(x, batch.batch)

        vehicle_state = current_vehicle_state
        features = torch.cat([graph_embedding, vehicle_state], dim=-1)

        features = self.fc(features)

        return features

# 定义自定义策略类
class CustomDQNPolicy(DQNPolicy):
    def __init__(self, observation_space, action_space, lr_schedule, **kwargs):
        super(CustomDQNPolicy, self).__init__(
            observation_space,
            action_space,
            lr_schedule,
            features_extractor_class=GATFeatureExtractor,
            features_extractor_kwargs=dict(num_nodes=10, embed_dim=32),
            **kwargs
        )

# 设置Wandb配置
config = {
    "policy_type": "CustomDQNPolicy",
    "total_timesteps": 100_000,
    "env_name": "CVRPEnv-v0",
    "num_nodes": 10,
}

run = wandb.init(
    project="sb3",
    config=config,
    sync_tensorboard=True,
    monitor_gym=True,
    save_code=True,
)

def make_env():
    env = gym.make(config["env_name"], num_nodes=config["num_nodes"])
    env = Monitor(env)
    return env

env = DummyVecEnv([make_env])

model = DQN(
    policy=CustomDQNPolicy,
    env=env,
    verbose=1,
    tensorboard_log=f"runs/{run.id}",
)

model.learn(
    total_timesteps=config["total_timesteps"],
    callback=WandbCallback(
        gradient_save_freq=100,
        model_save_path=f"models/{run.id}",
        verbose=2,
    ),
)

run.finish()

二、代码分析——class CVRPEnv(gym.Env)

# 首先，定义CVRP环境
class CVRPEnv(gym.Env):
    def __init__(self, num_nodes=10, vehicle_capacity=15):
        super(CVRPEnv, self).__init__()
        self.num_nodes = num_nodes
        self.vehicle_capacity = vehicle_capacity
        self.depot = np.array([0.0, 0.0])
        self.action_space = spaces.Discrete(self.num_nodes + 1)  # 包含仓库节点

        # 定义观测空间大小
        node_feature_size = (self.num_nodes + 1) * 3  # 每个节点3个特征
        adjacency_size = (self.num_nodes + 1) * (self.num_nodes + 1)  # 邻接矩阵大小
        observation_size = node_feature_size + adjacency_size + 1  # 加上车辆状态

        self.observation_space = spaces.Box(
            low=-np.inf,
            high=np.inf,
            shape=(observation_size,),
            dtype=np.float32
        )

    def reset(self, seed=None, options=None):
        super().reset(seed=seed)
        self.np_random, seed = gym.utils.seeding.np_random(seed)

        self.node_positions = self.np_random.uniform(-10, 10, size=(self.num_nodes, 2))
        self.demands = self.np_random.integers(1, 5, size=self.num_nodes)
        self.current_node = 0  # 起始于仓库
        self.visited = np.zeros(self.num_nodes + 1, dtype=bool)
        self.visited[0] = True  # 仓库已访问
        self.remaining_capacity = self.vehicle_capacity
        self.total_distance = 0.0
        self.done = False
        return self._get_observation(), {}

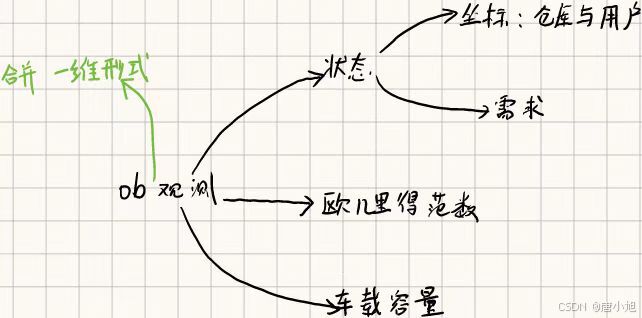

    def _get_observation(self):

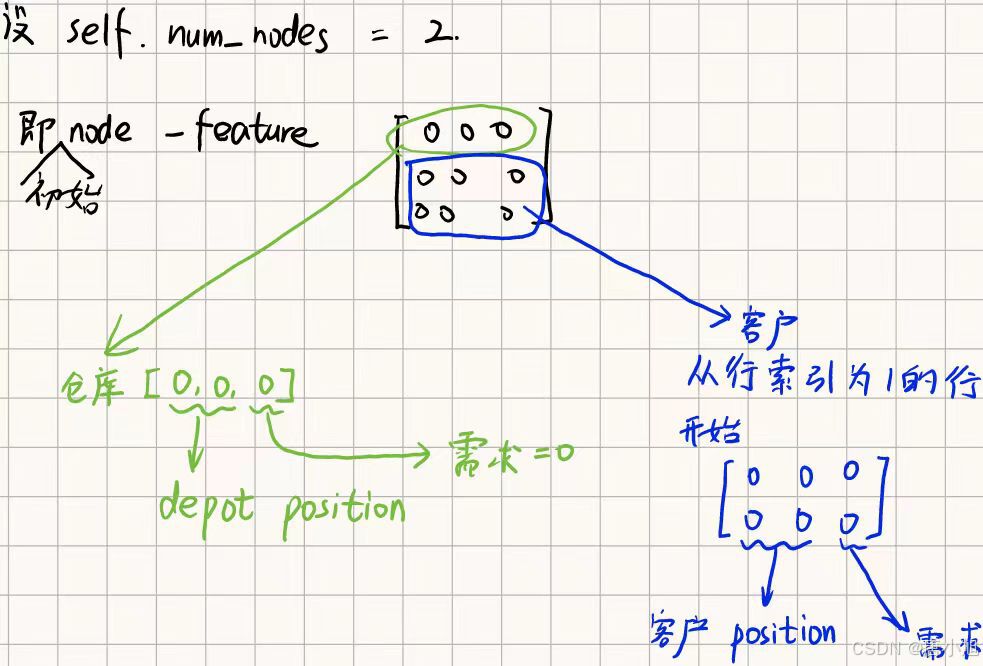

        node_features = np.zeros((self.num_nodes + 1, 3), dtype=np.float32)
        node_features[0, :2] = self.depot
        node_features[0, 2] = 0.0  # 仓库需求为零
        node_features[1:, :2] = self.node_positions
        node_features[1:, 2] = self.demands

        positions = np.vstack((self.depot, self.node_positions))
        adjacency_matrix = np.linalg.norm(positions[:, np.newaxis, :] - positions[np.newaxis, :, :], axis=-1)
        adjacency_matrix = adjacency_matrix.astype(np.float32)

        current_vehicle_state = np.array([self.remaining_capacity], dtype=np.float32)

        # 将所有观测数据展开为一维向量
        observation = np.concatenate([
            node_features.flatten(),
            adjacency_matrix.flatten(),
            current_vehicle_state
        ]).astype(np.float32)

        return observation

    def step(self, action):
        if self.done:
            raise Exception("Episode is done")

        if action < 0 or action > self.num_nodes:
            raise ValueError("Invalid action")

        if self.visited[action]:
            reward = -10.0  # Penalty for visiting an already visited node
            done = False
            return self._get_observation(), reward, done, False, {}

        positions = np.vstack((self.depot, self.node_positions))

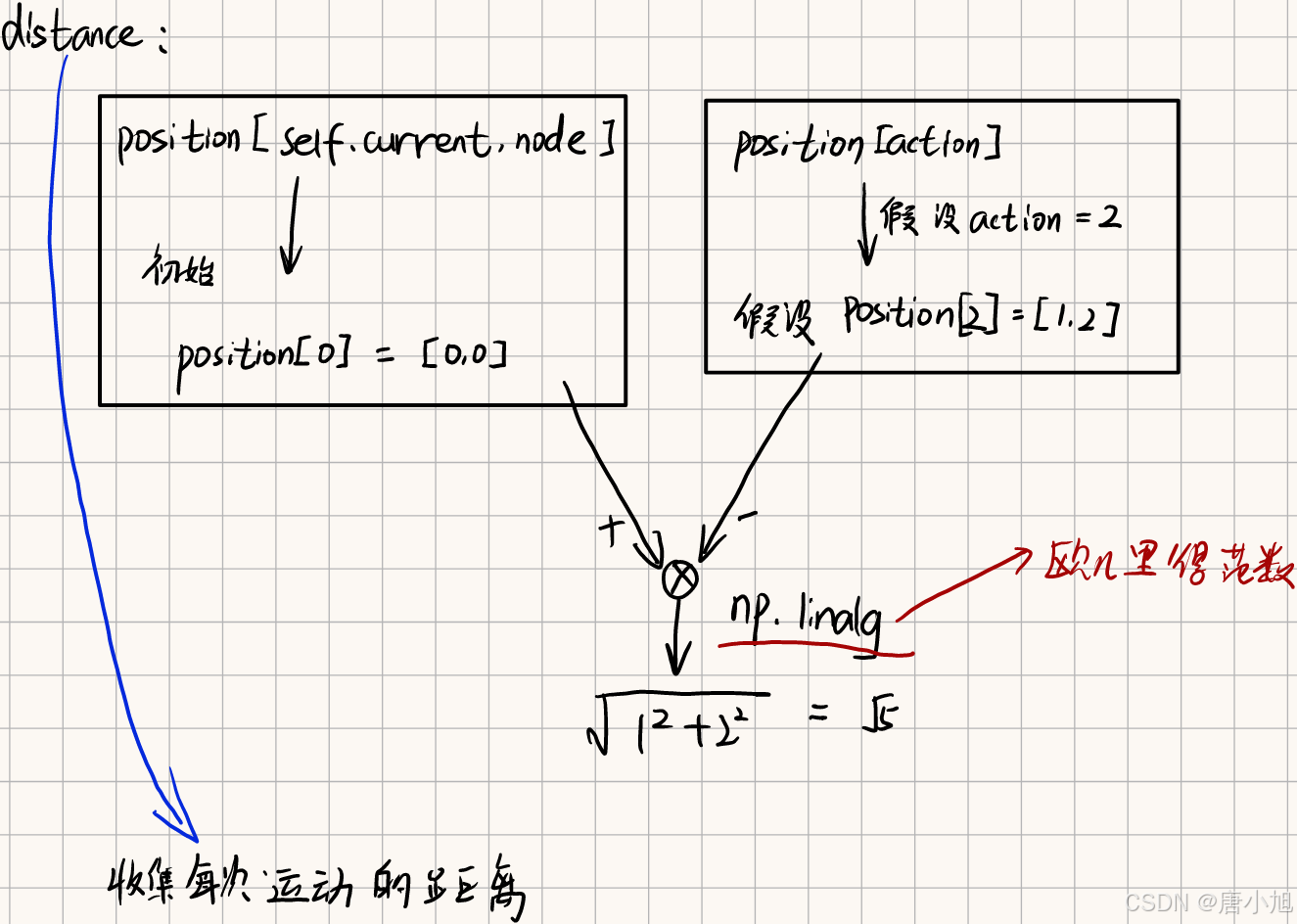

        distance = np.linalg.norm(positions[self.current_node] - positions[action])

        self.total_distance += distance

        if action != 0:
            demand = self.demands[action - 1]
            if demand > self.remaining_capacity:
                reward = -10.0  # Penalty for exceeding capacity
                done = True  # End the episode
                self.done = True
                return self._get_observation(), reward, done, False, {}
            else:
                self.remaining_capacity -= demand
        else:
            self.remaining_capacity = self.vehicle_capacity

        self.visited[action] = True
        self.current_node = action

        if np.all(self.visited[1:]):
            if self.current_node != 0:
                distance_to_depot = np.linalg.norm(positions[self.current_node] - positions[0])
                self.total_distance += distance_to_depot
                self.current_node = 0
            reward = -self.total_distance  # Reward is negative total distance
            done = True
            self.done = True
            return self._get_observation(), reward, done, False, {}
        else:
            reward = -distance  # Immediate reward is negative distance
            done = False
            return self._get_observation(), reward, done, False, {}


    def render(self):
        pass

    def close(self):
        pass

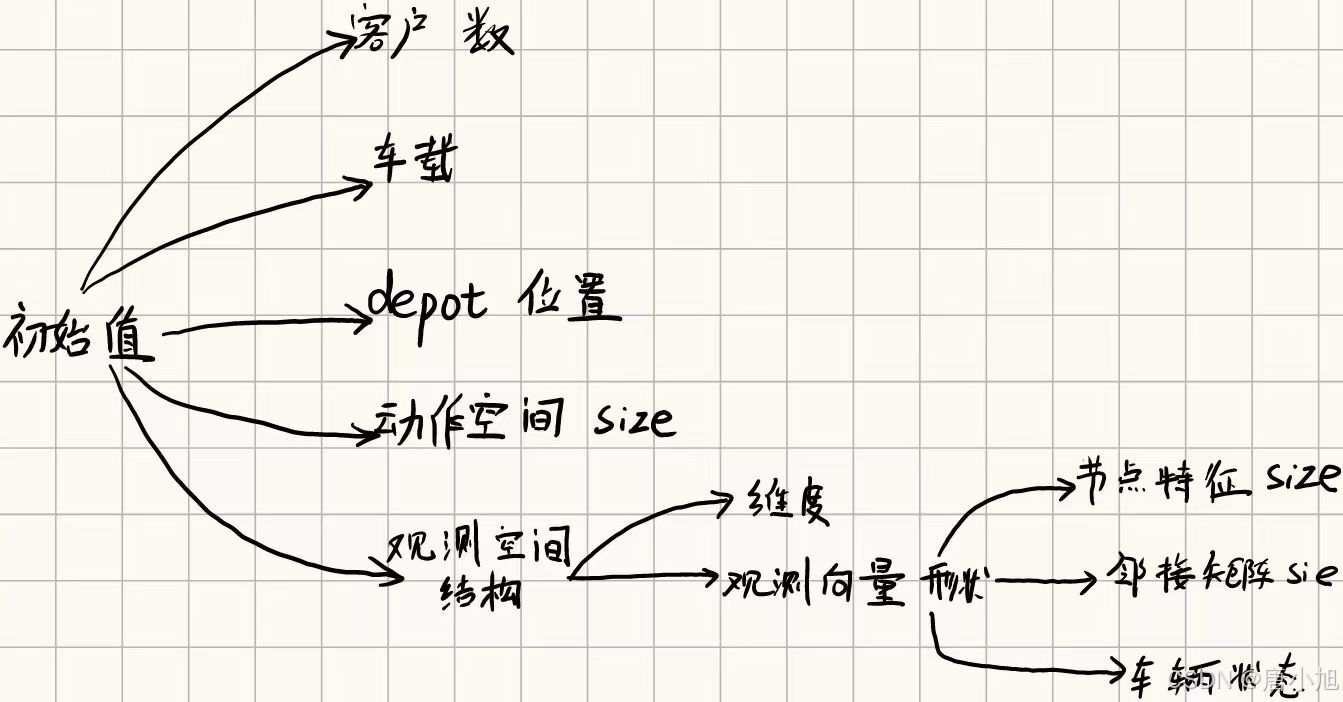

1. def init(self, num_nodes=10, vehicle_capacity=15):

def __init__(self, num_nodes=10, vehicle_capacity=15):
        super(CVRPEnv, self).__init__()
        self.num_nodes = num_nodes
        self.vehicle_capacity = vehicle_capacity
        self.depot = np.array([0.0, 0.0])
        self.action_space = spaces.Discrete(self.num_nodes + 1)  # 包含仓库节点

        # 定义观测空间大小
        node_feature_size = (self.num_nodes + 1) * 3  # 每个节点3个特征
        adjacency_size = (self.num_nodes + 1) * (self.num_nodes + 1)  # 邻接矩阵大小
        observation_size = node_feature_size + adjacency_size + 1  # 加上车辆状态

        self.observation_space = spaces.Box(
            low=-np.inf,
            high=np.inf,
            shape=(observation_size,),
            dtype=np.float32
        )

请添加图片描述

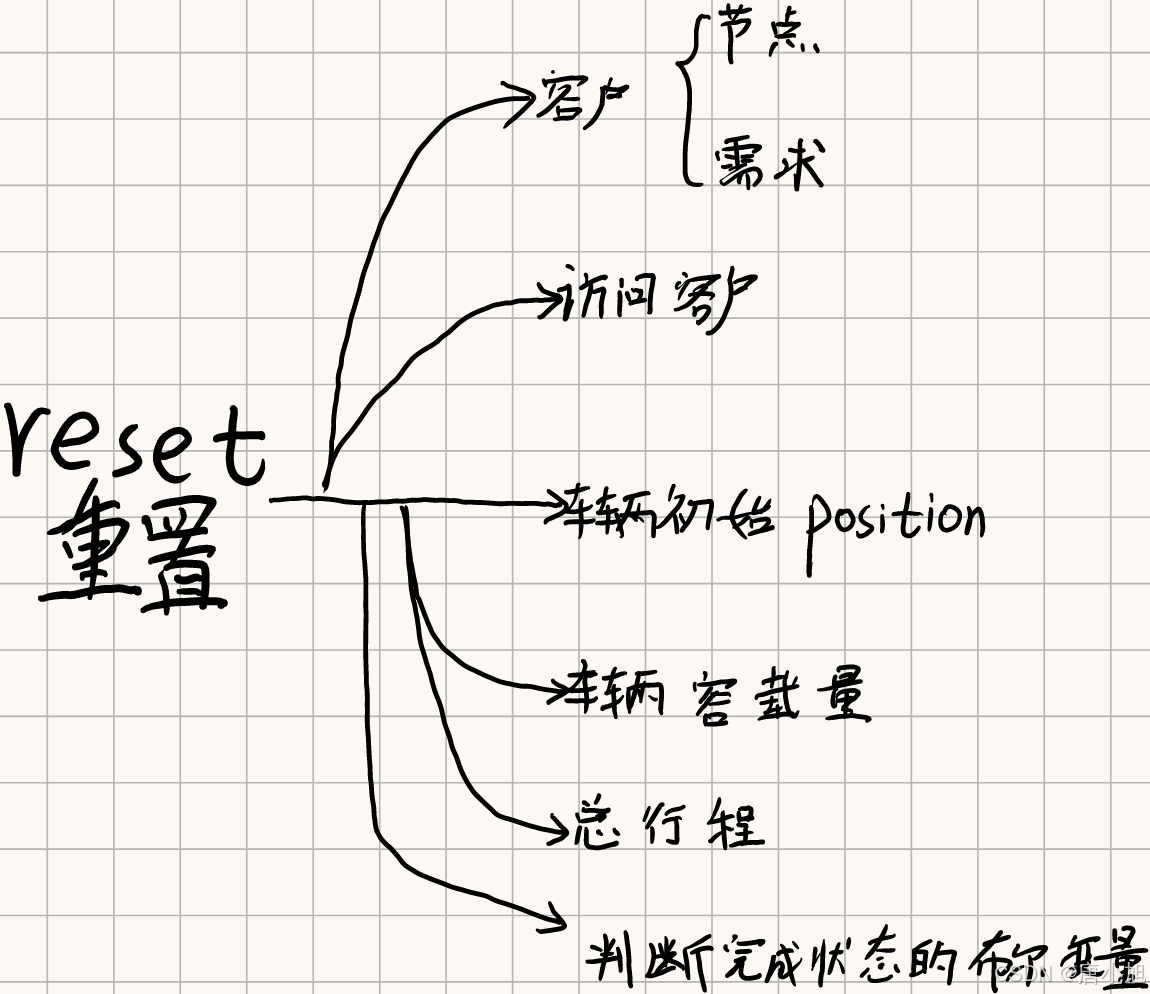

2. def reset(self, seed=None, options=None):

def reset(self, seed=None, options=None):
        super().reset(seed=seed)
        self.np_random, seed = gym.utils.seeding.np_random(seed)

        self.node_positions = self.np_random.uniform(-10, 10, size=(self.num_nodes, 2))
        self.demands = self.np_random.integers(1, 5, size=self.num_nodes)
        self.current_node = 0  # 起始于仓库
        self.visited = np.zeros(self.num_nodes + 1, dtype=bool)
        self.visited[0] = True  # 仓库已访问
        self.remaining_capacity = self.vehicle_capacity
        self.total_distance = 0.0
        self.done = False
        return self._get_observation(), {}

请添加图片描述

3. def _get_observation(self)

    def _get_observation(self):
        node_features = np.zeros((self.num_nodes + 1, 3), dtype=np.float32)
        node_features[0, :2] = self.depot
        node_features[0, 2] = 0.0  # 仓库需求为零
        node_features[1:, :2] = self.node_positions
        node_features[1:, 2] = self.demands

        positions = np.vstack((self.depot, self.node_positions))
        adjacency_matrix = np.linalg.norm(positions[:, np.newaxis, :] - positions[np.newaxis, :, :], axis=-1)
        adjacency_matrix = adjacency_matrix.astype(np.float32)

        current_vehicle_state = np.array([self.remaining_capacity], dtype=np.float32)

        # 将所有观测数据展开为一维向量
        observation = np.concatenate([
            node_features.flatten(),
            adjacency_matrix.flatten(),
            current_vehicle_state
        ]).astype(np.float32)

        return observation

        node_features = np.zeros((self.num_nodes + 1, 3), dtype=np.float32)
        node_features[0, :2] = self.depot
        node_features[0, 2] = 0.0  # 仓库需求为零
        node_features[1:, :2] = self.node_positions
        node_features[1:, 2] = self.demand

请添加图片描述

        positions = np.vstack((self.depot, self.node_positions))
        adjacency_matrix = np.linalg.norm(positions[:, np.newaxis, :] - positions[np.newaxis, :, :], axis=-1)
        adjacency_matrix = adjacency_matrix.astype(np.float32)

请添加图片描述

 # 将所有观测数据展开为一维向量
        observation = np.concatenate([
            node_features.flatten(),
            adjacency_matrix.flatten(),
            current_vehicle_state
        ]).astype(np.float32)

请添加图片描述

4. def step(self, action):

常规MDP模型

def step(self, action):
        if self.done:
            raise Exception("Episode is done")

        if action < 0 or action > self.num_nodes:
            raise ValueError("Invalid action")

        if self.visited[action]:
            reward = -10.0  # Penalty for visiting an already visited node
            done = False
            return self._get_observation(), reward, done, False, {}

        positions = np.vstack((self.depot, self.node_positions))
        distance = np.linalg.norm(positions[self.current_node] - positions[action])

        self.total_distance += distance

        if action != 0:
            demand = self.demands[action - 1]
            if demand > self.remaining_capacity:
                reward = -10.0  # Penalty for exceeding capacity
                done = True  # End the episode
                self.done = True
                return self._get_observation(), reward, done, False, {}
            else:
                self.remaining_capacity -= demand
        else:
            self.remaining_capacity = self.vehicle_capacity

        self.visited[action] = True
        self.current_node = action

        if np.all(self.visited[1:]):
            if self.current_node != 0:
                distance_to_depot = np.linalg.norm(positions[self.current_node] - positions[0])
                self.total_distance += distance_to_depot
                self.current_node = 0
            reward = -self.total_distance  # Reward is negative total distance
            done = True
            self.done = True
            return self._get_observation(), reward, done, False, {}
        else:
            reward = -distance  # Immediate reward is negative distance
            done = False
            return self._get_observation(), reward, done, False, {}

 distance_to_depot = np.linalg.norm(positions[self.current_node] - positions[0])
                self.total_distance += distance_to_depot

请添加图片描述

三、代码分析——class GATFeatureExtractor(BaseFeaturesExtractor):

# 定义GAT特征提取器
class GATFeatureExtractor(BaseFeaturesExtractor):
    def __init__(self, observation_space, num_nodes, embed_dim=32):
        super(GATFeatureExtractor, self).__init__(observation_space, features_dim=embed_dim)
        self.num_nodes = num_nodes
        self.node_feature_dim = 3
        self.embed_dim = embed_dim

        self.gat1 = GATConv(self.node_feature_dim, embed_dim, heads=4, concat=False)
        self.gat2 = GATConv(embed_dim, embed_dim, heads=4, concat=False)

        self.fc = nn.Sequential(
            nn.Linear(embed_dim + 1, embed_dim),
            nn.ReLU(),
            nn.Linear(embed_dim, embed_dim),
            nn.ReLU(),
        )

    def forward(self, observations):
        # 从一维向量中恢复数据
        batch_size = observations.shape[0]
        node_feature_size = (self.num_nodes + 1) * 3
        adjacency_size = (self.num_nodes + 1) * (self.num_nodes + 1)

        node_features = observations[:, :node_feature_size].reshape(batch_size, self.num_nodes + 1, 3)
        adjacency_matrix = observations[:, node_feature_size:node_feature_size + adjacency_size].reshape(
            batch_size, self.num_nodes + 1, self.num_nodes + 1)#重塑
        current_vehicle_state = observations[:, -1].unsqueez·e(-1)

        data_list = []
        for i in range(batch_size):
            x = node_features[i]
            adj = adjacency_matrix[i]
            edge_index = adj.nonzero(as_tuple=False).t().contiguous()
            data = Data(x=x, edge_index=edge_index)
            data_list.append(data)

        batch = Batch.from_data_list(data_list)
        x = batch.x
        edge_index = batch.edge_index

        x = self.gat1(x, edge_index)
        x = torch.relu(x)
        x = self.gat2(x, edge_index)
        x = torch.relu(x)

        graph_embedding = global_mean_pool(x, batch.batch)

        vehicle_state = current_vehicle_state
        features = torch.cat([graph_embedding, vehicle_state], dim=-1)

        features = self.fc(features)

        return features

1. def init(self, observation_space, num_nodes, embed_dim=32):

def __init__(self, observation_space, num_nodes, embed_dim=32):
        super(GATFeatureExtractor, self).__init__(observation_space, features_dim=embed_dim)
        self.num_nodes = num_nodes
        self.node_feature_dim = 3
        self.embed_dim = embed_dim

        self.gat1 = GATConv(self.node_feature_dim, embed_dim, heads=4, concat=False)
        self.gat2 = GATConv(embed_dim, embed_dim, heads=4, concat=False)

        self.fc = nn.Sequential(
            nn.Linear(embed_dim + 1, embed_dim),
            nn.ReLU(),
            nn.Linear(embed_dim, embed_dim),
            nn.ReLU(),
        )

2. def forward(self, observations):

def forward(self, observations):
        # 从一维向量中恢复数据
        batch_size = observations.shape[0]
        node_feature_size = (self.num_nodes + 1) * 3
        adjacency_size = (self.num_nodes + 1) * (self.num_nodes + 1)

        node_features = observations[:, :node_feature_size].reshape(batch_size, self.num_nodes + 1, 3)
        adjacency_matrix = observations[:, node_feature_size:node_feature_size + adjacency_size].reshape(
            batch_size, self.num_nodes + 1, self.num_nodes + 1)#重塑
        current_vehicle_state = observations[:, -1].unsqueez·e(-1)

        data_list = []
        for i in range(batch_size):
            x = node_features[i]
            adj = adjacency_matrix[i]
            edge_index = adj.nonzero(as_tuple=False).t().contiguous()
            data = Data(x=x, edge_index=edge_index)
            data_list.append(data)

        batch = Batch.from_data_list(data_list)
        x = batch.x
        edge_index = batch.edge_index

        x = self.gat1(x, edge_index)
        x = torch.relu(x)
        x = self.gat2(x, edge_index)
        x = torch.relu(x)

        graph_embedding = global_mean_pool(x, batch.batch)

        vehicle_state = current_vehicle_state
        features = torch.cat([graph_embedding, vehicle_state], dim=-1)

        features = self.fc(features)

        return features
