【Android_Note】2-4 EditText & 简单登录界面

• 学习参考视频来自Bilibill:

【天哥】Android开发视频教程最新版 Android Studio
https://www.bilibili.com/video/av38409964/?p=3
此文只是我的个人学习笔记，仅供学习使用！

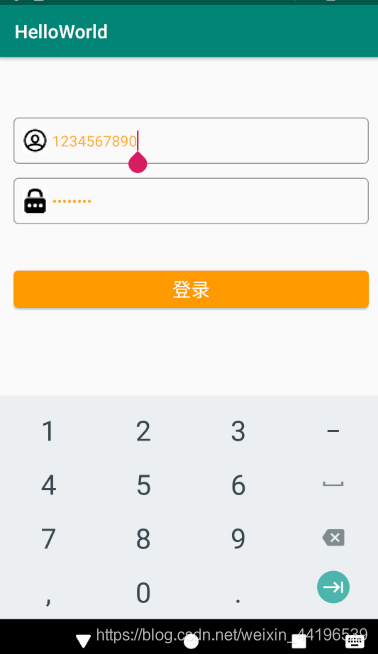

hint为提示文字，手机号默认为数字类型

android:hint="手机号："
android:inputType="number"/>

密码在输入时应设置为*****

android:hint="密码："
android:inputType="textPassword"/>

1.java文件

MainActivity.java

package com.example.helloworld;

import android.content.Intent;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;


public class MainActivity extends AppCompatActivity {

    private Button mBtnTextView;
    private Button mBtnButton;
    private Button mBtnEditText;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        mBtnTextView = findViewById(R.id.btn_textview);
        mBtnTextView.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //跳转到TextView演示界面
                Intent intent = new Intent(MainActivity.this,TextViewActivity.class);
                startActivity(intent);
            }
        });

        mBtnButton = findViewById(R.id.btn_button);
        mBtnButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //跳转到Button演示界面
                Intent intent = new Intent(MainActivity.this,ButtonActivity.class);
                startActivity(intent);
            }
        });

        mBtnEditText = findViewById(R.id.btn_edittext);
        mBtnEditText.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //跳转到EditText演示界面
                Intent intent = new Intent(MainActivity.this,EditTextActivity.class);
                startActivity(intent);
            }
        });

    }

}

EditTextActivity.java

package com.example.helloworld;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.text.Editable;
import android.text.TextWatcher;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;

public class EditTextActivity extends AppCompatActivity {

    private Button mBtnLogin;
    private EditText mEtUserName;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_edit_text);

        mBtnLogin = findViewById(R.id.btn_login);
        mBtnLogin.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(EditTextActivity.this,"登录成功！",Toast.LENGTH_SHORT).show();
            }
        });

        //为用户名框设置一个监听器
        mEtUserName = (EditText) findViewById(R.id.et_1);
        mEtUserName.addTextChangedListener(new TextWatcher() {
            @Override
            public void beforeTextChanged(CharSequence s, int start, int count, int after) {

            }

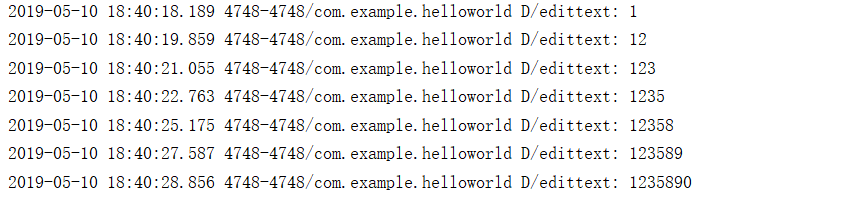

            //当输入时监听输入的内容并输出为字符串到日志中
            @Override
            public void onTextChanged(CharSequence s, int start, int before, int count) {
                Log.d("edittext",s.toString());
            }
            @Override
            public void afterTextChanged(Editable s) {

            }
        });
    }
}

2.layout文件

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <Button
        android:id="@+id/btn_textview"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="TextView"
        android:textAllCaps="false"/>

    <Button
        android:id="@+id/btn_button"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Button"
        android:textAllCaps="false"/>

    <Button
        android:id="@+id/btn_edittext"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="EditText"
        android:textAllCaps="false"/>

</LinearLayout>

activity_edit_text.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="15dp">

    <EditText
        android:id="@+id/et_1"
        android:layout_width="match_parent"
        android:layout_height="50dp"
        android:textSize="16sp"
        android:textColor="#FFAD33"
        android:hint="手机号："
        android:background="@drawable/bg_username"
        android:paddingLeft="10dp"
        android:drawableLeft="@drawable/icon_user"
        android:drawablePadding="5dp"
        android:maxLines="1"
        android:layout_marginTop="50dp"/>

    <EditText
        android:id="@+id/et_2"
        android:layout_width="match_parent"
        android:layout_height="50dp"
        android:textSize="16sp"
        android:textColor="#FFAD33"
        android:layout_below="@id/et_1"
        android:hint="密码："
        android:layout_marginTop="15dp"
        android:inputType="textPassword"
        android:background="@drawable/bg_username"
        android:paddingLeft="10dp"
        android:drawableLeft="@drawable/icon_password"
        android:drawablePadding="5dp"
        android:maxLines="1"/>

    <Button
        android:id="@+id/btn_login"
        android:layout_width="match_parent"
        android:layout_height="40dp"
        android:layout_below="@id/et_2"
        android:layout_marginTop="50dp"
        android:background="@drawable/bg_btn4"
        android:text="登录"
        android:textColor="#fff"
        android:textSize="20sp"/>

</RelativeLayout>

3.drawable文件

bg_username.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">

    <!--描边的形状-->
    <stroke
        android:width="1dp"
        android:color="#999999"/>
    <!--设置圆角-->
    <corners
        android:radius="5dp"/>

</shape>
