flink 安装

1.准备工作

##安装包
https://downloads.lightbend.com/scala/2.12.12/scala-2.12.12.zip
https://mirror.bit.edu.cn/apache/flink/flink-1.11.1/flink-1.11.1-bin-scala_2.12.tgz

2.安装步骤

##解压安装包
unzip scala-2.12.12.zip
##配置环境变量
export SCALA_HOME=/opt/scala-2.12.12
export PATH=${SCALA_HOME}/bin:$PATH
##查看版本号
[root@jxq-100-73-13-37 bin]# scala -version
Scala code runner version 2.12.12 -- Copyright 2002-2020, LAMP/EPFL and Lightbend, Inc.
##进入scala
[root@jxq-100-73-13-37 bin]# scala
Welcome to Scala 2.12.12 (Java HotSpot(TM) 64-Bit Server VM, Java 1.8.0_141).
Type in expressions for evaluation. Or try :help.

scala>

##解压安装包
tar -zxvf flink-1.11.1-bin-scala_2.12.tgz
##配置环境变量
export FLINK_HOME=/data/lilin/flink-1.11.1
export PATH=${FLINK_HOME}/bin:$PATH
##启动服务
[root@jxq-100-73-13-37 bin]# pwd
/data/lilin/flink-1.11.1/bin
[root@jxq-100-73-13-37 bin]# ./start-cluster.sh
[root@jxq-100-73-13-37 bin]# jps
29832 TaskManagerRunner
29529 StandaloneSessionClusterEntrypoint

3.本地测试

• session1–指定一个端口启动，可使用netstat -alnp|grep 9002验证

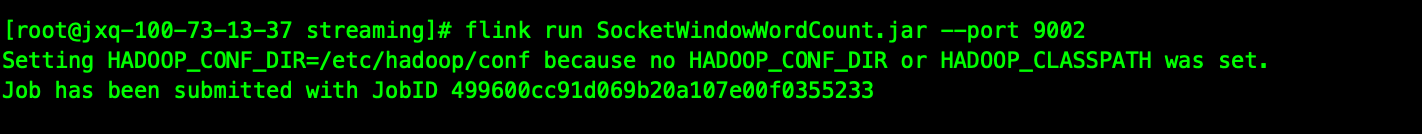

• session2–使用官方自带的jar及端口启动

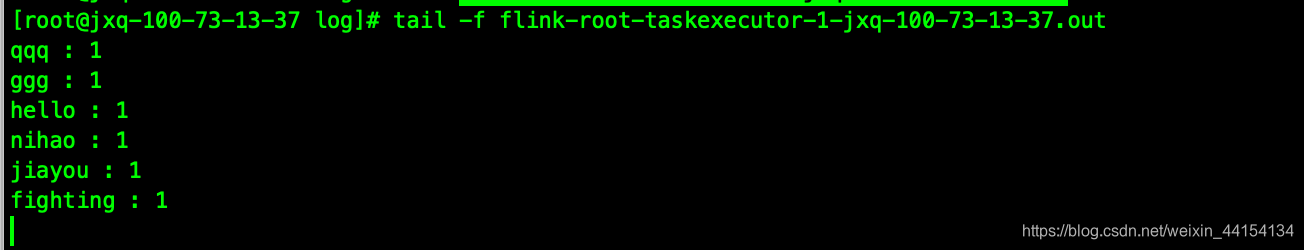

• session3–查看测试结果

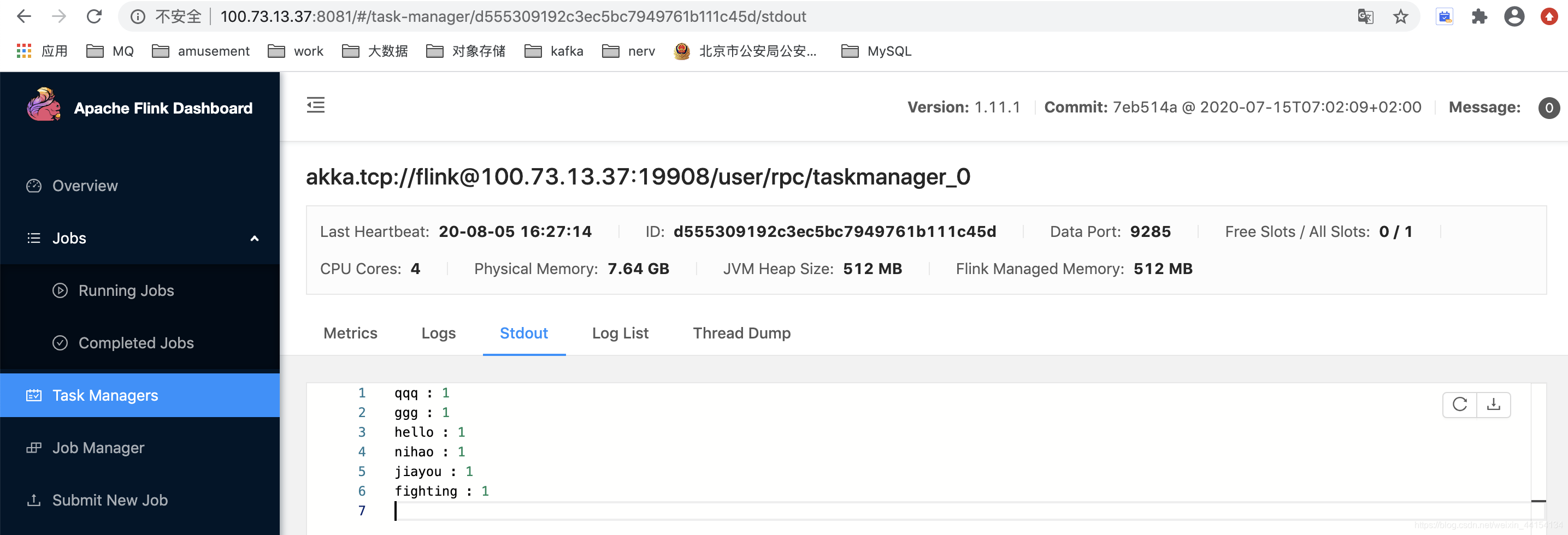

通过WEB查看结果-
http://100.73.13.37:8081

IDEA测试

package com;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.utils.ParameterTool;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;

/**
 * Author: Mr.Deng
 * Date: 2018/10/15
 * Desc: 使用flink对指定窗口内的数据进行实时统计，最终把结果打印出来
 *       先在node21机器上执行nc -l 9000
 */
public class demo {
    public static void main(String[] args) throws Exception {
        //定义socket的端口号
        int port = 9002;
        try{
            ParameterTool parameterTool = ParameterTool.fromArgs(args);
            port = parameterTool.getInt("port");
        }catch (Exception e){
            System.err.println("没有指定port参数，使用默认值9000");
            port = 9002;
        }
        //获取运行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //连接socket获取输入的数据
        DataStreamSource<String> text = env.socketTextStream("jxq-100-73-13-37", port, "\n");
        //计算数据
        DataStream<WordWithCount> windowCount = text.flatMap(new FlatMapFunction<String, WordWithCount>() {
            public void flatMap(String value, Collector<WordWithCount> out) throws Exception {
                String[] splits = value.split("\\s");
                for (String word:splits) {
                    out.collect(new WordWithCount(word,1L));
                }
            }
        })//打平操作，把每行的单词转为<word,count>类型的数据
                //针对相同的word数据进行分组
                .keyBy("word")
                //指定计算数据的窗口大小和滑动窗口大小
                .timeWindow(Time.seconds(2),Time.seconds(1))
                .sum("count");
        //把数据打印到控制台,使用一个并行度
        windowCount.print().setParallelism(1);
        //注意：因为flink是懒加载的，所以必须调用execute方法，上面的代码才会执行
        env.execute("streaming word count");
    }

    /**
     * 主要为了存储单词以及单词出现的次数
     */
    public static class WordWithCount{
        public String word;
        public long count;
        public WordWithCount(){}
        public WordWithCount(String word, long count) {
            this.word = word;
            this.count = count;
        }

        @Override
        public String toString() {
            return "WordWithCount{" +
                    "word='" + word + '\'' +
                    ", count=" + count +
                    '}';
        }
    }

}

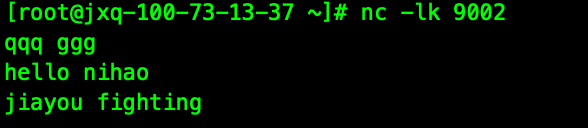

• session1-以9002端口启动服务

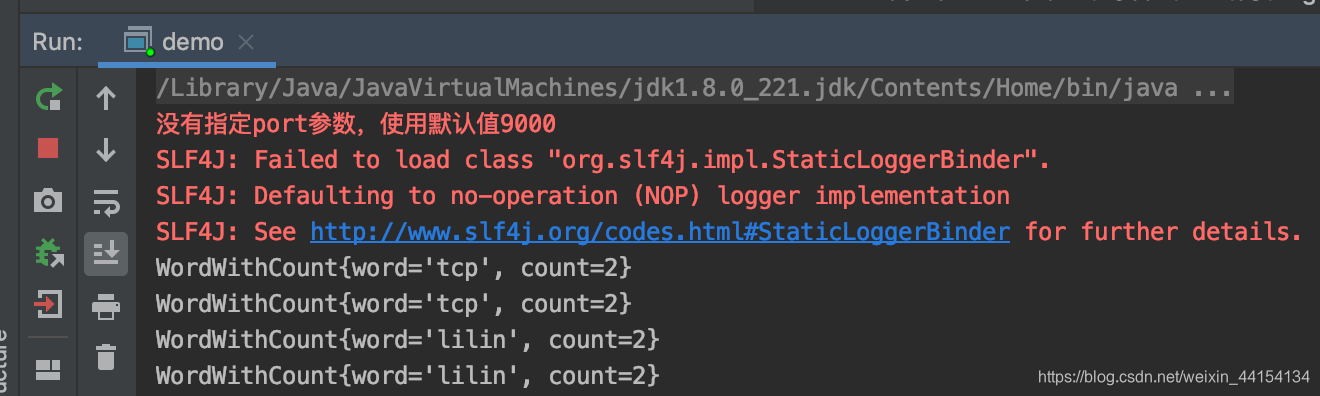

• 控制台输出：
