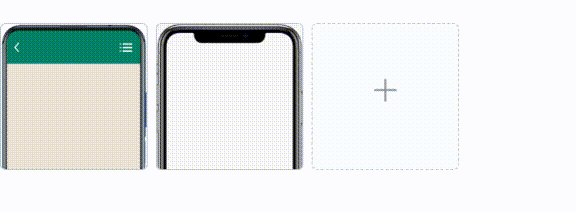

el-upload上传图片后,可以预览,拖动图片改变位置和排序。效果如下:
安装插件
npm install vuedraggable --save
<template>
<div class="upload-preview-wrapper">
<el-upload
v-bind="$attrs"
class="postingUpload"
ref="upload"
:on-remove="handleRemove"
:http-request="uploadFile"
:before-upload="beforeUpload"
:show-file-list="false"
:file-list="uploadFileList"
:on-exceed="handleExceed"
action="javascript:void(0)"
>
</el-upload>
<div class="image-list-box">
<!-- el-upload-list--picture-card 是el-upload的picture-card类型的样式,这里直接拿来用 -->
<ul class="file-list-container el-upload-list--picture-card">
<!-- 使用vue-draggable,配置v-model为列表,draggable设置为可选dom的样式选择器代码 -->
<vue-draggable v-model="uploadFileList" @update="update" @end="end" draggable=".img-item-odiv" class="draggable">
<transition-group>
<li
v-for="(file, index) in uploadFileList"
:key="file.uid"
class="img-item-odiv el-upload-list__item"
>
<img
class="el-upload-list__item-thumbnail"
@load="handleImgLoad(file)"
:src="file.url" alt=""
/>
<span class="el-upload-list__item-actions">
<span
class="el-upload-list__item-preview"
@click="handlePictureCardPreview(file)"
>
<i class="el-icon-zoom-in"></i>
</span>
<span
class="el-upload-list__item-edit"
@click="handlePictureEdit(file)"
>
<i class="el-icon-edit-outline"></i>
</span>
<span
class="el-upload-list__item-delete"
@click="handleSingleRemove(file)"
>
<i class="el-icon-delete"></i>
</span>
</span>
</li>
</transition-group>
</vue-draggable>
</ul>
<!-- 上传按钮,点击时打开文件选择器 -->
<div tabindex="0" class="upload-btn el-upload el-upload--picture-card" @click="clickUploadFile">
<i class="el-icon-plus"></i>
</div>
</div>
</div>
</template>
<script>
import VueDraggable from 'vuedraggable'
export default {
components: {
VueDraggable
},
props: {
fileList: {
type: Array,
default: () => {
return []
}
},
},
data(){
return {
uploadFileList: []
}
},
watch: {
uploadFileList: {
handler(val) {
this.$emit('update:fileList', val)
},
deep: true
}
},
methods: {
handlePictureCardPreview(file) {
},
handleSingleRemove(file){
this.$refs.upload.handleRemove(file)
},
handlePictureEdit(file){
},
async handleImgLoad(file){
console.log(file)
let _this = this;
let img = new Image();
img.src = file.url;
img.onload = function () {
file.width = img.width;
file.height = img.height;
_this.$set(file, 'width', img.width);
_this.$set(file, 'height', img.height);
_this.uploadFileList = [].concat(_this.uploadFileList);
}
},
handleRemove(file, fileList) {
this.uploadFileList = [].concat(fileList);
},
/**上传文件的事件*/
uploadFile(item) {
//上传文件的代码
},
/**上传文件之前*/
beforeUpload(file) {
if (file.type != "" || file.type != null || file.type != undefined) {
//截取文件的后缀,判断文件类型
const FileExt = file.name.replace(/.+\./, "").toLowerCase();
let num;
if (FileExt == 'mp4' || FileExt == 'avi' || FileExt == 'mov') {
num = 1024;
} else {
num = 4;
}
//计算文件的大小
const isLt5M = file.size / 1024 / 1024 < num; //这里做文件大小限制
//如果大于100M
if (!isLt5M) {
if (FileExt == 'mp4' || FileExt == 'avi' || FileExt == 'mov') {
this.$message.warning('上传视频格式大小不能超过 1GB!');
} else {
this.$message.warning('上传图片格式大小不能超过 4MB!');
}
return false;
}
}
// 生成文件url
const reader = new FileReader();
reader.onload = (e) => {
file.url = e.target.result;
this.uploadFileList.push(file)
};
reader.readAsDataURL(file);
},
handleExceed() {
this.$message.warning('超出最大上传文件数量的限制!');
return
},
//点击打开文件选择器
clickUploadFile(){
this.$refs.upload.$refs["upload-inner"].handleClick()
},
// 拖动排序 位置改变时触发
update(){
console.log(this.fileList)
},
// 拖动结束后触发
end(){
console.log(this.fileList)
}
}
}
</script>
<style lang="scss">
.upload-preview-wrapper {
.file-list-container{
display: inline-flex;
.img-item-odiv{
max-width: 400px;
overflow: hidden;
position: relative;
}
img{
width: auto;
height: auto;
}
}
.upload-btn{
display: inline-block;
}
.image-list-box, .draggable >span{
display: flex;
flex-wrap: wrap;
}
.image-size{
position: absolute;
bottom: -20px;
left: 0px;
width: 100%;
text-align: center;
font-size: 12px;
color: #606266;
zoom:0.9
}
.warn-color{
color: #606266;
font-size: 12px;
font-weight: 400;
&.red{
color: #f56c6c;
}
}
}
</style>
