1.单向一对多(掌握)

声明集合必须使用接口，建议将集合new出来
必须设置外键(不然会生成中间表)
默认懒加载(集合都是默认懒加载)
性能差不用，建议使用双向一对多，多对一

Product类(多方)

@Entity
@Table(name = "product")
public class Product {
    @Id
    @GeneratedValue
    private Long id;
    private String name;

	//get，set，方法省略...
}

ProductDir类(一方)

@Entity
@Table(name = "productdir")
public class ProductDir {
    @Id
    @GeneratedValue
    private Long id;
    private String name;

    @OneToMany//一对多,默认懒加载
    @JoinColumn(name = "dir_id")//不设外键，会默认生成中间表
    //必须使用接口声明集合
    private List<Product> products = new ArrayList<>();

    //省略get，set方法..
}

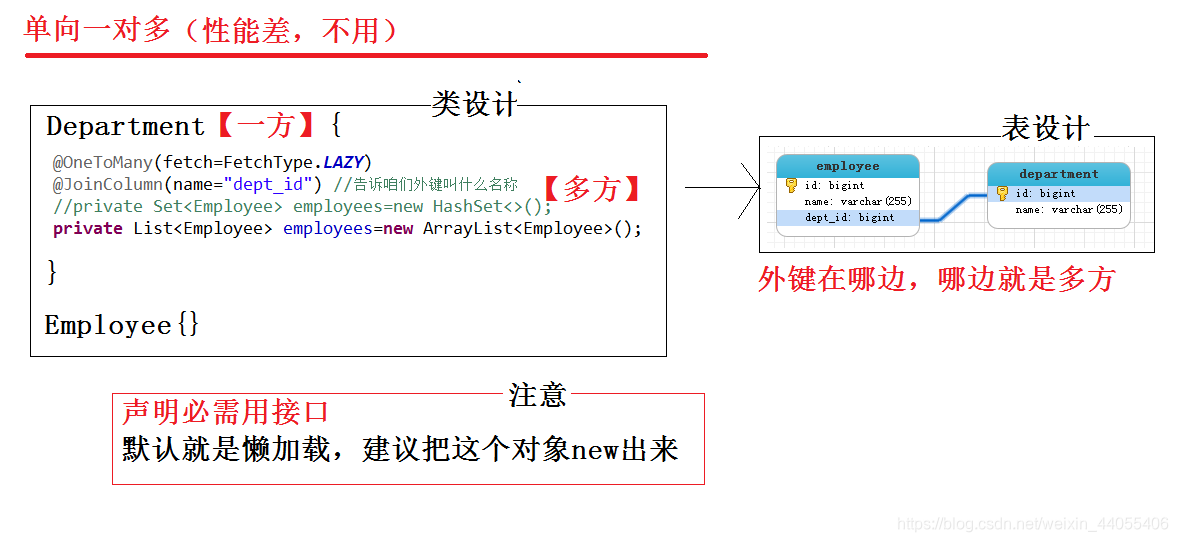

图解
单向一对多

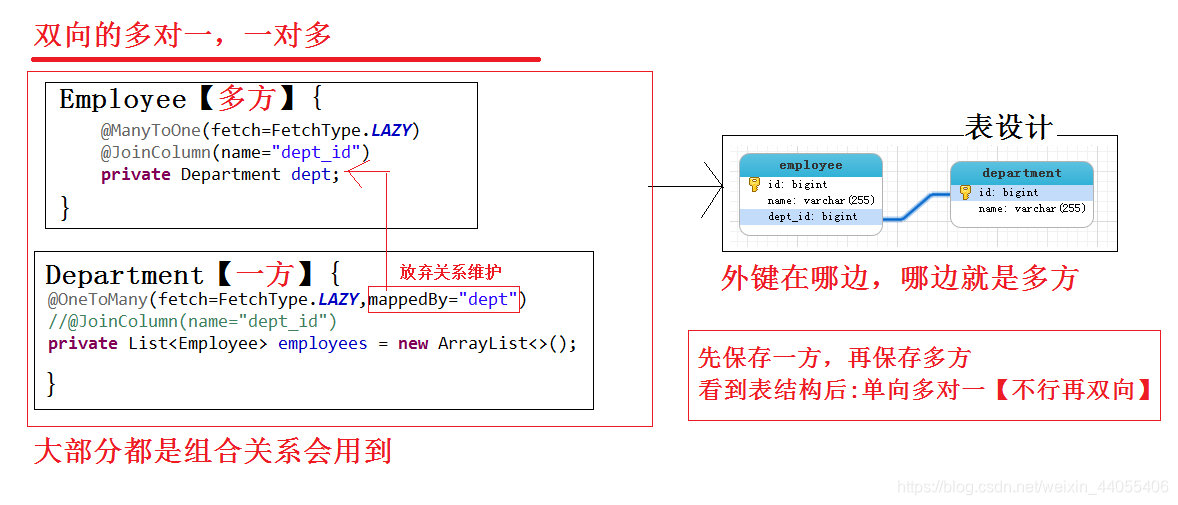

2.双向一对多，多对一

单向一对多不行，才用双向一对多，多对一
一方放弃关系维护(实际也没维护能力，外键在的那方才有维护能力)

Employee类(多方)

@Entity
@Table(name = "employee")
public class Employee {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    /*
    * 多个员工对应一个部门
    * */
    @ManyToOne
    @JoinColumn(name = "department_id")
    private Department department;

	//get和set方法省略...
}

Department类(一方)

@Entity
@Table(name = "department")
public class Department {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    /*
    * 一个部门对应多个员工
    * */
    @OneToMany(mappedBy = "department")//映射Employee中的department字段名
    //@JoinColumn(name = "department_id")//一方放弃维护(也没能力维护)
    private List<Employee> employees = new ArrayList<>();

	//get和set方法忽略...
}

3.级联

cascade(级联)

CascadeType.PERSIST(级联保存)
CascadeType.MERGE(级联修改)
CascadeType.REMOVE(级联删除)慎用，危险
CascadeType.ALL(包含级联增删改)
orphanRemoval = true(孤儿删除)

(1)级联删除(危险慎用)

练习1：删除一方，同时删除多方

//删除部门的时候，同时删除员工
@OneToMany(mappedBy = "department",cascade = CascadeType.REMOVE)

@Test
public void testDelete01(){
        EntityManager entityManager = JPAUtil.createEntityManager();
        entityManager.getTransaction().begin();
        //查询一方部门
        Department department = entityManager.find(Department.class, 1L);
        //级联删除1 删除部门同时,删除员工
        entityManager.remove(department);
        entityManager.getTransaction().commit();
        entityManager.close();
}

练习2：删除一个与一方解除了关系的多方(用到孤儿删除)

孤儿删除 orphanRemoval = true

//orphanRemoval = true孤儿删除，删除解除了关系的
@OneToMany(mappedBy = "department",cascade = CascadeType.REMOVE,orphanRemoval = true)

 @Test
 public void testDelete02(){
        EntityManager entityManager = JPAUtil.createEntityManager();
        entityManager.getTransaction().begin();
        //查询一方部门
        Department department = entityManager.find(Department.class, 1L);
        //级联删除2 解除第一个员工与部门的关系，孤儿删除员工1
        department.getEmployees().remove(0);
        entityManager.getTransaction().commit();
        entityManager.close();
 }

练习3：解除所有关系，删除所有解除关系的多方(先获取一方，删除所有多方)

@OneToMany(mappedBy = "department",cascade = CascadeType.REMOVE,orphanRemoval = true)

@Test
public void testDelete03(){
        EntityManager entityManager = JPAUtil.createEntityManager();
        entityManager.getTransaction().begin();
        //查询一方部门
        Department department = entityManager.find(Department.class, 1L);
        //级联删除2 解除该部门所有员工与部门的关系，孤儿删除所有解除关系的员工
        department.getEmployees().clear();
        entityManager.getTransaction().commit();
        entityManager.close();
}

最强级联

@OneToMany(mappedBy = "department",cascade = CascadeType.ALL,orphanRemoval = true)

级联注意事项

级联能不用就不用，如果要用，就使用最强级联
组合关系时(如：超市小票) 使用最强级联

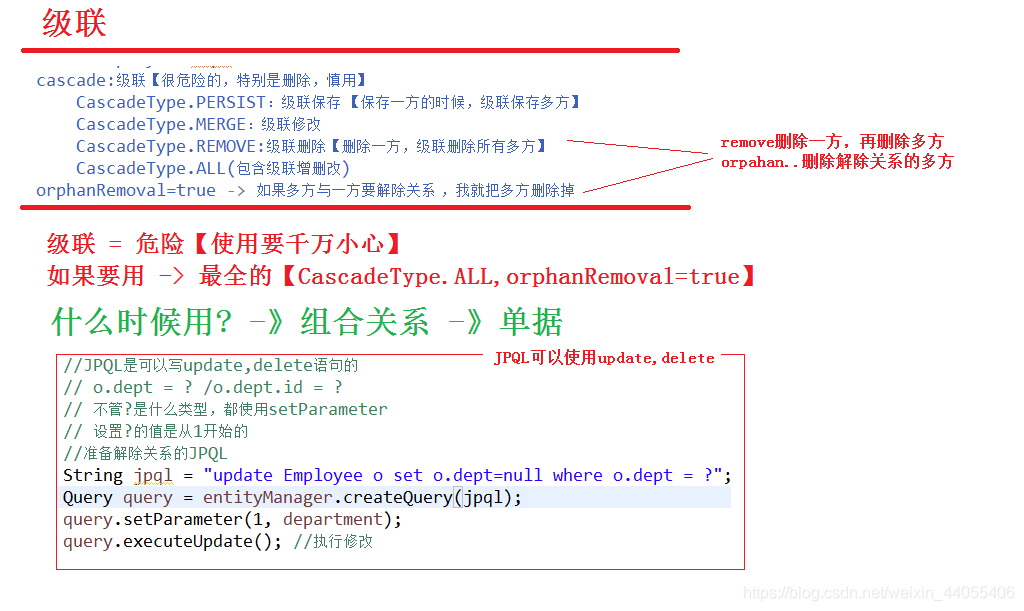

图解

在这里插入图片描述

4.单向多对多

User类

@Entity
@Table(name = "user")
public class User {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    /*
    * name:关连(中间)表名
    * joinColumns = @JoinColumn(name = "user_id")当前类(表)对应外键的名称
    * inverseJoinColumns = @JoinColumn(name = "role_id")关连类(表)对应外键的名称
    * */
    @ManyToMany
    /*@JoinTable(name = "user_role",
            joinColumns = @JoinColumn(name = "user_id"),
            inverseJoinColumns = @JoinColumn(name = "role_id"))*/
    private List<Role> roles = new ArrayList<>();
}

Role(角色类)

@Entity
@Table(name = "role")
public class Role {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
}

测试

@Test
public void testSave(){
     //2个用户，3个角色
     //准备两个用户
     User u1 = new User();
     u1.setName("章无忌");
     User u2 = new User();
     u2.setName("樟三疯");
     //准备三个角色
     Role r1 = new Role();
     r1.setName("少林");
     Role r2 = new Role();
     r2.setName("武当");
     Role r3 = new Role();
     r3.setName("明教");

     //建立关系
     //章无忌既是武当又是明教
     u1.getRoles().add(r2);
     u1.getRoles().add(r3);
     //樟三疯既是少林看，武当，又是明教
     u2.getRoles().add(r1);
     u2.getRoles().add(r2);
     u2.getRoles().add(r3);
     EntityManager entityManager = JPAUtil.createEntityManager();
     entityManager.getTransaction().begin();

     //保存用户
     entityManager.persist(u1);
     entityManager.persist(u2);
     //保存角色
     entityManager.persist(r1);
     entityManager.persist(r2);
     entityManager.persist(r3);

     entityManager.getTransaction().commit();
     entityManager.close();
 }

5.双向多对多

User类

@Entity
@Table(name = "user")
public class User {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    /*
    * name:关连(中间)表名
    * joinColumns = @JoinColumn(name = "user_id")当前类(表)对应外键的名称
    * inverseJoinColumns = @JoinColumn(name = "role_id")关连类(表)对应外键的名称
    * */
    @ManyToMany
    @JoinTable(name = "user_role",
            joinColumns = @JoinColumn(name = "user_id"),
            inverseJoinColumns = @JoinColumn(name = "role_id"))
    private List<Role> roles = new ArrayList<>();
}

Role(角色类)

@Entity
@Table(name = "role")
public class Role {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    @ManyToMany
    @JoinTable(name = "user_role",
            joinColumns = @JoinColumn(name = "role_id"),
            inverseJoinColumns = @JoinColumn(name = "user_id"))
    private List<User> users = new ArrayList<>();
}

注意：双向多对多，必须保证中间表的名称，字段统一

name:关连(中间)表名
joinColumns = @JoinColumn(name = “user_id”)当前类(表)对应外键的名称
inverseJoinColumns = @JoinColumn(name = “role_id”)关连类(表)对应外键的名称

@JoinTable(name = "user_role",
           joinColumns = @JoinColumn(name = "role_id"),
           inverseJoinColumns = @JoinColumn(name = "user_id"))

6.多对多(级联)

练习1：级联添加添加用户时，顺便添加角色

@ManyToMany(cascade = CascadeType.PERSIST)

练习2：删除user1(注意不是级联删除) JPA自动删除中间表user1对应内容和user1

@Test
public void testDelete(){
    EntityManager entityManager = JPAUtil.createEntityManager();
    entityManager.getTransaction().begin();
    //中间表时JPA自己控制，添加删除都是自动的
    User u1 = entityManager.find(User.class, 1L);
    //直接删除，JPA自动删除中间表对应内容
    entityManager.remove(u1);
    entityManager.getTransaction().commit();
    entityManager.close();
}

练习3：一边配置联级删除 User类配置联级删除删除user1

User u1 = entityManager.find(User.class, 1L);
entityManager.remove(u1);

效果如下：

武当和明教都被删了

在这里插入图片描述

练习4：两边都配置联级删除，和user1有关的所有的信息都被删了
该例子中，所有数据都被删了

User u1 = entityManager.find(User.class, 1L);
entityManager.remove(u1);

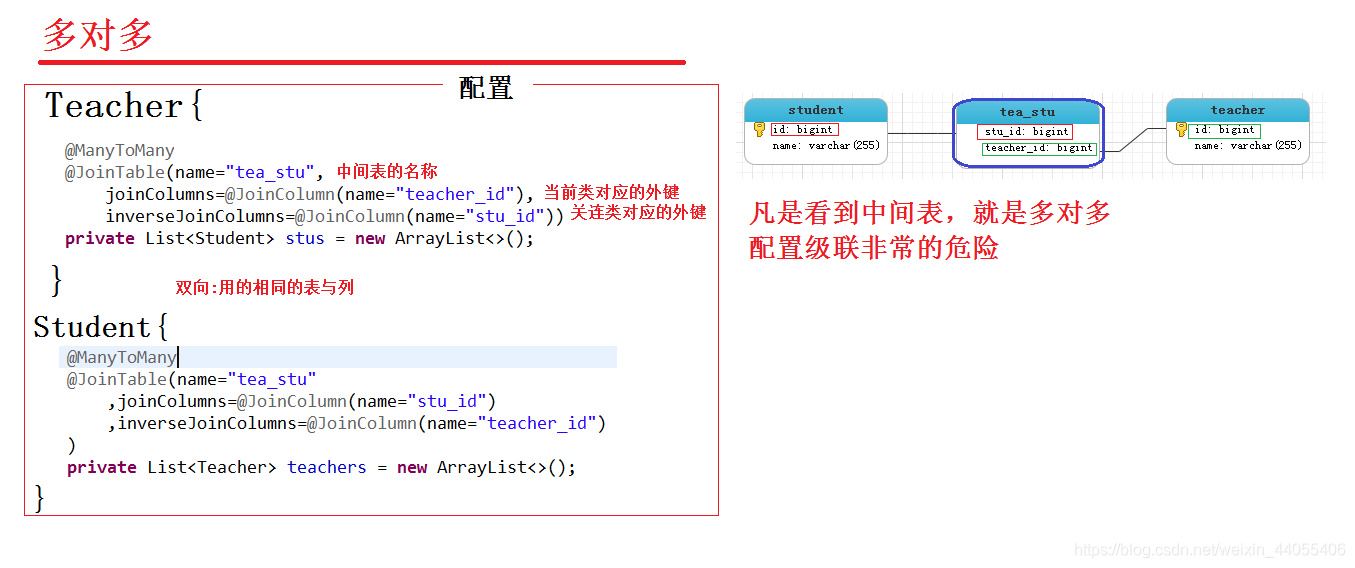

多对多
在这里插入图片描述

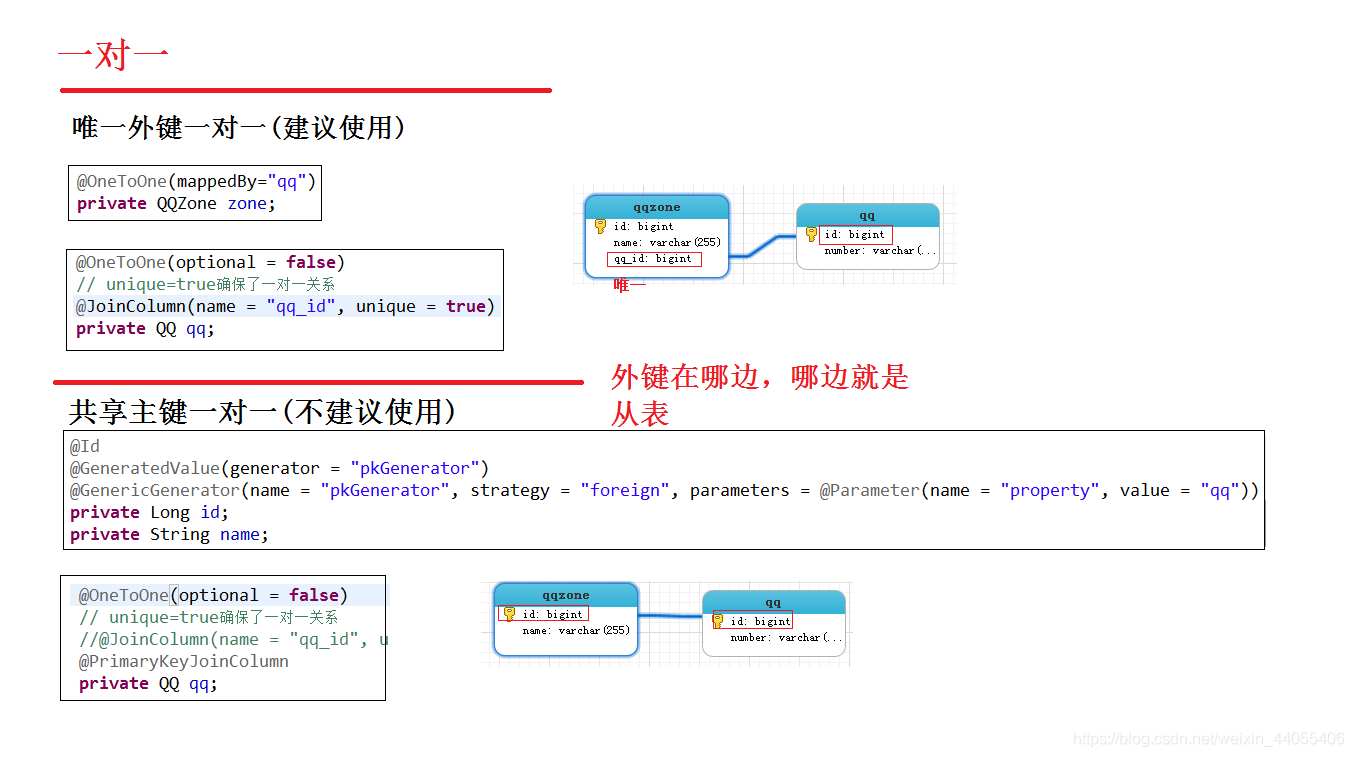

7.一对一

唯一外键一对一(掌握) 唯一外键扩展性强，常用
共享主键一对一(了解) 关系强烈，扩展性不强
