先上pom：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.0.RELEASE</version>
</parent>
<modelVersion>4.0.0</modelVersion>
<artifactId>study-spring</artifactId>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
<groupId>org.activiti</groupId>
<artifactId>activiti-spring-boot-starter-rest-api</artifactId>
<version>6.0.0</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.18</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>1.7.21</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>1.7.21</version>
</dependency>
<!-- Activiti modeler 可视化依赖 -->
<dependency>
<groupId>org.activiti</groupId>
<artifactId>activiti-modeler</artifactId>
<version>5.23.0</version>
</dependency>
<!-- Activity6 集成 Modeler 需要 jar 包 -->
<dependency>
<groupId>org.apache.xmlgraphics</groupId>
<artifactId>batik-transcoder</artifactId>
<version>1.8</version>
</dependency>
<dependency>
<groupId>org.apache.xmlgraphics</groupId>
<artifactId>batik-codec</artifactId>
<version>1.8</version>
</dependency>
<dependency>
<groupId>org.activiti</groupId>
<artifactId>activiti-json-converter</artifactId>
<version>6.0.0</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>2.0.42</version>
<scope>compile</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>再上配置：
server:
port: 8081
spring:
application:
name: study-spring
datasource:
url: jdbc:mysql://127.0.0.1:3306/activittest?characterEncoding=UTF-8&useUnicode=true&useSSL=false&tinyInt1isBit=false&allowPublicKeyRetrieval=true&serverTimezone=Asia/Shanghai
username: root
password: root
driver-class-name: com.mysql.cj.jdbc.Driver
activiti:
#1.false,默认值,acticiti启动时对比数据库表中保存的版本，如果没有表或者版本不匹配，将抛出异常
#2.true,acticiti会对数据中所有的表进行更新操作，如果表不存在，则自动创建
#3.create_drop,在acticiti启动时创建表，关闭时删除表（必须手动关闭引擎才能删除表）
#4.drop_create,在acticiti启动时删除原来的表，然后创建新表（不需要手动关闭引擎）
database-schema-update: true
#检测历史表是否存在，acticit7默认没有开启历史记录信息
db-history-used: true
#历史记录等级
#1.none:不保存任何历史记录，因此在流程执行过程中，这是最高效的
#2.acticiti:级别高于none,保存流程实例与流程行为，其他数据不保存
#3.audit：除activiti级别会保存的数据外，还会保存全部的流程任务及其属性，audit为默认值
#4.full:保存历史数据的最高级别，除了保存audit级别的数据外，还会保存其他流程相关的细节数据，包括一些流程参数等
#默认true,效验流程文件，默认效验resources下的processes文件夹里的流程，为true自动部署流程，为false则不部署
#spring.activiti.check-process-definitions=false

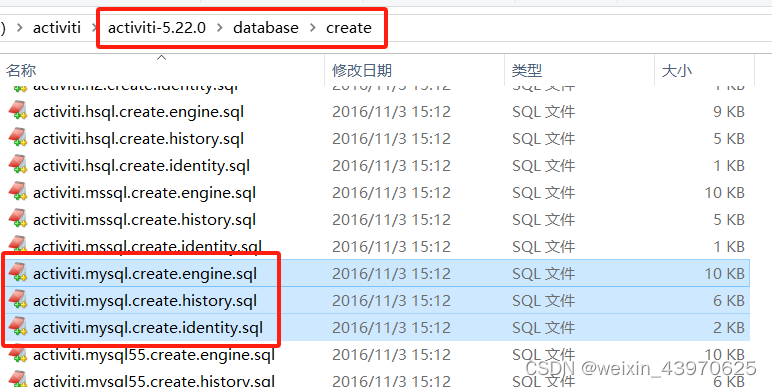

history-level: full解压后初始化所需数据表：

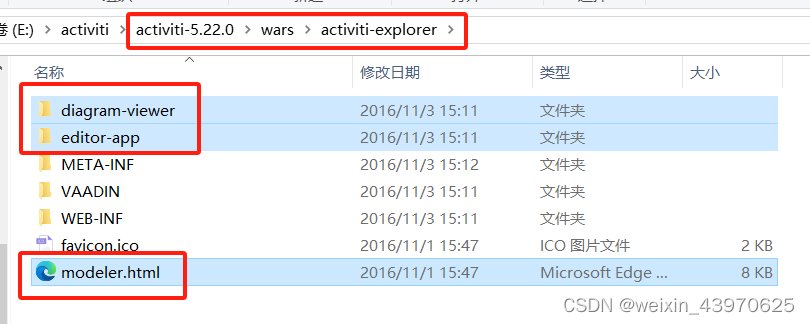

解压此文件夹下的war包：

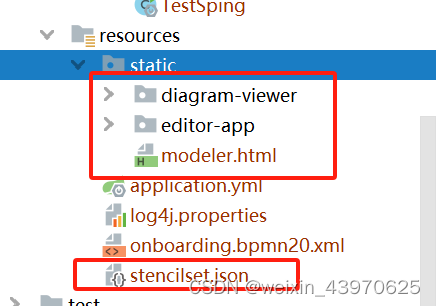

放置到resources下
注意stencilset.json 是汉化文件，可替换如下：
{
"title" : "BPMN 2.0标准工具",
"namespace" : "http://b3mn.org/stencilset/bpmn2.0#",
"description" : "BPMN process editor",
"propertyPackages" : [ {
"name" : "process_idpackage",
"properties" : [ {
"id" : "process_id",
"type" : "String",
"title" : "流程名称",
"value" : "process",
"description" : "流程的特殊唯一的名称标识",
"popular" : true
} ]
}, {
"name" : "overrideidpackage",
"properties" : [ {
"id" : "overrideid",
"type" : "String",
"title" : "Id",
"value" : "",
"description" : "Unique identifier of the element.",
"popular" : true
} ]
}, {
"name" : "namepackage",
"properties" : [ {
"id" : "name",
"type" : "String",
"title" : "名称",
"value" : "",
"description" : "元素名称",
"popular" : true,
"refToView" : "text_name"
} ]
}, {
"name" : "documentationpackage",
"properties" : [ {
"id" : "documentation",
"type" : "Text",
"title" : "描述",
"value" : "",
"description" : "元素描述",
"popular" : true
} ]
}, {
"name" : "process_authorpackage",
"properties" : [ {
"id" : "process_author",
"type" : "String",
"title" : "流程作者",
"value" : "",
"description" : "流程定义者姓名",
"popular" : true
} ]
}, {
"name" : "process_versionpackage",
"properties" : [ {
"id" : "process_version",
"type" : "String",
"title" : "流程版本",
"value" : "",
"description" : "标识文档版本",
"popular" : true
} ]
}, {
"name" : "process_namespacepackage",
"properties" : [ {
"id" : "process_namespace",
"type" : "String",
"title" : "目标命名空间",
"value" : "http://www.activiti.org/processdef",
"description" : "工作流目标命名空间",
"popular" : true
} ]
}, {
"name" : "asynchronousdefinitionpackage",
"properties" : [ {
"id" : "asynchronousdefinition",
"type" : "Boolean",
"title" : "异步",
"value" : "false",
"description" : "Define the activity as asynchronous.",
"popular" : true
} ]
}, {
"name" : "exclusivedefinitionpackage",
"properties" : [ {
"id" : "exclusivedefinition",
"type" : "Boolean",
"title" : "单独",
"value" : "false",
"description" : "Define the activity as exclusive.",
"popular" : true
} ]
}, {
"name" : "executionlistenerspackage",
"properties" : [ {
"id" : "executionlisteners",
"type" : "multiplecomplex",
"title" : "执行监听器",
"value" : "",
"description" : "Listeners for an activity, process, sequence flow, start and end event.",
"popular" : true
} ]
}, {
"name" : "tasklistenerspackage",
"properties" : [ {
"id" : "tasklisteners",
"type" : "multiplecomplex",
"title" : "任务监听器",
"value" : "",
"description" : "Listeners for a user task",
"popular" : true
} ]
}, {
"name" : "eventlistenerspackage",
"properties" : [ {
"id" : "eventlisteners",
"type" : "multiplecomplex",
"title" : "事件监听器",
"value" : "",
"description" : "Listeners for any event happening in the Activiti Engine. It's also possible to rethrow the event as a signal, message or error event",
"popular" : true
} ]
}, {
"name" : "usertaskassignmentpackage",
"properties" : [ {
"id" : "usertaskassignment",
"type" : "Complex",
"title" : "代理",
"value" : "",
"description" : "Assignment definition for the user task",
"popular" : true
} ]
}, {
"name" : "formpropertiespackage",
"properties" : [ {
"id" : "formproperties",
"type" : "Complex",
"title" : "动态表单属性",
"value" : "",
"description" : "Definition of the form with a list of form properties",
"popular" : true
} ]
}, {
"name" : "formkeydefinitionpackage",
"properties" : [ {
"id" : "formkeydefinition",
"type" : "String",
"title" : "自定义表单",
"value" : "",
"description" : "用户任务表单编号",
"popular" : true
} ]
}, {
"name" : "duedatedefinitionpackage",
"properties" : [ {
"id" : "duedatedefinition",
"type" : "String",
"title" : "到期日期",
"value" : "",
"description" : "用户任务到期时间",
"popular" : true
} ]
}, {
"name" : "prioritydefinitionpackage",
"properties" : [ {
"id" : "prioritydefinition",
"type" : "String",
"title" : "优先级",
"value" : "",
"description" : "用户任务优先级",
"popular" : true
} ]
}, {
"name" : "duedatedefinitionpackage",
"properties" : [ {
"id" : "duedatedefinition",
"type" : "String",
"title" : "到期日期",
"value" : "",
"description" : "Due date of the user task.",
"popular" : true
} ]
}, {
"name" : "servicetaskclasspackage",
"properties" : [ {
"id" : "servicetaskclass",
"type" : "String",
"title" : "监听类",
"value" : "",
"description" : "Class that implements the service task logic.",
"popular" : true
} ]
}, {
"name" : "servicetaskexpressionpackage",
"properties" : [ {
"id" : "servicetaskexpression",
"type" : "String",
"title" : "表达式",
"value" : "",
"description" : "Service task logic defined with an expression.",
"popular" : true
} ]
}, {
"name" : "servicetaskdelegateexpressionpackage",
"properties" : [ {
"id" : "servicetaskdelegateexpression",
"type" : "String",
"title" : "委托表达式",
"value" : "",
"description" : "Service task logic defined with a delegate expression.",
"popular" : true
} ]
}, {
"name" : "servicetaskfieldspackage",
"properties" : [ {
"id" : "servicetaskfields",
"type" : "Complex",
"title" : "字段",
"value" : "",
"description" : "Field extensions",
"popular" : true
} ]
}, {
"name" : "servicetaskresultvariablepackage",
"properties" : [ {
"id" : "servicetaskresultvariable",
"type" : "String",
"title" : "Result variable name",
"value" : "",
"description" : "Process variable name to store the service task result.",
"popular" : true
} ]
}, {
"name" : "scriptformatpackage",
"properties" : [ {
"id" : "scriptformat",
"type" : "String",
"title" : "脚本格式",
"value" : "",
"description" : "Script format of the script task.",
"popular" : true
} ]
}, {
"name" : "scripttextpackage",
"properties" : [ {
"id" : "scripttext",
"type" : "Text",
"title" : "脚本",
"value" : "",
"description" : "Script text of the script task.",
"popular" : true
} ]
}, {
"name" : "ruletask_rulespackage",
"properties" : [ {
"id" : "ruletask_rules",
"type" : "String",
"title" : "规则",
"value" : "",
"description" : "Rules of the rule task.",
"popular" : true
} ]
}, {
"name" : "ruletask_variables_inputpackage",
"properties" : [ {
"id" : "ruletask_variables_input",
"type" : "String",
"title" : "输入变量",
"value" : "",
"description" : "Input variables of the rule task.",
"popular" : true
} ]
}, {
"name" : "ruletask_excludepackage",
"properties" : [ {
"id" : "ruletask_exclude",
"type" : "Boolean",
"title" : "除外",
"value" : "false",
"description" : "Use the rules property as exclusion.",
"popular" : true
} ]
}, {
"name" : "ruletask_resultpackage",
"properties" : [ {
"id" : "ruletask_result",
"type" : "String",
"title" : "返回变量",
"value" : "",
"description" : "Result variable of the rule task.",
"popular" : true
} ]
}, {
"name" : "mailtasktopackage",
"properties" : [ {
"id" : "mailtaskto",
"type" : "Text",
"title" : "接收人",
"value" : "",
"description" : "The recipients if the e-mail. Multiple recipients are defined in a comma-separated list.",
"popular" : true
} ]
}, {
"name" : "mailtaskfrompackage",
"properties" : [ {
"id" : "mailtaskfrom",
"type" : "Text",
"title" : "发件人",
"value" : "",
"description" : "The sender e-mail address. If not provided, the default configured from address is used.",
"popular" : true
} ]
}, {
"name" : "mailtasksubjectpackage",
"properties" : [ {
"id" : "mailtasksubject",
"type" : "Text",
"title" : "主题",
"value" : "",
"description" : "The subject of the e-mail.",
"popular" : true
} ]
}, {
"name" : "mailtaskccpackage",
"properties" : [ {
"id" : "mailtaskcc",
"type" : "Text",
"title" : "转发",
"value" : "",
"description" : "The cc's of the e-mail. Multiple recipients are defined in a comma-separated list",
"popular" : true
} ]
}, {
"name" : "mailtaskbccpackage",
"properties" : [ {
"id" : "mailtaskbcc",
"type" : "Text",
"title" : "密送",
"value" : "",
"description" : "The bcc's of the e-mail. Multiple recipients are defined in a comma-separated list",
"popular" : true
} ]
}, {
"name" : "mailtasktextpackage",
"properties" : [ {
"id" : "mailtasktext",
"type" : "Text",
"title" : "内容",
"value" : "",
"description" : "The content of the e-mail, in case one needs to send plain none-rich e-mails. Can be used in combination with html, for e-mail clients that don't support rich content. The client will then fall back to this text-only alternative.",
"popular" : true
} ]
}, {
"name" : "mailtaskhtmlpackage",
"properties" : [ {
"id" : "mailtaskhtml",
"type" : "Text",
"title" : "Html",
"value" : "",
"description" : "A piece of HTML that is the content of the e-mail.",
"popular" : true
} ]
}, {
"name" : "mailtaskcharsetpackage",
"properties" : [ {
"id" : "mailtaskcharset",
"type" : "String",
"title" : "Charset",
"value" : "",
"description" : "Allows to change the charset of the email, which is necessary for many non-English languages. ",
"popular" : true
} ]
}, {
"name" : "callactivitycalledelementpackage",
"properties" : [ {
"id" : "callactivitycalledelement",
"type" : "String",
"title" : "被调用元素",
"value" : "",
"description" : "Process reference.",
"popular" : true
} ]
}, {
"name" : "callactivityinparameterspackage",
"properties" : [ {
"id" : "callactivityinparameters",
"type" : "Complex",
"title" : "输入参数",
"value" : "",
"description" : "Definition of the input parameters",
"popular" : true
} ]
}, {
"name" : "callactivityoutparameterspackage",
"properties" : [ {
"id" : "callactivityoutparameters",
"type" : "Complex",
"title" : "输出参数",
"value" : "",
"description" : "Definition of the output parameters",
"popular" : true
} ]
}, {
"name" : "cameltaskcamelcontextpackage",
"properties" : [ {
"id" : "cameltaskcamelcontext",
"type" : "String",
"title" : "Camel内容",
"value" : "",
"description" : "An optional camel context definition, if left empty the default is used.",
"popular" : true
} ]
}, {
"name" : "muletaskendpointurlpackage",
"properties" : [ {
"id" : "muletaskendpointurl",
"type" : "String",
"title" : "终端url",
"value" : "",
"description" : "A required endpoint url to sent the message to Mule.",
"popular" : true
} ]
}, {
"name" : "muletasklanguagepackage",
"properties" : [ {
"id" : "muletasklanguage",
"type" : "String",
"title" : "语言",
"value" : "",
"description" : "A required definition for the language to resolve the payload expression, like juel.",
"popular" : true
} ]
}, {
"name" : "muletaskpayloadexpressionpackage",
"properties" : [ {
"id" : "muletaskpayloadexpression",
"type" : "String",
"title" : "有效载荷表达式",
"value" : "",
"description" : "A required definition for the payload of the message sent to Mule.",
"popular" : true
} ]
}, {
"name" : "muletaskresultvariablepackage",
"properties" : [ {
"id" : "muletaskresultvariable",
"type" : "String",
"title" : "返回变量",
"value" : "",
"description" : "An optional result variable for the payload returned.",
"popular" : true
} ]
}, {
"name" : "conditionsequenceflowpackage",
"properties" : [ {
"id" : "conditionsequenceflow",
"type" : "Complex",
"title" : "流转条件",
"value" : "",
"description" : "The condition of the sequence flow",
"popular" : true
} ]
}, {
"name" : "defaultflowpackage",
"properties" : [ {
"id" : "defaultflow",
"type" : "Boolean",
"title" : "默认流转",
"value" : "false",
"description" : "Define the sequence flow as default",
"popular" : true,
"refToView" : "default"
} ]
}, {
"name" : "conditionalflowpackage",
"properties" : [ {
"id" : "conditionalflow",
"type" : "Boolean",
"title" : "Conditional flow",
"value" : "false",
"description" : "Define the sequence flow with a condition",
"popular" : true
} ]
}, {
"name" : "timercycledefinitionpackage",
"properties" : [ {
"id" : "timercycledefinition",
"type" : "String",
"title" : "循环时间(例：R3/PT10H)",
"value" : "",
"description" : "Define the timer with a ISO-8601 cycle.",
"popular" : true
} ]
}, {
"name" : "timerdatedefinitionpackage",
"properties" : [ {
"id" : "timerdatedefinition",
"type" : "String",
"title" : "开始时间（ISO-8601）",
"value" : "",
"description" : "Define the timer with a ISO-8601 date definition.",
"popular" : true
} ]
}, {
"name" : "timerdurationdefinitionpackage",
"properties" : [ {
"id" : "timerdurationdefinition",
"type" : "String",
"title" : "持续时间(例：PT5M)",
"value" : "",
"description" : "Define the timer with a ISO-8601 duration.",
"popular" : true
} ]
}, {
"name" : "timerenddatedefinitionpackage",
"properties" : [ {
"id" : "timerenddatedefinition",
"type" : "String",
"title" : "结束时间（ISO-8601）",
"value" : "",
"description" : "Define the timer with a ISO-8601 duration.",
"popular" : true
} ]
}, {
"name" : "messagerefpackage",
"properties" : [ {
"id" : "messageref",
"type" : "String",
"title" : "消息引用",
"value" : "",
"description" : "Define the message name.",
"popular" : true
} ]
}, {
"name" : "signalrefpackage",
"properties" : [ {
"id" : "signalref",
"type" : "String",
"title" : "信号引用",
"value" : "",
"description" : "Define the signal name.",
"popular" : true
} ]
}, {
"name" : "errorrefpackage",
"properties" : [ {
"id" : "errorref",
"type" : "String",
"title" : "错误引用",
"value" : "",
"description" : "Define the error name.",
"popular" : true
} ]
}, {
"name" : "cancelactivitypackage",
"properties" : [ {
"id" : "cancelactivity",
"type" : "Boolean",
"title" : "取消活动",
"value" : "true",
"description" : "Should the activity be cancelled",
"popular" : true,
"refToView" : [ "frame", "frame2" ]
} ]
}, {
"name" : "initiatorpackage",
"properties" : [ {
"id" : "initiator",
"type" : "String",
"title" : "发起人",
"value" : "",
"description" : "Initiator of the process.",
"popular" : true
} ]
}, {
"name" : "textpackage",
"properties" : [ {
"id" : "text",
"type" : "String",
"title" : "Text",
"value" : "",
"description" : "The text of the text annotation.",
"popular" : true,
"refToView" : "text"
} ]
}, {
"name" : "multiinstance_typepackage",
"properties" : [ {
"id" : "multiinstance_type",
"type" : "kisbpm-multiinstance",
"title" : "多实例类型",
"value" : "None",
"description" : "Repeated activity execution (parallel or sequential) can be displayed through different loop types",
"popular" : true,
"refToView" : "multiinstance"
} ]
}, {
"name" : "multiinstance_cardinalitypackage",
"properties" : [ {
"id" : "multiinstance_cardinality",
"type" : "String",
"title" : "基数(多实例)",
"value" : "",
"description" : "Define the cardinality of multi instance.",
"popular" : true
} ]
}, {
"name" : "multiinstance_collectionpackage",
"properties" : [ {
"id" : "multiinstance_collection",
"type" : "String",
"title" : "集合(多实例)",
"value" : "",
"description" : "Define the collection for the multi instance.",
"popular" : true
} ]
}, {
"name" : "multiinstance_variablepackage",
"properties" : [ {
"id" : "multiinstance_variable",
"type" : "String",
"title" : "元素变量(多实例)",
"value" : "",
"description" : "Define the element variable for the multi instance.",
"popular" : true
} ]
}, {
"name" : "multiinstance_conditionpackage",
"properties" : [ {
"id" : "multiinstance_condition",
"type" : "String",
"title" : "完成条件(多实例)",
"value" : "",
"description" : "Define the completion condition for the multi instance.",
"popular" : true
} ]
}, {
"name" : "isforcompensationpackage",
"properties" : [ {
"id" : "isforcompensation",
"type" : "Boolean",
"title" : "是否为补偿",
"value" : "false",
"description" : "一个标志,标识是否这个活动的目的是为了补偿.",
"popular" : true,
"refToView" : "compensation"
} ]
}, {
"name" : "sequencefloworderpackage",
"properties" : [ {
"id" : "sequencefloworder",
"type" : "Complex",
"title" : "流动顺序",
"value" : "",
"description" : "Order outgoing sequence flows.",
"popular" : true
} ]
}, {
"name" : "signaldefinitionspackage",
"properties" : [ {
"id" : "signaldefinitions",
"type" : "multiplecomplex",
"title" : "信号定义",
"value" : "",
"description" : "Signal definitions",
"popular" : true
} ]
}, {
"name" : "messagedefinitionspackage",
"properties" : [ {
"id" : "messagedefinitions",
"type" : "multiplecomplex",
"title" : "消息定义",
"value" : "",
"description" : "Message definitions",
"popular" : true
} ]
}, {
"name" : "istransactionpackage",
"properties" : [ {
"id" : "istransaction",
"type" : "Boolean",
"title" : "是否事务处理子过程",
"value" : "false",
"description" : "A flag that identifies whether this sub process is of type transaction.",
"popular" : true,
"refToView" : "border"
} ]
}, {
"name" : "terminateAllpackage",
"properties" : [ {
"id" : "terminateAll",
"type" : "Boolean",
"title" : "终止全部",
"value" : "false",
"description" : "Enable to terminate the process instance",
"popular" : true
} ]
} ],
"stencils" : [ {
"type" : "node",
"id" : "BPMNDiagram",
"title" : "BPMN-Diagram",
"description" : "A BPMN 2.0 diagram.",
"view" : "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n<svg\n xmlns=\"http://www.w3.org/2000/svg\"\n xmlns:svg=\"http://www.w3.org/2000/svg\"\n xmlns:oryx=\"http://www.b3mn.org/oryx\"\n xmlns:xlink=\"http://www.w3.org/1999/xlink\"\n width=\"800\"\n height=\"600\"\n version=\"1.0\">\n <defs></defs>\n <g pointer-events=\"fill\" >\n <polygon stroke=\"black\" fill=\"black\" stroke-width=\"1\" points=\"0,0 0,590 9,599 799,599 799,9 790,0\" stroke-linecap=\"butt\" stroke-linejoin=\"miter\" stroke-miterlimit=\"10\" />\n <rect id=\"diagramcanvas\" oryx:resize=\"vertical horizontal\" x=\"0\" y=\"0\" width=\"790\" height=\"590\" stroke=\"black\" stroke-width=\"2\" fill=\"white\" />\n \t<text font-size=\"22\" id=\"diagramtext\" x=\"400\" y=\"25\" oryx:align=\"top center\" stroke=\"#373e48\"></text>\n </g>\n</svg>",
"icon" : "diagram.png",
"groups" : [ "Diagram" ],
"mayBeRoot" : true,
"hide" : true,
"propertyPackages" : [ "process_idpackage", "namepackage", "documentationpackage", "process_authorpackage", "process_versionpackage", "process_namespacepackage", "executionlistenerspackage", "eventlistenerspackage", "signaldefinitionspackage", "messagedefinitionspackage" ],
"hiddenPropertyPackages" : [ ],
"roles" : [ ]
}, {
"type" : "node",
"id" : "StartNoneEvent",
"title" : "事件",
"description" : "A start event without a specific trigger",
"view" : "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n<svg\n xmlns=\"http://www.w3.org/2000/svg\"\n xmlns:oryx=\"http://www.b3mn.org/oryx\"\n width=\"40\"\n height=\"40\"\n version=\"1.0\">\n <defs></defs>\n <oryx:magnets>\n \t<oryx:magnet oryx:cx=\"16\" oryx:cy=\"16\" oryx:default=\"yes\" />\n </oryx:magnets>\n <g pointer-events=\"fill\">\n <circle id=\"bg_frame\" cx=\"16\" cy=\"16\" r=\"15\" stroke=\"#585858\" fill=\"#ffffff\" stroke-width=\"1\"/>\n\t<text font-size=\"11\" \n\t\tid=\"text_name\" \n\t\tx=\"16\" y=\"33\" \n\t\toryx:align=\"top center\" \n\t\tstroke=\"#373e48\"\n\t></text>\n </g>\n</svg>",
"icon" : "startevent/none.png",
"groups" : [ "启动事件" ],
"propertyPackages" : [ "overrideidpackage", "namepackage", "documentationpackage", "executionlistenerspackage", "initiatorpackage", "formkeydefinitionpackage", "formpropertiespackage" ],
"hiddenPropertyPackages" : [ ],
"roles" : [ "sequence_start", "Startevents_all", "StartEventsMorph", "all" ]
}, {
"type" : "node",
"id" : "StartTimerEvent",
"title" : "定时事件",
"description" : "A start event with a timer trigger",
"view" : "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n<svg\n xmlns=\"http://www.w3.org/2000/svg\"\n xmlns:oryx=\"http://www.b3mn.org/oryx\"\n width=\"40\"\n height=\"40\"\n version=\"1.0\">\n <defs></defs>\n <oryx:magnets>\n \t<oryx:magnet oryx:cx=\"16\" oryx:cy=\"16\" oryx:default=\"yes\" />\n </oryx:magnets>\n <g pointer-events=\"fill\">\n <circle \n \tid=\"bg_frame\" \n \tcx=\"16\" \n \tcy=\"16\" \n \tr=\"15\" \n \tstroke=\"#585858\" \n \tfill=\"#ffffff\" \n \tstroke-width=\"1\"\n \tstyle=\"stroke-dasharray: 5.5, 3\" />\n <circle id=\"frame\" cx=\"16\" cy=\"16\" r=\"15\" stroke=\"#585858\" fill=\"none\" stroke-width=\"1\"/>\n \n <path id=\"path1\" transform=\"translate(6,6)\"\n \td=\"M 10 0 C 4.4771525 0 0 4.4771525 0 10 C 0 15.522847 4.4771525 20 10 20 C 15.522847 20 20 15.522847 20 10 C 20 4.4771525 15.522847 1.1842379e-15 10 0 z M 9.09375 1.03125 C 9.2292164 1.0174926 9.362825 1.0389311 9.5 1.03125 L 9.5 3.5 L 10.5 3.5 L 10.5 1.03125 C 15.063526 1.2867831 18.713217 4.9364738 18.96875 9.5 L 16.5 9.5 L 16.5 10.5 L 18.96875 10.5 C 18.713217 15.063526 15.063526 18.713217 10.5 18.96875 L 10.5 16.5 L 9.5 16.5 L 9.5 18.96875 C 4.9364738 18.713217 1.2867831 15.063526 1.03125 10.5 L 3.5 10.5 L 3.5 9.5 L 1.03125 9.5 C 1.279102 5.0736488 4.7225326 1.4751713 9.09375 1.03125 z M 9.5 5 L 9.5 8.0625 C 8.6373007 8.2844627 8 9.0680195 8 10 C 8 11.104569 8.8954305 12 10 12 C 10.931981 12 11.715537 11.362699 11.9375 10.5 L 14 10.5 L 14 9.5 L 11.9375 9.5 C 11.756642 8.7970599 11.20294 8.2433585 10.5 8.0625 L 10.5 5 L 9.5 5 z \" \n \tfill=\"#585858\" stroke=\"none\" />\n \n\t<text font-size=\"11\" \n\t\tid=\"text_name\" \n\t\tx=\"16\" y=\"33\" \n\t\toryx:align=\"top center\" \n\t\tstroke=\"#373e48\"\n\t></text>\n </g>\n</svg>",
"icon" : "startevent/timer.png",
"groups" : [ "启动事件" ],
"propertyPackages" : [ "overrideidpackage", "namepackage", "documentationpackage", "executionlistenerspackage", "timercycledefinitionpackage", "timerdatedefinitionpackage", "timerdurationdefinitionpackage" ],
"hiddenPropertyPackages" : [ ],
"roles" : [ "sequence_start", "Startevents_all", "StartEventsMorph", "all" ]
}, {
"type" : "node",
"id" : "StartSignalEvent",
"title" : "信号事件",
"description" : "A start event with a signal trigger",
"view" : "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n<svg\n xmlns=\"http://www.w3.org/2000/svg\"\n xmlns:oryx=\"http://www.b3mn.org/oryx\"\n width=\"40\"\n height=\"40\"\n version=\"1.0\">\n <defs></defs>\n <oryx:magnets>\n \t<oryx:magnet oryx:cx=\"16\" oryx:cy=\"16\" oryx:default=\"yes\" />\n </oryx:magnets>\n <g pointer-events=\"fill\">\n\n <circle \n \tid=\"bg_frame\" \n \tcx=\"16\" \n \tcy=\"16\" \n \tr=\"15\" \n \tstroke=\"#585858\" \n \tfill=\"#ffffff\" \n \tstroke-width=\"1\"\n \tstyle=\"stroke-dasharray: 5.5, 3\" />\n <circle id=\"frame\" cx=\"16\" cy=\"16\" r=\"15\" stroke=\"#585858\" fill=\"none\" stroke-width=\"1\"/>\n <path\n d=\"M 8.7124971,21.247342 L 23.333334,21.247342 L 16.022915,8.5759512 L 8.7124971,21.247342 z\"\n id=\"triangle\"\n stroke=\"#585858\"\n style=\"fill:none;stroke-width:1.4;stroke-miterlimit:4;stroke-dasharray:none\" />\n\t<text font-size=\"11\" \n\t\tid=\"text_name\" \n\t\tx=\"16\" y=\"33\" \n\t\toryx:align=\"top center\" \n\t\tstroke=\"#373e48\"\n\t></text>\n </g>\n</svg>",
"icon" : "startevent/signal.png",
"groups" : [ "启动事件" ],
"propertyPackages" : [ "overrideidpackage", "namepackage", "documentationpackage", "executionlistenerspackage", "signalrefpackage" ],
"hiddenPropertyPackages" : [ ],
"roles" : [ "sequence_start", "Startevents_all", "StartEventsMorph", "all" ]
}, {
"type" : "node",
"id" : "StartMessageEvent",
"title" : "消息事件",
"description" : "A start event with a message trigger",
"view" : "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"no\"?>\n<svg\n xmlns=\"http://www.w3.org/2000/svg\"\n xmlns:oryx=\"http://www.b3mn.org/oryx\"\n width=\"40\"\n height=\"40\"\n version=\"1.0\">\n <defs></defs>\n <oryx:magnets>\n \t<oryx:magnet oryx:cx=\"16\" oryx:cy=\"16\" oryx:default=\"yes\" />\n </oryx:magnets>\n <g pointer-events=\"fill\">\n <circle \n \tid=\"bg_frame\" \n \tcx=\"16\" \n \tcy=\"16\" \n \tr=\"15\" \n \tstroke=\"#585858\" \n \tfill=\"#ffffff\" \n \tstroke-width=\"1\"\n \tstyle=\"stroke-dasharray: 5.5, 3\" />\n \n <circle id=\"frame\" cx=\"16\" cy=\"16\" r=\"15\" stroke=\"#585858\" fill=\"none\" stroke-width=\"1\"/>\n \n <path transform=\"translate(7,7)\" id=\"path1\" stroke=\"none\" fill=\"#585858\" stroke-width=\"1\" d=\"m 0.5,2.5 0,13 17,0 0,-13 z M 2,4 6.5,8.5 2,13 z M 4,4 14,4 9,9 z m 12,0 0,9 -4.5,-4.5 z M 7.5,9.5 9,11 10.5,9.5 15,14 3,14 z\"/>\n\t<text font-size=\"11\" \n\t\tid=\"text_name\" \n\t\tx=\"16\" y=\"33\" \n\t\toryx:align=\"top center\" \n\t\tstroke=\"#373e48\"\n\t></text>\n </g>\n</svg>",
"icon" : "startevent/message.png",
"groups" : [ "启动事件" ],
"propertyPackages" : [ "overrideidpackage", "namepackage", "documentationpackage", "executionlistenerspackage", "messagerefpackage" ],
"hiddenPropertyPackages" : [ ],
"roles" : [ "sequence_start", "Startevents_all", "StartEventsMorph", "all" ]
},
最低0.47元/天 解锁文章
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
