需要用到three-forcegraph，然而网上很多文章都是关于3d-force-graph的，导致走了很多弯路。我反省！希望这篇文章对和我遇到同样问题的朋友有帮助。

官方解释

three-forcegraph three-forcegraph GitHub地址

3d-force-graph 3d-force-graph GitHub地址

我的理解

3d-force-graph=three-forcegraph+threejs+...

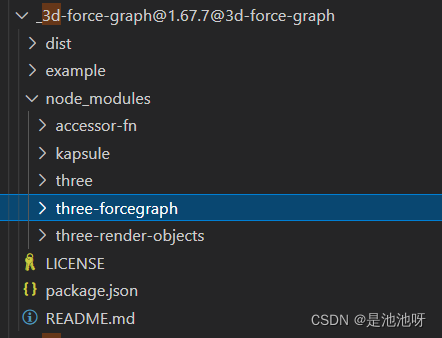

npm安装过3d-force-graph依赖之后，会发现，node-modules里有three-forcegraph：

简单来说，three-forcegraph用于生成图形数据结构，3d-force-graph使用three-forcegraph生成图形数据结构，再使用threejs初始化场景等进行渲染。下面两个文件的效果是一样的。

1.使用three-forcegraph

<head>
    <style>
        body {
            margin: 0;
        }
    </style>

    <!-- //unpkg.com 本地访问不到 -->
    <!-- <script src="//unpkg.com/three"></script>
    <script src="//unpkg.com/three/examples/js/controls/TrackballControls.js"></script>
    <script src="//unpkg.com/three-forcegraph"></script> -->

    <!-- 我找了其他threejs -->
    <script src="http://www.yanhuangxueyuan.com/versions/threejsR92/build/three.js"></script>
    <script src="http://www.yanhuangxueyuan.com/threejs/examples/js/controls/TrackballControls.js"></script>
    <script src="../../dist/three-forcegraph.js"></script>
</head>

<body>
    <div id="3d-graph"></div>

    <script>
        // Gen random data
        const N = 300;
        const gData = {
            nodes: [...Array(N).keys()].map(i => ({ id: i })),
            links: [...Array(N).keys()]
                .filter(id => id)
                .map(id => ({
                    source: id,
                    target: Math.round(Math.random() * (id - 1))
                }))
        };
        const Graph = new ThreeForceGraph().graphData(gData);

        // Setup renderer
        const renderer = new THREE.WebGLRenderer();
        renderer.setSize(window.innerWidth, window.innerHeight);
        document.getElementById('3d-graph').appendChild(renderer.domElement);

        // Setup scene
        const scene = new THREE.Scene();
        scene.add(Graph);
        scene.add(new THREE.AmbientLight(0xbbbbbb));

        // Setup camera
        const camera = new THREE.PerspectiveCamera();
        camera.far = 10000;
        camera.aspect = window.innerWidth / window.innerHeight;
        camera.updateProjectionMatrix(); //更新相机对象的投影矩阵属性
        camera.lookAt(Graph.position);
        camera.position.z = Math.cbrt(N) * 180; //给定数字的立方根

        // Add camera controls
        const tbControls = new THREE.TrackballControls(camera, renderer.domElement); //轨迹球控件

        // Kick-off renderer
        (function animate() {
            // IIFE
            Graph.tickFrame();

            // Frame cycle
            tbControls.update();
            renderer.render(scene, camera);
            requestAnimationFrame(animate);
        })();
    </script>
</body>

2.使用3d-force-graph

<head>
    <style>
        body {
            margin: 0;
        }
    </style>

    <!-- <script src="//unpkg.com/3d-force-graph"></script> -->
    <script src="../../dist/3d-force-graph.js"></script>
</head>

<body>
    <div id="3d-graph"></div>

    <script>
        // Random tree
        const N = 300;
        const gData = {
            nodes: [...Array(N).keys()].map(i => ({ id: i })),
            links: [...Array(N).keys()]
                .filter(id => id)
                .map(id => ({
                    source: id,
                    target: Math.round(Math.random() * (id - 1))
                }))
        };

        const Graph = ForceGraph3D()(document.getElementById('3d-graph')).graphData(gData);
    </script>
</body>
