Django swagger APIView

参考

django-rest-framework
https://www.django-rest-framework.org/api-guide/schemas/

drf-yasg
https://drf-yasg.readthedocs.io/en/stable/readme.html

APIView

APIView也可以注册到swagger 但是不会显示参数 需要手动设定

class cmdView(APIView):
    schema = AutoSchema(
        manual_fields=[
            coreapi.Field(
                name='code',
                required=True,
                location='form',
                description='',
                type='string'),
        ]
    )

    @swagger_auto_schema(request_body=cmdSerializer,operation_description="description")
    def post(self, request, format=None):
        serializer = cmdSerializer(data=request.data)
        if serializer.is_valid():
            # json_data = json.loads(request.data)
            message = messageMakeSync()
            sendMessage = message.make(request.data)
            if sendMessage is not None:
                channel_layer = get_channel_layer()
                async_to_sync(
                    channel_layer.group_send)(
                    "chat_test", sendMessage)
            return Response(serializer.data, status=status.HTTP_201_CREATED)
        else:
            error = serializer.errors
            print(error)
            return Response(serializer.errors,
                            status=status.HTTP_400_BAD_REQUEST)

具体注解看:

Custom schema generation — drf-yasg 1.20.0 documentation
https://drf-yasg.readthedocs.io/en/stable/custom_spec.html

使用版本管理

若使用了版本管理，需要将URL指定namespace，否则不显示在swagger中

setting中的设置：

REST_FRAMEWORK = {
    # 版本控制
    'DEFAULT_VERSIONING_CLASS': 'rest_framework.versioning.NamespaceVersioning',
    'DEFAULT_VERSION': 'v1'
}

开启版本管理

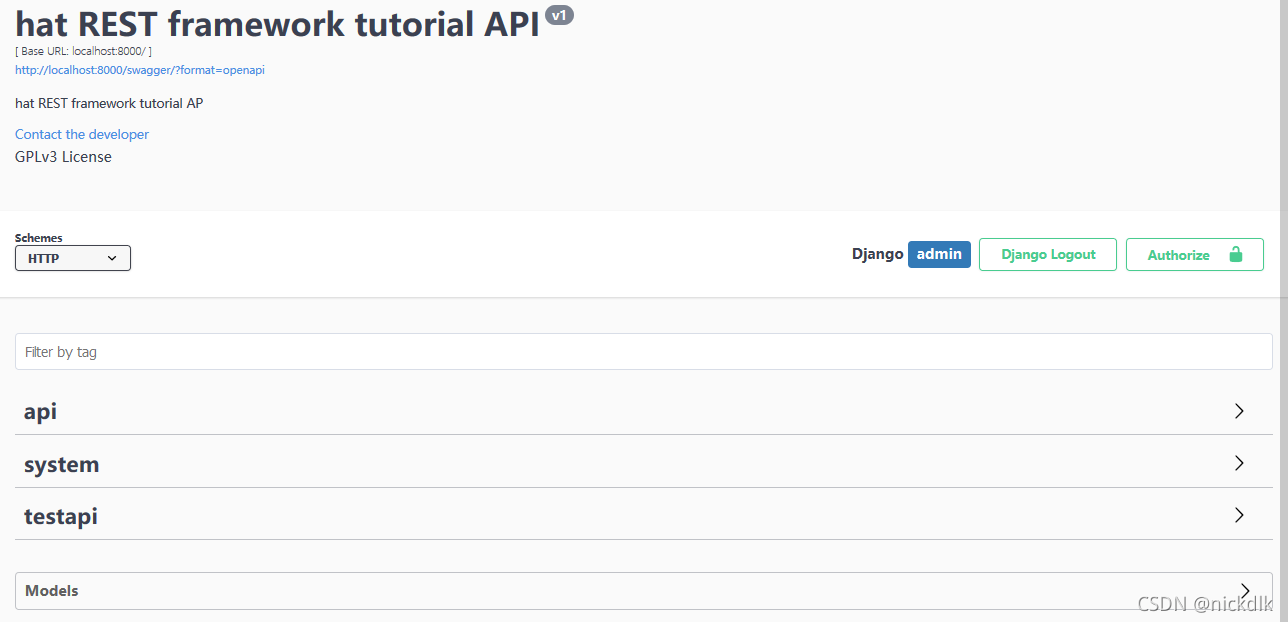

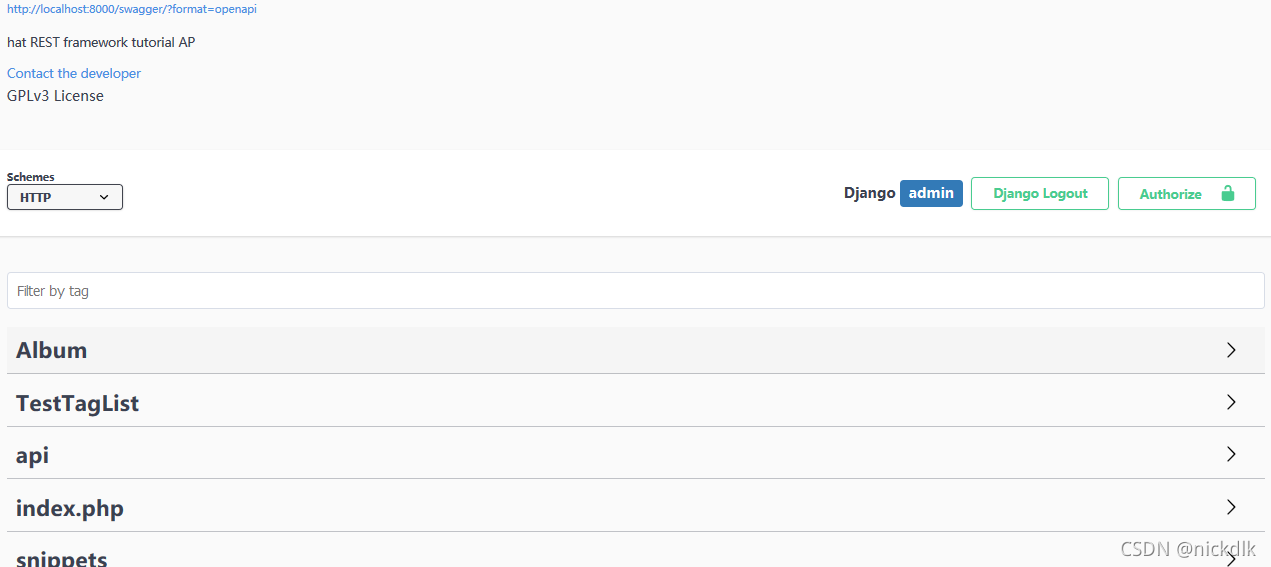

只显示namespace为v1的，不用版本管理则会显示全部

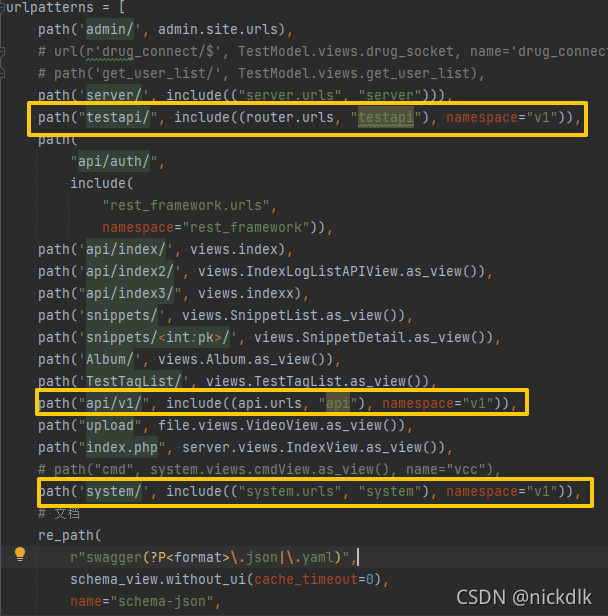

可以通过path('system/', include(("system.urls", "system"), namespace="v1")), 来引入APIView

system/urls.py:

from django.conf.urls import url
from django.urls import path
from . import views

urlpatterns = [
    path('cmd/', views.cmdView.as_view()),
]
