javafx中tableview的分页

文章目录

• 前言
• 一、分页效果
• 二、代码
  • 1.FXML布局
  • 2.Application
  • 3.Controller
• 总结

---

前言

javafx中提供了分页功能，对于数据量大的数据展示，分页比较有用。

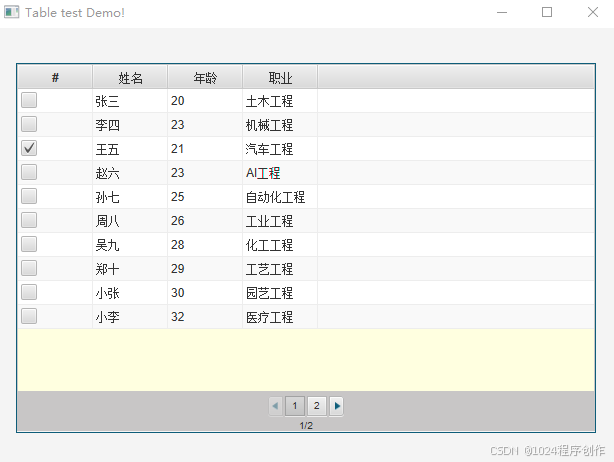

一、分页效果

二、代码

1.FXML布局

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.geometry.Insets?>
<?import javafx.scene.control.Pagination?>
<?import javafx.scene.control.TableColumn?>
<?import javafx.scene.control.TableView?>
<?import javafx.scene.layout.VBox?>

<VBox fx:id="vbox" alignment="CENTER" prefHeight="603.0" prefWidth="540.0" spacing="20.0" xmlns:fx="http://javafx.com/fxml/1" xmlns="http://javafx.com/javafx/23.0.1" fx:controller="com.example.tableviewdemo.TableTestController">
    <padding>
        <Insets bottom="20.0" left="20.0" right="20.0" top="20.0" />
    </padding>
   <TableView fx:id="table" prefHeight="328.0" prefWidth="500.0">
     <columns>
         <TableColumn fx:id="check" prefWidth="75.0" text="#" />
         <TableColumn fx:id="username" prefWidth="75.0" text="姓名" />
         <TableColumn fx:id="age" prefWidth="75.0" text="年龄" />
         <TableColumn fx:id="job" prefWidth="75.0" text="职业" />
     </columns>
   </TableView>
   <Pagination fx:id="pagination" prefHeight="43.0" prefWidth="373.0" style="-fx-padding: 0;" />
</VBox>

2.Application

package com.example.tableviewdemo;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Scene;
import javafx.stage.Stage;
import org.kordamp.bootstrapfx.BootstrapFX;

import java.io.IOException;

public class TableTestApplication extends Application {
    @Override
    public void start(Stage stage) throws IOException {
        FXMLLoader fxmlLoader = new FXMLLoader(TableTestApplication.class.getResource("table-view.fxml"));
        Scene scene = new Scene(fxmlLoader.load(), 620, 440);
        scene.getStylesheets().add(BootstrapFX.bootstrapFXStylesheet());
        scene.getStylesheets().add("fxstyle.css");
        stage.setTitle("Table test Demo!");
        stage.setScene(scene);
        stage.show();

    }

    public static void main(String[] args) {
        launch();
    }
}

3.Controller

package com.example.tableviewdemo;

import com.example.tableviewdemo.Entity.Person;
import javafx.collections.FXCollections;
import javafx.collections.ObservableList;
import javafx.fxml.FXML;
import javafx.fxml.Initializable;
import javafx.scene.control.*;
import javafx.scene.control.cell.PropertyValueFactory;
import javafx.scene.layout.VBox;
import javafx.util.Callback;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.net.URL;
import java.util.ArrayList;
import java.util.List;
import java.util.ResourceBundle;

public class TableTestController implements Initializable {
    private static final int PAGE_SIZE = 5;
    @FXML
    private TableColumn<Person, Boolean> check;
    @FXML
    private TableColumn<Person, String> username;
    @FXML
    private TableColumn<Person, Integer> age;

    @FXML
    private TableColumn<Person, String> job;

    @FXML
    private Pagination pagination;

    @FXML
    private TableView<Person> table;

    @FXML
    private VBox vbox;
    @FXML
    protected void onHelloButtonClick() {
        System.out.println("table 测试！");
    }


    @Override
    public void initialize(URL url, ResourceBundle resourceBundle) {

        check.setCellValueFactory(new PropertyValueFactory("check"));
        username.setCellValueFactory(new PropertyValueFactory("name"));
        age.setCellValueFactory(new PropertyValueFactory("age"));
        job.setCellValueFactory(new PropertyValueFactory("job"));
        List<Person> data = getData();

        table.setMinHeight(328);
        check.setCellFactory(new Callback<TableColumn<Person, Boolean>, TableCell<Person, Boolean>>() {
            @Override
            public TableCell<Person, Boolean> call(TableColumn<Person, Boolean> personStringTableColumn) {
                return new TableCell<Person, Boolean>() {
                    private CheckBox checkBox = new CheckBox();

                    @Override
                    public void updateItem(Boolean item, boolean empty) {
                        super.updateItem(item, empty);
                        if (empty) {
                            setGraphic(null);
                        } else {
                            if(item != null) {
                                checkBox.setSelected(item);
                            }
                            setGraphic(checkBox);
                            // 监听CheckBox的选择事件
                            checkBox.selectedProperty().addListener((obs, wasSelected, isNowSelected) -> {
                                // 更新表格中的数据
                                Person row = getTableView().getItems().get(getIndex());
                                row.setCheck(isNowSelected);

                            });
                        }
                    }
                };

            }
        });

        //分页
        //计算总页数
        int pageCount = data.size() % 10 == 0?data.size() / 10:data.size() / 10+1;
        //pagination.getStyleClass().add(Pagination.STYLE_CLASS_BULLET);
        pagination.setPageCount(pageCount);
        pagination.setCurrentPageIndex(0);
        pagination.setPageFactory(pageIndex -> {
            return createPage(pageIndex);
        });

    }

    public List<Person> getData(){
        List<Person> data = new ArrayList<>();
        ClassLoader classLoader = TableTestController.class.getClassLoader();

        try (InputStream inputStream = classLoader.getResourceAsStream("data.txt"); BufferedReader br = new BufferedReader(new InputStreamReader(inputStream))) {
            String line;
            while ((line = br.readLine()) != null) {
                Person person = new Person();
                String[] split = line.split(",");
                boolean checkVal = split[0].equals("true")?true:false;

                person.setCheck(checkVal);
                person.setName(split[1]);
                person.setAge(Integer.parseInt(split[2]));
                person.setJob(split[3]);

                data.add(person);

            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return data;
    }


    private VBox createPage(int pageIndex) {

        System.out.println("pageIndex: "+pageIndex);
        List<Person> data = getData();
        List<Person> subList;
        int end = pageIndex * 10 + 10;
        if(end > data.size()){
            end = data.size();
        }

        subList = data.subList(pageIndex * 10, end);
        System.out.println("======================================");
        for (Person p:subList) {
            System.out.println(p.getName()+"    "+p.getName()+"    "+p.getAge()+"   "+p.getJob());
        }

        ObservableList<Person> items = FXCollections.observableArrayList(subList);
        table.setItems(items);

        return new VBox(table);


    }


}

public class Person {
    private Boolean check;
    private String name;
    private Integer age;

    private String job;

    public Boolean getCheck() {
        return check;
    }

    public void setCheck(Boolean check) {
        this.check = check;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getJob() {
        return job;
    }

    public void setJob(String job) {
        this.job = job;
    }
}

css样式

.pagination {
 -fx-border-color: #0E5D79;
}
.pagination .page {
 -fx-background-color: #DDF1F8;
}
.pagination .pagination-control {
 -fx-background-color: #C8C6C6;
}
.pagination .pagination-control .bullet-button {
 -fx-background-color: transparent, #DDF1F8, #0E5D79, white, white;
}
.pagination .pagination-control .bullet-button:selected {
 -fx-background-color: transparent, #DDF1F8, #0E5D79, white, #0E5D79;
}
.pagination .pagination-control .left-arrow, .right-arrow{
 -fx-background-color: #DDF1F8, #0E5D79;
.table-row-cell:empty {
 -fx-background-color: lightyellow;
}
.table-row-cell:empty .table-cell {
 -fx-border-width: 0px;
}

测试数据data.txt

false,张三,20,土木工程
false,李四,23,机械工程
true,王五,21,汽车工程
false,赵六,23,AI工程
false,孙七,25,自动化工程
false,周八,26,工业工程
false,吴九,28,化工工程
false,郑十,29,工艺工程
false,小张,30,园艺工程
false,小李,32,医疗工程
false,小陈,23,航天工程
false,小王,23,航空工程

总结

javafx相对于Swing，功能更加丰富，样式比较友好，可以引入自定义CSS样式，功能更强大！
