自定义FM刻度尺

自定义FM刻度尺

Scroller学习

1. Scroller：Android里面专门处理滚动的工具类，比如ViewPager、ListView等。
2. scrollTo：设置View的滚动位置，并且会刷新View。
3. scrollBy：移动View的滚动位置，并且会刷新View。
4. 无论scrollTo还是scrollBy都是移动父布局里的内容，但是scrollTo再调用后再次调用就没有效果了，这是因为scrollTo()方法是让View相对于初始的位置滚动某段距离；而scrollBy则可以继续调用，这是因为scrollBy()方法是让View相对于当前的位置滚动某段距离；无论是scrollTo还是scrollBy最终都会调用invalidate方法进行刷新。

自定义View中的onMeasure方法

	 /**
         * 获得此ViewGroup上级容器为其推荐的宽和高，以及计算模式
         */
	int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec);
    int widthSpecSize = MeasureSpec.getSize(widthMeasureSpec);
    int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec);
    int heightSpecSize = MeasureSpec.getSize(heightMeasureSpec);
    //MeasureSpec值由specMode和specSize共同组成，onMeasure两个参数的作用根据specMode的不同，有所区别。
    //当specMode为EXACTLY时，子视图的大小会根据specSize的大小来设置，对于布局参数中的match_parent或者精确大小值
    //当specMode为AT_MOST时，这两个参数只表示了子视图当前可以使用的最大空间大小，而子视图的实际大小不一定是specSize。所以我们自定义View时，重写onMeasure方法主要是在AT_MOST模式时，为子视图设置一个默认的大小，对于布局参数wrap_content。
    if (heightSpecMode == MeasureSpec.AT_MOST) {
        //这个方法确定了当前View的大小
        setMeasuredDimension(widthSpecSize, SystemUtil.dp2px(getContext(),60));
    } else {
        setMeasuredDimension(widthSpecSize, heightSpecSize);
    }

Measure.Mode测量模式：

1. UNSPECIFIED：父容器不对子View做任何限制，要多大给多大，一般用于系统内部，这里就不用多考虑
2. EXACTLY：精准模式，一般View指定了具体的大小（dp/px）或者设置match_parent
3. AT_MOST：父容器制定了一个可用的大小，子View不能大于这个值，这个是在布局设置wrap_content

文字属性

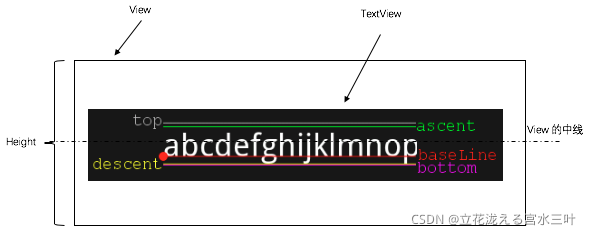

图中有五条线结合官方文档，自上而下来解释：

1. top：给定文本大小下，字体中最高字符高于基线之上的最大距离
2. ascent：单个文本下超出基线之上的推荐距离
3. baseLine：文本基线
4. descent：单个字符超出基线之上的推荐距离
5. bottom：字体中最低字符超出基线之下的最大距离
6. leading：文本行与文本行之间的距离

 //得到文字的字体属性和测量
Paint.FontMetrics fontMetrics = paint.getFontMetrics();
//文字设置在View的中间
float y = height / 2 + (Math.abs(fontMetrics.ascent) + fontMetrics.descent) / 2;

文本字体的高度可以用Math.abs(ascent) + descent，那么文本高度的一半也就是**（Math.abs(ascent) + descent）/ 2**。因此最终红色原点对于整个View的y坐标是float y = height / 2 + (Math.abs(fontMetrics.ascent) + fontMetrics.descent) / 2;

完成滑动

1. 首先创建滚动实例

       //创建滑动实例
           mScroller = new Scroller(context);

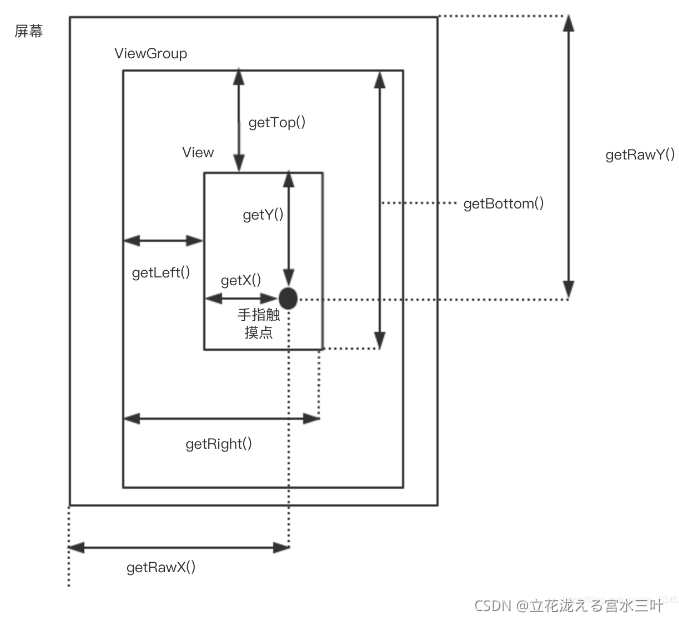

2. Android中View的坐标和获取距离方法View提供的获取坐标以及距离的方法：

   1. getTop获取的是View自身顶边到父布局顶边的距离
   2. getLeft获取的是View自身左边到父布局左边的距离
   3. getRight获取的是View自身右边到父布局左边的距离
   4. getBottom获取的是View自身底边到父布局顶边的距离

   MotionEvent提供的方法：

    1.   getX获取触摸事件触摸点距离控件左边的距离，是视图坐标
    2.   getY获取触摸事件触摸点距离控件顶边的距离，是视图坐标
    3.   getRawX获取触摸事件触摸点距离整个屏幕左边的距离，是绝对坐标
    4.   getRawY获取触摸事件触摸点距离整个屏幕顶边的距离，是绝对坐标

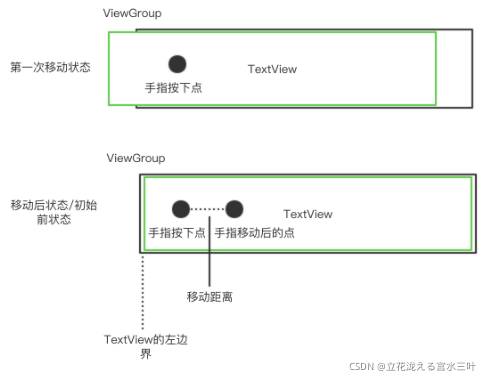

3. 获取View自身左右边距离到到父布局左右距离

    //得到左右边界
   leftBorder = getLeft();
   rightBorder = (int)paint.measureText(currentNum);


4. 左右边界检测

     //如果右滑时 内容左边界超过初始化时候的左边界 就还是初始化时候的状态
   if (getScrollX() + scrolledX < mLeftBorder - getWidth() / 2) {
               scrollTo((int) (-getWidth() / 2 + mLeftBorder), 0);
           } else if (getScrollX() + scrolledX > mRightBorder) {
       //如果左滑  这里判断右边界
               scrollTo((int) mRightBorder, 0);
           } else {
       //在左右边界中 自由滑动
               scrollBy(scrolledX, 0);
           }


   getScrollX方法：返回当前View视图左上角X坐标与View视图初始位置左上角X坐标的距离，注意，这是以屏幕坐标为参照点，View右移这个值由正变为负数一直递增。

5. 完整代码，增加惯性滑动和手势监听：

   public class RulerView extends View {

       private static final String TAG = "SlideView";

       //刻度线画笔
       private Paint mLinePaint;
       //数字画笔
       private Paint mTextPaint;
       //指针画笔
       private Paint mPointPaint;

       //当前刻度值
       private String mCurrentNum;

       //左边界
       private float mLeftBorder;
       //右边界
       private float mRightBorder;

       //手指最开始触摸屏幕的X坐标
       private float mDownX;
       //上次触发移动事件的坐标
       private float mLastMoveX;
       //当前手指移动结束后停下来的X坐标
       private float mCurrentMoveX;

       //10的倍数高度
       private float mLongDegreeLine;
       //除以10余5高度
       private float mMiddleDegreeLine;
       //小刻度
       private float mMinDegreeLine;

       //滑动实例
       private Scroller mScroller;

       //刻度间隔
       private float mLineDegreeSpace;
       //刻度颜色
       private int mLineDegreeColor;
       //刻度顶部线
       private float mTopDegreeLine;
       //中刻度数
       private int mLineCount;
       //最小滑动距离
       private int mTouchMinDistance;


       //数字颜色
       private int mTextColor;
       //数字大小
       private float mTextSize;
       //指针大小
       private float mPointWidth;
       //指针X轴位置
       private float mPointX;
       //格式化当前FM
       private DecimalFormat mFormat;

       //当前刻度值的大小
       private float mCurrentNumberSize;
       //当前刻度值的颜色
       private int mCurrentNumberColor;

       //监听手势滑动速度
       private VelocityTracker mVelocityTracker;
       //设置滑动惯性的最大速度
       private int mMaxVelocity;
       //设置滑动惯性的最大速度
       private int mMinVelocity;

       //手动设置刻度
       private float mSetDegree;


       public RulerView(Context context) {
           super(context);
           init(context);
       }

       public RulerView(Context context, @Nullable AttributeSet attrs) {
           super(context, attrs);
           init(context);
       }

       private void init(Context context) {
           mLinePaint = new Paint();
           mLinePaint.setAntiAlias(true);
           mLinePaint.setStyle(Paint.Style.STROKE);
           mLinePaint.setStrokeWidth(3);

           mTextPaint = new Paint();
           mTextPaint.setAntiAlias(true);
           mTextPaint.setStyle(Paint.Style.FILL);
           mTextPaint.setStrokeWidth(5);

           mPointPaint = new Paint();
           mPointPaint.setAntiAlias(true);
           mPointPaint.setStyle(Paint.Style.FILL);
           mPointWidth = dp2px(4, context);
           mPointPaint.setStrokeWidth(mPointWidth);
           mPointPaint.setColor(0xFF4FBA75);

           mFormat = new DecimalFormat("0.0");

           mScroller = new Scroller(context);

           mLineDegreeColor = Color.GRAY;
           mTopDegreeLine = dp2px(45, context);
           mLineDegreeSpace = dp2px(10, context);

           mLineCount = 41;

           ViewConfiguration viewConfiguration = ViewConfiguration.get(context);
           mTouchMinDistance = viewConfiguration.getScaledTouchSlop();

           mLongDegreeLine = dp2px(35, context);
           mMiddleDegreeLine = dp2px(20, context);
           mMinDegreeLine = dp2px(10, context);

           mRightBorder = mLineDegreeSpace * mLineCount * 5;

           mTextColor = Color.BLACK;
           mTextSize = dp2px(15, context);


           mCurrentNumberColor = 0xFF4FBA75;
           mCurrentNumberSize = dp2px(30, context);
           //初始化实例
           mVelocityTracker = VelocityTracker.obtain();
           //设置最大速度和最小速度
           mMaxVelocity = ViewConfiguration.get(context).getScaledMaximumFlingVelocity();
           mMinVelocity = ViewConfiguration.get(context).getScaledMinimumFlingVelocity();
       }

       private static int dp2px(float dp, Context context) {
           return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, dp, context.getResources().getDisplayMetrics());
       }

       @Override
       protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
           super.onMeasure(widthMeasureSpec, heightMeasureSpec);
           int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec);
           Log.e(TAG, "onMeasure: widthSpecMode = " + widthSpecMode);
           int widthSpecSize = MeasureSpec.getSize(widthMeasureSpec);
           Log.e(TAG, "onMeasure: widthSpecSize = " + widthSpecSize);
           int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec);
           Log.e(TAG, "onMeasure: heightSpecMode = " + heightSpecMode);
           int heightSpecSize = MeasureSpec.getSize(heightMeasureSpec);
           Log.e(TAG, "onMeasure: heightSpecSize = " + heightSpecSize);
           if (heightSpecMode == MeasureSpec.AT_MOST) {
               setMeasuredDimension(widthSpecSize, dp2px(120, getContext()));
           } else {
               setMeasuredDimension(widthSpecSize, heightSpecSize);
           }
           //使得绘制时从中间开始绘制
           mLeftBorder = getMeasuredWidth() / 2;
           mPointX = getMeasuredWidth() / 2;
           Log.e(TAG, "onMeasure: mPointX = " + mPointX);
       }

       @Override
       public boolean onTouchEvent(MotionEvent event) {
           //在触摸事件onTouchEvent初始化mVelocityTracker
           mVelocityTracker.addMovement(event);
           switch (event.getAction()) {
               case MotionEvent.ACTION_DOWN:
                   //滑动中点击，停止滑动
                   if (!mScroller.isFinished()) {
                       mScroller.abortAnimation();
                   }
                   //记录初始触摸屏幕下的坐标
                   mDownX = event.getRawX();
                   mLastMoveX = mDownX;
                   break;
               case MotionEvent.ACTION_MOVE:
                   mCurrentMoveX = event.getRawX();
                   //本次的滑动距离
                   int scrolledX = (int) (mLastMoveX - mCurrentMoveX);
                   Log.e(TAG, "onTouchEvent: scrolledX = " + scrolledX);
                   scrollBy(scrolledX, 0);
                   mLastMoveX = mCurrentMoveX;
                   break;
               case MotionEvent.ACTION_UP:
                   //计算松手后当前滑动的速率，一秒内滑动多少像素
                   mVelocityTracker.computeCurrentVelocity(1000, mMaxVelocity);
                   //获取横向滑动速度
                   int xVelocity = (int) mVelocityTracker.getXVelocity();
                   //判断滑动速度是否大于最小滑动速度
                   if (Math.abs(xVelocity) > mMinVelocity) {
                       mScroller.fling(getScrollX(), 0, -xVelocity,
                               0, (int) -mRightBorder, (int) mRightBorder, 0, 0);
                       Log.e(TAG, "setDegree: getScroller = " + getScrollX());
                   } else {
                       Log.d(TAG, "onTouchEvent: xVelocity < mMinVelocity");
                   }
                   moveToRecentlyDegree();
                   break;
               case MotionEvent.ACTION_CANCEL:
                   //VelocityTracker资源回收
                   if (mVelocityTracker != null) {
                       mVelocityTracker.recycle();
                       mVelocityTracker = null;
                   } else {
                       Log.d(TAG, "onTouchEvent: mVelocityTracker is null");
                   }
                   break;
               default:
                   break;
           }
           return true;
       }

       @Override
       public void computeScroll() {
           super.computeScroll();
           if (mScroller.computeScrollOffset()) {
               scrollTo(mScroller.getCurrX(), mScroller.getCurrY());
               //最后一次滑动则进行边界检测
               if (!mScroller.computeScrollOffset()) {
                   moveToRecentlyDegree();
               }
           }
       }

       @Override
       public void scrollTo(int x, int y) {
           //左边界检测
           if (x < mLeftBorder - getWidth() / 2) {
               x = (int) (-getWidth() / 2 + mLeftBorder);
           } else if (x > mRightBorder) {
               //右边界检测
               x = (int) mRightBorder;
           }
           if (x != getScrollX()) {
               super.scrollTo(x, y);
           }
       }

       @Override
       protected void onDraw(Canvas canvas) {
           super.onDraw(canvas);
           //确定顶部长线的左端
           float x = mLeftBorder;
           //确定顶部长线
           float y = mTopDegreeLine;

           mLinePaint.setColor(mLineDegreeColor);
           mLinePaint.setStrokeWidth(3);
           //绘制顶部长线
           //canvas.drawLine(x, y, mRightBorder - mRightSpace - mLeftSpace + getWidth() / 2, y, mLinePaint);
           canvas.drawLine(x, y, mRightBorder + getWidth() / 2, y, mLinePaint);
           for (int i = 0; i <= mLineCount * 5; i++) {
               if (i % 10 == 0) {
                   mLinePaint.setStrokeWidth(5);
                   canvas.drawLine(x, y, x, y + mLongDegreeLine, mLinePaint);
                   //FM范围为87.5-108
                   String num = String.valueOf(i / 10 + 87.5);
                   //测量数字宽度
                   float textWidth = mTextPaint.measureText(num);
                   mTextPaint.setColor(mTextColor);
                   mTextPaint.setTextSize(mTextSize);
                   canvas.drawText(num, x - textWidth / 2, y + mLongDegreeLine + dp2px(25, getContext()), mTextPaint);
               } else if (i % 10 == 5) {
                   mLinePaint.setStrokeWidth(5);
                   canvas.drawLine(x, y, x, y + mMiddleDegreeLine, mLinePaint);
               } else {
                   mLinePaint.setStrokeWidth(3);
                   canvas.drawLine(x, y, x, y + mMinDegreeLine, mLinePaint);
               }
               x += mLineDegreeSpace;
           }
           mTextPaint.setColor(mCurrentNumberColor);
           mTextPaint.setTextSize(mCurrentNumberSize);
           mCurrentNum = mFormat.format((mPointX + getScrollX() - mLeftBorder) / (mLineDegreeSpace * 10.0f) + 87.5);
           float textWidth = mTextPaint.measureText(mCurrentNum);
           //绘制当前刻度数字
           canvas.drawText(mCurrentNum, mPointX - textWidth / 2 + getScrollX(),
                   y - dp2px(15, getContext()), mTextPaint);
           //绘制指针
           canvas.drawLine(mPointX + getScrollX(), y, mPointX + getScrollX(),
                   y + mLongDegreeLine + dp2px(3, getContext()), mPointPaint);
           Log.e(TAG, "onDraw: ");
       }

       /**
        * 吸附处理
        */
       private void moveToRecentlyDegree() {
           //获取当前刻度距离中心刻度的距离
           float distance = (mPointX + getScrollX() - mLeftBorder) % mLineDegreeSpace;
           //如果大于间隔的二分之一就向前滑
           if (distance >= mLineDegreeSpace / 2) {
               scrollBy((int) (mLineDegreeSpace - distance), 0);
           } else {
               //否则向后滑动
               scrollBy((int) -distance, 0);
           }
       }

       //自定义设置刻度
       public void setDegree(float degree) {
           Log.e(TAG, "setDegree: getScroller = " + getScrollX());
           mSetDegree = degree;
           int scrolledX = (int) ((degree - Float.parseFloat(mCurrentNum)) * (mLineDegreeSpace * 10.0f));
           scrollBy(scrolledX, 0);
           moveToRecentlyDegree();
           mSetDegree = 0;
       }
   }


   MainActivity：

   public class MainActivity extends AppCompatActivity {

       @Override
       protected void onCreate(Bundle savedInstanceState) {
           super.onCreate(savedInstanceState);
           setContentView(R.layout.activity_main);

           RulerView rulerView = findViewById(R.id.ruler_view);
           EditText editText = findViewById(R.id.frequency);
           editText.setInputType(InputType.TYPE_CLASS_NUMBER | InputType.TYPE_NUMBER_FLAG_DECIMAL);
           Button send = findViewById(R.id.send);

           send.setOnClickListener(view -> {
               String frequency;
               float fr;
               if (!TextUtils.isEmpty(editText.getText().toString())){
                   frequency = editText.getText().toString();
                   if (frequency.endsWith(".")){
                       Toast.makeText(MainActivity.this,"请输入正确的电台！",Toast.LENGTH_SHORT).show();
                       return;
                   }
                   fr = Float.parseFloat(frequency);
                   if (fr < 87.5 || fr > 108 ){
                       Toast.makeText(MainActivity.this,"请输入电台FM范围内的电台频点！",Toast.LENGTH_SHORT).show();
                   } else {
                       rulerView.setDegree(fr);
                   }
               } else {
                   Log.d("TAG", "onCreate: editText is null");
               }
           });
       }
   }


   布局文件：

   <?xml version="1.0" encoding="utf-8"?>
   <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
       xmlns:app="http://schemas.android.com/apk/res-auto"
       xmlns:tools="http://schemas.android.com/tools"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       tools:context=".MainActivity">

       <com.example.scorllerdemo.RulerView
           android:id="@+id/ruler_view"
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           app:layout_constraintEnd_toEndOf="parent"
           app:layout_constraintStart_toStartOf="parent"
           app:layout_constraintTop_toTopOf="parent" />

       <EditText
           android:id="@+id/frequency"
           android:layout_width="match_parent"
           android:layout_height="wrap_content"
           app:layout_constraintBottom_toBottomOf="parent"
           app:layout_constraintEnd_toEndOf="parent"
           app:layout_constraintStart_toStartOf="parent"
           app:layout_constraintTop_toTopOf="parent" />

       <Button
           android:id="@+id/send"
           android:layout_width="wrap_content"
           android:layout_height="wrap_content"
           android:text="Send"
           app:layout_constraintBottom_toBottomOf="parent"
           app:layout_constraintEnd_toEndOf="parent"
           app:layout_constraintStart_toStartOf="parent"
           app:layout_constraintTop_toBottomOf="@+id/frequency" />

   </androidx.constraintlayout.widget.ConstraintLayout>
