Thingsboard源码分析 -- 告警流程

简介

前面研究了HTTP以及MQTT设备属性消息的处理流程，这次主要研究设备消息告警是如何产生的，告警的配置有两处，一个是设备配置上创建一个是规则链，这里先说一下设备配置创建告警的流程

准备工作

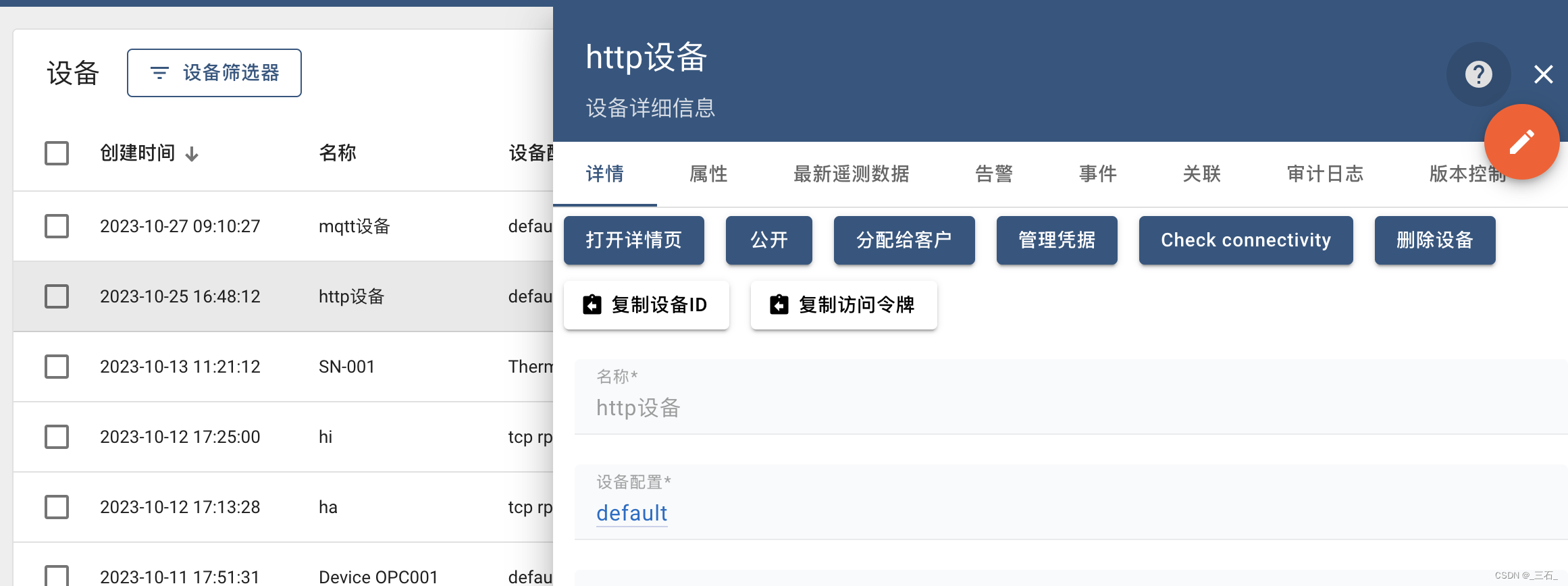

创建设备

创建规则

模拟数据发送

curl -v -X POST http://localhost:8080/api/v1/htonk4pd5tdfdq98rnog/attributes --header Content-Type:application/json --data "{temperature:120}"

流程分析

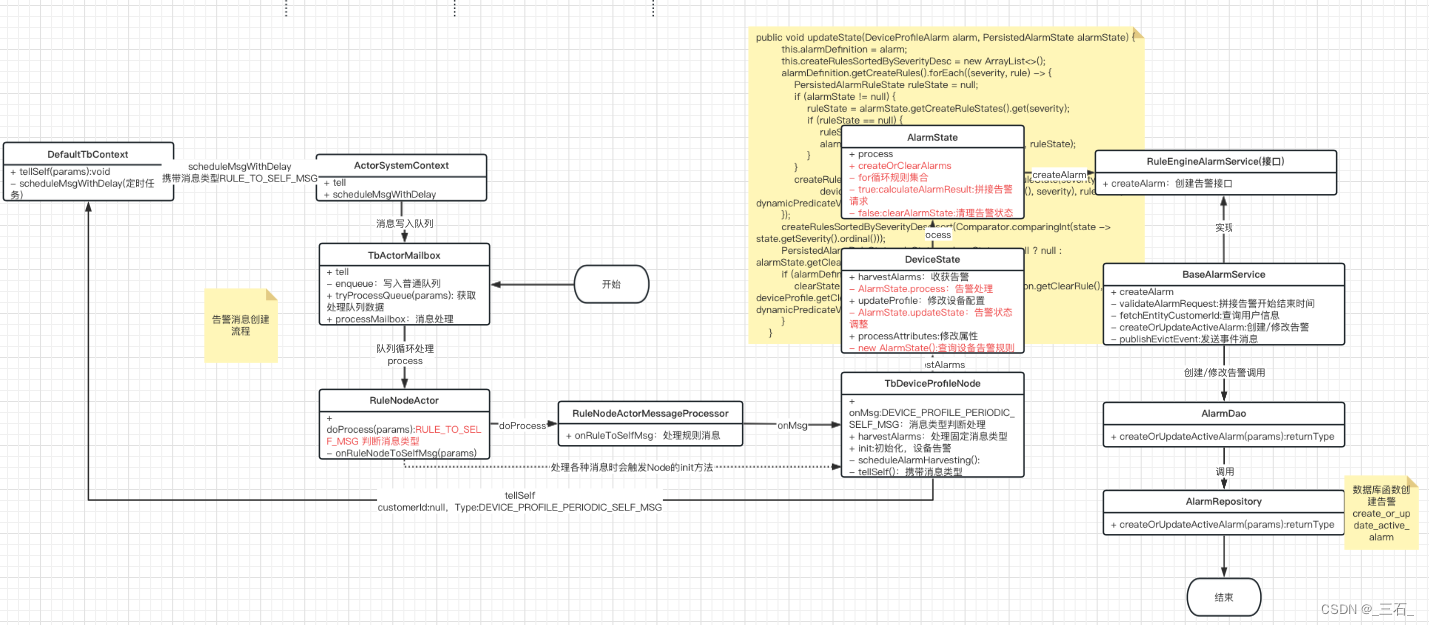

流程图

TbActorMailbox

这个类是各种Actor用来接收消息的，跟名字一样，mailbox，消息会按优先级放入队列中，然后等待处理

private void enqueue(TbActorMsg msg, boolean highPriority) {
    if (!destroyInProgress.get()) {
        if (highPriority) {
            highPriorityMsgs.add(msg);
        } else {
            normalPriorityMsgs.add(msg);
        }
        tryProcessQueue(true);
    } else {
        if (highPriority && msg.getMsgType().equals(MsgType.RULE_NODE_UPDATED_MSG)) {
            synchronized (this) {
                if (stopReason == TbActorStopReason.INIT_FAILED) {
                    destroyInProgress.set(false);
                    stopReason = null;
                    initActor();
                } else {
                    msg.onTbActorStopped(stopReason);
                }
            }
        } else {
            msg.onTbActorStopped(stopReason);
        }
    }
}

private void tryProcessQueue(boolean newMsg) {
   if (ready.get() == READY) {
       if (newMsg || !highPriorityMsgs.isEmpty() || !normalPriorityMsgs.isEmpty()) {
           if (busy.compareAndSet(FREE, BUSY)) {
               dispatcher.getExecutor().execute(this::processMailbox);
           } else {
               log.trace("[{}] MessageBox is busy, new msg: {}", selfId, newMsg);
           }
       } else {
           log.trace("[{}] MessageBox is empty, new msg: {}", selfId, newMsg);
       }
   } else {
       log.trace("[{}] MessageBox is not ready, new msg: {}", selfId, newMsg);
   }
}

RuleNodeActor

判断消息类型，提取对应的消息类型，因为这里研究告警所以主要看告警流程，消息类型为RULE_TO_SELF_MSG

protected boolean doProcess(TbActorMsg msg) {
        switch (msg.getMsgType()) {
            case COMPONENT_LIFE_CYCLE_MSG:
            case RULE_NODE_UPDATED_MSG:
                onComponentLifecycleMsg((ComponentLifecycleMsg) msg);
                break;
            case RULE_CHAIN_TO_RULE_MSG:
                onRuleChainToRuleNodeMsg((RuleChainToRuleNodeMsg) msg);
                break;
            case RULE_TO_SELF_MSG:
                onRuleNodeToSelfMsg((RuleNodeToSelfMsg) msg);
                break;
            case STATS_PERSIST_TICK_MSG:
                onStatsPersistTick(id);
                break;
            case PARTITION_CHANGE_MSG:
                onClusterEventMsg((PartitionChangeMsg) msg);
                break;
            default:
                return false;
        }
        return true;
    }

RuleNodeActorMessageProcessor

规则消息处理封装类

public void onRuleToSelfMsg(RuleNodeToSelfMsg msg) throws Exception {
        checkComponentStateActive(msg.getMsg());
        TbMsg tbMsg = msg.getMsg();
        int ruleNodeCount = tbMsg.getAndIncrementRuleNodeCounter();
        int maxRuleNodeExecutionsPerMessage = getTenantProfileConfiguration().getMaxRuleNodeExecsPerMessage();
        if (maxRuleNodeExecutionsPerMessage == 0 || ruleNodeCount < maxRuleNodeExecutionsPerMessage) {
            apiUsageClient.report(tenantId, tbMsg.getCustomerId(), ApiUsageRecordKey.RE_EXEC_COUNT);
            if (ruleNode.isDebugMode()) {
                systemContext.persistDebugInput(tenantId, entityId, msg.getMsg(), "Self");
            }
            try {
                tbNode.onMsg(defaultCtx, msg.getMsg());
            } catch (Exception e) {
                defaultCtx.tellFailure(msg.getMsg(), e);
            }
        } else {
            tbMsg.getCallback().onFailure(new RuleNodeException("Message is processed by more then " + maxRuleNodeExecutionsPerMessage + " rule nodes!", ruleChainName, ruleNode));
        }
    }

TbDeviceProfileNode

获取到设备配置节点，读取设备规则

public void onMsg(TbContext ctx, TbMsg msg) throws ExecutionException, InterruptedException {
        EntityType originatorType = msg.getOriginator().getEntityType();
        if (msg.isTypeOf(TbMsgType.DEVICE_PROFILE_PERIODIC_SELF_MSG)) {
            scheduleAlarmHarvesting(ctx, msg);
            harvestAlarms(ctx, System.currentTimeMillis());
        } else if (msg.isTypeOf(TbMsgType.DEVICE_PROFILE_UPDATE_SELF_MSG)) {
            updateProfile(ctx, new DeviceProfileId(UUID.fromString(msg.getData())));
        } else if (msg.isTypeOf(TbMsgType.DEVICE_UPDATE_SELF_MSG)) {
            JsonNode data = JacksonUtil.toJsonNode(msg.getData());
            DeviceId deviceId = new DeviceId(UUID.fromString(data.get("deviceId").asText()));
            if (data.has("profileId")) {
                invalidateDeviceProfileCache(deviceId, new DeviceProfileId(UUID.fromString(data.get("deviceProfileId").asText())));
            } else {
                removeDeviceState(deviceId);
            }
        } else {
            if (EntityType.DEVICE.equals(originatorType)) {
                DeviceId deviceId = new DeviceId(msg.getOriginator().getId());
                if (msg.isTypeOf(TbMsgType.ENTITY_UPDATED)) {
                    invalidateDeviceProfileCache(deviceId, msg.getData());
                    ctx.tellSuccess(msg);
                } else if (msg.isTypeOf(TbMsgType.ENTITY_DELETED)) {
                    removeDeviceState(deviceId);
                    ctx.tellSuccess(msg);
                } else {
                    DeviceState deviceState = getOrCreateDeviceState(ctx, deviceId, null, false);
                    if (deviceState != null) {
                        deviceState.process(ctx, msg);
                    } else {
                        log.info("Device was not found! Most probably device [" + deviceId + "] has been removed from the database. Acknowledging msg.");
                        ctx.ack(msg);
                    }
                }
            } else {
                ctx.tellSuccess(msg);
            }
        }
    }

DeviceState

设备状态处理类，接收到设备告警处理消息，处理并更改设备状态

public void harvestAlarms(TbContext ctx, long ts) throws ExecutionException, InterruptedException {
        log.debug("[{}] Going to harvest alarms: {}", ctx.getSelfId(), ts);
        boolean stateChanged = false;
        for (AlarmState state : alarmStates.values()) {
            stateChanged |= state.process(ctx, ts);
        }
        if (persistState && stateChanged) {
            state.setStateData(JacksonUtil.toString(pds));
            state = ctx.saveRuleNodeState(state);
        }
    }

AlarmState

告警处理，获取设备告警规则，形成告警消息，这是最关键的一处业务处理逻辑

public <T> boolean createOrClearAlarms(TbContext ctx, TbMsg msg, T data, SnapshotUpdate update, BiFunction<AlarmRuleState, T, AlarmEvalResult> evalFunction) {
        boolean stateUpdate = false;
        AlarmRuleState resultState = null;
        log.debug("[{}] processing update: {}", alarmDefinition.getId(), data);
        for (AlarmRuleState state : createRulesSortedBySeverityDesc) {
            if (!validateUpdate(update, state)) {
                log.debug("[{}][{}] Update is not valid for current rule state", alarmDefinition.getId(), state.getSeverity());
                continue;
            }
            AlarmEvalResult evalResult = evalFunction.apply(state, data);
            stateUpdate |= state.checkUpdate();
            if (AlarmEvalResult.TRUE.equals(evalResult)) {
                resultState = state;
                break;
            } else if (AlarmEvalResult.FALSE.equals(evalResult)) {
                stateUpdate = clearAlarmState(stateUpdate, state);
            }
        }
        if (resultState != null) {
            TbAlarmResult result = calculateAlarmResult(ctx, resultState);
            if (result != null) {
                pushMsg(ctx, msg, result, resultState);
            }
            stateUpdate = clearAlarmState(stateUpdate, clearState);
        } else if (currentAlarm != null && clearState != null) {
            if (!validateUpdate(update, clearState)) {
                log.debug("[{}] Update is not valid for current clear state", alarmDefinition.getId());
                return stateUpdate;
            }
            AlarmEvalResult evalResult = evalFunction.apply(clearState, data);
            if (AlarmEvalResult.TRUE.equals(evalResult)) {
                stateUpdate = clearAlarmState(stateUpdate, clearState);
                for (AlarmRuleState state : createRulesSortedBySeverityDesc) {
                    stateUpdate = clearAlarmState(stateUpdate, state);
                }
                AlarmApiCallResult result = ctx.getAlarmService().clearAlarm(
                        ctx.getTenantId(), currentAlarm.getId(), System.currentTimeMillis(), createDetails(clearState)
                );
                if (result.isCleared()) {
                    pushMsg(ctx, msg, new TbAlarmResult(false, false, true, result.getAlarm()), clearState);
                }
                currentAlarm = null;
            } else if (AlarmEvalResult.FALSE.equals(evalResult)) {
                stateUpdate = clearAlarmState(stateUpdate, clearState);
            }
        }
        return stateUpdate;
    }

BaseAlarmService

告警消息处理

public AlarmApiCallResult createAlarm(AlarmCreateOrUpdateActiveRequest request, boolean alarmCreationEnabled) {
        validateAlarmRequest(request);
        CustomerId customerId = entityService.fetchEntityCustomerId(request.getTenantId(), request.getOriginator()).orElse(null);
        if (customerId == null && request.getCustomerId() != null) {
            throw new DataValidationException("Can't assign alarm to customer. Originator is not assigned to customer!");
        } else if (customerId != null && request.getCustomerId() != null && !customerId.equals(request.getCustomerId())) {
            throw new DataValidationException("Can't assign alarm to customer. Originator belongs to different customer!");
        }
        request.setCustomerId(customerId);
        AlarmApiCallResult result = alarmDao.createOrUpdateActiveAlarm(request, alarmCreationEnabled);
        if (!result.isSuccessful() && !alarmCreationEnabled) {
            throw new ApiUsageLimitsExceededException("Alarms creation is disabled");
        }
        if (result.getAlarm() != null) {
            eventPublisher.publishEvent(SaveEntityEvent.builder().tenantId(result.getAlarm().getTenantId())
                    .entityId(result.getAlarm().getId()).added(true).build());
            publishEvictEvent(new AlarmTypesCacheEvictEvent(request.getTenantId()));
        }
        return withPropagated(result);
    }

AlarmDao，AlarmRepository

到这一个类，基本上已经结束了，业务的拼接结束后只剩数据库操作了，原本以为就是一个表的读写，后面发现最终是用数据库函数完成的数据写入

@Query(value = "SELECT create_or_update_active_alarm(:t_id, :c_id, :a_id, :a_created_ts, :a_o_id, :a_o_type, :a_type, :a_severity, " +
            ":a_start_ts, :a_end_ts, :a_details, :a_propagate, :a_propagate_to_owner, " +
            ":a_propagate_to_tenant, :a_propagation_types, :a_creation_enabled)", nativeQuery = true)
    String createOrUpdateActiveAlarm(@Param("t_id") UUID tenantId, @Param("c_id") UUID customerId,
                                     @Param("a_id") UUID alarmId, @Param("a_created_ts") long createdTime,
                                     @Param("a_o_id") UUID originatorId, @Param("a_o_type") int originatorType,
                                     @Param("a_type") String type, @Param("a_severity") String severity,
                                     @Param("a_start_ts") long startTs, @Param("a_end_ts") long endTs, @Param("a_details") String detailsAsString,
                                     @Param("a_propagate") boolean propagate, @Param("a_propagate_to_owner") boolean propagateToOwner,
                                     @Param("a_propagate_to_tenant") boolean propagateToTenant, @Param("a_propagation_types") String propagationTypes,
                                     @Param("a_creation_enabled") boolean alarmCreationEnabled);

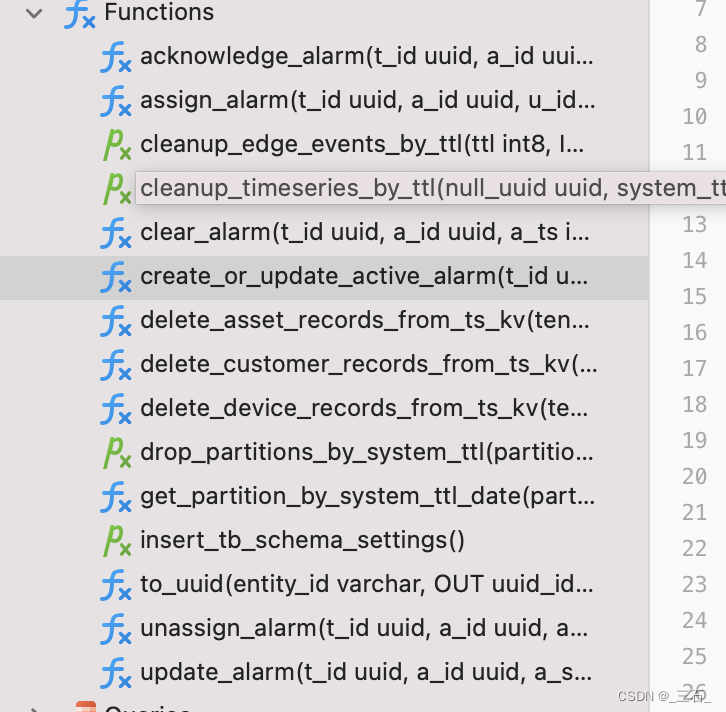

函数

总结

告警处理逻辑还是比较复杂的，最后的数据写入还是用函数做的，如果不细看，很多细节会遗漏，跟了这次源码，同时也发现了其他数据库函数
